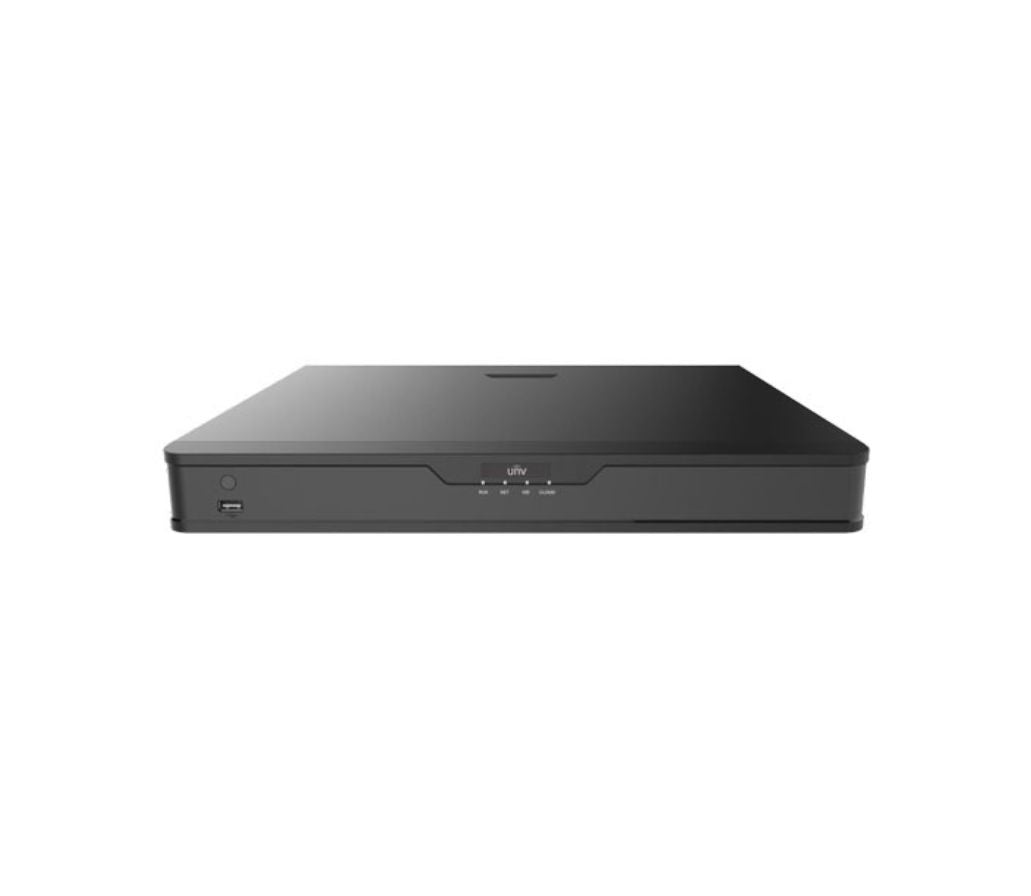

NVR302-16S2-P16
NVR302-16S2-P16
Hurry up, only 6 items left in stock.
products.product.pickup_availabilities
Description
Description
NVR302-S2-P Series
8/16 Channel 2 HDDs NVR
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
NVR302-S2-P Series
8/16 Channel 2 HDDs NVR
Features
Support Ultra265/H.265/H.264 video formats
8/16?channel input
Plug & Play with 8/16 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support HDMI and VGA simultaneous output
Up to 4K resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Specifications
Decoding Description
2
DATASHEET
Decoding Format Ultra 265, H.265, H.264
Decoding Capability
NVR302-08S2-P8:2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30
NVR302-16S2-P16:2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x
720P@30
Audio Compression G.711A, G.711U
Network Description
Incoming Bandwidth
NVR302-08S2-P8:80Mbps
NVR302-16S2-P16:160Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP
Browser(Plugin) Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above),
Edge(version 79 and above)
Video/Audio Input Description
IP Video Input
NVR302-08S2-P8:8-ch
NVR302-16S2-P16:16-ch
RCA Audio Input 1-ch
Video/Audio Output Description
HDMI Output HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz,
1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output VGA:1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz
RCA Audio Output 1-ch
Liveview Display
NVR302-08S2-P8:1/4/6/8/9
NVR302-16S2-P16:1/4/6/8/9/16
Corridor Mode Screen
NVR302-08S2-P8:3/4/5/7/9
NVR302-16S2-P16:3/4/5/7/9/10/12/16
Two-way Audio Description
Two-way Audio 1-ch, RCA(Using the audio input and output)
Snapshot Description
FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
Recording Description
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local
NVR302-08S2-P8:8-ch
NVR302-16S2-P16:16-ch
Smart Description
VCA Detection by IPC
Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave
Area);Ultra Motion Detection(UMD);People Counting(People Flow Counting, Crowd
Density Monitoring)
VCA Search Motor Vehicle Search;Non-Motor Vehicle Search;Human Body Search;General
Search;People Counting Report
Smart by IPC Total 8-ch(Face Detection, SIP, UMD)
Alarm Description
3
DATASHEET
General Alarm
Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto
Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm
Input;Audio Detection
Alert Alarm IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk
Space Low;Hard Disk Full;Recording/Snapshot Abnormal
GUI Language Description
GUI Language
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai,
Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French,
German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic,
Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish,
Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk Description
SATA 2 SATA Interfaces
Capacity Up to 10TB for each HDD(The maximum HDD capacity varies with environment
temperature)
External Interface Description
Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB Rear panel: 1 x USB3.0;Front panel: 1 x USB2.0
RS485 N/A
RS232 N/A
Alarm In 4-ch
Alarm Out 1-ch
Power Supply AC 100 ? 240 V
Power Switch Support
PoE Description
Interface
NVR302-08S2-P8:8 RJ45 10M/100M self-adaptive Ethernet Interface
NVR302-16S2-P16:16 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power
NVR302-08S2-P8:Max 30W for single port, Max 130W in total
NVR302-16S2-P16:Max 30W for single port, Max 240W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
Working Environment Description
Working Temperature -10 ?C ~ 55 ?C (14 ?F ~ 131 ?F)
Working Humidity ? 90% RH (non-condensing)
Power Consumption (without HD
D) ? 10W
Dimensions Description
Weight (without HDD) ?2.6kg (5.73lb)
Dimensions
NVR302-08S2-P8:380mm ? 315mm ?53mm (15.0"? 12.4"?2.1" )
NVR302-16S2-P16:380mm ? 315mm ?53mm (15.0"?12.4"?2.1" )
Certification Description
Certification CE;FCC;UL;RoHS;WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
