ENS ED8432H5-D 32-Channel 5MP Titanium Hybrid DVR
What happens when your surveillance system grows, but your recorder no longer has the channels, storage, or flexibility to keep up? The ENS ED8432H5-D gives you a 32-channel platform built for larger CCTV systems while supporting TVI, AHD, CVI, and compatible IP cameras.
Instead of forcing you into a single camera technology, this recorder gives you more flexibility to work with existing equipment and expand your system as your security needs change. H.265 compression, multi-drive storage, remote viewing, and simultaneous playback help make managing a large surveillance system simpler and more practical.
For businesses, large properties, and established CCTV installations, that means one centralized recorder designed to help you see more, store more footage, and access the system when you need it.
Why Buyers Choose the ED8432H5-D
When you're managing dozens of cameras, the question isn't simply whether the recorder can display video. It's whether it gives you enough flexibility, storage, playback capability, and remote access to make the surveillance system useful when something actually happens.
32-Channel Analog Capacity — Manage More Cameras From One Recorder
With 32 BNC video inputs, the ED8432H5-D is built for larger surveillance installations. Instead of dividing cameras across multiple smaller recorders, you can manage a substantial CCTV system from one centralized platform.
TVI, AHD & CVI Compatibility — Keep More of the Equipment You Already Have
The recorder supports TVI and AHD cameras at resolutions including 5MP, 4MP, 3MP, 1080P, 720P and WD1, along with CVI cameras up to 4MP. That gives you greater flexibility when upgrading an existing surveillance system instead of automatically replacing every compatible camera.
Hybrid IP Camera Support — Give Your System Room to Evolve
Need to introduce IP cameras into an existing analog installation? The ED8432H5-D supports 8 IP camera channels by default, with the specification listing support for up to 24 IP channels. This gives you a more flexible path as your surveillance requirements change.
H.265 Compression — Get More From Your Available Storage
The ED8432H5-D uses standard H.265 High Profile compression to provide high-quality video at a lower bit rate. That helps make more efficient use of your recording storage and network resources compared with less efficient compression formats.
Four SATA Drive Bays — Build Storage Around Your Surveillance Needs
Larger camera systems can create large amounts of recorded footage. With four SATA interfaces, support for up to 8TB per HDD, and an additional E-SATA interface, the ED8432H5-D gives you substantial flexibility when configuring storage for your installation.
Remote Mobile Surveillance — Check Your Cameras Without Being On-Site
Whether you're away from the property or simply don't want to sit in front of the recorder, the ED8432H5-D supports remote surveillance from compatible iOS and Android smartphones and tablets. NAT functionality and QR code scanning are also supported for mobile connectivity.
16-Channel Simultaneous Playback — Review More of the Story at Once
When an incident involves several camera angles, checking one recording at a time can make it harder to understand what happened. The ED8432H5-D supports simultaneous playback of up to 16 channels, helping you compare footage from multiple cameras during an investigation.
Multiple Search Options — Find Important Footage Faster
Search recordings by time slice, time, event, or tag instead of manually reviewing hours of footage. Smart Search can also highlight different recorded events using different colors, making recorded video easier to navigate.
Manual, Timer & Motion Recording — Record the Way Your Property Requires
Different areas may need different recording strategies. The ED8432H5-D supports manual, scheduled timer, and motion-based recording so the system can be configured around how each location is actually monitored.
Dual-Stream Technology — Balance Local Quality With Remote Access
Dual-stream technology allows the recorder to maintain high-definition video for local storage while providing a separate stream for network transmission and mobile surveillance. The result is a system designed to handle both recording and remote access more efficiently.
16 Audio Inputs — Add Sound to More of Your Surveillance System
Video can show you what happened, but audio may provide additional context. The ED8432H5-D includes 16 RCA audio inputs, one RCA audio output, and support for two-way audio using the channel-one audio input.
Alarm Integration — Build a More Complete Security System
With 16 alarm inputs and 4 alarm outputs, the recorder can become part of a broader surveillance setup. Supported alarm actions include recording, snapshots, presets, and e-mail notifications.

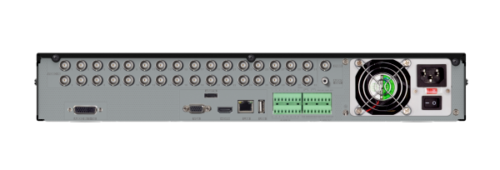

HDMI & VGA Outputs — Connect Directly to Your Security Display
The recorder includes both HDMI and VGA monitor outputs with resolutions up to 1920 × 1080. A separate BNC CVBS connection can also be used as a main or spot output.
PTZ Control — Manage Compatible Moving Cameras From the Recorder
The RS485 interface can connect to a compatible PTZ camera or control keyboard. The system supports up to 255 PTZ presets and 8 cruises, giving larger installations additional camera-control flexibility.
Pentaplex Operation — Keep the System Working While You Use It
Preview, recording, playback, backup, and remote access are all supported as part of the recorder's Pentaplex functionality. That means everyday system management doesn't have to revolve around performing only one surveillance task at a time.
What This Helps You Avoid
Imagine having a large camera system and then discovering that the recorder doesn't have enough channels for the cameras you need to add. Or upgrading part of the property only to realize your new recorder doesn't support the camera technology already installed.
Then an incident happens. You need footage from several cameras, but reviewing them individually takes too long. You're away from the property and need remote access, or you discover that your recording storage wasn't planned for the size of your surveillance system.
Those are the kinds of problems a larger hybrid recorder is designed to reduce.
The ED8432H5-D brings 32 analog inputs, hybrid IP-camera capability, H.265 compression, multi-drive storage, 16-channel playback, mobile surveillance, audio, alarm integration, and multiple video technologies together in one system.
So instead of asking, "Will my recorder still work when my surveillance system grows?", you can start with a platform designed for larger installations and greater flexibility from the beginning.
A Strong Choice for Larger Surveillance Systems
If you're protecting a business, commercial property, warehouse, enterprise facility, or another location requiring a large number of cameras, the ED8432H5-D gives you the capacity and flexibility to bring more of the surveillance system together.
You get the ability to work with multiple analog formats, incorporate compatible IP cameras, configure substantial recording storage, review multiple cameras simultaneously, and access the system remotely from compatible mobile devices.
The result is a recorder built not simply to connect cameras, but to make a larger surveillance installation easier to manage when the footage matters most.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
ENS ED8432H5-D 32CH 5MP Titanium TVI/AHD/CVI High Definition DVR
The ENS ED8432H5-D is a 32-channel high-definition DVR designed for larger surveillance systems that need flexibility across multiple analog camera technologies while also supporting IP cameras. It supports TVI, AHD and CVI cameras, H.265 High Profile compression, simultaneous playback, remote access, mobile surveillance and extensive storage capacity.
With 32 BNC video inputs, four internal SATA connections, an E-SATA interface, HDMI and VGA output, alarm integration and remote network management, the ED8432H5-D is suited for installations where centralized management of a large number of cameras is required.
Key Features
- 32-channel TVI/AHD video input supporting up to 5MP formats
- 32-channel CVI video input supporting up to 4MP formats
- 8 IP camera channels by default, expandable up to 24 IP channels
- Supports IPC formats listed as 8MP, 5MP, 4MP, 3MP, 1080P, 960P and 720P
- Standard H.265 High Profile video compression
- Embedded Linux operating system
- 16-channel simultaneous playback
- Manual, timer and motion recording modes
- Time slice, time, event and tag-based recording search
- Smart Search with color highlighting for different recorded events
- Pentaplex operation: preview, record, playback, backup and remote access
- Dual-stream technology for local recording and remote transmission
- Remote viewing, playback, backup, PTZ control and configuration
- iOS and Android mobile surveillance support
- HDMI and VGA output up to 1920 × 1080
- CVBS BNC output for main or spot output
- 16-channel audio input and single-channel audio output
- Two-way audio support
- 16 alarm inputs and 4 alarm outputs
- Gigabit RJ45 network interface
- Supports DHCP, DDNS, PPPoE, DNS, UPnP, NTP and SMTP
- Four SATA interfaces plus one E-SATA interface
- Supports up to 8TB per HDD
- Two USB 2.0 ports
- RS485 interface for PTZ or keyboard control
- Supports PTZ presets and auto cruise with up to 255 presets and 8 cruises
- NAT function and QR code scanning for mobile setup
- Multi-user simultaneous online access
- Authorization management, log review and device-status review
System
Video Inputs
Video Outputs
Audio
Recording
Playback & Search
Alarm
Network
Mobile Surveillance
Storage
Backup
Ports & Control
Power & Physical Specifications
Additional Functions
Accessories & Supported Peripherals Found
Note: The datasheet does not provide a package-contents list. Items listed above are peripherals specifically referenced as supported or optional.
Ideal Applications & Common Uses
The ED8432H5-D is designed for surveillance installations requiring a large number of camera channels, centralized recording and compatibility with multiple video technologies.
- Homes and large residential properties
- Retail and commercial properties
- Financial facilities
- Enterprise and corporate surveillance systems
- Warehouses and larger business facilities
- Transportation environments
- Government facilities
- Existing CCTV systems being upgraded while retaining compatible analog cameras
- Hybrid analog and IP surveillance installations
- Multi-camera installations requiring centralized remote and mobile monitoring
Downloads
Frequently Asked Questions
The ED8432H5-D provides 32 BNC analog video inputs. It also supports 8 IP camera channels by default, with the IP input configuration listed as expandable up to 24 channels.
The DVR supports TVI and AHD cameras at 5MP, 4MP, 3MP, 1080P, 720P and WD1 resolutions. It also supports CVI cameras at 4MP, 3MP, 1080P, 720P and WD1, along with compatible IP cameras.
Yes. The DVR supports 8 IP camera channels by default and the specification lists support for up to 24 IP channels. The datasheet also lists IPC formats including 8MP, 5MP, 4MP, 3MP, 1080P, 960P and 720P.
The DVR includes four SATA interfaces for internal hard drives and one E-SATA interface. The datasheet specifies support for up to 8TB per HDD.
Yes. The ED8432H5-D supports smartphone and tablet surveillance using iOS and Android devices. It also supports NAT functionality and QR code scanning for mobile access.
The ED8432H5-D uses standard H.265 High Profile compression. The datasheet states that this format is designed to provide high-quality video at a much lower bit rate.
The DVR supports recording at 5MP Lite, 4MP Lite, 1080P, 1080P Lite, 720P and WD1. It records 5MP Lite at 10fps, 4MP Lite/1080P at 12fps or 15fps depending on PAL/NTSC, and 1080P Lite/720P/WD1 at 25fps or 30fps depending on PAL/NTSC.
The ED8432H5-D supports simultaneous playback of up to 16 channels. Recorded footage can be searched by time slice, time, event or tag, and the DVR also includes Smart Search functionality.
Yes. The DVR provides 16 RCA audio inputs and one RCA audio output. Two-way audio is also supported using the channel-one audio input.
The DVR includes one HDMI output and one VGA output, both supporting resolutions up to 1920 × 1080. It also provides one BNC CVBS output that can be used as a main or spot output.
