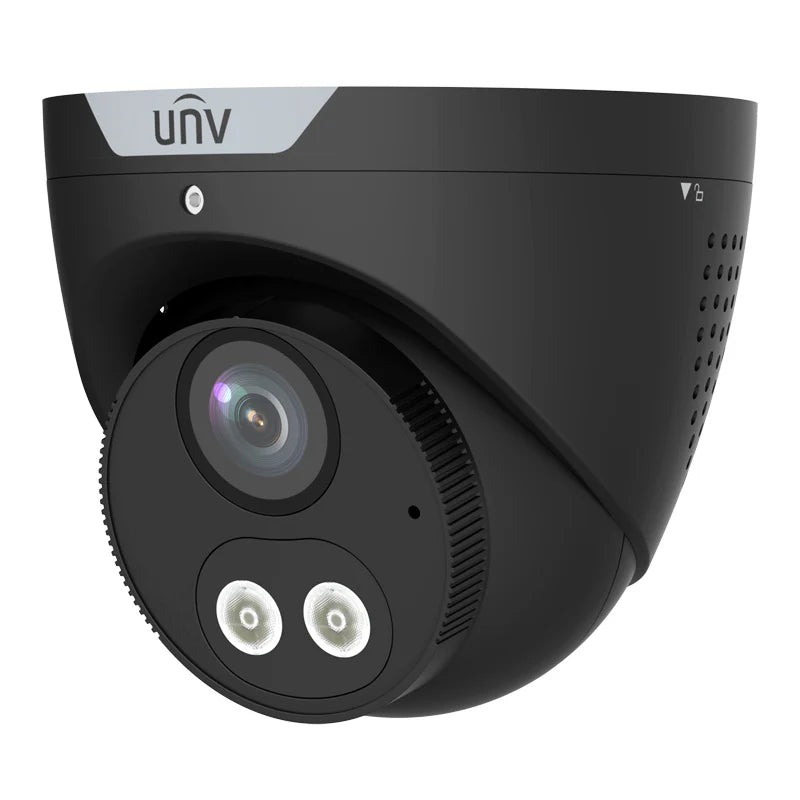

Uniview IPC3614SB-ADF28KMC-I0 BLACK 4MP Tri-Guard Fixed Dual-light Turret Network Camera
Uniview IPC3614SB-ADF28KMC-I0 BLACK 4MP Tri-Guard Fixed Dual-light Turret Network Camera
Out of stock
Description
Description
• 4 MP (2688 × 1520)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
• Supports sound and light alarm linkage. When smart intrusion prevention is triggered, the camera links sound alarm and light linkage
• Intelligent people flow counting and crowd density monitoring
• 120 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Built-in mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• MicroSD, up to 512 GB
• IP67 protection
• Supports PoE power supply
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
UNV IPC3614SB-ADF28(40)KM-I0 4MP Eyeball Network Camera
The Uniview IPC3614SB-ADF28(40)KM-I0 delivers crystal-clear 4MP surveillance with LightHunter technology for superior low-light performance. Built for reliability in demanding environments, it offers intelligent intrusion prevention, people counting, and up to 30m Smart IR for round-the-clock clarity. Whether safeguarding homes, businesses, or public spaces, this camera ensures you never miss critical details while minimizing false alarms.
Key Features
- 4MP High-Definition Imaging — Capture faces, license plates, and fine details with sharp clarity at up to 30fps.
- LightHunter Technology — Maintain vivid color images even in extremely low-light environments.
- Smart Intrusion Prevention — Reduce false alarms by filtering out irrelevant motion like leaves or small animals.
- People Counting & Density Monitoring — Gain insights into traffic flow and crowd management.
- Wide Dynamic Range (120 dB WDR) — Balanced, clear images in scenes with both bright and dark areas.
- IP67 Weatherproofing — Reliable protection against dust and heavy rain for indoor or outdoor use.
- Edge Storage Support — MicroSD slot up to 512GB ensures video backup even if the network goes down.
- Built-in Microphone — Capture important audio alongside video footage.
Camera
Lens Options
Illumination
Video & Audio
Network
General
Included Accessories
- Mounting screws and hardware
- Waterproof connector kit
- Quick start guide
Ideal Applications
Perfect for residential security, retail stores, office buildings, schools, and parking lots. With its low-light performance and intrusion prevention, it’s equally effective indoors or outdoors.
Frequently Asked Questions
The camera requires **0.002 Lux (with F1.6, AGC ON)** for color imaging; in total darkness it can go to 0 Lux when IR illumination is active.
It supports up to **4 MP (2688×1520) at 30/25 fps**, and also 4 MP at 2560×1440, 3 MP (2304×1296), and 1080p — with triple-stream support (main, sub, third).
Yes — it includes intelligent perimeter protection: cross-line, intrusion, enter/leave area detection, with a classification-based intrusion prevention system to reduce false alarms.
The IR (Smart IR) can cover up to **30 m (98.4 ft)**, using a wavelength of 850 nm.
Two fixed lens options: **2.8 mm** giving ~101.1° horizontal FOV and **4.0 mm** giving ~83.7° horizontal FOV. Tilt, pan, and rotation adjustments are supported (Pan 0–360°, Tilt 0–80°).
It supports **edge storage on a microSD card** (up to 512 GB), and also has support for NAS or NFS via network storage.
The camera is rated **IP67** for dust and water ingress, and operates in temperatures from –30 °C to 60 °C with humidity up to 95 % (non-condensing).
Supported formats: **Ultra265, H.265, H.264, MJPEG**. Bitrate range is **128 kbps to 16 Mbps**.
Up to **32 users** can access it, with roles such as Administrator, Operator, and User.
Yes — it has **120 dB True WDR** to handle scenes with strong contrast between dark and bright areas.
