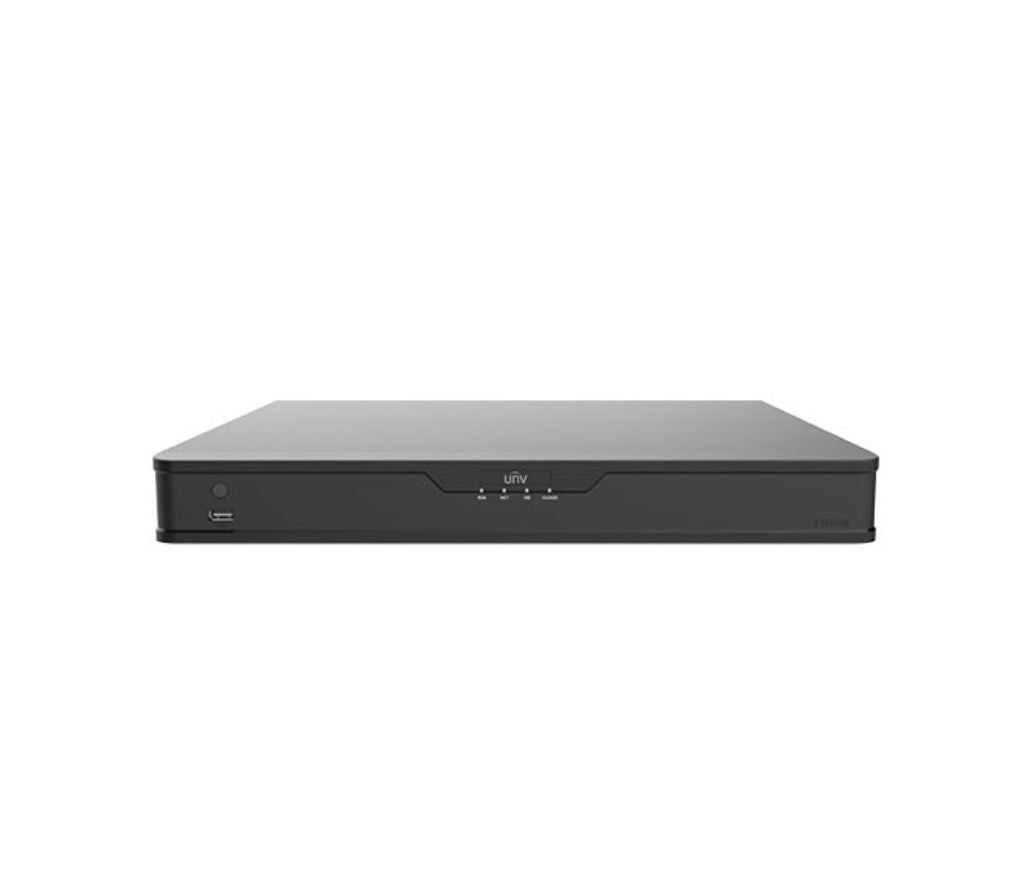

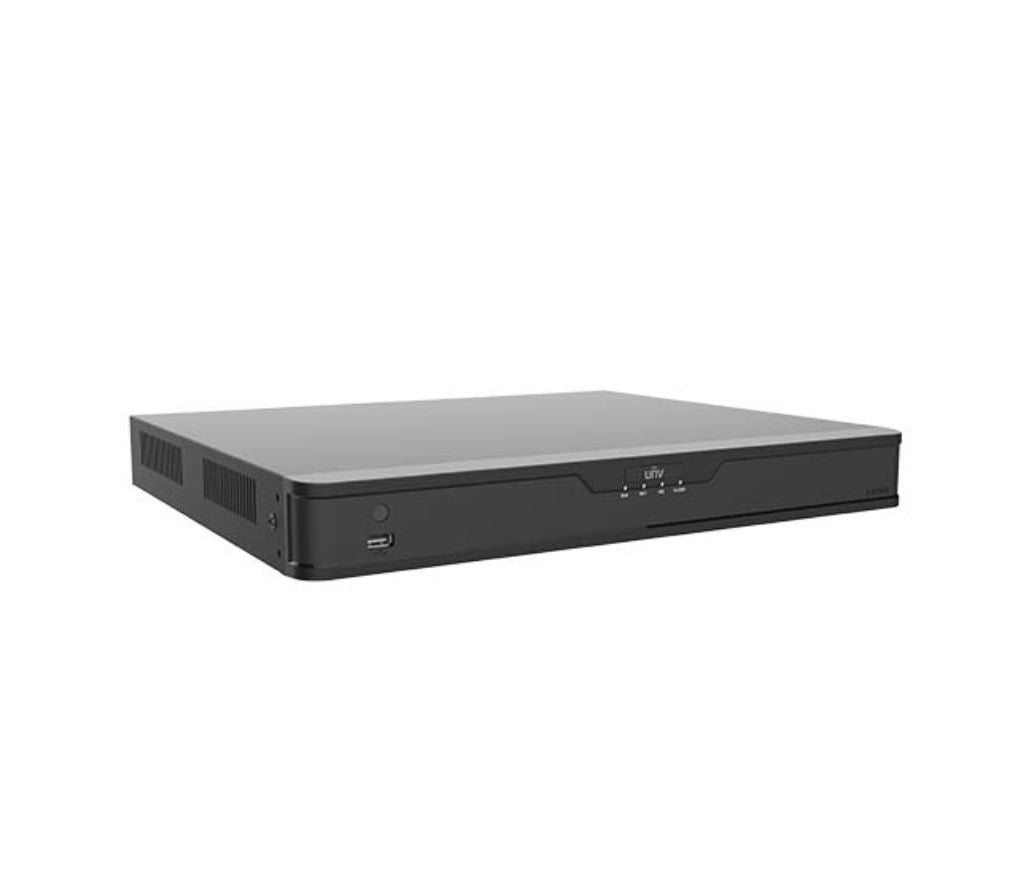

XVR302-16Q3
XVR302-16Q3
Hurry up, only 1 item left in stock.
products.product.pickup_availabilities
Description
Description
XVR302-16Q3
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
XVR302-16Q3
Features
Support H.265/H.264 video formats
Support audio over coaxial cable(only for TVI cameras)
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
16 channel BNC input
Support 1 ch CVBS output, 1 ch VGA output, 1 ch HDMI output at up to 4K(3840 x 2160)
HDMI and VGA simultaneous output
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocol
Specification
Video/Audio Input Description
IP Video Input 8?ch
Analog Video Input 16?ch, BNC
Max IP Video Input 24?ch
Supported Analog Camera Types Support AHD input:
8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support TVI input:
8MP@15fps
3K@20fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVI input:
8MP@15fps
5MP@25fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input
RCA Audio Input 1?ch
Video/Audio Output Description
HDMI Output HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
BNC Video Output 1?ch
RCA Audio Output 1?ch
Live View Display HDMI/VGA: 1/4/6/8/9/25
Encoding/Decoding Description
Recording Resolution 8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1
Recording Frame Rate Main stream: 8MP Lite@8fps Sub stream: D1@8fps
Main stream: 3K Lite@12fps Sub stream: D1@12fps
Main stream: 5MP Lite@12fps Sub stream: D1@12fps
Main stream: 4MP Lite@15fps Sub stream: D1@15fps
Main stream: 1080P@15fps Sub stream: D1@12fps
Main stream: 720P@30fps Sub stream: D1@12fps
Audio Sample Rate 8KHz,16 bit per channel
Audio Bit Rate 64Kbps per channel
Decoding Capability Analog: 16 x 8MP Lite@8, 16 x 3K Lite@12, 16 x 5MP Lite@12, 16 x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30
IP: 24 x D1@30, 16 x 720P@30, 8 x 1080P@30
Two-way Audio Description
Two-way Audio 1?ch, RCA(Using the audio input and output)
Analog Snapshot Description
FTP/Schedule/Event Snapshot Schedule/FTP/Event snapshot:16?ch snapshot, up to 704*576 resolution
Network Description
Incoming Bandwidth 80Mbps (Up to 112Mbps after all analog channel conversion)
Outgoing Bandwidth 160Mbps
Remote Users 128
Protocols TCP/IP;P2P;UPnP;DHCP;HTTP;HTTPS;DNS;DDNS;SMTP;NTP
Browser(Plugin) Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above)
Smart Description
Analog Smart by XVR SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Ultra Motion Detection(UMD)
VCA Search Face Search;Behavior Search
Smart Functions by XVR 8?ch(UMD), 4?ch(SIP)
Alarm Description
General Alarm Motion
Alert Alarm IP Conflict;Network Disconnected;Disk offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
Hard Disk Description
SATA 2 SATA interfaces
Capacity Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface Description
Network Interface 1 RJ45 10M/100M/1000M self?adaptive Ethernet Interface
USB Rear panel: 1 x USB3.0;Front panel: 1 x USB2.0
RS485 1
Alarm In 4?ch
Alarm Out 1?ch
Power Supply DC 12V/3A
Working Environment Description
Working Temperature ?10?C ~ + 55?C ( +14?F ~ +131?F )
Working Humidity ? 90% RH(non?condensing)
Power Consumption (without HDD) ? 12W
Dimensions Description
Weight (without HDD) ?2.0 Kg ( 4.4lb )
Dimensions 380mm ?326mm? 53mm (15.0" ? 12.8"?2.1")
Certification Description
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000?3?3, EN IEC 61000?3?2, EN 55035
FCC Part15 Subpart B
