16-ch 1.5U 16 POE K Series AcuSense 4K NVR
16-ch 1.5U 16 POE K Series AcuSense 4K NVR
Human and Vehicle Detection
Out of stock
Description
Description

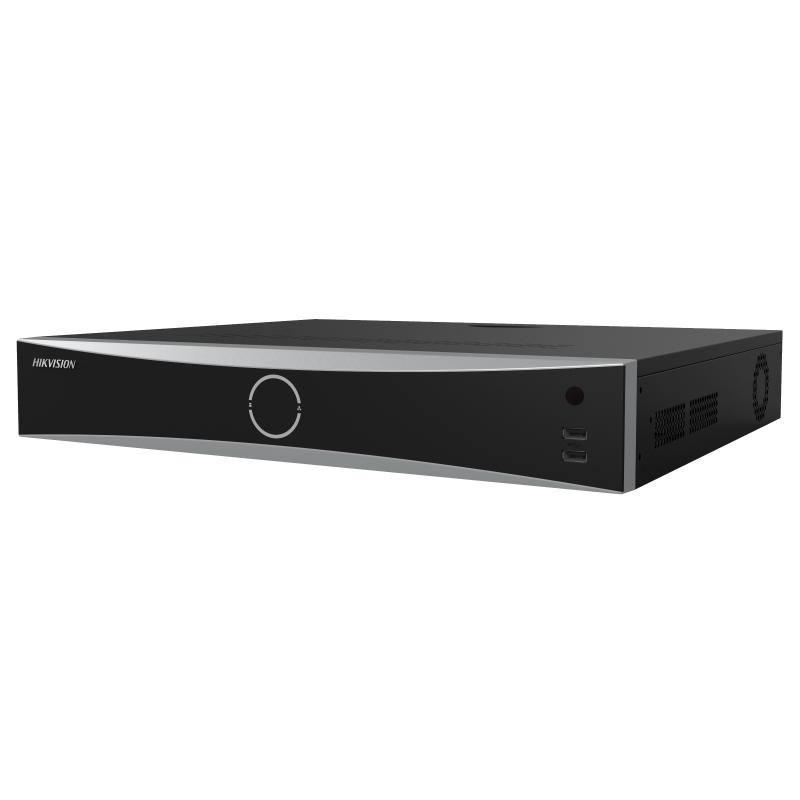

Hikvision DS-7716NXI-K4 16-Channel AcuSense 4K NVR
When your security system grows, the recorder behind it matters just as much as the cameras. The Hikvision DS-7716NXI-K4 gives you the capacity to manage up to 16 IP cameras while adding AcuSense intelligence that helps separate meaningful human and vehicle activity from everyday motion.
Instead of spending unnecessary time searching through alerts and hours of footage, intelligent detection, smart search, and 16-channel playback help you get to the events that actually matter. Add support for high-resolution cameras, four hard drives, 4K monitor output, and efficient H.265+ compression, and you have an NVR built for security systems that need room to perform and grow.
Why Buyers Choose the DS-7716NXI-K4
If you're investing in multiple high-resolution cameras, wouldn't you want the recorder to do more than simply store video? The DS-7716NXI-K4 combines recording capacity, intelligent analytics, flexible storage, and efficient video review so your surveillance system becomes easier to manage when something actually happens.
16-Channel IP Camera Support — Protect More Areas From One Recorder
Connect up to 16 IP cameras to one NVR, giving you room to cover entrances, parking areas, hallways, offices, warehouses, or other important locations without having to manage several separate recorders.
AcuSense Human & Vehicle Recognition — Spend Less Time Chasing False Alarms
Motion Detection 2.0 can analyze video for human and vehicle activity, helping reduce alerts caused by irrelevant movement. That means your attention can stay focused on activity that is more likely to matter instead of every movement in the scene.
Up to 160 Mbps Incoming Bandwidth — Built for Multi-Camera Systems
With up to 160 Mbps of incoming bandwidth, the recorder is designed to handle video from multiple network cameras simultaneously. This gives you a stronger foundation when building a larger surveillance system rather than choosing a recorder that may quickly become a bottleneck.
Up to 12 MP Recording — Preserve the Detail Your Cameras Capture
The DS-7716NXI-K4 supports recording resolutions up to 12 MP. When identification and image detail matter, your recorder can support high-resolution cameras instead of forcing your surveillance system into lower recording resolutions.
Four SATA Hard Drive Bays — Give Your System More Recording Capacity
Install up to four hard drives with capacities of up to 10 TB each. This provides substantial flexibility when you need longer recording retention or when multiple high-resolution cameras are recording around the clock.
H.265+ Compression — Keep More Video Without Wasting Storage
Hikvision states that H.265+ can reduce required storage space by up to 75%. More efficient compression can help you make better use of your hard drives while maintaining the recording history your security system depends on.
Smart Search & Smart Playback — Find Important Video Faster
When something happens, the real frustration is often finding it afterward. Smart search lets you focus on a selected area of recorded video, while smart playback is designed to improve playback efficiency so reviewing an incident doesn't have to mean manually searching through hours of footage.
16-Channel Synchronous Playback — Review the Full Story
Play back up to 16 channels simultaneously so you can follow an event across multiple camera views. For incidents involving several entrances, hallways, or exterior areas, seeing different perspectives together can make it easier to understand what actually happened.
4K HDMI Output — Get More From a High-Resolution Monitor
HDMI output supports up to 4K resolution, allowing compatible monitors to display surveillance footage with greater clarity. Independent HDMI and VGA outputs also give you more flexibility when setting up local monitoring stations.
Facial Recognition Capabilities — Search Beyond Basic Motion Events
The recorder supports face capture, face picture comparison, and face picture search, with up to 16 face picture libraries containing as many as 20,000 face pictures in total. For compatible applications, this provides another way to organize and investigate recorded events.
Perimeter Protection — Focus Attention on People & Vehicles
Device-based perimeter protection supports human and vehicle recognition on up to two 4 MP channels, helping security monitoring become more event-focused instead of reacting equally to every movement around a protected area.
Hik-Connect Support — Easier Network Management
Hik-Connect support makes it easier to integrate the recorder into Hikvision's network management ecosystem, giving your surveillance system a more convenient path for remote management.
Dual Gigabit Ethernet Interfaces — More Flexibility for Professional Installations
Two self-adaptive 10/100/1000 Mbps Ethernet interfaces give installers additional networking flexibility, particularly in larger systems where camera traffic and network design need more careful management.
ONVIF Support — Greater Integration Flexibility
Support for ONVIF Profile S/G, SDK, and ISAPI gives system integrators more options when incorporating the recorder into compatible network surveillance environments.
TLS Stream Encryption — Add Protection to Video Transmission
Stream-over-TLS encryption provides a more secure method of transmitting video streams across the network, adding another layer of protection to a system that may contain sensitive security footage.
Alarm & Serial Integration — Ready for More Advanced Security Systems
With alarm inputs and outputs plus RS-485 and RS-232 interfaces, the recorder can support installations that go beyond basic camera recording and require integration with additional compatible security equipment.
What This Helps You Avoid
A surveillance system can look impressive on paper and still become frustrating when you need it most. Too many irrelevant alerts, limited storage, slow footage searches, or a recorder that cannot comfortably support your cameras can turn an expensive security system into something you stop paying attention to.
Imagine receiving repeated motion notifications only to discover that most of them have nothing to do with a person or vehicle. Then, when an important event finally occurs, you're left scrolling through hours of footage trying to find the few minutes you actually need.
The DS-7716NXI-K4 is designed to reduce those problems. AcuSense analytics help narrow attention toward human and vehicle activity, smart search helps speed up investigations, and 16-channel synchronous playback lets you examine an event from multiple angles.
Four HDD bays and H.265+ compression also give you more flexibility over how much recorded history you can retain, while support for up to 16 cameras means your recorder has room for a substantial surveillance system. The result is a security setup designed not simply to collect footage, but to make that footage easier to manage when you actually need answers.
Built for Surveillance That Needs More Than Basic Recording
The Hikvision DS-7716NXI-K4 is especially well suited for larger homes, retail locations, offices, warehouses, commercial properties, and other installations where multiple cameras, extended recording capacity, and intelligent event filtering are important.
If you're already investing in high-resolution IP cameras, choosing an NVR with the capacity, analytics, and storage flexibility to support them can help make the entire security system more useful today while leaving room for future expansion.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7716NXI-K4 16-Channel 1.5U K Series AcuSense 4K NVR
The Hikvision DS-7716NXI-K4 is a 16-channel network video recorder designed for surveillance systems that need high-resolution recording, intelligent event filtering, substantial storage capacity, and centralized camera management. With support for cameras up to 12 MP, 160 Mbps incoming bandwidth, AcuSense human and vehicle recognition, facial recognition capabilities, and four SATA hard-drive bays, it provides a strong foundation for larger residential and commercial IP surveillance systems.
Advanced Motion Detection 2.0 and perimeter-protection analytics help distinguish people and vehicles from other movement, reducing unnecessary alarm events and making recorded footage easier to review. Independent HDMI and VGA outputs, 16-channel synchronous playback, H.265+ compression, dual Gigabit Ethernet interfaces, and Hik-Connect support provide flexibility for both local and remote system management.
Key Features
- Supports up to 16 IP camera channels.
- Up to 160 Mbps incoming network bandwidth.
- Supports H.265+, H.265, H.264+, and H.264 video compression.
- Recording resolutions up to 12 MP.
- Hikvision AcuSense intelligent analytics.
- Motion Detection 2.0 supported across all channels.
- Human and vehicle classification to reduce false alarms.
- Device-based perimeter protection on up to 2 channels at 4 MP.
- Device-based facial recognition from a 1-channel 8 MP video stream.
- Up to 4-channel face picture comparison.
- Up to 16 face picture libraries containing up to 20,000 face pictures total.
- Smart search and smart playback for faster footage review.
- Up to 4K HDMI monitor output.
- Independent HDMI and VGA video outputs.
- 16-channel synchronous playback.
- Four SATA interfaces for surveillance hard drives.
- Supports up to 10 TB per HDD.
- Maximum supported storage using four 10 TB drives: 40 TB.
- Dual 10/100/1000 Mbps Ethernet interfaces.
- Hik-Connect support for network management.
- Stream-over-TLS encryption for more secure stream transmission.
- Up to 128 remote connections.
- ONVIF Profile S/G, SDK, and ISAPI integration support.
- 16 alarm inputs and 4 alarm outputs standard, with a 16-input/9-output variant available.
Intelligent Analytics
Facial Recognition
Motion Detection 2.0
Perimeter Protection
Video & Audio
Recording, Decoding & Playback
Storage
Network
Auxiliary Interfaces
Physical Interfaces
General
GUI Languages
Certifications
Available Model
Important Compatibility & AI Notes
Accessories
Ideal Applications & Common Uses
Based on the recorder's documented 16-camera capacity, AcuSense analytics, high-resolution recording, large HDD capacity, alarm integration, and dual network interfaces, the DS-7716NXI-K4 is well suited to surveillance installations that require centralized management of multiple IP cameras.
- Homes and larger residential properties requiring multi-camera coverage.
- Retail stores and shopping environments.
- Offices and professional buildings.
- Warehouses and storage facilities.
- Small-to-medium commercial surveillance installations.
- Systems where human and vehicle filtering can reduce unnecessary alerts.
- Properties requiring perimeter-protection analytics.
- Installations using facial-recognition or face-search capabilities.
- Applications requiring up to 16-camera synchronous playback.
- Systems requiring substantial local recording capacity across multiple HDDs.
- Security installations requiring alarm input/output or RS-485 integration.
- Control-room or monitoring environments using separate HDMI and VGA displays.
Who Is This NVR Best For?
The DS-7716NXI-K4 is a strong choice for buyers who need a professional 16-channel IP recording platform with intelligent human and vehicle analytics, high-resolution camera support, expandable local storage, and advanced search capabilities. It is particularly useful when reviewing large amounts of surveillance footage efficiently is just as important as recording it.
Downloads
Frequently Asked Questions
The DS-7716NXI-K4 supports up to 16 IP camera inputs and provides up to 160 Mbps of incoming bandwidth.
The NVR supports recording resolutions up to 12 MP. Supported resolutions include 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF.
Yes. The NVR uses Hikvision AcuSense technology and supports Motion Detection 2.0 with human and vehicle recognition to help reduce false alarms. Device-based Motion Detection 2.0 is supported across all channels up to 4 MP, or up to 8 MP when Enhanced SVC mode is enabled.
The DS-7716NXI-K4 has four SATA interfaces and supports hard drives with capacities of up to 10 TB each.
Yes. The NVR supports face picture comparison, human face capture, and face picture search. It supports facial detection and analytics on 1 channel at up to 8 MP and face picture comparison on up to 4 channels. Up to 16 face picture libraries with a total of up to 20,000 face pictures are supported.
No. According to the datasheet, facial recognition, Motion Detection 2.0, and perimeter protection cannot be enabled at the same time.
Yes. The HDMI output supports resolutions up to 4K (3840 × 2160) at 30 Hz. The recorder also provides an independent VGA output supporting up to 1920 × 1080 at 60 Hz.
The recorder supports H.265+, H.265, H.264+, and H.264 video compression. Hikvision states that H.265+ compression can reduce storage space by up to 75%.
Yes. The NVR supports Hik-Connect for network management and allows up to 128 remote connections. It also supports network protocols including HTTP, HTTPS, RTSP, TCP/IP, IPv4, IPv6, and others listed in the datasheet.
Yes. The datasheet lists support for ONVIF Profile S/G as well as SDK and ISAPI integration.
