Hikvision DS-7700NI-K4/P Series NVR — Powerful Recording Built for Growing Surveillance Systems
What happens when your surveillance system grows, but your recorder becomes the part holding everything back? The Hikvision DS-7700NI-K4/P Series gives you the capacity to build a serious IP camera system with support for up to 8, 16, or 32 cameras depending on the model.
With up to 12 MP camera support, 4K HDMI output, built-in PoE connectivity, four HDD bays, and efficient H.265+ compression, you get a recorder designed to handle demanding surveillance without making the system unnecessarily complicated.
Whether you're protecting a home, business, warehouse, or larger property, this series gives you room to record more cameras, retain more footage, and take advantage of compatible smart-camera features from one centralized platform.
Why Buyers Choose the Hikvision DS-7700NI-K4/P Series
8, 16, or 32 IP Camera Channels — Build the System Around the Property
Choose the recorder capacity that fits the installation instead of forcing the property into a smaller system. The series includes 8-, 16-, and 32-channel models, giving you room for everything from residential installations to larger commercial surveillance systems.
Up to 12 MP Camera Support — Preserve the Detail That Matters
A surveillance system is only as useful as the footage you can actually review. Support for IP cameras up to 12 MP gives you the flexibility to use high-resolution cameras in areas where identifying additional visual detail may be important.
Integrated PoE Ports — Simplify Camera Connections
The DS-7708NI-K4/8P includes 8 PoE interfaces, while the 16- and 32-channel models provide 16 PoE interfaces. Compatible PoE cameras can connect directly to the recorder for network connectivity and power, helping simplify system design and reduce the need for separate PoE equipment for those directly connected cameras.
Four SATA HDD Interfaces — Keep More Surveillance Footage Available
Running several cameras continuously can create a large amount of recorded video. With four SATA interfaces supporting up to 10 TB per disk, the recorder gives you substantial storage flexibility so the system can be configured around the retention needs of the property.
H.265+ Compression — Get More From Your Storage
Why use more hard-drive space than necessary? Hikvision states that H.265+ compression can reduce storage requirements by up to 75%, helping you retain footage more efficiently while making better use of installed HDD capacity.
4K HDMI Output — Review Your Cameras on a High-Resolution Display
The HDMI output supports up to 3840 × 2160 4K resolution at 30 Hz, allowing compatible displays to present surveillance video through a high-resolution local interface. That gives you a more capable viewing station when monitoring or reviewing footage.
Independent HDMI & VGA Outputs — More Flexible Monitoring
The HDMI and VGA interfaces support independent video output. Instead of being restricted to identical displays, you gain greater flexibility when arranging monitoring stations for different viewing requirements.
Multi-Channel Playback — Review More of the Property at Once
When something happens, checking cameras one at a time can make reviewing an incident unnecessarily slow. The series supports 8-channel or 16-channel synchronous playback depending on the model, making it easier to compare activity across several camera views.
Compatible Smart Camera Functions — Make the System More Useful Than Basic Recording
The recorder supports multiple VCA events and configurable functions from compatible cameras, including motion detection, line crossing, intrusion detection, heat mapping, ANPR, and people counting. This lets you build a surveillance system around the type of information the property actually needs instead of relying only on basic video recording.
Hik-Connect Support — Easier Network Management
The series supports Hik-Connect along with a wide range of networking protocols. That gives installers and system owners additional flexibility for connecting and managing the surveillance system over a network.
Stream-Over-TLS Encryption — More Secure Video Transmission
Surveillance footage contains information you don't want transmitted carelessly. Stream-over-TLS encryption provides an additional layer of security for video stream transmission, helping create a more security-conscious surveillance infrastructure.
Two-Way Audio Support — Add Audio Where the Application Requires It
With RCA audio output and two-way audio input support, the recorder can accommodate compatible surveillance applications that require both video and audio capabilities.
What This Helps You Avoid
Imagine investing in cameras across a property only to discover later that the recorder doesn't have enough channels, storage flexibility, resolution support, or connections to handle what you actually wanted to build. Suddenly you're replacing equipment, adding extra hardware, or compromising on how the system operates.
Then consider what happens when an incident occurs and the footage you need has already been overwritten because storage wasn't planned properly, or reviewing several cameras becomes more difficult than it should be. Those are the kinds of limitations that can turn a surveillance investment into frustration.
The DS-7700NI-K4/P Series addresses those concerns with multiple channel options, four HDD interfaces, efficient H.265+ compression, high-resolution recording support, multi-channel playback, built-in PoE connectivity, and flexible video outputs.
Instead of building around the limitations of the recorder, you can choose a platform with the capacity and connectivity to support a more complete surveillance system from the beginning.
A Strong Fit For
- Homes requiring larger multi-camera surveillance systems
- Retail stores and commercial properties
- Offices and professional facilities
- Warehouses and storage facilities
- Properties requiring continuous multi-camera recording
- Systems using high-resolution IP cameras
- Installations requiring integrated PoE camera connections
- Applications using compatible VCA, ANPR, heat map, or people-counting cameras
- Surveillance systems requiring multiple hard drives for greater recording retention flexibility
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7700NI-K4/P Series NVR
The Hikvision DS-7700NI-K4/P Series is a professional network video recorder designed for multi-camera IP surveillance systems that require high-resolution recording, integrated PoE connectivity, large local storage capacity, and flexible video output.
Available in 8-, 16-, and 32-channel configurations, the series supports IP cameras up to 12 MP, H.265+ compression, HDMI output up to 4K, four SATA hard drive interfaces, advanced camera analytics, and Hik-Connect network management.
With independent HDMI and VGA outputs, synchronous multi-channel playback, Gigabit Ethernet, and support for specialized camera functions such as line crossing, intrusion detection, heat mapping, ANPR, and people counting, the DS-7700NI-K4/P Series provides a flexible recording platform for larger surveillance installations.
Key Features
- H.265+, H.265, H.264+, and H.264 video compression formats
- 8-, 16-, or 32-channel IP camera input depending on model
- Supports IP camera resolutions up to 12 MP
- Decoding up to 1-channel at 12 MP, 2-channel at 8 MP, 4-channel at 4 MP, or 8-channel at 1080p
- HDMI video output up to 4K resolution
- Independent HDMI and VGA video outputs
- Four SATA interfaces for surveillance hard drives
- Supports hard drives up to 10 TB per disk
- 8- or 16-channel synchronous playback depending on model
- Integrated 8- or 16-port PoE network interfaces depending on model
- IEEE 802.3af/at PoE support
- Gigabit 10/100/1000 Mbps Ethernet network interface
- H.265+ compression can reduce storage requirements by up to 75%
- Stream-over-TLS encryption support for more secure video transmission
- Supports multiple VCA events
- Supports compatible camera smart functions including motion detection, line crossing, intrusion detection, heat map, ANPR, and people counting
- Hik-Connect support for network management
- Two-way audio support
- Alarm inputs and outputs
- RS-485 and RS-232 serial interfaces
Available Models
Video & Audio
Decoding & Recording
Storage
Network
PoE
Smart Functions
Auxiliary Interfaces
Power & General
Certifications

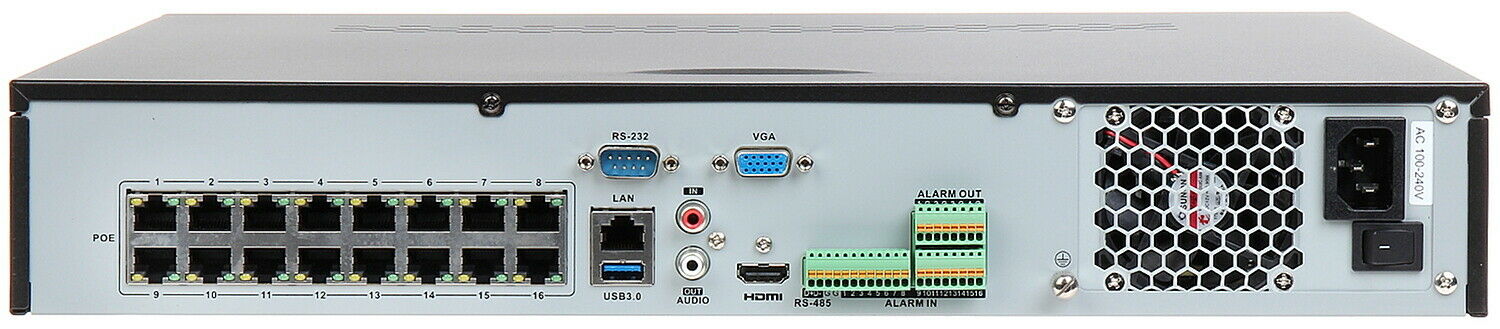

Physical Interfaces
Accessories Found in Datasheet
No separate included or optional accessories are specified in the provided datasheet.
Ideal Applications & Common Uses
Based on the recording, channel, PoE, storage, networking, and smart-function capabilities documented in the datasheet, this NVR series is suited to multi-camera IP surveillance installations such as:
- Residential properties requiring larger multi-camera systems
- Retail stores and commercial properties
- Offices and professional facilities
- Warehouses and storage facilities
- Multi-entry properties requiring centralized recording
- Applications using compatible line-crossing or intrusion analytics
- Installations using compatible ANPR cameras
- Locations using compatible people-counting or heat-map cameras
- Systems requiring local PoE camera connections
- Surveillance systems requiring multiple HDDs for continuous recording
Datasheet Notes
The first-page feature summary lists incoming bandwidth as 80 / 160 / 256 Mbps. However, the detailed specification table lists 80 Mbps for the DS-7708NI-K4/8P, 200 Mbps for the DS-7716NI-K4/16P, and 256 Mbps for the DS-7732NI-K4/16P. The values above preserve the detailed specification-table figures rather than silently reconciling the difference.
The datasheet also notes that alarm input/output configurations may be optional for certain models. Devices specifically selected with "/ALARM 16+9" provide 16 alarm inputs and 9 alarm outputs, with the ninth alarm output supporting 12V control.
Downloads
Frequently Asked Questions
The number of supported IP cameras depends on the model. The DS-7708NI-K4/8P supports up to 8 channels, the DS-7716NI-K4/16P supports up to 16 channels, and the DS-7732NI-K4/16P supports up to 32 channels.
Yes. The DS-7708NI-K4/8P provides 8 PoE network interfaces, while the DS-7716NI-K4/16P and DS-7732NI-K4/16P provide 16 PoE network interfaces. The PoE interfaces support IEEE 802.3af/at.
The datasheet specifies support for IP video input at resolutions up to 12 MP. Supported recording resolutions include 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF.
The NVR provides 4 SATA interfaces and supports up to 10 TB of capacity per hard drive according to the supplied datasheet. The series is designed to support four HDDs for continuous video recording.
Yes. The HDMI output supports resolutions up to 4K at 3840 × 2160 at 30 Hz. The NVR also includes a VGA output supporting resolutions up to 1920 × 1080 at 60 Hz.
Yes. The datasheet specifies independent HDMI and VGA video output, allowing the two interfaces to provide independent video output.
The NVR supports Hik-Connect for network management. It also supports network protocols including TCP/IP, DHCP, IPv4, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, and HTTPS.
Yes. The NVR supports H.265+, H.265, H.264+, and H.264 video formats. According to the datasheet, H.265+ compression can reduce storage space requirements by up to 75%.
The DS-7708NI-K4/8P supports up to 8-channel synchronous playback. The DS-7716NI-K4/16P and DS-7732NI-K4/16P support up to 16-channel synchronous playback.
Yes, when used with compatible cameras and supported configurations. The datasheet states that the NVR supports multiple VCA events and configurable camera smart functions including motion detection, line crossing detection, intrusion detection, heat mapping, ANPR, and people counting.
