Product Description

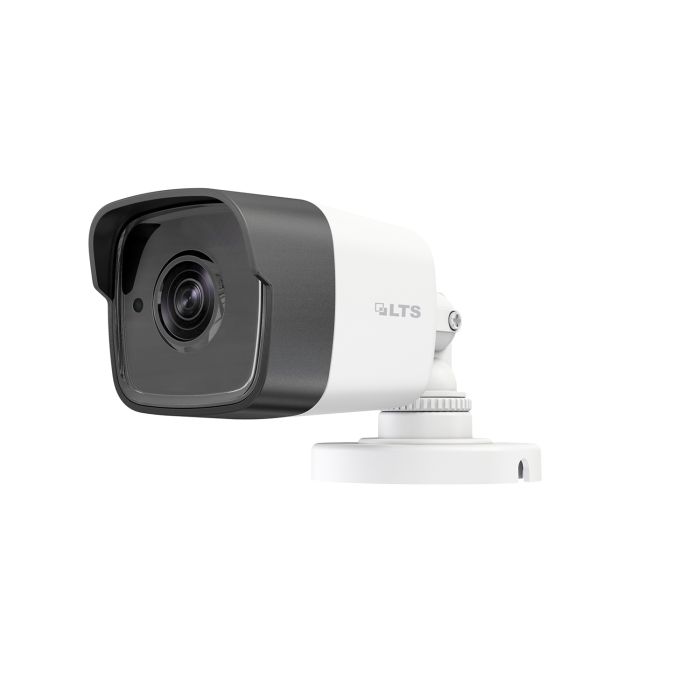

Platinum 2 MP Fixed Bullet HD-TVI Camera


Ultra-low-light, 2 MP High Performance CMOS, 1920 ? 1080 Resolution, 2.8 mm Fixed Lens, 130 dB True WDR, 3D DNR, Matrix IR 2.0, Smart IR Ranging up to 98 ft (30 m), 4-in-1 Video Output (TVI / AHD / CVI / CVBS), IP67, OSD Menu via UTC technology with Platinum DVR

  • 2 MP high performance CMOS
  • Ultra-low light
  • 1920 x 1080 resolution
  • 2.8 mm fixed lens
  • 130 dB true WDR, 3D DNR
  • Matrix IR 2.0, smart IR with range up to 98 ft (30 m) IR distance
  • 4-in-1 video output (TVI / AHD / CVI / CVBS)
  • IP67 protections
  • OSD Menu via UTC technology with Platinum DVR

SPECIFICATIONS

Camera

Image Sensor

2.0 MP progressive scan CMOS

Signal System

PAL / NTSC

Resolution

1920 (H) x 1080 (V)

Frame Rates

PAL: 1080p @ 25 fps

NTSC: 1080p @ 30 fps

Min. illumination

Color: 0.003 Lux @ f 1.2, AGC on, 0 Lux with IR

Shutter Speed

PAL: 1/25 to 1/50, 000 sec.

NTSC: 1/30 to 1/50, 000 sec.

Lens

2.8 mm fixed lens

Horizontal Field of View

104? (2.8 mm)

Lens Mount

M12

Day & Night

IR cut filter

Wide Dynamic Range (WDR)

? 130 dB

Range of Motion

Pan: 0? to 360?, Tilt: 0? to 180, Rotate: 0? to 360?

Menu

Image Mode

STD / HIGH-SAT

AGC

Supported

Day / Night Mode

Auto / Color / Black & White

White Balance

Auto / Manual

Auto Exposure (AE) Mode

WDR / BLC / HLC / Global

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable motion areas

Noise Reduction (NR)

3D / 2D

Language

English

Functions

Brightness, Sharpness, Mirror, Smart IR, HLC

Interface

Signal Options

TVI / AHD / CVI / CVBS

General

Operating Conditions

-40? to 140? F (-40? to 60? C), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ?25%

*LTS recommends using one power adapter per camera.

Power Consumption

Max. 3.4 W

Ingress Protection

IP67

Materials

Metal

IR Range

Up to 98 ft (30 m)

Communication

Up the coax, TVI output

Dimensions

2.28 ? 2.40 ? 6.42" (58 ? 61 ? 163 mm)

Weight

Approx. 0.75 lb (340 g)

SKU LTCMHR6422WE-28F
CAMERA TECHNOLOGY HD-TVI
CAMERA SERIES Platinum Series
CAMERA HOUSING Bullet
CAMERA RESOLUTION 2.1MP / 1080P
