DH-HAC-HFW1200RN-2800B-S5 Lts CCTV Camera HAC-HFW1200R 2MP HDCVI IR Bullet * The
This listing includes:
-  (1) ANALOG CAMERA: DH-HAC-HFW1200RN-2800B-S5
DH-HAC-HFW1200RN-2800B-S5  view data sheet

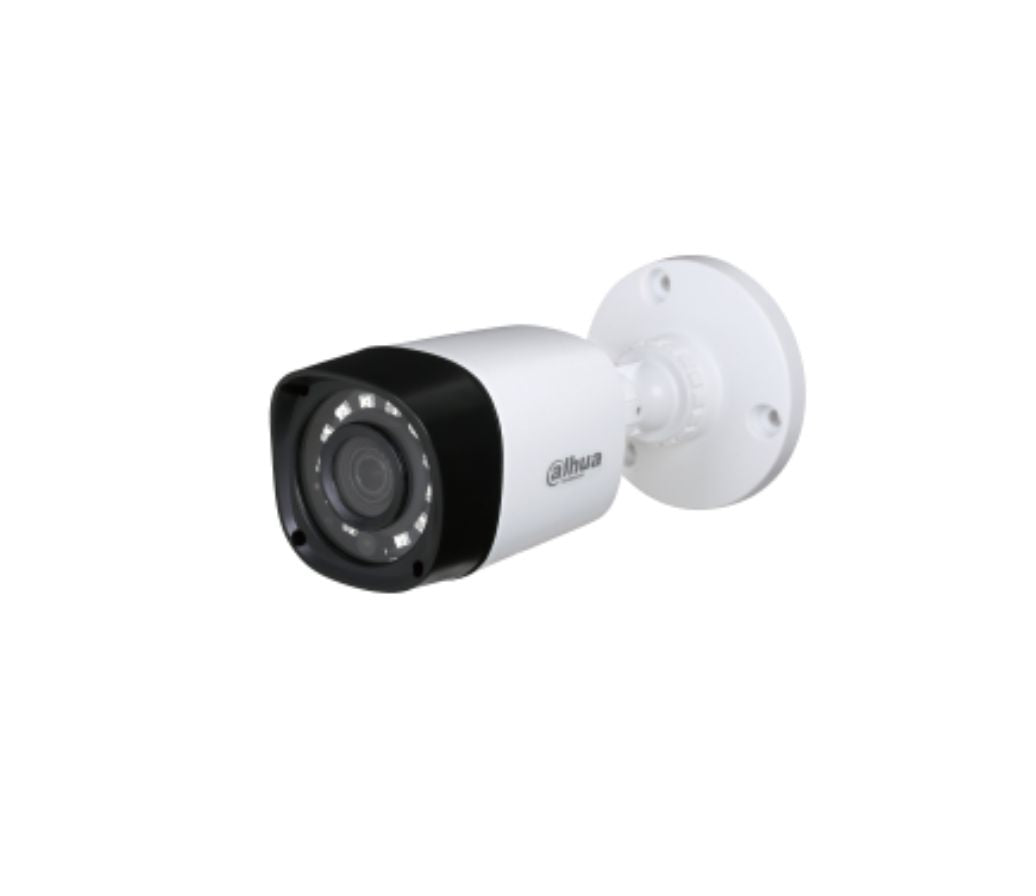

HAC-HFW1200R
2MP HDCVI IR Bullet Camera
* The parameters and datasheets below can only be applied to 1200-S5 series
> Max 30fps@1080P
> HD and SD output switchable
> 3.6mm fixed lens (2.8mm, 6mm optional)
> Max. IR length 20m, Smart IR
> IP67, DC12V
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
HAC-HFW1200R
2MP HDCVI IR Bullet Camera
* The parameters and datasheets below can only be applied to 1200-S5 series
> Max 30fps@1080P
> HD and SD output switchable
> 3.6mm fixed lens (2.8mm, 6mm optional)
> Max. IR length 20m, Smart IR
> IP67, DC12V
Technical Specification
Camera
Image Sensor 1/2.7 inch CMOS
Effective Pixels 1920(H)?1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25s?1/100000s
NTSC: 1/30s?1/100000s
S/N Ratio >65dB
Minimum Illumination 0.02Lux/F1.9, 30IRE, 0Lux IR on
Fill Light Working Distance 20 m (65.6 ft)
IR On/Off Control Auto; manual
IR LED Number 12
Pan/Tilt/Rotation Range
Pan: 0??360?
Tilt: 0??90?
Rotation: 0??360?
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.9
Field of View
2.8 mm: 119? x 101? x 54?
(diagonal x horizontal x vertical)
3.6 mm: 100? x 84? x 45?
(diagonal x horizontal x vertical)
6 mm: 60? x 56? x 30? (diagonal x horizontal x vertical)
Iris Type Fixed iris
Close Focus Distance
2.8 mm: 0.5 m (1.7 ft)
3.6 mm: 0.8 m (2.6 ft)
6 mm: 2 m (6.6 ft)
DORI
Distance
Lens Detect Observe Recognize Identify
2.8 mm 38.6 m
(126.6 ft)
15.4 m
(50.5 ft)
7.7 m
(25.3 ft)
3.9 m
(12.8 ft)
3.6 mm 49.7 m
(163.1 ft)
19.9 m
(65.3 ft)
9.9 m
(32.5 ft)
5 m
(16.4 ft)
6 mm 82.8 m
(271.7 ft)
33.1 m
(108.6 ft)
16.6 m
(54.5 ft)
8.3 m
(27.2 ft)
Video
Frame Rate
CVI: 1080P@25/30fps; 720P@25/30fps;
720P@50/60fps;
AHD: 1080P@25/30fps; 720P@25/30fps;
TVI: 1080P@25/30fps; 720P@25/30fps;
720P@50/60fps;
CVBS: 960H
Resolution 1080P (1920?1080); 720P (1280?720); 960H (960?
576/960?480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
www.dahuasecurity.com
Noise Reduction 2D NR
Smart IR Yes
Electronic Defog Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications
CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-
3-3:2013, EN55024:2010+A1:2015, EN 55035:2017,
EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Power
Power Supply 12V ?30% DC
Power Consumption Max 3.1W (12V DC, IR on)
Environment
Operating Temperature -40?C to +60?C (-40?F to 140?F); <95% (noncondensation)
Storage Temperature -40?C to +60?C (-40?F to 140?F); <95% (noncondensation)
Protection Grade IP67
Structure
Casing Plastic throughout the whole casing
Camera Dimensions 154.3 mm ? 69.8 mm ? 69.8 mm ( 6.07" ? 2.75" ?
Net Weight 0.15 Kg (0.33 lb)
Gross Weight 0.22 Kg (0.49 lb)
Lite Series | DH-HAC-HFW1200R
www.dahuasecurity.com
Dimensions (mm[inch])
Wall Mount 1 Wall Mount 2 Pole Mount
Ordering Information
Type Part Number Description
2MP Camera
DH-HAC-HFW1200RP
2.8mm
2MP HDCVI IR Bullet Camera
DH-HAC-HFW1200RN
2.8mm
DH-HAC-HFW1200RP
3.6mm
DH-HAC-HFW1200RN
3.6mm
DH-HAC-HFW1200RP
6mm
DH-HAC-HFW1200RN
6mm
Accessories
PFA134 Junction box
PFA130-E IP66 Junction Box (For use alone or with
PFA152-E pole mount)
PFA152-E Pole Mount Bracket (For use with
PFA130-E junction box)
PFM800-E Passive HDCVI Balun
PFM321D 12V 1A Power Adapter
PFM904 Integrated Mount Tester
