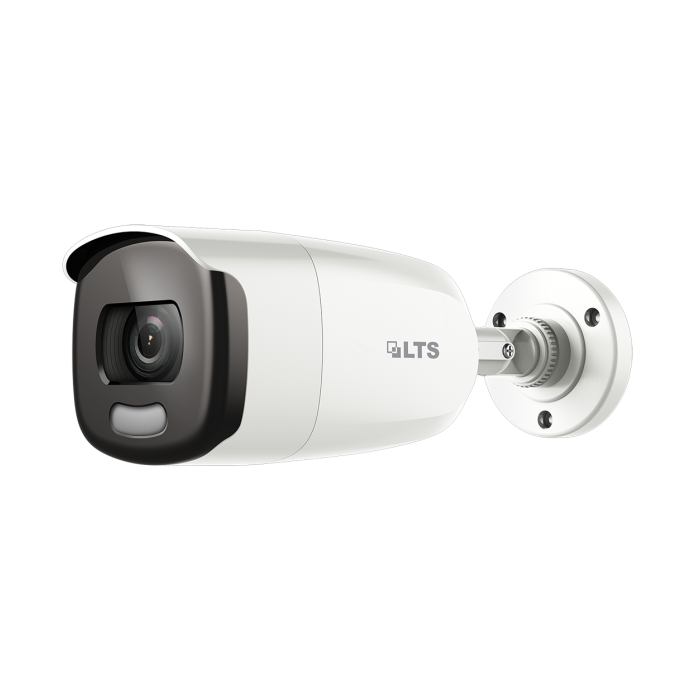

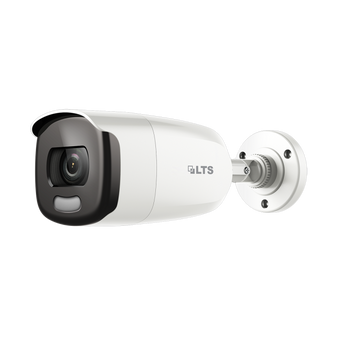

LTS LTCMHR9252W-28CFN 5MP True Color 24/7 Bullet Camera
What good is a security camera if the details you need disappear as soon as the sun goes down? The LTCMHR9252W-28CFN delivers detailed 5MP video with full-color imaging around the clock, helping you see more than basic black-and-white nighttime footage can reveal.
Its sensitive F1.0 imaging system, Smart White Light, and 130 dB True WDR work together to produce more useful video in darkness and difficult lighting. With a wide 2.8 mm lens and switchable TVI, AHD, CVI, and CVBS output, it gives you dependable coverage without limiting you to a single analog video format.
Why Buyers Choose This Model
5MP Resolution — See the Details More Clearly
The 2560 × 1944 resolution gives you a more detailed view of people, vehicles, clothing, and activity than lower-resolution analog cameras. That means less uncertainty when you need to review an important event.
True Color 24/7 — Preserve Useful Color at Night
Instead of automatically reducing every nighttime scene to black and white, this camera is designed to maintain full-color imaging around the clock. Color details can make it easier to understand what happened and distinguish one object or subject from another.
F1.0 Low-Light Imaging — Capture More in Very Dim Conditions
With a minimum illumination rating of 0.0005 lux at F1.0 with AGC enabled, the camera can continue producing color images in extremely low light. When no usable ambient light remains, its white light provides illumination for the scene.
Smart White Light up to 131 Feet — Illuminate Larger Areas
The integrated white light reaches up to 131 feet, or 40 meters, helping illuminate driveways, entrances, yards, and other areas after dark. Smart Light functionality helps the camera manage its supplemental illumination automatically.
130 dB True WDR — Improve Difficult High-Contrast Scenes
Bright entrances, headlights, and strong background light can hide important details. True WDR helps balance bright and dark areas so the subject does not become as easily lost in glare or shadow.
3D DNR — Get Cleaner, More Usable Video
Digital noise can make low-light footage look grainy and distracting. The camera's 3D digital noise reduction helps produce a cleaner image, making recorded activity easier to review.
Wide 2.8 mm Lens — Monitor More of the Scene
The fixed 2.8 mm lens provides a 99.7° horizontal field of view, allowing one camera to watch a broad area. It is well suited for places where seeing the overall scene matters more than viewing a narrow, zoomed-in target.
Four-in-One Video Output — More Installation Flexibility
Switchable TVI, AHD, CVI, and CVBS output gives installers greater flexibility when matching the camera to an analog surveillance system. This helps reduce the limitations associated with a single signal format.
Flexible Positioning — Aim Coverage Where It Matters
The mounting assembly supports 360° pan, 90° tilt, and 360° rotation. This allows the installer to position and level the camera for the intended viewing area.
IP67 Protection — Built for Outdoor Exposure
The IP67-rated housing allows the camera to be used in exposed outdoor locations. Its operating range of -40°F to 140°F also supports installation across demanding hot and cold environments.
Privacy Masks and Motion Areas — Focus the Camera's Coverage
Four programmable privacy masks can block areas that should not be displayed, while four programmable motion areas let the system focus motion monitoring on selected parts of the image.
Strobe Light Alarm — Add a Visible Warning
The camera supports a strobe light alarm, providing a visible response that can draw attention to security activity when properly configured with the surveillance system.
What This Helps You Avoid
Imagine reviewing footage after an incident only to find that the scene is too dark, important colors are missing, or strong lighting has hidden the subject. At that point, having a camera installed may offer little comfort if the recording cannot answer the questions that matter.
- Grainy video that makes nighttime activity difficult to interpret
- Black-and-white footage that removes potentially useful color details
- Subjects becoming hidden by bright backgrounds or deep shadows
- Narrow coverage that leaves too much of the surrounding area unseen
- Replacing a camera simply because a different analog signal format is required
- Using an indoor-only camera in an exposed outdoor location
The LTCMHR9252W-28CFN addresses these concerns with detailed 5MP imaging, continuous color operation, long-range white light, True WDR, and wide-area coverage. The result is a surveillance view designed to give you clearer answers and greater confidence when reviewing activity around your property.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Recommended Alternatives
Hikvision DS-2CE10KF0T-FS 3K ColorVu Audio Fixed Mini Bullet Camera
Only 9 left
Choose your option
DS-2CE12HFT-F28 HIKVISION 5MP ColorVu Outdoor Bullet Camera 2.8m Fixed Lens
Out of stock
Choose your option
DS-2CE10KF0T-PFS Hikvision w/ audio CCTV Camera 3k/5MP ColorVu Mini Bullet
Out of stock
Choose your option
HDC-IR5AS21/36, 5MP Analog Bullet Camera Full Color 3.6mm lens
Out of stock
Choose your option
LTB345
Technical Specifications
CMHR9252W-28CFN Lts CCTV Camera <h1 Platinum 5 MP Bullet HD-TVI </h1
The LTS CMHR9252W-28CFN is a 5 MP True Color 247 Bullet Camera. Highlights include 5 MP, 2560 × 1944 resolution, 24-hour color image and 130 dB true WDR, 3D DNR. Its IP67 rating supports installation where dust and water protection is required.
Ideal applications
- Home and small business video surveillance
- Outdoor coverage of entrances, driveways, yards and parking areas
- Night-time and low-light monitoring
Key Features
- 5 MP, 2560 × 1944 resolution
- 24-hour color image
- 130 dB true WDR, 3D DNR
- 2.8 mm fixed focal lens
- Smart Light, up to 131ft (40 m) white light distance
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67
Camera
Menu
Interface
General
Downloads
Frequently Asked Questions
The camera uses a 5MP CMOS sensor and produces video at a maximum resolution of 2560 × 1944.
Yes. It is designed for 24-hour color imaging and has a minimum illumination rating of 0.0005 lux at F1.0 with AGC enabled. It can also operate at 0 lux when its white light is active.
The integrated Smart White Light has a maximum illumination distance of 131 feet, or 40 meters.
It has a 2.8 mm fixed lens with a 99.7° horizontal field of view, 72° vertical field of view, and 139.8° diagonal field of view.
The camera has a switchable four-in-one video output supporting TVI, AHD, CVI, and CVBS formats.
In TVI mode, it supports 5MP at 20 fps, 4MP at 30 or 25 fps, and 1080p at 30 or 25 fps. AHD supports 5MP at 20 fps and 4MP at 30 or 25 fps. CVI supports 4MP at 30 or 25 fps, while CVBS supports PAL or NTSC output.
Yes. The camera is IP67 rated and can operate in temperatures from -40°F to 140°F (-40°C to 60°C), with humidity of 90% or less when non-condensing.
It provides at least 130 dB True Wide Dynamic Range to manage high-contrast lighting and uses 3D digital noise reduction to reduce image noise.
The camera requires a 12 VDC power supply with a ±25% tolerance and consumes a maximum of 4.9 watts. The manufacturer recommends using one power adapter for each camera.
Yes. It supports four programmable motion-detection areas and four programmable privacy masks. The datasheet also lists the LTB345 junction box as a compatible accessory, but it does not state that the junction box is included with the camera.
