Product Description

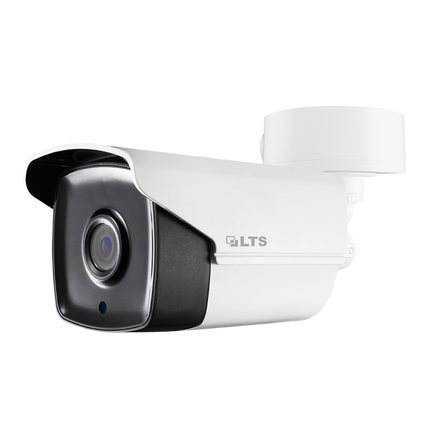

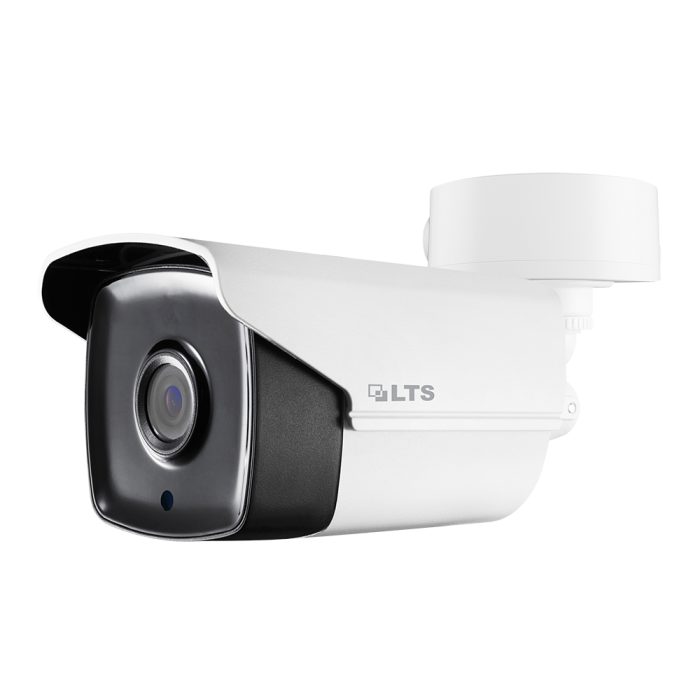

Platinum 5 MP Bullet HD-TVI Camera


Ultra-Low Light Platinum 5 MP TVI Camera, High Performance CMOS Sensor, 4-in-1 Video Output, OSD Menu via UTC Technology with Platinum DVR, Junction Box Included

  • Junction box included
  • 5 MP high performance CMOS
  • 2560 x 1944 resolution
  • 2.8 mm fixed lens
  • Matrix IR 2.0, Smart IR, up to 197 ft (60 m) IR distance
  • 3D DNR, 130 dB true WDR
  • 4-in-1 video output (TVI / AHD / CVI / CVBS)
  • IP67 protection
  • OSD Menu via UTC technology with Platinum DVR

SPECIFICATIONS

Camera

Image Sensor

5 MP progressive scan CMOS

Signal System

PAL / NTSC

Resolution

2560 (H) x 1944 (V)

Min. Illumination

Color: 0.003 Lux @ f 1.2, AGC on, 0 Lux with IR

Frame Rates

TVI: 2 MP @ 25 fps, 2 MP @ 30 fps, 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps
AHD: 4 MP @ 25 fps, 4 MP @ 30 fps, 5 MP @ 20 fps
CVI: 4 MP @ 25 fps, 4 MP @ 30 fps
CVBS: PAL, NTSC

Shutter Speed

PAL: 1/25 to 1/50,000 sec.
NTSC: 1/30 to 1/50,000 sec.

Lens

2.8 mm fixed lens

Horizontal Field of View

98? (2.8 mm)

Lens Mount

M12

Day & Night

IR cut filter

Range of Motion (Bracket)

Pan: 0? to 360?, Tilt:0? to 180?, Rotate: 0? to 360?

Synchronization

Internal synchronization

Wide Dynamic Range (WDR)

? 130 dB

Menu

AGC

Yes

Day / Night Mode

Auto / Color / Black and White

White Balance

Auto / Manual

Backlight Compensation (BLC)

Yes

WDR

Yes

3D DNR

Levels 1 to 9

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable areas

Language

English

Functions

Brightness, Sharpness, 3D DNR, Mirror, Smart IR

Interface

Video Output

1 x HD analog output

Signal Options

TVI / AHD / CVI / CVBS

General

Operating Conditions

-40? to 140? F (-40? to 60? C), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ? 25%

Power Consumption

Max. 5.8 W

Protection Levels

IP67

Materials

Metal

IR Range

Up to 197 ft (60 m)

Communication

Up the coax, TVI output

Dimensions

3.22 ? 3.41 ? 8.58" (81.9 ? 86.7 ? 217.9 mm)

Weight

Approx. 1.26 lb (570 g)

SKU LTCMHR9252WE-28F
CAMERA TECHNOLOGY HD-TVI
CAMERA SERIES Platinum Series
CAMERA HOUSING Bullet
CAMERA RESOLUTION 5MP
