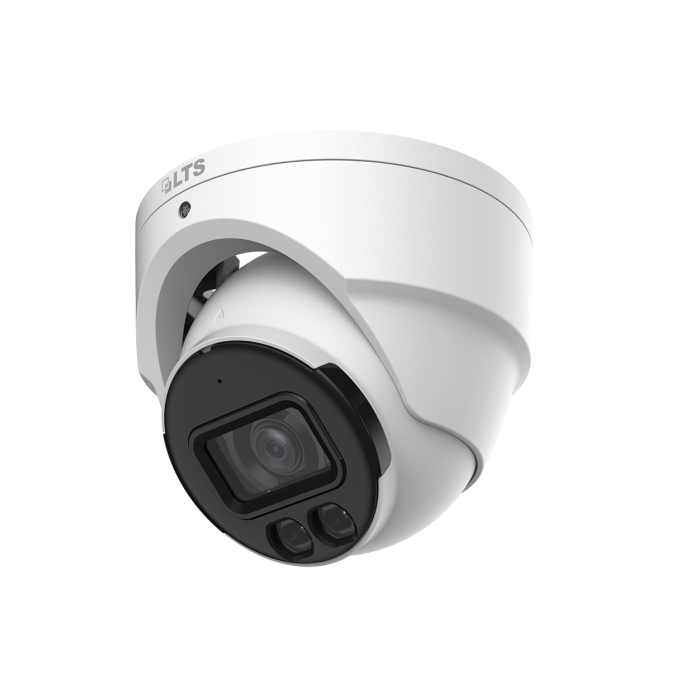

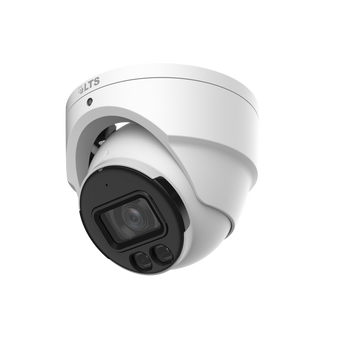

LTS LTCMHT2552-28CF 5MP Full-Color Turret Camera
What happens when an important incident occurs at night, but the recorded image lacks the color and detail needed to understand what happened?
The LTS LTCMHT2552-28CF combines 5MP resolution, an ultra-bright F1.0 lens, and built-in warm lighting to capture vivid, full-color video during the day and in complete darkness.
Its wide 2.8mm lens helps you monitor more of the property, while switchable TVI, AHD, CVI, and CVBS output makes it a flexible option for compatible coaxial surveillance systems.
With an IP67-rated housing and a wide operating-temperature range, it delivers dependable monitoring in demanding indoor and outdoor environments.
Why Buyers Choose This Model
Buyers choose this camera when ordinary black-and-white nighttime footage may not provide enough useful visual information. Instead of losing important color details after dark, the camera uses a sensitive imaging system and warm supplemental lighting to maintain full-color monitoring around the clock.
5MP Resolution
Capture sharper video with more visible detail than lower-resolution analog cameras. The camera records at up to 2592 × 1944 resolution, helping you review people, objects, clothing colors, and activity with greater clarity.
Full-Color Video in Complete Darkness
The bright F1.0 lens and two built-in warm lights allow the camera to produce color images even at 0 lux. This gives you more useful nighttime footage without automatically reducing every dark scene to black and white.
Up to 131 Feet of Warm-Light Illumination
The integrated warm lights reach up to 40 meters, or approximately 131 feet. This helps illuminate driveways, entrances, parking areas, and other dark spaces without requiring a separate illuminator.
Wide 2.8mm Viewing Angle
A 98° horizontal field of view lets you monitor a broad section of the property from one camera position. This makes the camera especially useful for entrances, garages, yards, storefronts, and open indoor spaces.
Flexible Four-in-One Video Output
Switch between TVI, AHD, CVI, and CVBS output using the camera’s DIP switch. This flexibility can make upgrading or matching the camera to a compatible coaxial DVR easier.
Up to 30 Frames per Second at 4MP
Choose up to 5MP at 20 fps for maximum image detail or up to 4MP at 30 fps in compatible TVI and CVI modes for smoother motion. This gives you options based on what matters most at the installation location.
Improved Visibility in Difficult Lighting
BLC, HLC, and DWDR help compensate for backlighting, intense highlights, and unevenly illuminated scenes. The result is a more balanced image when entrances, windows, headlights, or bright exterior lighting would otherwise hide important details.
Smart Illumination Control
Automatic or manual warm-light control lets the camera adapt its supplemental lighting to the scene. This helps maintain usable nighttime visibility without requiring constant manual adjustment.
Weather-Resistant IP67 Housing
The IP67-rated enclosure protects the camera against dust and outdoor weather exposure. Its operating range of -40°F to +140°F supports reliable use through demanding seasonal conditions.
Flexible Turret Adjustment
Wide pan, tilt, and rotation adjustment helps the installer accurately aim the camera toward the area that matters most, reducing the risk of wasting coverage on walls, ceilings, or other low-priority areas.
What This Helps You Avoid
Imagine reviewing an incident only to discover that the nighttime image is too dark, too narrow, or missing the color details that could help explain what occurred.
That uncertainty can make it harder to distinguish clothing, vehicles, objects, and movement. A camera may technically record the event while still leaving you without the visual information you expected it to capture.
The LTCMHT2552-28CF addresses that problem with full-color nighttime imaging, 5MP resolution, wide-area coverage, and built-in warm lighting. Instead of simply recording darkness, it is designed to preserve a clearer and more informative view of the scene.
If your goal is to upgrade a compatible coaxial system without giving up detailed color monitoring after dark, this camera provides a practical balance of image quality, coverage, durability, and installation flexibility.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Discontinued — Recommended Replacements
CMHT1752W-28CF Lts CCTV Camera
Out of stock
Choose your option
HIKVISION 5MP ColorVu DS-2CE72HFT-F28 Fixed Outdoor Turret Camera 2.8m
Out of stock
Choose your option
Hikvision DS-2CE70KF0T-MFS ColorVu Series 5MP 3K Analog CCTV Camera
In stock
Choose your option
Technical Specifications
CMHT2552-28CF Lts CCTV Camera <h1 Platinum 5 MP Color 24/7 HD-TVI
The LTS CMHT2552-28CF is a security camera. Highlights include 1/2.7" CMOS image sensor, 2.8mm fixed lens and built-in Warm LED, full-color TVI/AHD/CVI/CVBS switchable. Its IP67 rating supports installation where dust and water protection is required.
Ideal applications
- Home and small business video surveillance
- Outdoor coverage of entrances, driveways, yards and parking areas
- Night-time and low-light monitoring
Key Features
- 1/2.7" CMOS image sensor
- 2.8mm fixed lens
- Built-in Warm LED, full-color TVI/AHD/CVI/CVBS switchable
- 12V DC power supply
- Image Sensor: 1/2.7” 5Megapixel progressive CMOS
- Lens Type: Fixed-focal 2.8mm@F1.0
Camera
Video
Interface
General
Downloads
Frequently Asked Questions
Yes. The camera is designed for full-color day-and-night monitoring. It can operate at 0.001 lux with its F1.0 lens and at 0 lux when its two built-in warm lights are turned on.
The camera produces up to 5MP resolution at 20 frames per second. In TVI and CVI modes, it can also produce 4MP video at up to 30 frames per second.
It supports TVI, AHD, CVI, and CVBS video output through one BNC connection. The desired output format is selected using the camera’s DIP switch.
The camera offers switchable TVI, AHD, CVI, and CVBS output. Your DVR must support the selected signal format and the camera’s desired resolution and frame rate. The supplied datasheet does not identify specific compatible DVR models.
The two built-in warm-light illuminators have a stated illumination range of up to 40 meters, or approximately 131.23 feet. Illumination can be controlled automatically or manually.
Its fixed 2.8mm lens provides a 98° horizontal, 71° vertical, and 129° diagonal field of view, making it suitable for monitoring relatively wide areas.
The stated DORI distances are 67.4 meters (221.13 feet) for detection, 27 meters (88.58 feet) for observation, 13.5 meters (44.29 feet) for recognition, and 6.7 meters (21.98 feet) for identification.
Yes. It has an IP67 protection rating and is specified to operate from -40°C to +60°C (-40°F to +140°F) in humidity below 95%, non-condensing.
The camera does not use PoE. It requires a 12V DC power supply with a ±30% tolerance and consumes up to 5.3 watts when the warm light is on.
The supplied datasheet does not list a built-in microphone, audio input, or audio recording capability. Only video output through a BNC port is specified.
