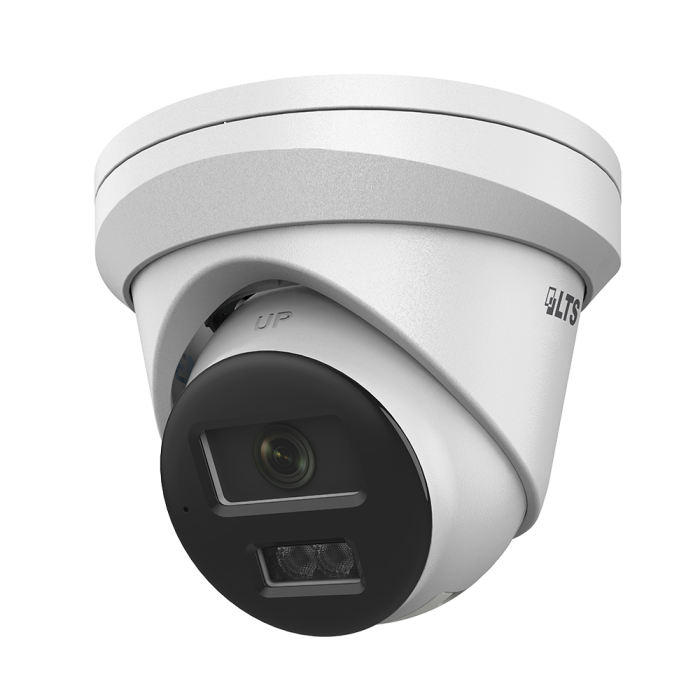

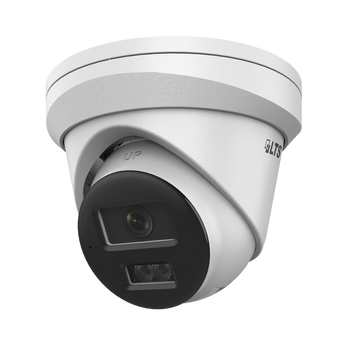

CMIP1342WE-28MDA
CMIP1342WE-28MDA
Human and Vehicle Detection
Hybrid Light
One Way Audio
Out of stock
Description
Description
See More of What Matters—Day or Night
What happens when ordinary motion alerts make it difficult to recognize the activity that actually deserves your attention? The CMIP1342WE-28MDA combines clear 4MP video with human and vehicle detection, helping you monitor important activity without relying solely on basic motion detection.
Its Smart Hybrid Light technology, built-in microphone, and 120 dB WDR provide added visual and audio context when reviewing an incident. With PoE connectivity, onboard storage support, and an IP67-rated metal housing, it delivers the practical features needed for dependable indoor or outdoor surveillance.
Why Buyers Choose This Model
4MP Video Resolution — See Important Details More Clearly
Capture video at up to 2560 × 1440 resolution, providing more detail than standard 1080p. This can make it easier to review clothing, movements, vehicles, and other useful details after an event.
Human and Vehicle Detection — Focus on Relevant Activity
Instead of treating every movement the same, the camera can trigger motion events based on specified human and vehicle targets. This helps make alerts more meaningful when configured with a compatible surveillance system.
Smart Hybrid Light — Flexible Nighttime Surveillance
The camera combines infrared and visible white supplemental lighting with a range of up to 98 feet. This gives you more flexibility when monitoring dark areas where ordinary ambient lighting may not provide enough visibility.
Built-in Microphone — Add Audio Context to Recorded Events
Video can show you what occurred, but audio may help you understand the situation more completely. The integrated microphone records mono audio and includes environmental noise filtering for clearer event review.
120 dB WDR — Handle Challenging Lighting Conditions
Entrances, garages, and storefronts frequently contain bright backgrounds and dark foregrounds. The camera’s 120 dB Wide Dynamic Range helps maintain more visible detail across both areas instead of leaving part of the image washed out or excessively dark.
2.8 mm Wide-Angle Lens — Cover More of the Scene
A 98° horizontal field of view helps monitor broad areas such as entrances, driveways, patios, offices, and retail spaces. This makes the camera a practical choice when wide coverage is more important than long-distance magnification.
Up to 512 GB of Onboard Storage — Keep a Local Recording Option
The built-in card slot supports microSD, microSDHC, and microSDXC cards with capacities up to 512 GB. This provides a local storage option that can complement a compatible network recorder or supported standalone application.
H.265+ Compression — Use Storage and Bandwidth More Efficiently
Efficient H.265+ video compression helps reduce bandwidth and storage demands. This allows your surveillance system to manage recorded footage more efficiently without relying only on older compression formats.
PoE Support — Simplify the Camera Connection
With IEEE 802.3af PoE support, a compatible system can carry power and network data through one Ethernet cable. The camera can also operate from a compatible 12 VDC power source when the installation requires it.
IP67-Rated Metal Housing — Built for Indoor or Outdoor Use
The weather-resistant metal housing protects the camera from dust and rain. Its operating temperature range of -22°F to 140°F makes it suitable for demanding residential and commercial environments.
LTS Connect Support — Access Your Compatible System Remotely
The camera supports LTS Connect and NVMS client platforms, giving you convenient viewing options when it is connected and configured with a compatible surveillance system.
What This Camera Helps You Avoid
Imagine discovering suspicious activity around your property, only to find that the recording is too dark, the subject is too small, or the system captured video without enough context to understand what happened. A camera may technically be recording, but that does not mean the footage will give you the information you need.
The CMIP1342WE-28MDA addresses these problems with 4MP imaging, wide-area coverage, infrared and white supplemental lighting, recorded audio, and 120 dB WDR. Human and vehicle detection also helps your system focus on activity that is more likely to matter.
The result is a more useful layer of surveillance—one designed to help you monitor your property, investigate incidents, and feel more confident that important activity is being documented.
- Difficulty seeing useful details in lower-resolution footage
- Dark areas with insufficient nighttime visibility
- Motion events that provide no distinction between people and vehicles
- Recorded video without accompanying audio context
- Washed-out entrances and subjects caused by strong backlighting
- Limited local storage options when additional recording flexibility is needed
- Complicated installations requiring separate power and network cables
- Indoor-only cameras that are not designed for rain or dusty environments
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Recommended Alternatives
Hikvision DS-2CD1343G2-LIU 4 MP Smart Hybrid Light Fixed Turret Network Camera
In stock
Choose your option
CMIP3C42W-28SDL Lts w/ audio IP PoE Camera Platinum 4 MP Lens Turret Active
Out of stock
Choose your option
LTB03-W, LTB03-B, LTB307B, LTB301, LTB378, LTB379
Technical Specifications
CMIP1342WE-28MDA
The LTS CMIP1342WE-28MDA is a professional security product. Highlights include support Human and Vehicle Detection, smart Hybrid Light: advanced technology with long range and built-in microphone for real-time audio security. Its IP67 rating supports installation where dust and water protection is required.
Ideal applications
- Residential and commercial security installations
- Professional installer projects
Key Features
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Built-in microphone for real-time audio security
- Support on-board storage up to 512 GB (SD card slot)
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) CMIP1342WE-28MDA
- 4MP Dual Light Turret Network Camera
Camera
Lens
Illuminator
Video
Audio
Network
Interface
Event
General
Approval
Downloads
Frequently Asked Questions
The camera provides 4MP resolution with a maximum image size of 2560 × 1440. It records this resolution at up to 20 frames per second.
Yes. Its motion detection supports alarm triggering based on specified human and vehicle target types, helping distinguish these targets from general motion in the scene.
Smart Hybrid Light means the camera supports both infrared and visible white supplemental lighting. The datasheet lists smart supplemental lighting with an illumination range of up to 30 meters, or approximately 98 feet.
Yes. The camera is rated for 0 lux when using its infrared illumination. Its infrared and white supplemental lights have a listed range of up to 30 meters, or approximately 98 feet.
Yes. It has a built-in microphone for recording mono audio and supports environmental noise filtering. The datasheet does not list a built-in speaker, so it should not be described as supporting two-way audio.
The fixed 2.8 mm lens provides a 98° horizontal, 54° vertical, and 114° diagonal field of view, making it suitable for monitoring relatively broad areas from a fixed position.
The camera has a built-in memory card slot that supports microSD, microSDHC, and microSDXC cards with capacities up to 512 GB. This allows compatible on-camera storage, although the memory card is not listed as included.
Yes. It has a metal housing and an IP67 water- and dust-resistance rating. Its listed operating range is -22°F to 140°F with humidity of 95% or less, non-condensing.
Yes. It supports IEEE 802.3af Class 3 PoE, allowing compatible installations to transmit power and network data through one Ethernet cable. It can also be powered using 12 VDC.
The datasheet lists NVMS and LTS Connect as supported client platforms. It also supports Open Network Video Interface Profiles S, T, and G, along with ISAPI and SDK integration. Compatibility with a specific third-party recorder should be verified before purchase.
