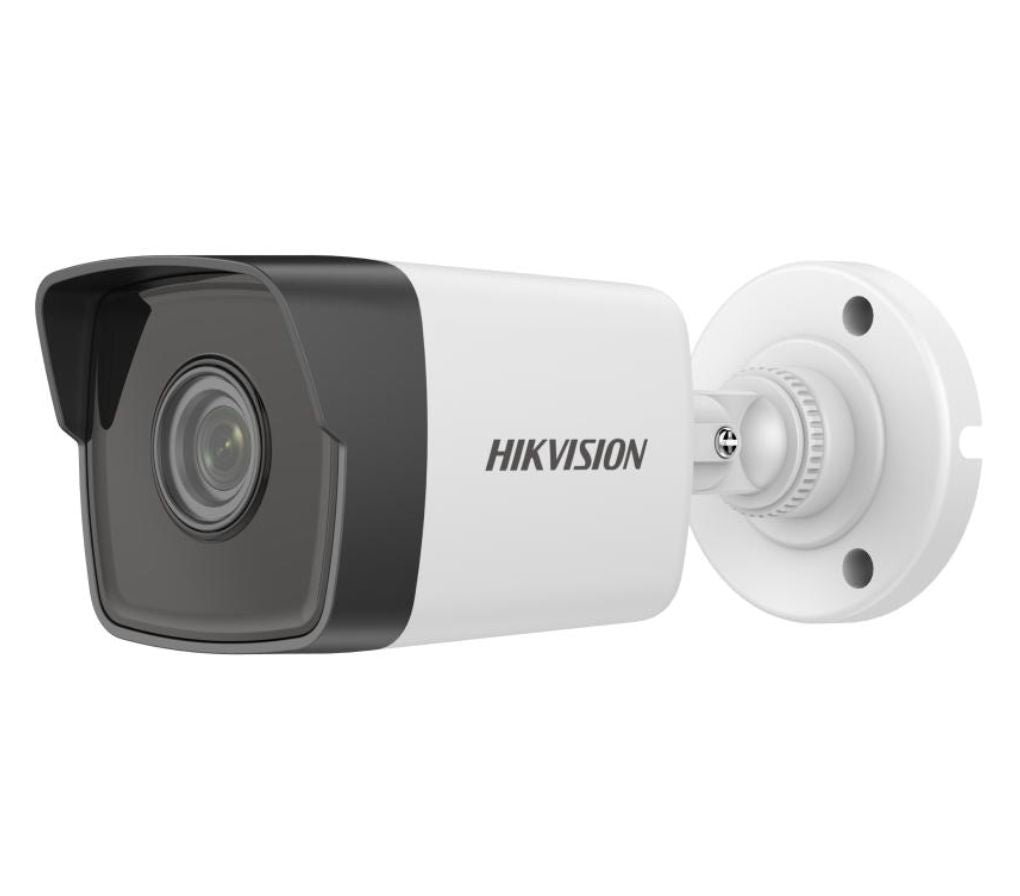

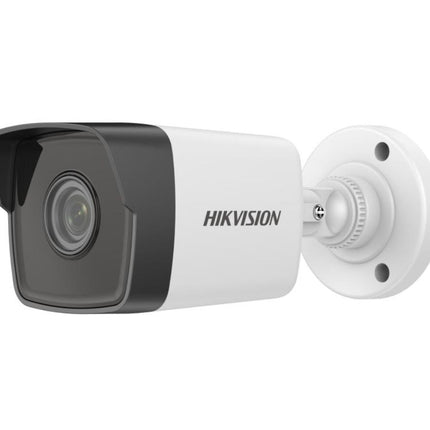

The DS-2CD1053G0-I supports a maximum resolution of 2560 × 1920, delivering true 5 MP video quality. According to the datasheet, the main stream supports up to 20 fps at 2560 × 1920, and up to 25/30 fps at lower resolutions such as 2560 × 1440 and 1920 × 1080 depending on 50 Hz or 60 Hz settings. This allows you to capture highly detailed footage, especially useful for identifying faces, license plates, and fine details. The higher resolution gives you more flexibility when digitally zooming into recorded video without losing clarity.

Yes. The camera uses EXIR 2.0 infrared technology with a supplement light range of up to 30 meters and an IR wavelength of 850 nm. The minimum illumination is rated at 0.01 Lux in color mode and 0 Lux with IR in black-and-white mode. It also features an IR cut filter for day and night switching. This combination ensures clear night vision performance even in complete darkness.

Yes, the camera is rated IP67 according to IEC 60529-2013 standards. This means it is protected against dust and water ingress, making it suitable for outdoor environments. The operating temperature range is -30 °C to 60 °C (-22 °F to 140 °F) with humidity up to 95% (non-condensing). These specifications allow it to perform reliably in harsh weather conditions.

The camera is available with either a 2.8 mm or 4 mm fixed focal lens. The 2.8 mm lens provides a horizontal FOV of 98.0°, vertical FOV of 71.7°, and diagonal FOV of 127.0°. The 4 mm option provides a horizontal FOV of 75.3°, vertical FOV of 55.5°, and diagonal FOV of 98.2°. This allows users to choose between wider area coverage or a narrower, more focused viewing angle depending on installation needs.

The -UF variant includes a built-in microphone for real-time audio security. It supports multiple audio compression formats including G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, and AAC. Audio sampling rates of 8 kHz and 16 kHz are supported, along with environment noise filtering. This makes the -UF model suitable for applications where synchronized audio and video recording is required.

The main stream supports H.265+, H.265, H.264+, and H.264 compression formats. The sub-stream supports H.265, H.264, and MJPEG. The video bit rate ranges from 32 Kbps to 16 Mbps. It also supports H.264 Baseline, Main, and High profiles, as well as H.265 Main profile. These options help optimize bandwidth usage and storage efficiency while maintaining video quality.

Yes, the -UF model includes a built-in memory card slot that supports microSD cards up to 256 GB. This allows video to be recorded directly to the camera without requiring an external NVR for basic storage needs. The -UF version also supports uploading to the memory card, triggering recording, and triggering capture as part of its linkage features. This adds flexibility for both standalone and integrated deployments.

The camera features 120 dB Wide Dynamic Range (WDR), which helps balance exposure in scenes with strong backlighting. It also supports BLC (Backlight Compensation) and 3D DNR (Digital Noise Reduction). Image settings such as saturation, brightness, contrast, sharpness, AGC, and white balance can be adjusted via client software or web browser. These features help maintain image clarity in challenging lighting environments.

The DS-2CD1053G0-I supports 12 VDC ± 25% with a maximum consumption of 5 W using a Ø 5.5 mm coaxial power plug. It also supports Power over Ethernet (PoE) under the IEEE 802.3af standard, Class 3. The PoE voltage range is 36 V to 57 V with maximum consumption of 6.5 W. This flexibility allows installers to choose between traditional DC power or a simplified single-cable PoE installation.

The datasheet lists several optional mounting accessories. These include the DS-1275ZJ-SUS vertical pole mount, DS-1276ZJ-SUS corner mount, and DS-1280ZJ-XS junction box. These accessories allow flexible installation depending on the mounting surface and environment. This makes the camera adaptable for wall, pole, or corner installations.
