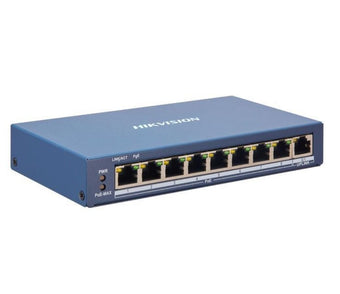

Hikvision DS-3E1309P-EI(B) 8-Port Smart PoE Switch, 110W, Long Range, Watchdog
Hikvision DS-3E1309P-EI(B) 8-Port Smart PoE Switch, 110W, Long Range, Watchdog
Out of stock
Description
Description
Smart PoE Switching That Keeps Your Cameras Online
When your cameras go down, you don’t just lose video—you lose confidence in your entire security setup. The Hikvision DS-3E1309P-EI (B) is designed to remove that stress by combining reliable PoE power, intelligent monitoring, and built-in recovery tools in one compact switch. It’s made for real-world installs where stability, simplicity, and uptime matter more than fancy extras. If you want your cameras powered, connected, and protected without constant babysitting, this switch fits the job.
Why Buyers Choose This Model
Buyers choose this switch because it solves everyday PoE problems before they turn into service calls. From automatic camera restarts to long-distance PoE support, it’s built to keep systems running smoothly even in demanding environments. It also offers just enough management and security features to stay in control, without the complexity of enterprise switches.
Key Features & Real-World Benefits
- 110 W total PoE budget — power up to eight cameras from one switch, eliminating bulky injectors and messy power strips.
- PoE Watchdog on ports 1–8 — automatically restarts unresponsive cameras, reducing downtime and late-night troubleshooting.
- Long-range PoE up to 300 m — place cameras where coverage is needed, not where cable limits force you to compromise.
- IEEE 802.3af / 802.3at support — works with most modern IP cameras and PoE devices without compatibility worries.
- Port isolation & VLAN support — keeps camera traffic segmented, improving security and overall network stability.
- Loop prevention (STP/RSTP) — helps avoid network loops that can silently take an entire system offline.
- Cable detection tools — quickly identify open circuits, shorts, and cable length to speed up installs and repairs.
- Fan-free metal housing — quieter operation with fewer moving parts, ideal for offices and retail spaces.
- 6 kV surge protection — added resilience against power irregularities that can damage network equipment.
What This Helps You Avoid
This switch helps you avoid the frustration of cameras randomly freezing, dropping offline, or needing manual reboots. It reduces the risk of network loops that bring everything to a halt and minimizes guesswork when troubleshooting cable issues. By centralizing PoE power and adding automatic recovery features, it saves time, cuts repeat service visits, and gives you peace of mind that your system is doing its job—even when you’re not watching it.
What’s in the Box
```
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Recommended Alternatives
Hikvision DS-3E1309P-EI/M 8 Port Smart PoE Switch with 110W Budget & Long Range
Out of stock
Choose your option
Choose your option
Lysora LCS-8GS-P 8-Port Cloud Managed PoE Switch with 120W Budget and SFP
Out of stock
Choose your option
Hikvision DS-3E1318P-EI/M 16-Port Smart PoE Switch with 130W Budget for IP Cam
Out of stock
Choose your option
Technical Specifications
Hikvision DS-3E1309P-EI(B) 8-Port Smart PoE Switch, 110W
An 8-port 10/100 Mbps smart PoE switch with a Gigabit uplink and a 110 W PoE budget (up to 30 W per port) for powering IP cameras. Long Range mode reaches up to 300 m, PoE watchdog automatically restarts unresponsive cameras, and it can be managed via web, Hik-Partner Pro or HikCentral Pro.
Ideal applications
- Powering up to 8 IP cameras in homes and small businesses
- Long cable runs to gates, parking lots and outbuildings (up to 300 m)
- Installer-managed sites using Hik-Partner Pro remote management
- Desk or wall-mounted network cabinets
Key Features
- 8 × 10/100M PoE ports, 1 × Gigabit RJ45 port
- Total PoE Power Budget 110 W, max. 30 W per port
- Up to 300 m Long Range PoE Transmission
- PoE watchdog to detect and restart the cameras that do not respond
- 802.1Q VLAN and STP/RSTP loop prevention
- Cable detection to locate failure
- 6 kV Surge Protection, fan-free metal design
General
Network Parameters
PoE Power Supply
Software Function
Approval
Physical Interface
Downloads
Frequently Asked Questions
The switch provides 8 PoE-enabled Fast Ethernet ports, allowing it to power up to eight PoE devices simultaneously. Each port can deliver up to 30 W, with a total PoE power budget of 110 W across all ports. This means the exact number of devices supported at full power depends on each device’s individual power draw. For typical IP cameras, this budget is sufficient for a full 8-camera deployment.
This switch supports IEEE 802.3af and IEEE 802.3at PoE standards. These standards cover most modern IP cameras, access points, and other PoE-powered devices. Each PoE port can supply up to 30 W, which aligns with 802.3at requirements. This ensures broad compatibility with common surveillance and networking equipment.
Yes, ports 1 through 8 support long-range transmission of up to 300 meters. This feature is designed for extended cable runs where cameras need to be installed far from the network cabinet. Actual performance may vary depending on the connected camera model and the condition of the network cable. This makes the switch well-suited for warehouses, parking areas, and large facilities.
The PoE Watchdog function continuously monitors PoE devices connected to ports 1 through 8. If a camera or other powered device becomes unresponsive, the switch can automatically restart the PoE port. This helps restore operation without requiring manual intervention. It is especially useful for reducing downtime in unattended or remote installations.
The switch supports port isolation and IEEE 802.1Q VLAN functionality. Port isolation prevents devices on the same isolation group from communicating directly with each other. VLAN support allows traffic segmentation and better network organization. These features help reduce unnecessary traffic and improve overall network security.
The switch includes a cable detection function for identifying abnormal conditions. It can detect open circuits, short circuits, and estimate network cable length. This helps technicians quickly locate wiring problems without additional test equipment. As a result, installation and maintenance time can be significantly reduced.
The switch supports local web-based management for device configuration and monitoring. It also supports remote management through Hik-Partner Pro for compatible deployments. Features include viewing port rates, PoE power usage, topology information, and alarm status. Remote firmware upgrades and port restarts are also supported.
The switch features 6 kV surge protection to help protect against electrical surges. Loop prevention using STP and RSTP is supported to avoid network loops that can disrupt communication. The metal, fan-free housing also contributes to stable operation and reduced mechanical failure risk. These protections are designed to improve reliability in real-world installations.
The switch includes an attached power adapter and power cord for connection to a standard power outlet. No additional PoE injectors are required since PoE power is delivered directly from the switch. The device supports desk-mounted and wall-mounted installation. This allows flexibility depending on the installation environment.
