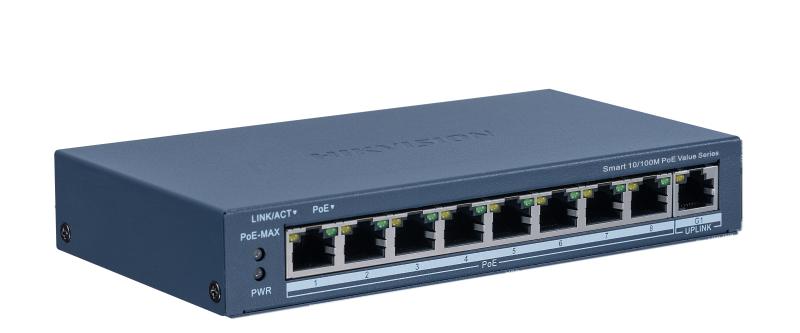

Hikvision DS-3E1309P-EI/M 8 Port Smart PoE Switch with 110W Budget & Long Range

Hikvision DS-3E1309P-EI/M — 8 Port Fast Ethernet Smart PoE Switch If you’re powering multiple IP cameras (or other PoE devices) and you want it to “just work,” this switch keeps things simple and dependable. You get PoE across 8 ports, smart features that help prevent network headaches, and long-range PoE support for those runs that always end up being farther than planned. Bottom line: fewer truck rolls, faster installs, and a cleaner, more stable surveillance network. Key Features (Why it matters) 8 × 10/100M PoE ports + 1 × Gigabit RJ45 uplink — power and connect your edge devices while keeping the uplink from becoming a bottleneck. :contentReference[oaicite:0]{index=0} Total PoE Power Budget 110 W — comfortably supports multiple PoE devices without juggling injectors everywhere. :contentReference[oaicite:1]{index=1} PoE watchdog — detects and restarts cameras that don’t respond, so you’re not constantly babysitting the system. :contentReference[oaicite:2]{index=2} STP/RSTP loop prevention — helps prevent loops that can take down the entire network. :contentReference[oaicite:3]{index=3} Cable detection — helps locate failures faster (less guessing, quicker fixes). :contentReference[oaicite:4]{index=4} Up to 300 m Long Range PoE Transmission — useful when cameras are far from the IDF/MDF and relocating gear isn’t an option. :contentReference[oaicite:5]{index=5} 6 kV Surge Protection — extra protection for deployments exposed to electrical spikes. :contentReference[oaicite:6]{index=6} Ideal Applications / Common Uses Small-to-mid IP camera systems that need reliable PoE power and simple smart management. :contentReference[oaicite:7]{index=7} Retail, offices, warehouses, and light industrial sites needing stable switching + PoE device uptime. :contentReference[oaicite:8]{index=8} Long cable-run deployments where standard PoE distance is a challenge (up to 300 m on ports 1–8). :contentReference[oaicite:9]{index=9} Installations that benefit from remote monitoring/management via Hik-Partner Pro / Hik-Central Pro. :contentReference[oaicite:10]{index=10} Accessories Found (from datasheet) Attached power adapter :contentReference[oaicite:11]{index=11} Power cord :contentReference[oaicite:12]{index=12} General Shell Metal material, fan-free design Net Weight 0.35 kg (0.77 lb) Gross Weight 1.114 kg (2.45 lb) Dimensions (W × H × D) 170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'') Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F) Operating Humidity 5% to 95% (no condensation) Relative Humidity 5% to 95% (no condensation) Power Supply 54 V DC，2.22 A Installation Mode Desk-Mounted,Wall-Mounted Max. Power Consumption 120 W Power Consumption in Idle 10 W Surge Protection 6 kV Network Parameters Ports 8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port MAC Address Table 8 K Packet Forwarding Rate Whole-Device Performance: 4.17 Mpps Port Performance: 2.68 Mpps Internal Cache 4 Mbits Switching Capacity Whole-Device Performance: 5.6 Gbps Port Performance: 3.6 Gbps PoE Power Supply PoE Standard IEEE 802.3af,IEEE 802.3at PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port PoE: Ports 1 to 8 Max. Port Power 30 W PoE Power Budget 110 W Software Function Long Range Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition. Port Isolation Ports 1 to 8: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. PoE Watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond. Loop Prevention Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP. VLAN VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. HPP / System Maintenance HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. System Maintenance Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating. Approval EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) Physical Interface ① PWR Indicator Solid on: The switch is powered on normally. Unlit: No power supply is connected or power supply is abnormal. ② PoE-MAX Indicator Solid on/Flashing: The output power of the switch is about to reach or has reached the upper limit. The power supply may be abnormal if more devices are connected. Unlit: The switch does not supply power to a powered device (PD), or supplies power to a PD normally and its output power does not reach the upper limit. Note: The PoE-MAX indicator will be unlit in 5 seconds after the output power of the switch returns to normal. ③ LINK/ACT Indicator Solid on: The port is connected. Flashing: The port is transmitting data. Unlit: The port is disconnected or connection is abnormal. ④ PoE Indicator Solid on: The switch supplies power to a PD normally. Unlit: The switch is disconnected from a PD or power supply is abnormal. ⑤ 10/100 Mbps PoE RJ45 Port Used for connection to a PD via a network cable. ⑥ Gigabit RJ45 Port Used for connection to another device via a network cable. ⑦ Reset Button Press and hold the reset button for about 5 seconds to restore all the configurations of the switch to default settings. ⑧ Grounding Terminal Used for connection to the grounding cable to protect the switch from lightning. ⑨ Power Supply Use the attached power adapter and power cord to connect the switch to a socket.
