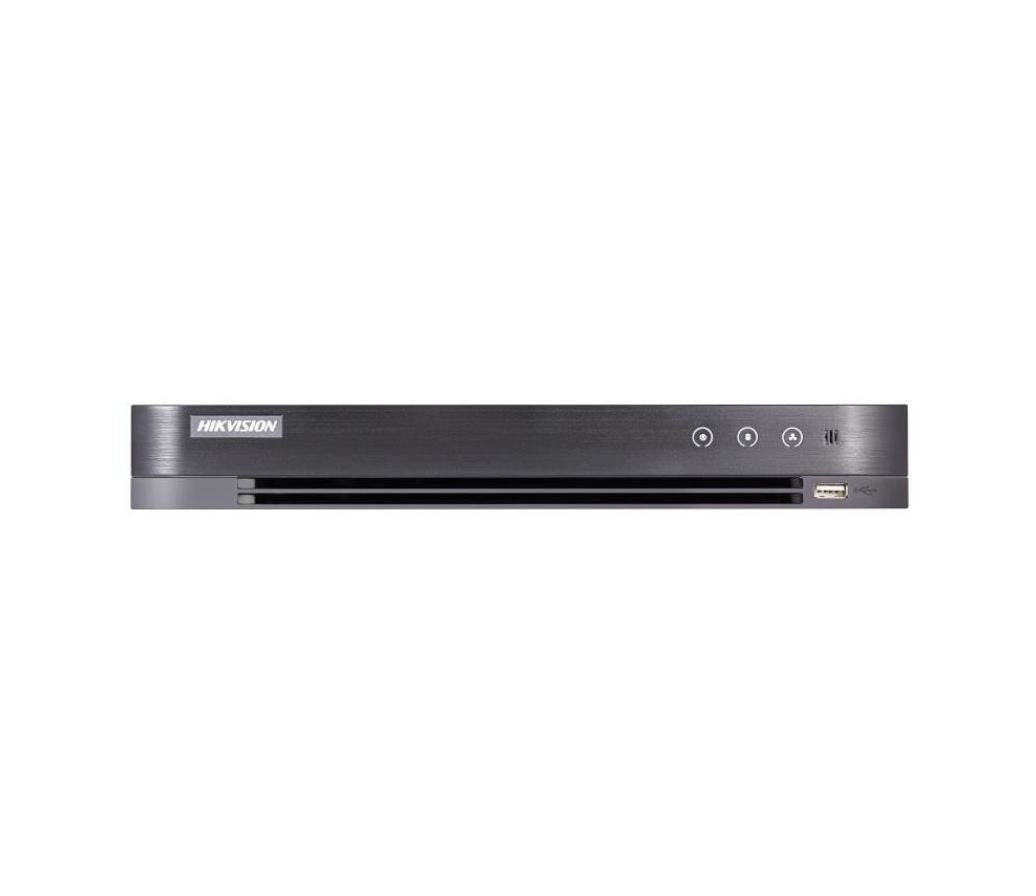

Hikvision DS-7200HQHI-K1 Series Turbo HD DVR
What if upgrading your security system didn't mean replacing every camera and cable you already have? The Hikvision DS-7200HQHI-K1 Series gives you a flexible path forward by supporting HDTVI, AHD, HDCVI, CVBS, and IP cameras from a single recorder.
With H.265 Pro+ compression, audio over coax, IP camera expansion, smart event detection, and support for up to 10 TB of local storage, this DVR is built to help you get more from your surveillance system without unnecessary complexity.
Whether you're upgrading an existing coax system or building a hybrid setup, you get a recorder designed to protect the investment you've already made while giving you room to expand.
Why Buyers Choose the Hikvision DS-7200HQHI-K1 Series
Many security-system upgrades become expensive because one outdated component can force you to replace equipment that still works. This DVR gives you another option: keep compatible existing cameras and coax infrastructure while adding newer analog or IP cameras as your needs change.
That flexibility can make the difference between rebuilding an entire surveillance system and simply improving the parts that actually need improvement.
5-Signal Hybrid Compatibility — Keep More of Your Existing System
Support for HDTVI, AHD, HDCVI, CVBS, and IP video means you're not locked into just one camera signal type. For an existing installation, that can make upgrading much easier because compatible legacy cameras and newer cameras can be incorporated into the same recorder.
H.265 Pro+ Compression — Get More From Your Storage
H.265 Pro+ is designed to improve encoding efficiency and reduce data-storage requirements. That means your available hard-drive space can be used more efficiently instead of being consumed unnecessarily by larger video files.
Up to 4 MP Lite Recording — Capture More Useful Detail
Full-channel recording at up to 4 MP Lite gives you more visual information than lower-resolution recording. When you need to review an event later, better recorded detail can make the footage considerably more useful.
IP Camera Expansion — Give Your System Room to Grow
Your security needs today may not be the same a few years from now. Depending on the model and operating mode, the series can support up to 6, 12, or 24 total channels with additional IP camera capability and IP camera resolutions up to 6 MP.
Audio Over Coax — Add Sound Without Separate Audio Cabling
Compatible cameras can send audio through the coaxial connection, allowing your recordings to include another layer of information without requiring a separate audio cable for each supported channel.
Line Crossing & Intrusion Detection — Focus on Meaningful Activity
The DVR supports line crossing and intrusion detection, giving you tools to define important areas instead of relying only on basic video recording. Standard operation supports 2 perimeter-protection channels, with up to 4 channels available when Enhanced VCA mode is enabled.
Smart Search — Spend Less Time Looking for the Right Recording
When something happens, simply having recorded video isn't enough if finding the moment you need becomes a chore. Smart search is designed to make playback more efficient so you can get to relevant recorded footage faster.
Up to 10 TB HDD Support — Keep More Footage Locally
The recorder includes one SATA interface and supports a hard drive with capacity up to 10 TB. That gives you substantial local storage potential without requiring multiple internal drives.
Long-Distance HDTVI Transmission — Cover Larger Properties
HDTVI signals can be transmitted up to 800 meters at 1080p and up to 1,200 meters at 720p. This makes the platform useful when cameras need to be positioned farther away from the recorder while remaining on compatible coax infrastructure.
Hik-Connect & Network Support — Stay Connected to Your System
Hik-Connect and DDNS support make the DVR suitable for network-connected surveillance systems. Instead of your recorder functioning only as a box sitting at the property, it can become part of a remotely accessible security setup when properly configured.
HDMI & VGA Outputs — Flexible Local Monitoring
Connect the DVR directly to compatible monitors using HDMI or VGA. The 4- and 8-channel models support HDMI output up to 1080p, while the DS-7216HQHI-K1 supports HDMI output up to 4K at 30 Hz.
Synchronous Playback — Review Multiple Cameras Together
Review up to 4, 8, or 16 channels simultaneously depending on the DVR model. When an incident moves from one camera view to another, synchronized playback can give you a more complete picture of what happened.
Two-Way Audio Support — Add Interactive Communication
A dedicated RCA connection supports one channel of two-way audio using the first audio input, giving compatible installations an additional communication option beyond video monitoring alone.
What You Get From This DVR
- More flexibility when upgrading an existing coax surveillance system.
- Support for analog and IP camera technologies in the same recorder.
- More efficient video storage through H.265 Pro+ compression.
- Up to 10 TB of supported local hard-drive capacity.
- Audio over compatible coaxial camera connections.
- Line crossing and intrusion detection for more targeted monitoring.
- Smart search to make recorded-video review more efficient.
- Long-distance HDTVI transmission for larger installations.
- Hik-Connect support for network and remote-access applications.
- Expansion options that can accommodate additional IP cameras as your system grows.
What This Helps You Avoid
Imagine discovering that your current recorder needs to be replaced, only to be told that upgrading means ripping out working cameras, replacing existing cabling, and rebuilding the entire surveillance system from scratch.
Now the problem is no longer just replacing a recorder. It becomes additional cameras, more labor, new cabling, more downtime, and a much larger project than you originally expected.
The DS-7200HQHI-K1 Series is designed to give compatible existing systems a more flexible transition. Its support for HDTVI, AHD, HDCVI, CVBS, and IP video lets you work with multiple camera technologies while creating a path toward newer IP cameras when expansion makes sense.
Instead of replacing equipment simply because the recorder changes, you can focus your investment where it matters most: improving coverage, increasing recording capability, adding storage, and expanding your system as your security needs evolve.
Ideal For
- Upgrading existing coax-based CCTV systems.
- Homes and businesses using a mixture of compatible camera technologies.
- Hybrid analog and IP surveillance installations.
- Systems that need audio over compatible coax connections.
- Properties requiring longer HDTVI cable runs.
- Users who want local recording with up to 10 TB HDD support.
- Installations that may need additional IP camera capacity in the future.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7200HQHI-K1 Series Turbo HD DVR
The Hikvision DS-7200HQHI-K1 Series is a versatile Turbo HD DVR family designed for CCTV systems that need support for multiple camera technologies without requiring a complete system replacement. Available in 4, 8, and 16-channel versions, the series supports HDTVI, AHD, HDCVI, CVBS, and IP camera inputs, making it well suited for hybrid surveillance installations.
H.265 Pro+ compression helps improve encoding efficiency and reduce storage requirements, while support for coaxial audio lets compatible cameras transmit video and audio through the same coaxial connection. Depending on the model and operating mode, the DVR can support up to 6, 12, or 24 IP camera channels with resolutions up to 6 MP.
Smart playback search, line crossing and intrusion detection, Hik-Connect remote access, long-distance HDTVI transmission, and support for hard drives up to 10 TB give the series the flexibility needed for both new installations and upgrades to existing coax-based security systems.
Key Features
- H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression support.
- Supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs.
- Audio transmission through compatible coaxial camera connections.
- Available in 4, 8, and 16-channel analog configurations.
- Up to 6, 12, or 24 IP camera channels depending on DVR model and operating mode.
- Supports IP cameras with resolutions up to 6 MP.
- Full-channel recording at up to 4 MP Lite resolution.
- H.265 Pro+ improves encoding efficiency and can reduce storage requirements.
- Maximum HDTVI transmission distance of 800 m at 1080p.
- Maximum HDTVI transmission distance of 1200 m at 720p.
- Supports hard drives with capacities up to 10 TB.
- Smart search for more efficient recorded-video playback.
- Supports third-party cloud storage.
- Multiple VCA events supported for analog and compatible smart IP cameras.
- Line crossing and intrusion detection support.
- Enhanced VCA mode supports up to 4 perimeter-protection channels.
- DS-7216HQHI-K1 supports 1-channel sudden scene change detection.
- Hik-Connect and DDNS support for network management and remote connectivity.
- Dual-stream video support.
- HDMI and VGA monitor outputs.
- Two-way audio support.
- ONVIF network protocol support.
- RS-485 serial interface.
Available Models
Perimeter Protection
Recording & Compression
Analog & IP Camera Inputs
Supported Analog Video Formats
Video Outputs
Audio
Playback
Network
Storage & Auxiliary Interfaces
Physical Interfaces
General
Accessories
Important Operating Notes
Ideal Applications & Common Uses
Based on the connectivity and recording functions specified in the datasheet, this DVR series is particularly suited to:
- Upgrading existing coax CCTV systems: Continue using compatible coax cabling while moving to higher-resolution HDTVI, AHD, or HDCVI cameras.
- Hybrid analog and IP surveillance: Combine supported analog cameras with IP cameras on one recorder.
- Systems requiring audio over coax: Use compatible cameras to transmit audio and video through the coaxial connection.
- Long-distance coax installations: HDTVI signals can reach up to 800 meters at 1080p or 1200 meters at 720p.
- Perimeter monitoring: Line crossing and intrusion detection can help identify activity within configured surveillance areas.
- Remote surveillance: Hik-Connect, DDNS, and supported network protocols allow the recorder to be incorporated into remotely accessible security systems.
- Multi-camera recording systems: Choose between 4, 8, and 16-channel analog models with additional IP camera capacity when required.
- Systems requiring extended local recording: A single SATA hard drive with capacity up to 10 TB is supported.
Downloads
Frequently Asked Questions
The DS-7200HQHI-K1 Series supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs. Compatible IP cameras can use H.265+, H.265, H.264+, or H.264 compression and can have resolutions up to 6 MP.
The DS-7204HQHI-K1 has 4 analog inputs, the DS-7208HQHI-K1 has 8, and the DS-7216HQHI-K1 has 16. With Enhanced IP mode enabled, the models can support up to 6, 12, and 24 total channels respectively, depending on the model.
The DVR supports encoding resolutions including 4 MP Lite, 3 MP, 1080p, 720p, VGA, WD1, 4CIF, and CIF. Full-channel recording is supported at up to 4 MP Lite resolution.
Yes. The series supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression. H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage requirements.
The DS-7200HQHI-K1 Series has one SATA interface and supports a hard drive with a capacity of up to 10 TB.
Yes. The DVR supports Hik-Connect and DDNS for network management. It also supports network protocols including TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, and ONVIF.
Yes. Audio can be transmitted through compatible coaxial camera connections. The DS-7204HQHI-K1 supports 4 channels of coaxial audio, the DS-7208HQHI-K1 supports 8 channels, and the DS-7216HQHI-K1 supports 16 channels.
Yes. The series supports line crossing and intrusion detection on 2 channels, with up to 4 channels available when Enhanced VCA mode is enabled. The DS-7216HQHI-K1 also supports 1 channel of sudden scene change detection.
The DVR supports HDTVI signal transmission distances of up to 800 meters at 1080p and up to 1200 meters at 720p.
Yes. The series includes both HDMI and VGA outputs. The DS-7204HQHI-K1 and DS-7208HQHI-K1 support HDMI output up to 1920 × 1080 at 60 Hz, while the DS-7216HQHI-K1 supports HDMI output up to 4K (3840 × 2160) at 30 Hz.
