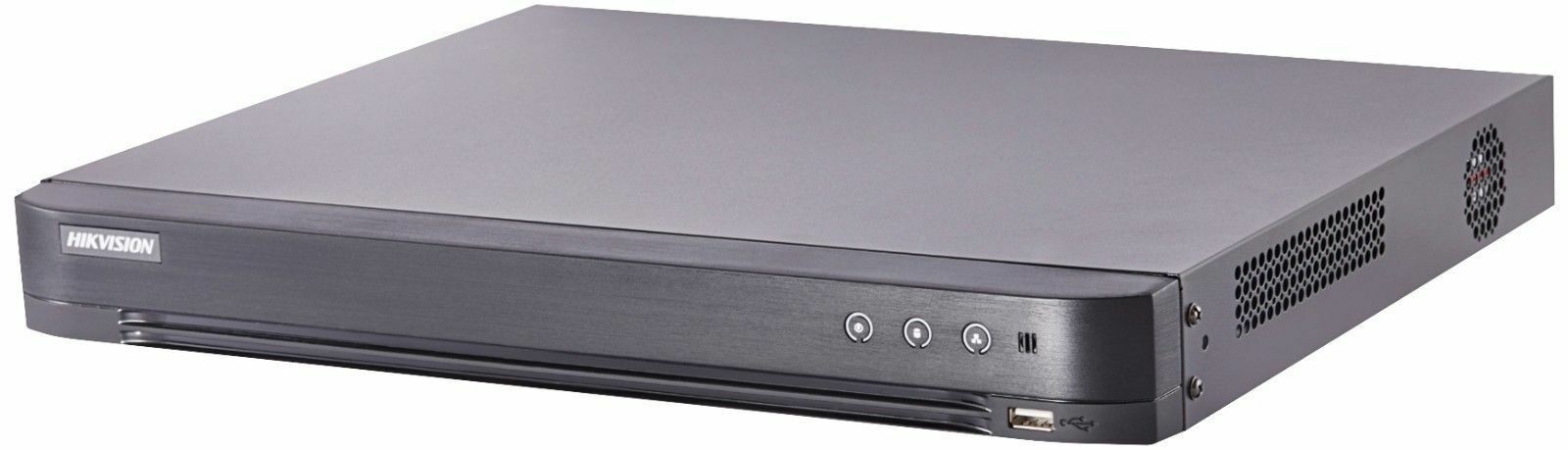

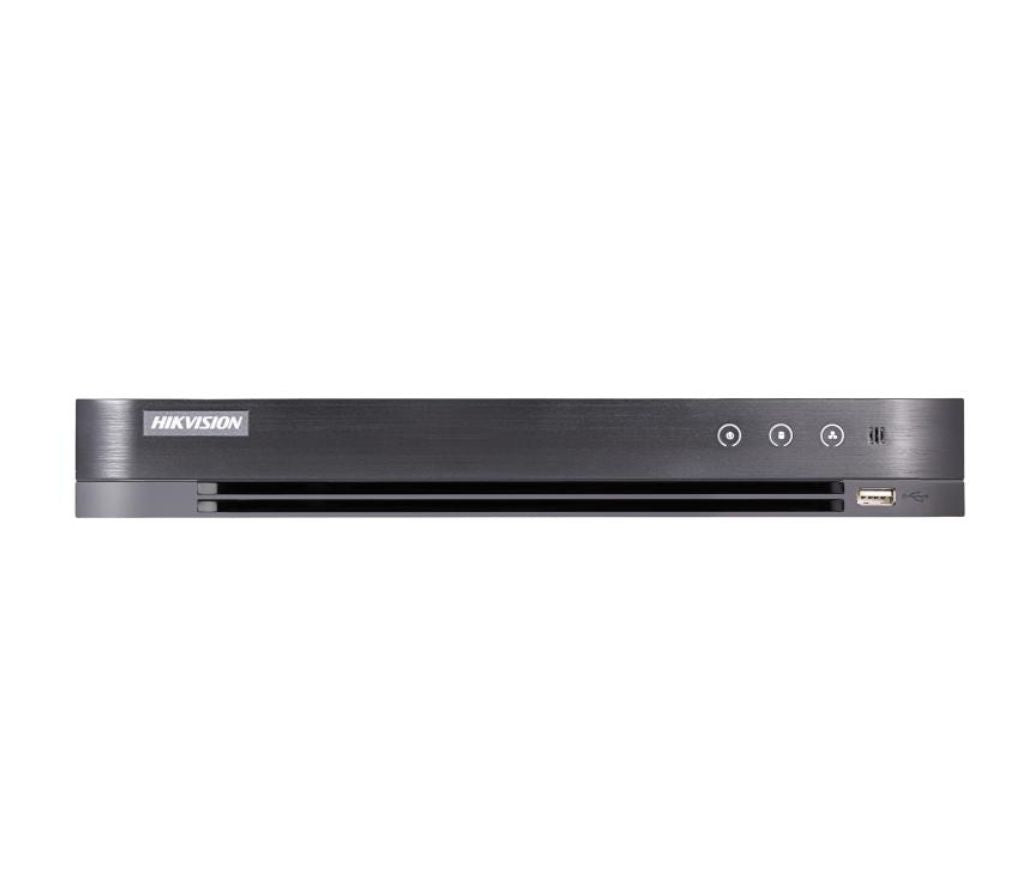

Hikvision DS-7200HUHI-K1 Series Turbo HD DVR
What would it mean for your security system if you could upgrade image quality without immediately replacing every camera and cable?
The Hikvision DS-7200HUHI-K1 Series gives you a flexible recording platform that supports HDTVI, AHD, HDCVI, CVBS, and IP cameras. Available in 4-channel and 8-channel models, it combines recording up to 8 MP, efficient H.265 Pro+ compression, smart event detection, and remote access through Hik-Connect.
The result is a system that is easier to expand, easier to review, and better prepared to capture the details that matter when an incident occurs.
Why Buyers Choose This Model
```Five-Signal Camera Compatibility — Upgrade Without Starting Over
Support for HDTVI, AHD, HDCVI, CVBS, and IP video lets you work with multiple supported camera technologies. This can help preserve more of your existing security investment while giving you a practical path toward higher-resolution cameras.
Recording Up to 8 MP — See More of the Details That Matter
Higher-resolution recording can provide a clearer view when reviewing people, vehicles, and important activity. Instead of discovering that critical footage lacks useful detail, you have support for resolutions up to 8 MP.
Expandable IP Camera Support — Create Room for Growth
The DS-7204HUHI-K1 can support up to 8 IP camera inputs in Enhanced IP mode, while the DS-7208HUHI-K1 can support up to 16. You gain flexibility to expand coverage as your home or business changes without immediately moving to a completely different recorder.
H.265 Pro+ Compression — Use Storage More Efficiently
H.265 Pro+ improves encoding efficiency and helps reduce video-storage requirements. That means your available hard-drive space can be used more effectively while maintaining dependable recorded evidence.
Up to 10 TB Storage Capacity — Keep More Footage Available
The single SATA interface supports a hard drive with up to 10 TB of capacity. More available storage gives your system greater room for recorded footage before older video must be replaced.
Smart Search — Find Important Video Faster
When something happens, searching through hours of footage can delay your response. Smart search helps make playback more efficient, so you can reach relevant video without wasting unnecessary time.
Line-Crossing and Intrusion Detection — Focus on Meaningful Activity
Video Content Analytics support includes line-crossing and intrusion detection, helping the system recognize defined security events. Enhanced VCA mode supports up to 4 perimeter-protection channels on the 4-channel model and up to 8 on the 8-channel model.
Sudden Scene-Change Detection — Identify Camera Disruption
Two-channel sudden scene-change detection helps identify unexpected changes to a camera's view. This gives you another layer of awareness when a camera is moved, obstructed, or its scene changes unexpectedly.
Audio Through Coax — Add Sound Without Separate Audio Cabling
Compatible cameras can transmit audio through the coaxial cable. The DS-7204HUHI-K1 supports 4 coaxial-audio channels, while the DS-7208HUHI-K1 supports 8, helping simplify installations where video and audio are both needed.
Hik-Connect Support — Stay Connected When You Are Away
Hik-Connect and DDNS support make remote network access easier to manage. Whether you are checking a home, store, office, or warehouse, you can maintain access to your surveillance system without being physically beside the recorder.
Long-Distance HDTVI Transmission — Cover Larger Properties
Supported HDTVI signals can travel up to 800 meters at 1080p or 1,200 meters at 720p. This makes the series a practical choice for larger sites where cameras may be positioned far from the recorder.
Simultaneous Playback — Review Multiple Views Together
The DS-7204HUHI-K1 supports 4-channel synchronous playback, while the DS-7208HUHI-K1 supports 8-channel playback. Reviewing several camera angles together can make it easier to understand how an event unfolded across the property.
Flexible Local Display Options — Monitor Footage Your Way
Both models provide HDMI and VGA outputs for local monitoring. The DS-7208HUHI-K1 supports HDMI output up to 4K at 30 Hz, giving compatible displays a high-resolution viewing option.
What You Gain
- A flexible recorder for supported analog and IP cameras.
- High-resolution recording at up to 8 MP.
- More efficient storage through H.265 Pro+ compression.
- Remote system access through Hik-Connect.
- Faster footage review using smart search.
- Room to expand the number of connected IP cameras.
- Smart-event tools that help focus attention on defined activity.
- Audio support without separate audio cabling when using compatible coaxial cameras.
What This Helps You Avoid
Imagine discovering an incident after it has already happened, only to find that the recorder cannot accept your newer cameras, the footage lacks detail, or reviewing hours of video takes too long. That uncertainty can turn a security investment into another source of frustration.
The DS-7200HUHI-K1 Series addresses those problems with broad camera-signal compatibility, recording up to 8 MP, smart search, efficient compression, and expandable IP camera support. Instead of being trapped by a rigid recorder, you gain a more adaptable foundation for protecting your property.
And when you can review multiple channels, access the system remotely, and use smart detection to identify meaningful activity, how much easier could it be to understand what happened and respond with confidence?
Choose the Right Model for Your Property
- DS-7204HUHI-K1: Ideal when you need 4 analog camera inputs, expandable IP support, and Full HD local HDMI output.
- DS-7208HUHI-K1: Better suited to larger systems requiring 8 analog inputs, greater IP expansion, more alarm connections, Gigabit Ethernet, and HDMI output up to 4K.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7200HUHI-K1 Series Turbo HD DVR
The Hikvision DS-7200HUHI-K1 Series gives buyers a flexible recording platform for upgrading or expanding a professional surveillance system. Available in 4-channel and 8-channel models, it supports HDTVI, AHD, HDCVI, CVBS, and IP cameras, helping you combine existing analog equipment with newer high-resolution cameras.
H.265 Pro+ compression helps reduce storage requirements, while recording resolutions up to 8 MP preserve the image detail needed for reviewing important events. Smart search, perimeter-protection functions, audio over coax, Hik-Connect support, and storage capacity up to 10 TB make this series suitable for dependable everyday monitoring.
Key Features
- H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression.
- Supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs.
- Records video at resolutions up to 8 MP.
- Available with 4 or 8 analog video channels.
- Supports up to 8 IP channels on the DS-7204HUHI-K1 in Enhanced IP mode.
- Supports up to 16 IP channels on the DS-7208HUHI-K1 in Enhanced IP mode.
- Supports IP cameras with resolutions up to 8 MP.
- Audio transmission through the coaxial camera cable.
- Supports line-crossing and intrusion detection.
- Supports two-channel sudden scene-change detection.
- Smart search helps locate relevant playback footage efficiently.
- Supports compatible third-party cloud storage.
- Hik-Connect and DDNS support simplify remote network access and management.
- HDTVI signal transmission distances up to 800 m at 1080p and 1,200 m at 720p.
- One SATA interface supporting a hard drive with up to 10 TB capacity.
Available Models
```Perimeter Protection
```Recording
```Video and Audio
```Network
```Storage and Auxiliary Interfaces
```General
```Physical Interfaces
```Accessories Found
The supplied datasheet does not identify any included or optional accessories. A compatible SATA surveillance hard drive and the model-appropriate 12 VDC power supply should be confirmed separately before purchase.
Ideal Applications and Common Uses
- Upgrading an existing coaxial surveillance system without replacing usable cabling.
- Homes requiring centralized recording and remote camera access.
- Retail stores, offices, and other small-business security systems.
- Warehouses and commercial locations requiring line-crossing or intrusion detection.
- Mixed-camera installations combining HDTVI, AHD, HDCVI, CVBS, and IP cameras.
- Systems requiring high-resolution recording at up to 8 MP.
- Installations using cameras with audio transmitted through the coaxial cable.
- Locations requiring simultaneous local display, remote viewing, and recorded playback.
- Security systems that need up to 10 TB of local recording capacity.
Downloads
Frequently Asked Questions
The DS-7204HUHI-K1 provides 4 analog video inputs, while the DS-7208HUHI-K1 provides 8. The 4-channel model supports up to 8 IP camera inputs in Enhanced IP mode, whereas the 8-channel model supports up to 16.
The DVR supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs, making it suitable for systems that combine different supported camera technologies.
The series supports recording at up to 8 MP resolution. The available resolution and frame rate depend on the selected operating mode and model.
The DS-7204HUHI-K1 supports 2 IP channels, expandable to 6, or up to 8 in Enhanced IP mode. The DS-7208HUHI-K1 supports 4 IP channels, expandable to 12, or up to 16 in Enhanced IP mode. Supported IP camera resolution is up to 8 MP.
Both models have one SATA interface and support up to 10 TB of storage capacity per disk.
Yes. The DS-7204HUHI-K1 supports 4 channels of audio through coaxial cable, while the DS-7208HUHI-K1 supports 8 channels. The DVR also provides RCA audio input, audio output, and one-channel two-way audio using the first audio input.
Yes. The datasheet lists Hik-Connect and DDNS for network management. The DS-7204HUHI-K1 supports up to 32 remote connections, while the DS-7208HUHI-K1 supports up to 64.
Yes. It supports multiple Video Content Analytics events for compatible analog and smart IP cameras, including line-crossing detection, intrusion detection, and two-channel sudden scene-change detection. Enhanced VCA mode provides up to 4 perimeter-protection channels on the DS-7204HUHI-K1 and up to 8 on the DS-7208HUHI-K1.
The DVR supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264. H.265 Pro+ can improve encoding efficiency and help reduce video-storage requirements.
The DS-7208HUHI-K1 supports HDMI output up to 4K at 30 Hz. The DS-7204HUHI-K1 supports HDMI output up to 1920 × 1080 at 60 Hz. Enabling Enhanced VCA mode disables 2K and 4K HDMI output resolutions.
