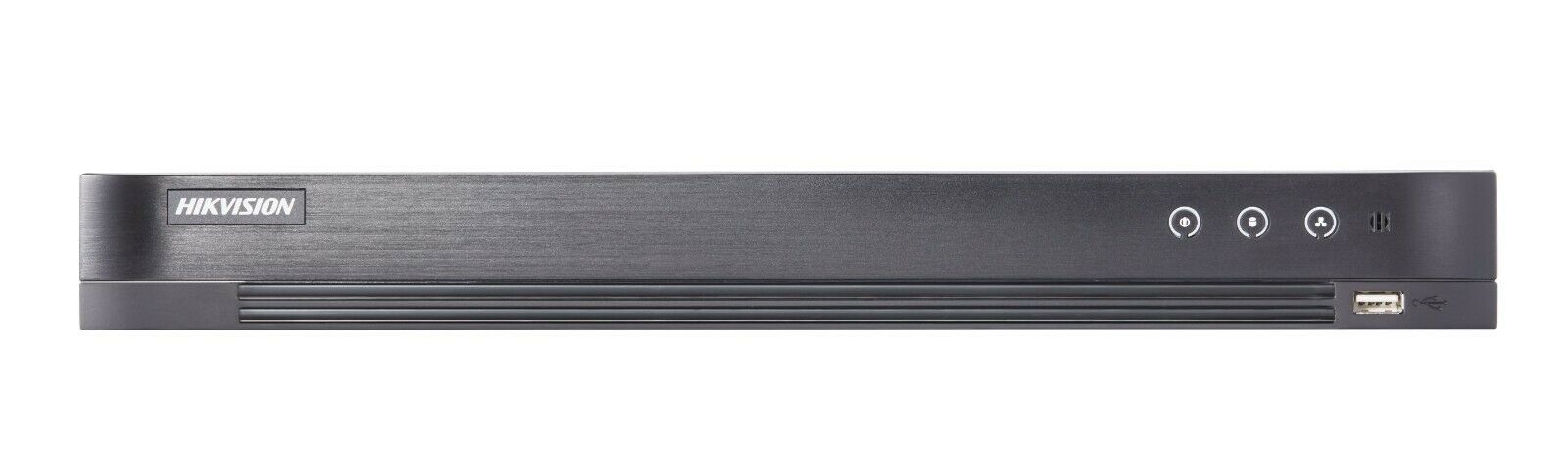

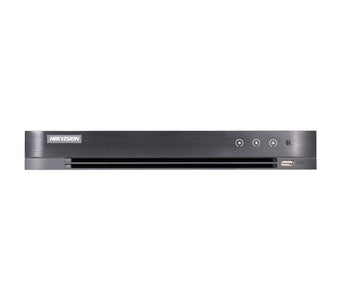

DS-7208HUHI-K1 HIKVISION 8 CHANNEL 8CH DVR 8MP HDD WD PURPLE 4KH.265
DS-7208HUHI-K1 HIKVISION 8 CHANNEL 8CH DVR 8MP HDD WD PURPLE 4KH.265
Out of stock
Description
Description

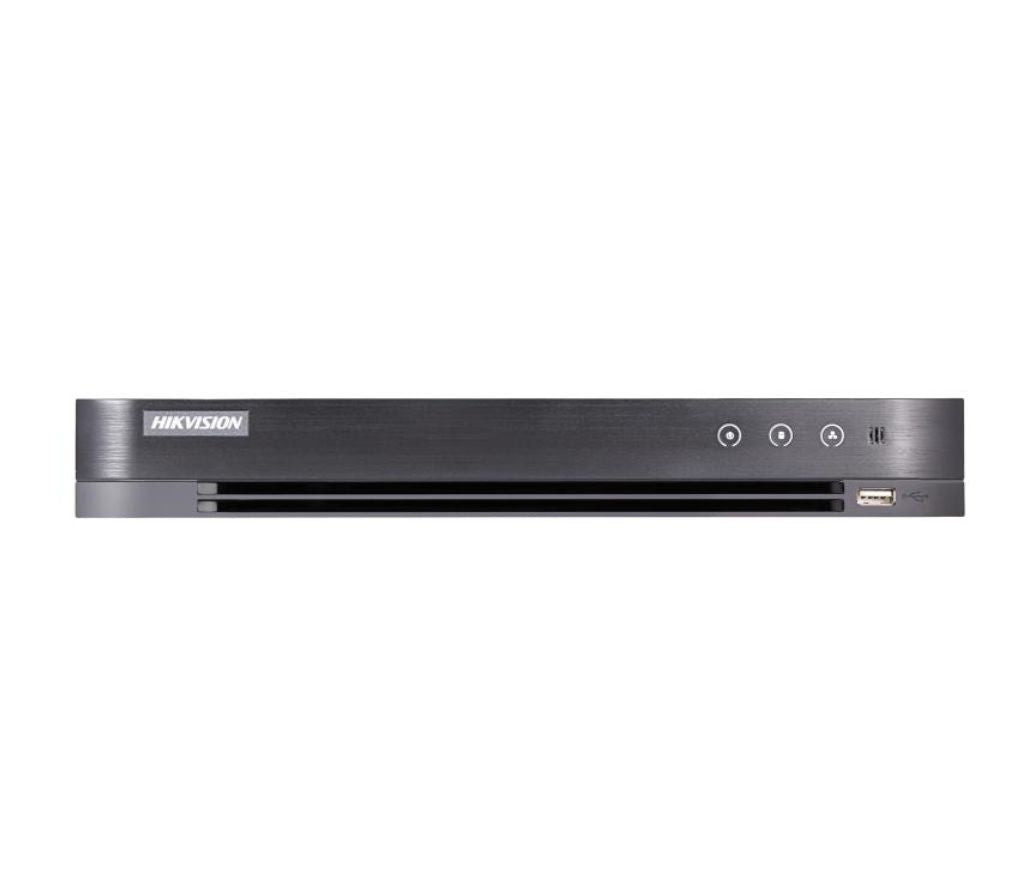

Hikvision DS-7200HUHI-K1 Series Turbo HD DVR
Still have coax cameras you want to keep, but need a recorder that gives you room to move into higher-resolution and IP surveillance? The Hikvision DS-7200HUHI-K1 Series gives you a flexible upgrade path by supporting HDTVI, AHD, HDCVI, CVBS, and IP cameras from one recorder.
With recording resolution up to 8 MP, H.265 Pro+ compression, audio over coax, smart perimeter detection, and support for up to a 10 TB hard drive, you get more capability without automatically having to rebuild your entire surveillance system.
And when you need to check what happened, Hik-Connect remote access and Smart Search help make your security footage easier to reach and review.
Why Buyers Choose This Model
What if upgrading your security recorder did not mean replacing every camera and cable you already have? The DS-7200HUHI-K1 Series is designed around flexibility, giving you the ability to keep compatible coax cameras while adding IP cameras as your surveillance needs change.
5-Signal Camera Compatibility — Keep More of Your Existing System
Support for HDTVI, AHD, HDCVI, CVBS, and IP video means you are not locked into just one type of camera. That can make upgrading an existing surveillance system much easier because compatible older cameras can continue working alongside newer technology.
Up to 8 MP Recording — Capture More Useful Detail
When something important happens, having more image detail can make reviewing footage more useful. The recorder supports encoding resolutions up to 8 MP, giving compatible high-resolution cameras the recording capability they need.
H.265 Pro+ Compression — Get More From Your Storage
Higher-resolution surveillance video can consume storage quickly. H.265 Pro+ is designed to improve encoding efficiency and reduce storage requirements, helping you use your available hard-drive capacity more efficiently.
Up to 10 TB HDD Capacity — Keep More Footage Available
The DVR supports one SATA hard drive with capacity up to 10 TB. That gives you substantial local storage potential for recorded surveillance footage without needing multiple internal drives.
Hybrid IP Expansion — Grow Beyond the Original Analog Channels
Need to add cameras later? The DS-7204HUHI-K1 can support up to 8 IP camera inputs with Enhanced IP Mode, while the DS-7208HUHI-K1 can support up to 16. That gives you more flexibility to expand into IP cameras as your property or surveillance requirements grow.
Audio Over Coax — Add Sound Without a Separate Audio Run
Compatible cameras can transmit audio through the coaxial connection. The DS-7204HUHI-K1 supports 4 channels of coaxial audio and the DS-7208HUHI-K1 supports 8 channels, helping you capture more context around an event instead of relying on video alone.
Line Crossing & Intrusion Detection — Watch Important Areas More Intelligently
Rather than relying only on continuous video, the recorder supports line crossing and intrusion detection. This can help you define important areas around the property and make your surveillance system more useful for perimeter monitoring.
Enhanced VCA Mode — Expand Perimeter Protection
Both models support line crossing and intrusion detection on 2 channels. Enhanced VCA Mode increases this capability to 4 channels on the DS-7204HUHI-K1 and 8 channels on the DS-7208HUHI-K1, giving you more coverage when perimeter analytics are the priority.
Smart Search — Spend Less Time Looking for Footage
Security footage only helps when you can find the moment you need. Smart Search is designed to make recorded-video playback more efficient, helping you get to relevant footage without manually reviewing everything.
Hik-Connect Remote Access — Check Your System When You Are Away
Hik-Connect and DDNS support give you options for remote network access and management. That means your DVR does not have to be something you can only check while standing in front of the recorder.
Long-Distance HDTVI Transmission — More Installation Flexibility
The system supports HDTVI transmission distances up to 800 meters at 1080p and up to 1200 meters at 720p, making it suitable for installations where cameras may be located a significant distance from the recorder.

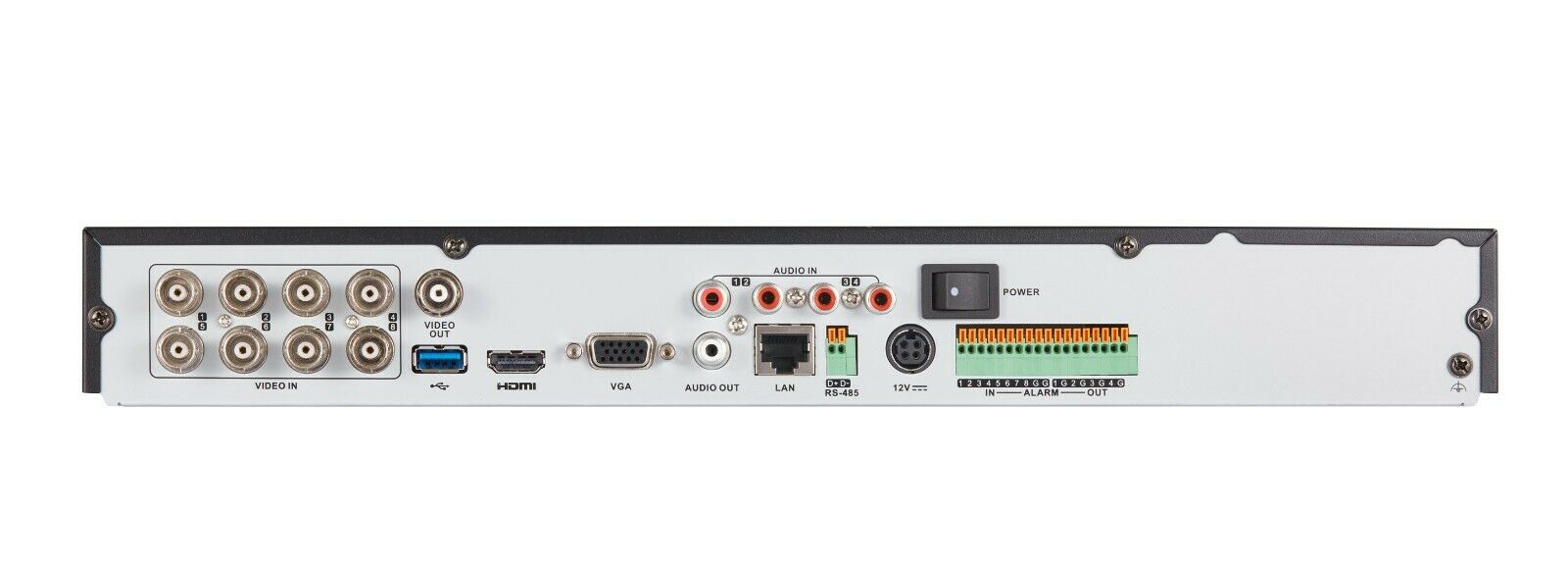

Multiple Video Outputs — Connect Directly to a Local Display
HDMI, VGA, and CVBS video outputs provide multiple ways to connect a monitor. The DS-7208HUHI-K1 additionally supports HDMI output up to 4K at 30 Hz, giving you a higher-resolution local display option.
Two-Way Audio — Add Voice Communication Capability
A dedicated RCA two-way audio connection allows the recorder to support compatible two-way audio applications, giving your surveillance setup another way to communicate and respond when needed.
Alarm Inputs & Outputs — Integrate More Than Cameras
The DS-7204HUHI-K1 provides 4 alarm inputs and 1 output, while the DS-7208HUHI-K1 provides 8 inputs and 4 outputs. This gives installers additional options for integrating compatible external alarm devices into the surveillance system.
What This Helps You Avoid
You may already have cameras, coaxial cable, and a surveillance infrastructure that still works. The frustrating part is needing better recording or more flexibility and assuming the only solution is to tear everything out and start again.
The DS-7200HUHI-K1 Series helps solve that problem by bringing analog and IP camera technologies together in one recorder. You can continue using compatible coax cameras, introduce compatible IP cameras where they make sense, and expand the system as your needs change.
It also helps address another common surveillance problem: recording plenty of footage but struggling to get value from it afterward. Higher-resolution recording, Smart Search, audio support, perimeter analytics, and remote access give you more information and better ways to reach it when an event actually matters.
Instead of choosing between keeping an older system or replacing everything at once, you get a more flexible middle ground: preserve what still works, upgrade where it matters, and build toward the surveillance system you actually need.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7200HUHI-K1 Series Turbo HD DVR
The Hikvision DS-7200HUHI-K1 Series is a flexible hybrid surveillance recorder built for systems that need to support both traditional coax cameras and modern IP cameras. With HDTVI, AHD, HDCVI, CVBS, and IP compatibility, recording resolutions up to 8 MP, H.265 Pro+ compression, audio over coax, and smart perimeter detection, it gives buyers a practical way to upgrade an existing surveillance system without replacing everything at once.
Available in 4-channel and 8-channel versions, the series supports expanded IP camera capacity, up to 10 TB of storage, remote access through Hik-Connect, and a broad range of video and audio interfaces for residential and commercial security applications.
Key Features
- H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression
- Supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs
- Recording resolution up to 8 MP
- Audio transmission over coaxial cable
- 4 or 8 analog camera channels depending on model
- Up to 8 IP channels on the DS-7204HUHI-K1 with Enhanced IP Mode
- Up to 16 IP channels on the DS-7208HUHI-K1 with Enhanced IP Mode
- Supports IP cameras up to 8 MP resolution
- Up to 800 m HDTVI transmission distance at 1080p
- Up to 1200 m HDTVI transmission distance at 720p
- H.265 Pro+ helps improve encoding efficiency and reduce storage requirements
- Up to 10 TB HDD capacity
- Smart Search for efficient recorded-video playback
- Third-party cloud storage support
- Line crossing detection
- Intrusion detection
- 2-channel sudden scene change detection
- Hik-Connect and DDNS support
- HDMI and VGA display outputs
- Two-way audio support
- Alarm input/output connections
- RS-485 serial interface
Models
Perimeter Protection
Recording & Compression
IP Video
Analog Video Inputs
Video Outputs
Audio
Network
Storage & Playback
Auxiliary Interfaces
General
Physical Interfaces
Important Operating Notes
Accessories Found
Ideal Applications & Common Uses
- Existing coax surveillance system upgrades: Ideal for upgrading older analog CCTV installations while continuing to use existing coaxial cabling.
- Hybrid analog and IP systems: Suitable for installations that need to combine HDTVI, AHD, HDCVI, CVBS, and IP cameras in one recorder.
- Residential security: Well suited for homes requiring multiple cameras, remote viewing, high-resolution recording, and smart perimeter monitoring.
- Small and medium businesses: Useful for offices, retail stores, warehouses, workshops, and other properties requiring centralized multi-camera recording.
- Long-distance coax installations: HDTVI transmission support up to 800 m at 1080p and 1200 m at 720p makes the recorder useful where cameras are positioned far from the DVR.
- Perimeter monitoring: Line crossing and intrusion detection can help monitor entrances, restricted areas, property boundaries, and other defined zones.
- Systems requiring audio: Audio-over-coax support allows compatible cameras to carry video and audio through the coaxial connection.
- Expandable surveillance systems: Enhanced IP Mode provides additional IP camera capacity when a system needs to grow beyond its original analog channel count.
- Remote-managed systems: Hik-Connect, DDNS, HTTPS, and other network protocols support remote access and network-based management.
- Higher-capacity local recording: Support for up to a 10 TB HDD makes the series suitable for installations requiring extended local video retention.
Downloads
Frequently Asked Questions
The DS-7200HUHI-K1 Series supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs. Compatible IP cameras can use H.265+, H.265, H.264+, or H.264 compression, giving you flexibility to combine analog and IP cameras in the same surveillance system.
The DS-7204HUHI-K1 has 4 analog video inputs, while the DS-7208HUHI-K1 has 8 analog video inputs. For IP cameras, the datasheet lists 2-channel IP input for the DS-7204HUHI-K1 and 4-channel IP input for the DS-7208HUHI-K1. With Enhanced IP Mode enabled, IP capacity can increase up to 8 channels on the DS-7204HUHI-K1 and up to 16 channels on the DS-7208HUHI-K1.
The DS-7200HUHI-K1 Series supports recording at resolutions up to 8 MP. Supported encoding resolutions include 8 MP, 5 MP, 3K, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, and CIF. The datasheet notes that 8 MP at 8 fps is available only on Channel 1 of the DS-7204HUHI-K1.
Both models provide one SATA interface and support up to 10 TB of storage capacity per disk.
Yes. The DVR supports Hik-Connect and DDNS for network management. Supported network protocols also include TCP/IP, PPPoE, DHCP, DNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, and ONVIF.
Yes. The series supports audio over coaxial cable as well as 4-channel RCA audio input. The DS-7204HUHI-K1 supports 4 channels of audio over coax, while the DS-7208HUHI-K1 supports 8 channels. A 1-channel RCA audio output and 1-channel two-way audio connection are also supported.
The DS-7208HUHI-K1 supports HDMI output up to 4K resolution at 3840 × 2160/30Hz and 2K at 2560 × 1440/60Hz. The DS-7204HUHI-K1 supports HDMI output up to 1920 × 1080/60Hz.
Yes. Both models support line crossing and intrusion detection on 2 channels. With Enhanced VCA Mode enabled, this increases to 4 channels on the DS-7204HUHI-K1 and 8 channels on the DS-7208HUHI-K1. The series also supports 2-channel sudden scene change detection.
The datasheet specifies HDTVI signal transmission distances of up to 800 meters for 1080p video and up to 1200 meters for 720p video.
The DS-7200HUHI-K1 Series supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression. H.265 Pro+ can be enabled to improve encoding efficiency and help reduce video storage requirements.
