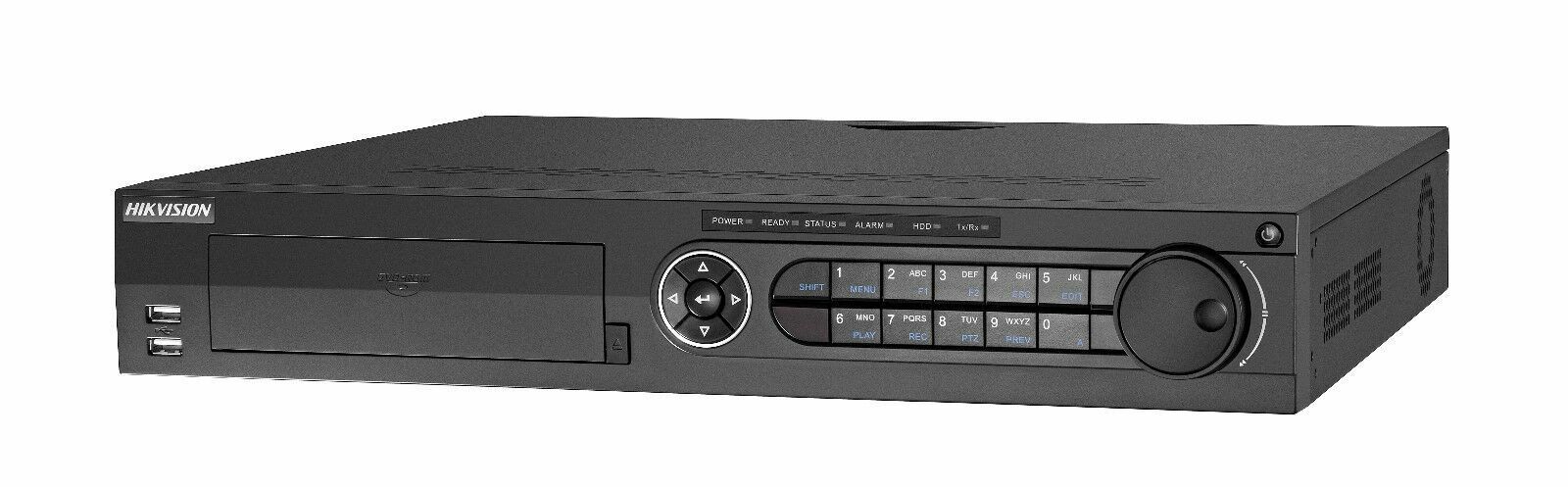

Hikvision DS-7324HQHI-K4 / DS-7332HQHI-K4 Turbo HD DVR
If you already have a large surveillance system, does replacing every camera and cable really make sense just to upgrade the recorder? The Hikvision DS-7324HQHI-K4 and DS-7332HQHI-K4 are built around flexibility, supporting HDTVI, AHD, HDCVI, CVBS and IP video so existing analog infrastructure can remain useful while compatible IP cameras are added where needed. With high channel capacity, H.265 Pro+ compression, four SATA bays, 4K HDMI output and Hik-Connect support, this series gives larger properties a centralized platform designed for serious surveillance coverage. :contentReference[oaicite:0]{index=0}
Hikvision's published product information also emphasizes the same core strengths: multi-format video input, H.265 Pro+ compression, high IP-camera capacity, four-HDD storage and POS recording capabilities. :contentReference[oaicite:1]{index=1}
Why Buyers Choose This Model
For a business with dozens of cameras, the real question is not simply whether a recorder can capture video. It is whether the recorder gives you enough flexibility, storage and expansion capability to avoid creating another expensive limitation later.
24 or 32 Analog Channels — Manage Large Properties From One Recorder
Choose the DS-7324HQHI-K4 for 24 analog video inputs or the DS-7332HQHI-K4 for 32. That capacity makes the series particularly useful when a facility has many areas to protect and you would rather manage them through one centralized recording platform than split surveillance across multiple smaller DVRs. :contentReference[oaicite:2]{index=2}
5-Signal Hybrid Compatibility — Keep More of the System You Already Own
The DVR supports HDTVI, AHD, HDCVI, CVBS and IP video. So if your property already has compatible coax cameras installed, upgrading the recorder does not automatically mean starting the entire surveillance system over from scratch. You gain a practical path for combining established analog technology with compatible IP cameras. :contentReference[oaicite:3]{index=3}
Up to 40 or 48 IP Camera Inputs — More Room to Expand
The DS-7324HQHI-K4 supports IP video input up to a maximum of 40 channels, while the DS-7332HQHI-K4 supports up to 48, with compatible IP camera resolutions up to 6 MP. Instead of choosing a recorder that may become restrictive as surveillance needs grow, this series gives larger installations considerably more camera capacity to work with. :contentReference[oaicite:4]{index=4}
H.265 Pro+ Compression — Get More From Your Storage
Recording continuously across dozens of cameras can consume storage quickly. H.265 Pro+ is specifically designed to improve encoding efficiency and reduce data-storage costs, helping you use available hard-drive capacity more efficiently instead of simply throwing more storage at the problem. :contentReference[oaicite:5]{index=5}
4 SATA Bays + eSATA — Build Storage Around Your Retention Needs
Four SATA interfaces support hard drives with capacities of up to 10 TB each, and an eSATA interface is also provided. For businesses where recorded footage may become critical evidence, that gives you significantly more storage flexibility than a basic single-drive recorder. :contentReference[oaicite:6]{index=6}
4K HDMI Output — See More on a High-Resolution Display
HDMI2 supports display output up to 4K (3840 × 2160) at 30 Hz. When you are monitoring a large multi-camera system, the ability to use a high-resolution display can make the viewing station more practical for operators who need to see multiple camera views from one location. :contentReference[oaicite:7]{index=7}
16-Channel Synchronous Playback — Review Multiple Angles Together
When something happens, seeing one camera may tell only part of the story. The recorder supports synchronous playback of up to 16 channels, allowing footage from multiple viewpoints to be reviewed together when reconstructing an incident. :contentReference[oaicite:8]{index=8}
Smart Search — Spend Less Time Looking Through Footage
Searching hours of surveillance footage manually can turn a simple investigation into a frustrating process. Smart Search is included to make playback more efficient, helping operators locate relevant recorded activity more effectively. :contentReference[oaicite:9]{index=9}
Video Content Analytics — Add Intelligence to Monitoring
The DVR supports multiple VCA events for analog and compatible smart IP cameras, including 4-channel line-crossing detection, 4-channel intrusion detection and 1-channel sudden scene-change detection. Instead of relying exclusively on someone watching screens, these capabilities can help the surveillance system identify defined types of activity. :contentReference[oaicite:10]{index=10}
POS-Triggered Recording — Connect Transactions With Video
For retail environments, the recorder supports POS-triggered recording and POS information overlay. This gives compatible point-of-sale installations a way to associate transaction information with surveillance footage, making video more useful when reviewing events around a register or checkout area. :contentReference[oaicite:11]{index=11}
Hik-Connect & Network Access — Stay Connected to the System
Hik-Connect and DDNS are supported for easier network management, along with a Gigabit Ethernet interface and support for up to 128 remote connections. That gives authorized users a recorder designed for network-connected surveillance rather than limiting monitoring to the screen sitting beside the DVR. :contentReference[oaicite:12]{index=12} :contentReference[oaicite:13]{index=13}
Long-Distance HDTVI Transmission — Better Suited to Large Sites
The series supports HDTVI signal transmission distances of up to 800 meters at 1080p and 1200 meters at 720p. For larger properties where cameras may be located far from the recording room, that capability can make existing coax-based infrastructure much more useful. :contentReference[oaicite:14]{index=14}
16 Alarm Inputs / 4 Alarm Outputs — Integrate More Than Cameras
With 16 alarm inputs and four alarm outputs, the DVR offers additional integration options for compatible security devices. That matters when the goal is not simply recording cameras, but building a more centralized surveillance and alarm environment. :contentReference[oaicite:15]{index=15}
What This Helps You Avoid
Imagine having 20, 30 or more cameras already installed and discovering that upgrading your recorder means replacing cameras simply because the new equipment does not support the signals you already use. Then consider what happens when a smaller recorder reaches its storage or channel limits and another replacement becomes necessary.
The DS-7324HQHI-K4 and DS-7332HQHI-K4 address those concerns by combining multiple analog formats with IP-camera support, substantial channel capacity and four internal SATA interfaces. Instead of forcing the entire surveillance system into one camera technology, you have more flexibility to work with compatible existing equipment while planning additional IP-camera deployment around the areas where it makes sense. :contentReference[oaicite:16]{index=16} :contentReference[oaicite:17]{index=17}
It also helps reduce another common problem with large surveillance systems: collecting enormous amounts of video but struggling when you actually need to find something. H.265 Pro+ improves encoding efficiency, Smart Search helps with playback, and up to 16 channels can be played synchronously when an incident needs to be reviewed from several angles. :contentReference[oaicite:18]{index=18} :contentReference[oaicite:19]{index=19}
The result is a recorder aimed at making a large existing surveillance system easier to expand, store, review and manage—without creating unnecessary replacement work simply because your property uses more than one supported camera technology.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-7324HQHI-K4 / DS-7332HQHI-K4 Turbo HD DVR
The Hikvision DS-7324/7332HQHI-K4 Series is a high-capacity Turbo HD DVR designed for larger surveillance systems that need flexibility across analog and IP camera technologies. Available in 24-channel and 32-channel analog configurations, the series supports HDTVI, AHD, HDCVI, CVBS and IP video, making it well suited for upgrading an existing coax-based security system without immediately replacing every camera. With H.265 Pro+ compression, four internal SATA bays, eSATA support, 4K HDMI output, smart video analytics and remote Hik-Connect access, it provides a scalable recording platform for demanding commercial installations.
Key Features
- 24 or 32 analog camera inputs depending on model.
- Hybrid video compatibility: HDTVI, AHD, HDCVI, CVBS and IP cameras.
- Up to 40 IP camera channels on the DS-7324HQHI-K4.
- Up to 48 IP camera channels on the DS-7332HQHI-K4.
- Supports IP cameras at resolutions of up to 6 MP.
- H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 video compression.
- Full-channel recording at up to 4 MP Lite resolution.
- HDTVI transmission distances up to 800 m at 1080p and 1200 m at 720p.
- 4 SATA interfaces plus 1 eSATA interface.
- Supports HDD capacities of up to 10 TB per disk.
- 4K HDMI output through HDMI2.
- Supports POS-triggered recording and POS information overlay.
- Smart search for faster and more efficient playback.
- Supports third-party cloud storage.
- Multiple VCA events for analog and compatible smart IP cameras.
- Supports 4-channel line crossing detection and intrusion detection.
- Supports 1-channel sudden scene change detection.
- 16-channel synchronous playback.
- Supports up to 128 remote connections.
- Hik-Connect and DDNS support for remote network management.
- 16 alarm inputs and 4 alarm outputs.
Models & Channel Capacity
Recording & Compression
Video Inputs & Outputs
Audio & Playback
Storage & Playback
Smart Functions
Network
Auxiliary Interfaces
General

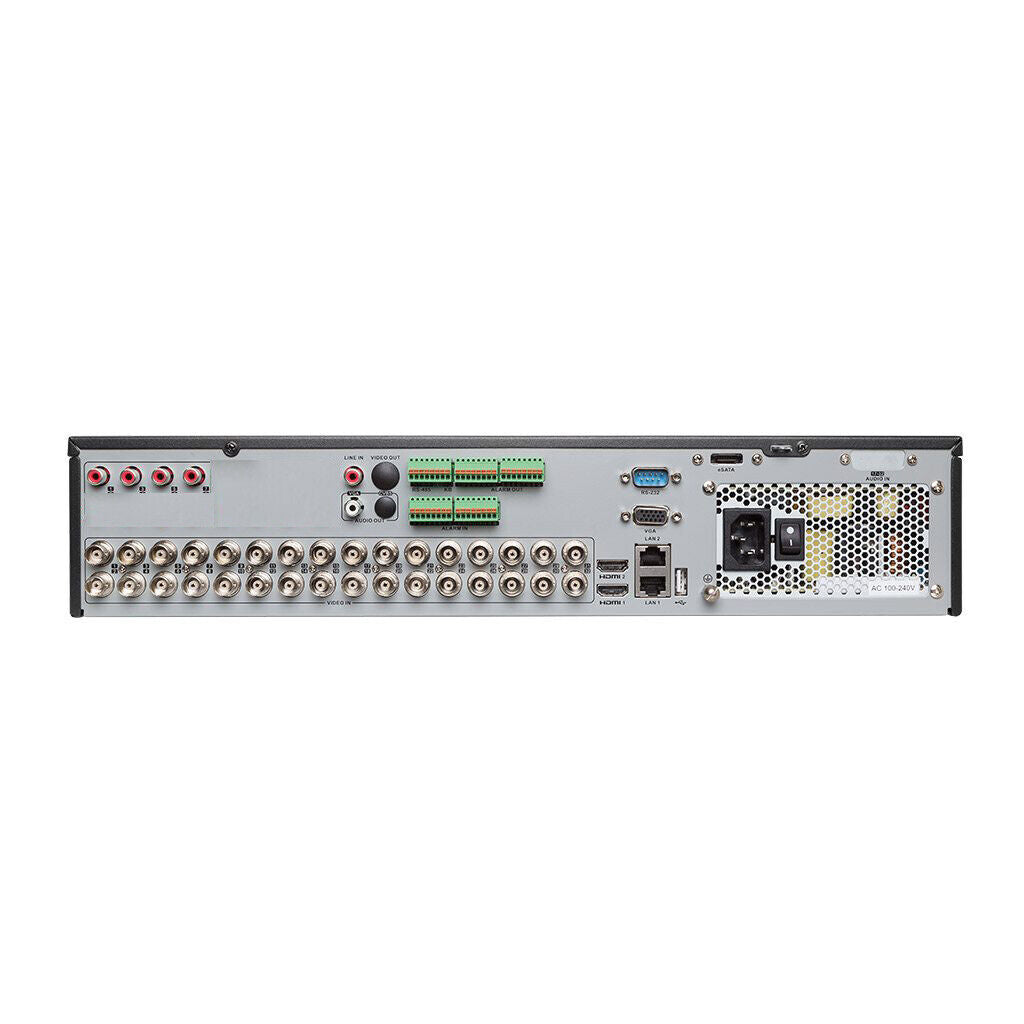

Physical Interfaces
Accessories Found
Ideal Applications & Common Uses
Based on the channel capacity, hybrid camera support, POS integration, storage options and networking capabilities documented for this series, typical applications include:
- Large retail stores: particularly installations that can benefit from POS-triggered recording and POS information overlay.
- Warehouses and commercial facilities: where 24 or 32 analog camera connections and additional IP camera capacity are required.
- Existing coax surveillance upgrades: allowing HDTVI, AHD, HDCVI and CVBS cameras to coexist with newer IP cameras.
- Multi-camera business surveillance: where centralized recording, 16-channel synchronous playback and large storage capacity are important.
- Schools, offices and institutional facilities: where a large number of camera channels and remote network access may be needed.
- Hybrid security system expansions: for sites that want to retain existing analog cameras while gradually adding compatible IP cameras.
- Remote-managed surveillance systems: using Hik-Connect, DDNS and Gigabit Ethernet connectivity.
Downloads
Frequently Asked Questions
The DS-7324HQHI-K4 and DS-7332HQHI-K4 support HDTVI, AHD, HDCVI, CVBS and IP video inputs. This allows the DVR to work with multiple analog camera technologies as well as compatible IP cameras using H.265+, H.265, H.264+ or H.264 compression.
The DS-7324HQHI-K4 provides 24 analog video inputs and supports 16 IP video inputs, expandable up to a maximum of 40 IP camera inputs. The DS-7332HQHI-K4 provides 32 analog video inputs and supports 16 IP video inputs, expandable up to a maximum of 48 IP camera inputs.
The DVR supports compatible IP cameras with resolutions of up to 6 MP.
The DS-7324/7332HQHI-K4 Series includes four SATA interfaces and supports up to 10 TB of storage capacity per hard drive. It also provides an eSATA interface for additional supported storage connectivity.
Yes. The DVR supports H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 video compression. According to the datasheet, H.265 Pro+ can improve encoding efficiency and help reduce data storage costs.
Yes. The DVR supports Hik-Connect and DDNS for network management. It provides a Gigabit RJ45 Ethernet interface and supports up to 128 remote connections.
Yes. The HDMI2 output supports resolutions up to 4K (3840 × 2160) at 30 Hz. HDMI1/VGA supports output resolutions up to 1920 × 1080 at 60 Hz.
The DVR supports multiple VCA (Video Content Analytics) events for analog cameras and compatible smart IP cameras. The datasheet specifies support for 4-channel line crossing detection, 4-channel intrusion detection and 1-channel sudden scene change detection.
Yes. The DS-7324/7332HQHI-K4 Series supports POS-triggered recording and POS information overlay, allowing compatible point-of-sale information to be associated with surveillance recordings.
The DVR supports synchronous playback of up to 16 channels. It also includes Smart Search functionality to help locate and review relevant recorded video more efficiently.
