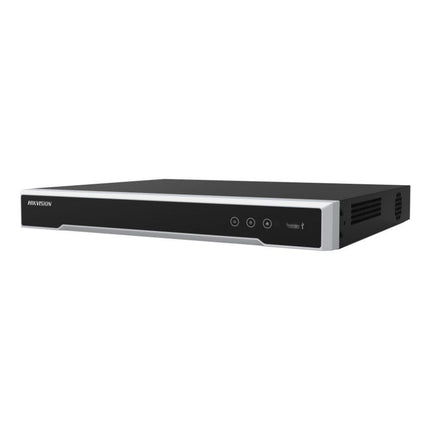

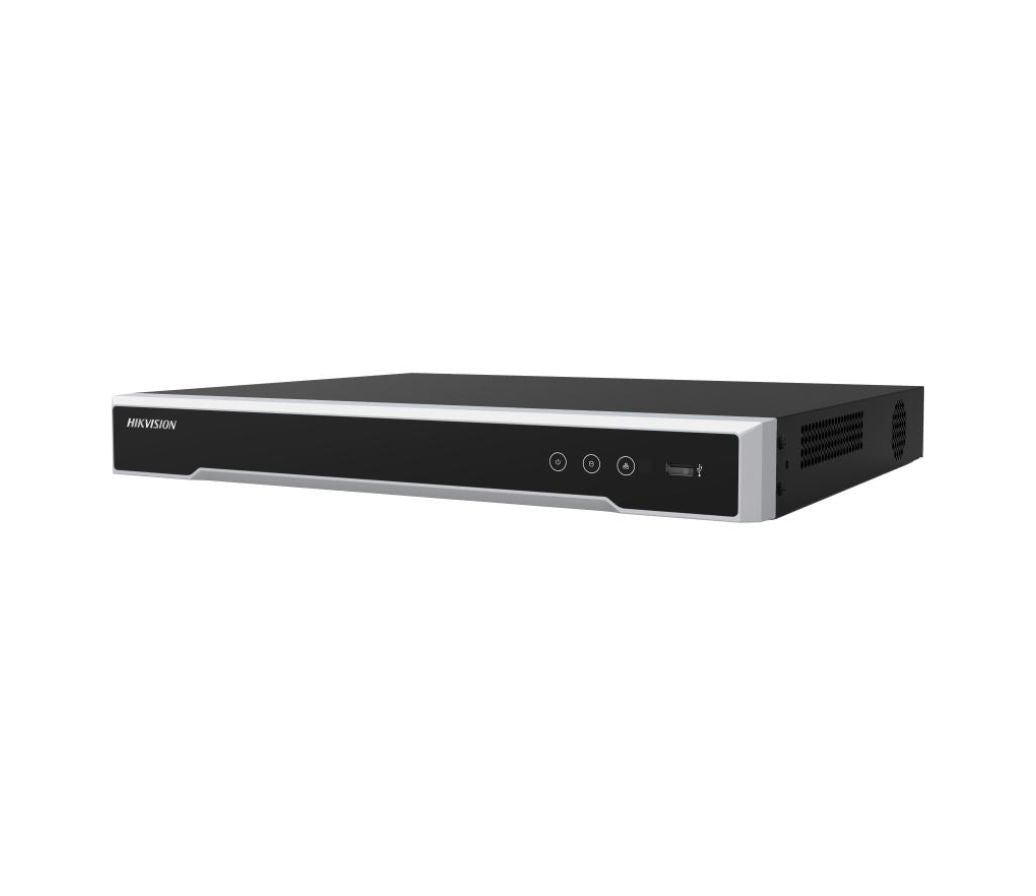

The DS-7608NI-M2 supports up to 8 IP camera inputs, which makes it a solid fit for small to mid-size surveillance systems that need centralized recording. The datasheet also states it supports up to 32 MP resolution input. In addition, after ultra HD resolution mode is enabled, the NVR supports up to 8-channel 32 MP or 24 MP IP video inputs. That gives buyers room to build around higher-resolution cameras without stepping up to a larger recorder.

Yes, the datasheet confirms that the HDMI output supports up to 8K resolution at 7680 × 4320 at 30 Hz. It also supports 4K at both 60 Hz and 30 Hz, as well as 2K and 1080p output options. On top of that, the unit provides independent HDMI and VGA outputs, which is useful when you want flexible display connections. For anyone who wants sharp local display output for monitoring or playback, that is one of the standout specs of this model.

The DS-7608NI-M2 includes 2 SATA interfaces for HDD connection. According to the datasheet, each disk can support up to 16 TB capacity. That means the recorder is designed for larger storage setups when longer retention times are important. It is also worth noting that the datasheet lists the unit weight as up to 3 kg without HDD, so drives are not included in that base weight figure.

This NVR supports H.265+, H.265, H.264+, and H.264 video formats. The datasheet specifically says H.265+ compression can reduce storage space by up to 75 percent. It also supports dual-stream recording, which helps save bandwidth during operation. For buyers, that matters because it can help stretch storage further while keeping the system efficient.

The datasheet lists Hik-Connect and DDNS for easy network management, which shows the recorder is designed with remote access features in mind. It also supports web access without plug-in, which can make browser-based access more straightforward. On the network side, it includes 2 self-adaptive RJ-45 10/100/1000 Mbps Ethernet interfaces and supports a wide list of protocols including TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, RTSP, HTTP, HTTPS, and ONVIF. Altogether, the specifications show this NVR is built to integrate into modern IP surveillance networks.

Yes, the datasheet says it supports multiple VCA, or Video Content Analytics, events. It also lists configurable special camera smart functions such as motion detection, line crossing, intrusion detection, heat map, ANPR, and people counting. In addition, it supports POS information overlay on live view and playback, along with POS-triggered recording and alarm. That makes it a strong option for users who want more than basic recording and need event-based monitoring features.

The datasheet confirms that up to 8 IP speakers can be connected to this NVR. It also includes 1-channel audio output via RCA and 1-channel two-way audio via RCA using the audio input. For audio compression, the supported formats listed are G.711ulaw, G.711alaw, G.722, G.726, AAC, and MP2L2. So if audio monitoring or talkback capability matters in your setup, this model includes dedicated support for that.

The recorder supports 8-channel synchronous playback, which is helpful when reviewing multiple camera views at the same time. Its decoding capability is listed as 2-channel at 32 MP and 30 fps plus 2-channel at 8 MP and 30 fps, or up to 10-channel at 8 MP and 30 fps, 20-channel at 4 MP and 30 fps, or 40-channel at 1080p and 30 fps. The datasheet also lists recording resolutions from 32 MP and 24 MP down through 1080p, 720p, VGA, CIF, and QCIF. That gives it the flexibility to handle both high-resolution and mixed-resolution surveillance environments.

According to the datasheet, the DS-7608NI-M2 includes LAN 1 and LAN 2 interfaces, audio in and audio out, HDMI, VGA, alarm in and alarm out, USB 3.0, CVBS video output, power supply, GND, and a power switch. It also lists 4 alarm inputs and 1 alarm output. For USB connections, there is 1 USB 2.0 port on the front panel and 1 USB 3.0 port on the rear panel. Those connections give installers a practical mix of display, networking, alarm, and service access points.

The datasheet lists the power supply as 12 VDC, 3.33 A. Power consumption is rated at 15 W or less without HDD installed. The unit dimensions are 384 × 317 × 52 mm, and the working temperature range is -10 °C to 55 °C with 10% to 90% working humidity. For weight, the datasheet states up to 3 kg without HDD, and also notes 2.2 lb. in the same weight line.
