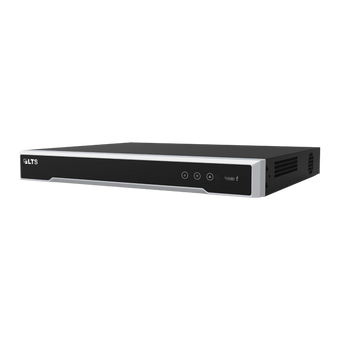

LTN8608-P8N Lts 8ch IP PoE Recorder w/ HDD <h1 Platinum 8-Channel 86-Series 8K
LTN8608-P8N Lts 8ch IP PoE Recorder w/ HDD <h1 Platinum 8-Channel 86-Series 8K
Out of stock
Description
Description

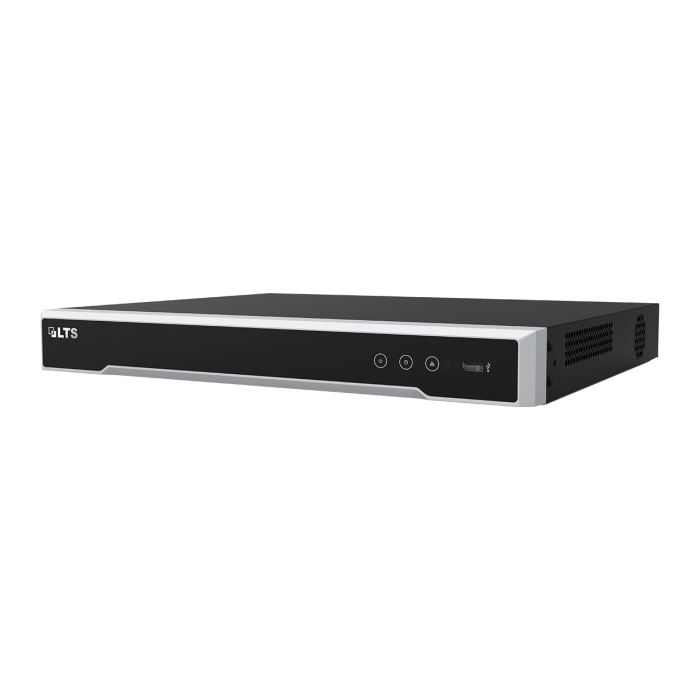

LTS LTN8608-P8 Platinum Enterprise 8-Channel PoE NVR
What if your surveillance recorder could simplify the entire installation while still giving you the resolution, storage, and playback performance you actually need? The LTS LTN8608-P8 combines 8 built-in PoE camera ports, support for cameras up to 12MP, and 4K HDMI output in one professional 1U NVR.
Instead of building a system around extra switches and unnecessary equipment, you can connect up to eight compatible PoE cameras directly to the recorder while managing recording and playback from one centralized device.
With dual SATA storage, 8-channel synchronous playback, multiple video outputs, and support for H.265 and H.264 compression formats, it gives you a capable foundation for a dependable professional surveillance system.
Why Buyers Choose the LTN8608-P8
A recorder is easy to overlook until you realize how much the performance of the entire camera system depends on it. The LTN8608-P8 gives buyers a practical combination of high-resolution camera support, built-in PoE, expandable storage, and flexible video output without overcomplicating an 8-camera installation.
8 Built-In PoE Ports — Simplify Your Camera Installation
Connect up to eight PoE network cameras directly to the recorder. With eight independent RJ-45 PoE interfaces and support for IEEE 802.3af/at, the NVR can provide network connectivity and power to compatible cameras without requiring a separate PoE switch for those eight connections.
Up to 12MP Camera Support — Preserve the Detail Your Cameras Capture
Buying higher-resolution cameras only makes sense if the recorder can support them. The LTN8608-P8 accepts IP video at resolutions up to 12MP, giving you room to use high-resolution cameras without immediately outgrowing the recorder.
4K HDMI Output — View Your Security System in High Resolution
Connect the NVR to a compatible 4K display and take advantage of HDMI output up to 3840 × 2160. That gives you a high-resolution local viewing experience when monitoring cameras or reviewing recorded footage.
Dual SATA Storage — Build the Recording Capacity You Need
The recorder supports two SATA hard drives with capacities of up to 6TB each. That gives you the flexibility to configure as much as 12TB of total internal drive capacity rather than being restricted to a single hard drive.
HDD Quota & Group Modes — Better Control Over Your Storage
The LTN8608-P8 supports HDD quota and group modes, giving compatible installations additional flexibility in how recording storage is organized and managed.
8-Channel Synchronous Playback — Review More of the Event at Once
When something happens, seeing one camera angle may not tell the whole story. With support for up to 8-channel synchronous playback, you can review footage from multiple cameras together and get a more complete view of an incident.
High-Resolution Decoding — Designed for Demanding Surveillance Video
The NVR provides decoding capability of up to 2 channels at 4K or 8 channels at 1080p, helping it handle high-resolution surveillance footage while still supporting multi-camera playback.
H.265 & H.264 Support — Flexible Video Compression Options
The recorder supports H.265, H.264 Zip+, H.264, and MPEG4 decoding formats, providing flexibility when working with supported cameras using different video compression formats.
80Mbps Incoming Bandwidth — Built for Multi-Camera Video
With up to 80Mbps of incoming bandwidth, the recorder is designed to receive video streams from multiple connected IP cameras while supporting an eight-camera surveillance system.
Multiple Display Outputs — More Flexibility at the Recorder
HDMI, VGA, and CVBS video outputs give you multiple ways to connect local monitoring equipment. Whether your installation uses a modern HDMI display or requires another supported connection, you have more options available without redesigning the system around a single output.
Alarm & Audio Connections — More Than Basic Video Recording
The LTN8608-P8 includes 4 alarm inputs, 1 alarm output, a two-way RCA audio input, and an RCA audio output, giving compatible surveillance installations additional integration options beyond standard camera recording.
1U Rack-Mountable Design — A Cleaner Professional Installation
Its 380mm 1U rack-mountable chassis makes the NVR well suited for organized equipment racks and professional security installations where keeping hardware clean and centralized matters.
What This Helps You Avoid
Imagine investing in high-resolution cameras only to discover that your recorder cannot support their resolution, does not have enough camera connections, or limits how you can review the footage afterward.
Then consider the added complexity of needing separate PoE equipment just to connect a standard eight-camera system, or realizing later that your recorder only has room for one hard drive when you need additional recording capacity.
The LTN8608-P8 addresses those problems by bringing eight PoE interfaces, support for cameras up to 12MP, two SATA drive bays, 4K HDMI output, and eight-channel synchronous playback together in one recorder.
The result is a cleaner foundation for your surveillance system: fewer unnecessary components, room for substantial local storage, support for high-resolution cameras, and the ability to review multiple camera angles when the footage matters most.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
LTS LTN8608-P8 Platinum Enterprise Level 8-Channel PoE NVR
The LTS LTN8608-P8 is a professional 8-channel network video recorder designed for IP surveillance systems requiring high-resolution recording, integrated PoE connectivity, and substantial local storage.
It supports up to eight network cameras with resolutions up to 12MP, provides eight independent PoE network interfaces, and can accommodate two SATA hard drives with capacities of up to 6TB each.
With HDMI output supporting resolutions up to 4K, eight-channel synchronous playback, H.265/H.264 decoding, and a rack-mountable 1U chassis, the LTN8608-P8 is well suited for professional multi-camera security installations.
Key Features
- Supports up to 8 network cameras
- Supports IP cameras with resolutions up to 12MP
- 8 independent PoE network interfaces
- Live view, storage, and playback support
- HDMI video output up to 4K resolution
- 2 SATA interfaces for up to 2 hard drives
- Supports up to 6TB per hard drive
- Maximum potential internal storage capacity of 12TB using two 6TB drives
- Supports HDD quota and group modes
- H.265, H.264 Zip+, H.264, and MPEG4 decoding formats
- Up to 8-channel synchronous playback
- Decoding capability up to 2 channels at 4K or 8 channels at 1080p
- 80Mbps incoming bandwidth
- 256Mbps outgoing bandwidth
- 128 remote connections
- IEEE 802.3af/at PoE support
- Maximum PoE power of 120W
- Gigabit Ethernet network interface
- USB 2.0 front interface and USB 3.0 rear interface
- 4 alarm inputs and 1 alarm output
- 1U rack-mountable chassis
Video / Audio Input
Network
Video / Audio Output
Decoding
Hard Disk & Storage
External Interfaces
PoE
General
Rear Panel Connections
Accessories
Ideal Applications & Common Uses
Based on its 8-channel IP camera capacity, integrated PoE interfaces, high-resolution recording, rack-mountable design, and local hard-drive support, the LTN8608-P8 is suited to professional IP surveillance installations requiring up to eight cameras.
- 8-camera IP surveillance systems
- Residential security camera systems
- Small and medium-sized business surveillance
- Retail store video surveillance
- Office security systems
- Warehouse and storage-area monitoring
- Professional PoE camera installations
- High-resolution surveillance systems using cameras up to 12MP
- Installations requiring local multi-HDD video storage
- Systems requiring 4K local monitor output
Downloads
Frequently Asked Questions
The LTN8608-P8 supports up to 8 IP network cameras, making it suitable for surveillance systems requiring up to eight camera channels.
The NVR supports IP camera input and recording at resolutions up to 12MP. Supported recording resolutions also include 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF.
Yes. The LTN8608-P8 includes 8 independent RJ-45 10/100Mbps PoE network interfaces. The PoE ports support IEEE 802.3af/at with a maximum PoE power rating of 120W.
The LTN8608-P8 provides 2 SATA interfaces for up to two hard drives. According to the supplied datasheet, each hard drive can have a capacity of up to 6TB.
Yes. Its HDMI output supports resolutions up to 4K (3840 × 2160), including 4K at 60Hz and 30Hz as listed in the datasheet. It also provides VGA and CVBS video outputs.
The LTN8608-P8 supports H.265, H.264 Zip+, H.264, and MPEG4 decoding formats.
The LTN8608-P8 supports up to 8-channel synchronous playback. Its listed decoding capability is up to 2 channels at 4K or 8 channels at 1080p.
The NVR supports up to 80Mbps of incoming bandwidth and 256Mbps of outgoing bandwidth. It also includes one RJ-45 10/100/1000Mbps self-adaptive Ethernet network interface.
The datasheet lists support for up to 128 remote connections.
The LTN8608-P8 includes a Gigabit Ethernet network interface, 8 PoE camera interfaces, HDMI, VGA, CVBS video output, RCA audio input and output, a front USB 2.0 port, a rear USB 3.0 port, and 4 alarm inputs with 1 alarm output.
