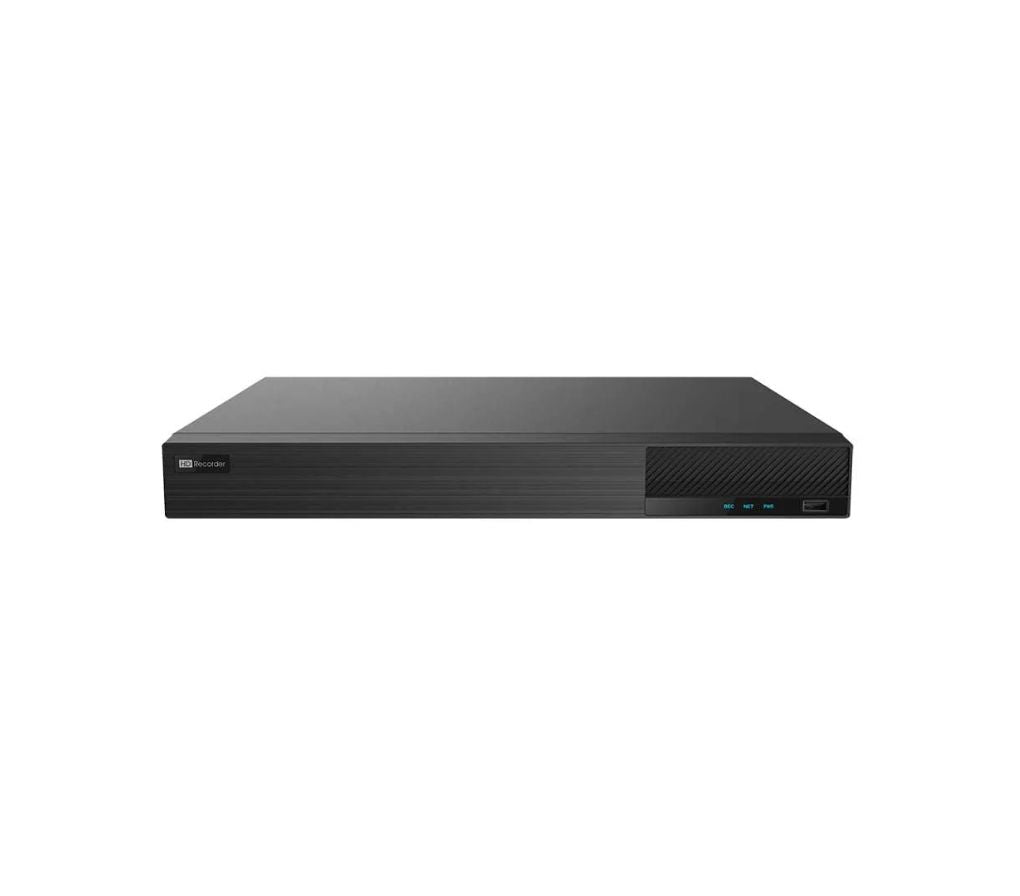

ED8208H5-FN2 8CH Hybrid 4K DVR with 16CH Expansion and Dual SATA Storage

The ED8208H5-FN2 is an 8-channel hybrid DVR, and the datasheet says it supports 8 analog video inputs through BNC connections. It also supports 8 IP channels by default, and the specifications list IP input video as 8 channels, up to 16 channels total. That means it is designed for users who want the flexibility to work with both analog and IP cameras in one recorder. For buyers upgrading older systems, that hybrid capacity makes it easier to expand without replacing everything at once.

Yes, that is one of the main selling points of this model. The datasheet states that it supports analog and IP video input simultaneously, including 8MP, 5MP, 4MP, 3MP, 1080P, 720P, and WD1 sources. It also supports TVI, AHD, and CVI analog formats, which gives installers more flexibility when working with mixed systems. This is especially useful when you want to keep part of an existing analog setup while adding IP cameras over time.

The recorder supports resolutions up to 8MP for recording. In the specifications, the resolution list includes 4K, 4K Lite, 5MP, 5MP Lite, 4MP, 4MP Lite, 3MP, 1080P, 720P, WD1, and D1. The frame rate section also breaks down performance for both analog and IP channels, with IP channels supporting up to 8MP at 25 or 30 fps. That gives users a wide range of options depending on which cameras they connect and how much detail they need.

Yes, the product sheet specifically highlights HDMI 4K output. The specifications list one HDMI output with supported resolutions of 3840 × 2160, 1920 × 1080, and 1280 × 1024. It also includes one VGA output up to 1920 × 1080 and one BNC output used as the main or spot output. For local monitoring, that gives users several display choices depending on the monitor they want to use.

The ED8208H5-FN2 includes two SATA connections for internal hard drives, and the datasheet states it supports up to 10TB per HDD. It also lists one eSATA connection, which gives additional storage flexibility. For buyers who need longer retention times, that matters because it allows the recorder to handle more footage before older recordings are overwritten. Combined with H.265 compression, this can make storage more efficient for daily use.

Yes, the datasheet says the DVR supports remote control through Web Client or CMS for preview, playback, backup, PTZ, and configuration. It also states there is mobile surveillance support for smartphones running iOS and Android, along with NAT support and QR code scanning by mobile phones. That means users can monitor and manage the system remotely instead of staying tied to the recorder location. For many buyers, remote access is one of the most important everyday features because it adds convenience and peace of mind.

Yes, the product sheet says it supports 8-channel audio input. In the detailed specifications, audio input is listed as RCA × 8, with RCA × 1 audio output and 2-channel two-way audio. The compression type for audio is G.711(U/A), and the model also mentions support for microphone use in the front-page feature icons. For users who want both video and audio in the same system, the recorder is equipped for that kind of setup.

The datasheet says the unit supports simultaneous 8-channel playback, which helps users review multiple cameras at once. Search options include time slice, time, event, tag, and smart search, and the playback functions include play, pause, fast forward, fast backward, and digital zoom. The smart search section also notes that highlighted colors are used to show recording periods and different record events. That makes it easier to find important footage without manually scrubbing through long timelines.

Yes, PTZ support is clearly listed in the product sheet. The features section says it supports PTZ preset and auto cruise, with up to 255 presets and 8 cruises. The specifications also list RS-485 support, half-duplex, for connecting to PTZ or a keyboard. For users who need active camera control rather than fixed-angle viewing only, this is an important capability.

The product sheet says backup is flexible and can be done through USB, network, and other methods. In the specifications, local backup is listed as U disk and USB mobile HDD, and network backup is also supported. The unit includes one USB 3.0 port and one USB 2.0 port, which gives users practical ways to export video locally. That is useful when footage needs to be saved for review, sharing, or evidence purposes.

The DVR includes one RJ45 1000Mbps network interface. The datasheet lists 32Mbps incoming bandwidth, 96Mbps outgoing bandwidth, and a maximum of 10 client users accessing the system. It also supports common protocols including TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, NTP, and SMTP. For buyers planning remote access or multi-user viewing, those specifications help define how the recorder fits into a networked environment.
