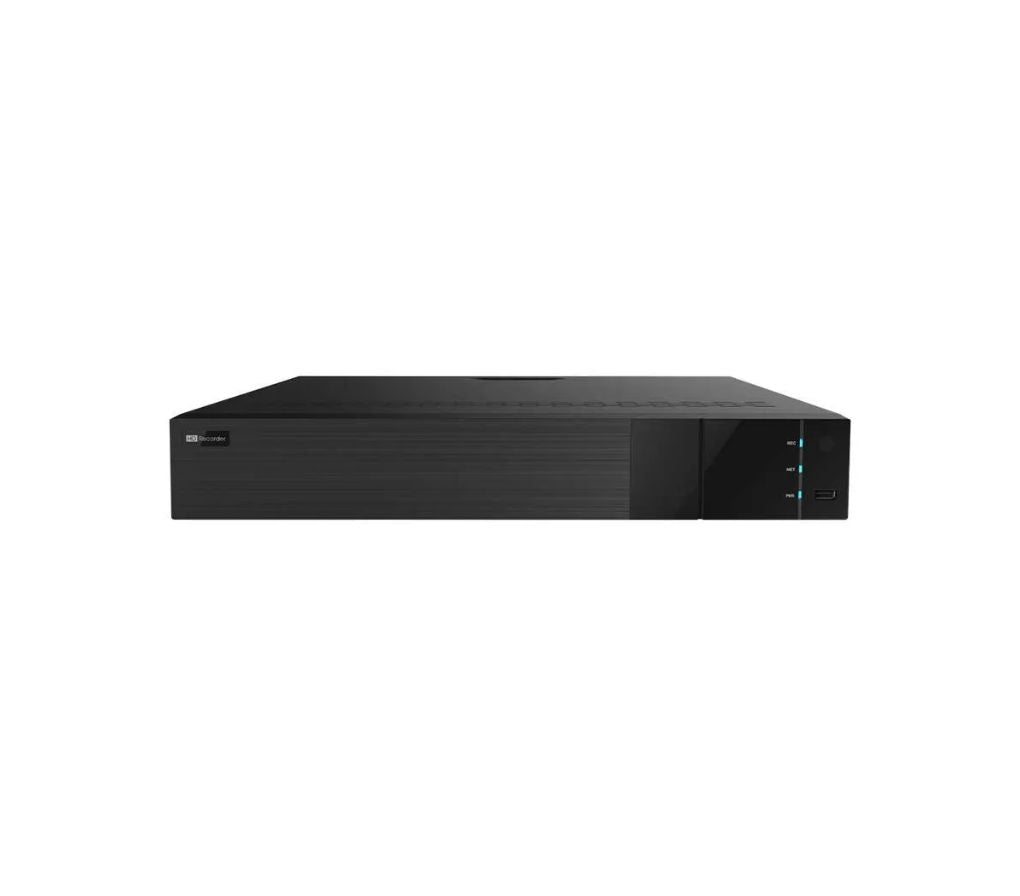

ENS ED9632H5NV-16P-A2 32-Channel 12MP AI PoE Network Video Recorder
When your security system grows, the recorder behind it needs to do more than simply store video—it needs to help you find the footage that actually matters. The ED9632H5NV-16P-A2 combines 32-channel IP camera support, 16 built-in PoE ports, resolutions up to 12MP, 4K display output and intelligent video analytics in one centralized surveillance platform.
Instead of being limited by a small recorder today and replacing it when your system expands, you get room for up to 32 IP cameras while still having 16 direct PoE connections for simplified installation. Its combination of high-resolution recording, intelligent search, face-related analytics, human and vehicle classification, license plate recognition and remote access is designed to make a larger surveillance system easier to manage.
So the question becomes: would you rather have hundreds of hours of recorded video that someone has to manually search through, or a system designed to help you narrow down important events faster?
Why Buyers Choose the ED9632H5NV-16P-A2
Buyers looking at this class of recorder typically need three things: capacity, image quality and faster access to useful footage. The ED9632H5NV-16P-A2 brings those together with 32-channel capacity, 12MP camera support, 4K output and multiple AI and VCA capabilities. :contentReference[oaicite:0]{index=0}
32-Channel IP Camera Capacity — Build a System That Has Room to Grow
Connect up to 32 IP camera channels, giving you the flexibility to cover more entrances, parking areas, offices, hallways, warehouses or other important areas from one recorder.
That means you can start with the cameras you need now while maintaining room to expand instead of replacing the recorder every time your surveillance needs increase.
16 Built-In PoE Ports — Simplify Camera Installation
Sixteen built-in RJ45 PoE ports allow compatible PoE IP cameras to connect directly to the NVR for network connectivity and power.
For the buyer, that can mean a cleaner system design with fewer separate networking components required for directly connected cameras. The PoE interface supports IEEE 802.3AF/AT with up to 150W total PoE output power.
Up to 12MP Camera Support — Capture the Detail You Installed Cameras For
The recorder supports IP camera resolutions including 12MP, 8MP, 6MP, 5MP, 4MP, 3MP and 1080P.
Higher-resolution camera compatibility gives you the ability to build a surveillance system where image detail matters—whether you're reviewing activity around an entrance, monitoring property or investigating an incident after it happens.
4K HDMI Output — See High-Resolution Cameras on a High-Resolution Display
HDMI1 supports output up to 3840 × 2160 4K, helping you take advantage of high-resolution surveillance cameras when viewing them locally on a compatible 4K monitor.
Instead of investing in high-resolution cameras only to monitor them through a low-resolution local output, the recorder is designed to provide a clearer viewing experience.
Human & Vehicle Classification — Focus on More Relevant Activity
The ED9632H5NV-16P-A2 supports human and vehicle classification, adding another layer of intelligence to compatible surveillance configurations.
When you're protecting a property, knowing that movement occurred is useful—but being able to distinguish important types of activity can make reviewing security events far more practical.
Face Detection & Comparison — Turn Recorded Video Into More Useful Information
The NVR supports face detection and comparison features, including up to 32 face libraries and 10,000 face pictures. The datasheet also specifies comparison performance of up to 18 pictures per second.
Face picture search, allow lists, block lists and stranger-match alarms provide additional tools for installations where identifying or reviewing people is important.
License Plate Recognition — Add Intelligence to Vehicle Monitoring
License plate recognition is supported, making this recorder better suited to surveillance environments where vehicle activity and entry or exit points need closer attention.
Instead of relying only on ordinary video playback, compatible LPR configurations can provide an additional way to work with vehicle-related surveillance information.
Video Content Analytics — Know Where to Start Looking
The recorder supports multiple VCA events including region intrusion, tripwire, abandoned or missing objects and video exception events.
These tools can make surveillance more purposeful by helping the system identify specific types of activity rather than treating every moment of video the same.
Smart Search — Spend Less Time Hunting Through Recorded Video
Search options include time slice, time, event, tag and smart search, giving users multiple ways to locate relevant recordings.
When something happens, the real value of a surveillance system is often determined by how quickly you can find the evidence. These search functions help make recorded footage easier to navigate.
Up to 16-Channel Simultaneous Playback — Review More Cameras Together
The NVR supports simultaneous playback of up to 16 channels.
This can be especially useful when an incident moves across several camera views, allowing you to review activity from multiple areas rather than checking each camera individually.
192Mbps Incoming & Outgoing Bandwidth — Built for Multi-Camera Surveillance
The ED9632H5NV-16P-A2 provides 192Mbps incoming and 192Mbps outgoing network bandwidth.
That gives the recorder the network capacity needed to support a substantial multi-camera IP surveillance environment while maintaining remote and local system functionality.
Four SATA Bays — Build Storage Around Your Recording Needs
Four SATA interfaces support up to 10T per HDD according to the manufacturer's datasheet, while an additional E-SATA interface provides another storage connectivity option.
Rather than being locked into minimal internal storage capacity, you have more flexibility to configure retention around the number of cameras and recording requirements of the property.
H.265+ Compression Support — Use Storage More Efficiently
The recorder supports H.265S, H.265+, H.265 and H.264 compression formats.
Modern compression support gives compatible cameras and configurations more efficient options for handling surveillance video and storage than relying exclusively on older H.264 compression.
ONVIF Compatibility — More Flexibility When Choosing Cameras
ONVIF support provides compatibility with supported third-party IP cameras instead of restricting the recorder exclusively to one camera ecosystem.
That can be especially valuable when upgrading an existing surveillance system or combining compatible cameras with different capabilities.
iOS & Android Mobile Surveillance — Check Your Property From More Than One Location
The recorder supports mobile surveillance using iOS and Android smartphones, along with NAT functionality and QR-code scanning for mobile devices.
Your surveillance system doesn't have to be useful only while you're sitting in front of the recorder. Remote capabilities help keep important camera views accessible when you're away from the property.
Web Client & CMS Remote Management — Manage More Without Being at the Recorder
Remote functions include preview, playback, backup, PTZ control and configuration through Web Client or CMS.
This makes the system better suited to users and administrators who need to review or manage surveillance without physically standing in front of the NVR.
POS Integration — Connect Transactions With Surveillance Footage
The NVR supports POS information overlay on live view and playback.
For compatible retail and commercial installations, this can provide additional context by allowing transaction information to be viewed alongside surveillance footage.
PTZ Control — Manage Compatible Cameras From the Same System
PTZ functionality includes support for up to 255 presets and 8 cruises.
For properties using compatible PTZ cameras, this gives operators additional flexibility to monitor larger areas and establish predefined camera positions.
Pentaplex Operation — Keep the System Working While You Use It
Pentaplex functionality supports preview, recording, playback, backup and remote access.
The benefit is simple: a surveillance recorder should continue doing its job while you're reviewing footage, backing up evidence or accessing it remotely.
What This Helps You Avoid
Imagine something happens at your property and you know your cameras recorded it. You open the recorder—and now you're faced with hours of footage across multiple cameras, trying to determine where the event started and where it went next.
Or maybe your current recorder works today, but every new camera brings you closer to its channel limit. Eventually, expanding coverage means replacing hardware, redesigning part of the system and spending money twice.
The ED9632H5NV-16P-A2 is designed to address those problems before they become frustrating. Its 32-channel capacity gives you expansion room, while 16 PoE ports simplify direct camera connections and its four SATA interfaces give you greater flexibility when planning storage.
Then, when an event does occur, features such as smart search, human and vehicle classification, face-related analytics, VCA events, license plate recognition and multi-channel playback give you more tools for getting from "something happened" to the footage you're actually looking for.
Because ultimately, the goal isn't simply to own more surveillance equipment. It's to have a security system that's easier to expand, easier to manage and more useful when the footage matters most.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
ED9632H5NV-16P-A2 32-Channel 12MP PoE Network Video Recorder
The ED9632H5NV-16P-A2 is a 32-channel network video recorder designed for high-resolution IP surveillance systems requiring support for resolutions up to 12MP. It combines 32-channel IP camera input with 16 built-in PoE ports, allowing up to 16 compatible IP cameras to connect directly to the recorder through PoE.
With 4K HDMI output, up to 16-channel simultaneous playback, four SATA hard-drive interfaces, face-related analytics, human/vehicle classification, license plate recognition, VCA events, remote management and mobile surveillance, the recorder provides a centralized platform for larger security installations.
The datasheet identifies applications including home, financial, commercial, enterprise, transportation and government security environments.
Key Features
- 32-channel IP camera input.
- Supports 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1280 × 1024, 960P, 720P, 960H, D1 and CIF IP camera input.
- H.265S, H.265+, H.265 and H.264 compression support.
- 16 built-in PoE ports for direct connection of up to 16 PoE IP cameras.
- IEEE 802.3AF/AT PoE support with output power up to 150W.
- 192Mbps incoming / 192Mbps outgoing network bandwidth.
- 4K HDMI output for high-resolution display.
- Up to 16-channel simultaneous playback.
- Dual-stream recording.
- Multi-type recording including manual, timed, motion, sensor, POS and AI recording.
- Time slice, time, event, tag and smart search.
- Face detection and comparison support.
- Human/vehicle classification.
- License plate recognition.
- Multiple VCA events including object abandoned/missing, region intrusion, tripwire and video exception.
- POS information overlay on live view and playback.
- Pentaplex operation: preview, record, playback, backup and remote access.
- Compatible with third-party IP cameras through ONVIF.
- Web Client and CMS remote preview, playback, backup, PTZ control and configuration.
- Supports multiple users online simultaneously, with a maximum of 20 client connections.
- Authorization management, log view and device status view.
- PTZ preset and auto cruise support with up to 255 presets and 8 cruises.
- NAT functionality and QR code scanning using mobile phones.
- Mobile surveillance support for iOS and Android.
- Four SATA interfaces supporting up to 10T per HDD.
- E-SATA interface for additional storage connectivity.
Technical Specifications
General
Video
Audio
Recording
Playback & Search
Decoding Capability
Multi-Screen Display Mode
Alarm
Face Analytics
Video Structure Analysis
Other Smart Functions
Network
PoE
Mobile Device
Storage
Backup
External Interfaces
PTZ Functions
Power, Environmental & Physical
Accessories Found
- Optional Remote Controller — the specifications list the remote controller as optional.
The datasheet does not provide a separate list of included accessories. U disks and USB mobile hard drives are identified as supported local backup media, but are not stated to be included with the NVR.
Ideal Applications & Common Uses
The manufacturer specifically identifies the following types of security applications for this NVR:
- Home Security — centralized IP camera recording for residential surveillance systems.
- Financial Security — multi-camera surveillance environments requiring centralized recording and monitoring.
- Commercial Security — stores, offices and other commercial surveillance applications.
- Enterprise Security — larger installations requiring support for up to 32 IP camera channels.
- Transportation Security — surveillance applications that can make use of features such as license plate recognition and multi-camera recording.
- Government Security — centralized surveillance systems requiring high-resolution IP recording and remote management.
Downloads
Frequently Asked Questions
The ED9632H5NV-16P-A2 supports up to 32 channels of IP camera input.
It has 16 built-in RJ45 100Mbps PoE ports for direct connection of up to 16 PoE IP cameras. The PoE ports support IEEE 802.3AF/AT with a total output power of up to 150W.
It supports IP camera resolutions including 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1280 × 1024, 960P, 720P, 960H, D1 and CIF.
Yes. HDMI1 supports output resolutions up to 3840 × 2160 for true 4K high-resolution display. The NVR also provides HDMI2 and VGA video outputs.
The NVR has four SATA hard drive interfaces and supports a maximum of 10T for each HDD. It also includes one E-SATA interface.
Yes. The datasheet states that the NVR is compatible with third-party IP cameras through ONVIF and lists ONVIF among its supported network protocols.
Yes. The NVR supports mobile surveillance using smartphones with iOS and Android operating systems. It also supports NAT functionality and QR code scanning by mobile phones.
The ED9632H5NV-16P-A2 supports simultaneous playback of up to 16 channels. Playback functions include play, pause, fast forward, fast backward and digital zoom.
The datasheet lists face detection and comparison, human and vehicle classification, license plate recognition and multiple VCA events including object abandoned or missing, region intrusion, tripwire and video exception. It also supports allow-list, block-list and stranger-match alarms for face comparison.
The ED9632H5NV-16P-A2 provides 192Mbps incoming and 192Mbps outgoing network bandwidth. It has two RJ45 1000Mbps network interfaces and supports a maximum of 20 users accessing the system.
