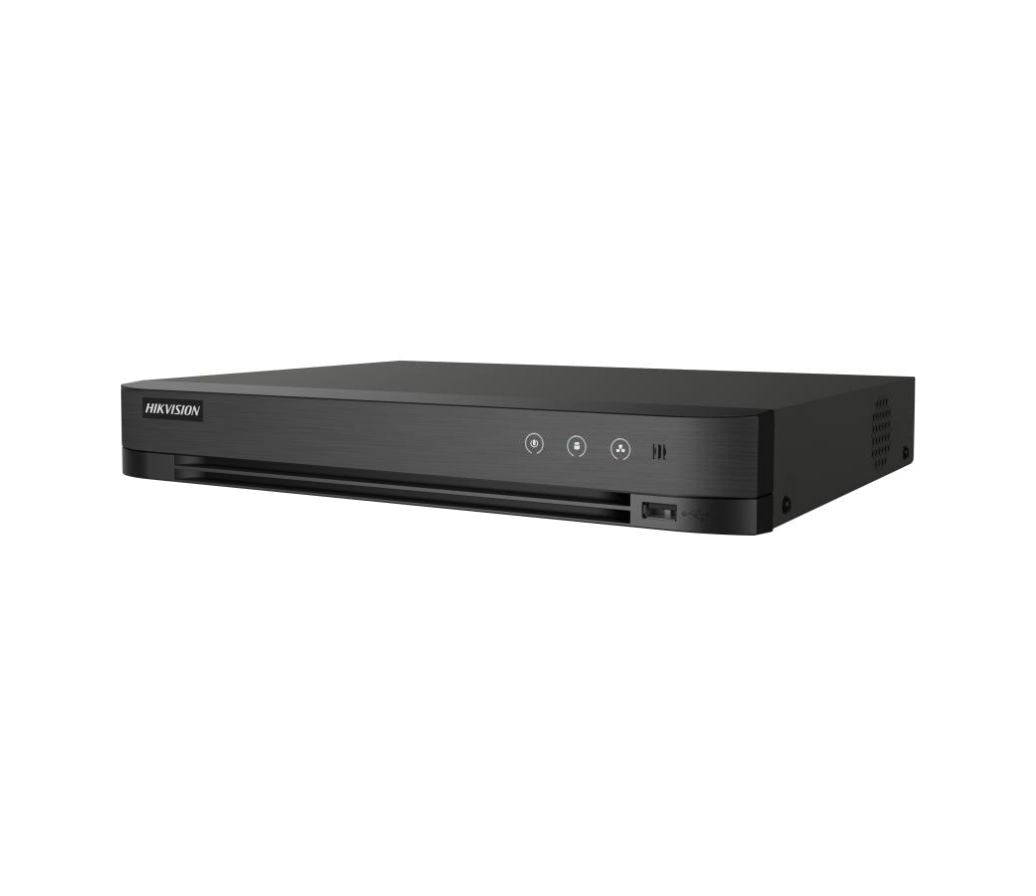

Hikvision iDS-7216HQHI-M1/S 16-Channel AcuSense DVR 4K Output H.265 Pro+

This DVR is built as a 16-channel AcuSense DVR for analog inputs, which makes it a strong fit for medium-sized surveillance systems that need broad coverage from a single recorder. In addition to its 16 analog channels, it supports IP video input at 2 channels by default, up to 18 channels total, and with Enhanced IP mode enabled it can handle 8 IP channels up to 24 channels total. The datasheet also states support for IP cameras up to 6 MP resolution, with Enhanced IP mode listing each added IP channel up to 4 Mbps. That matters if you are trying to grow beyond a standard analog layout and want room to expand without replacing the recorder right away.

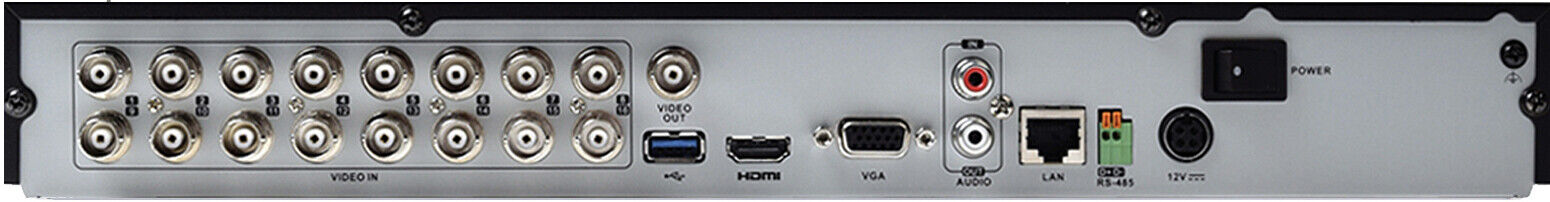

The iDS-7216HQHI-M1/S supports five signal types adaptively: HDTVI, AHD, CVI, CVBS, and IP. That is important for buyers who are upgrading an older system, because it gives you more flexibility when mixing existing analog technologies with newer cameras. The datasheet lists analog input through 16 BNC interfaces and also confirms support for H.265+/H.265/H.264+/H.264 IP cameras. In practical terms, this helps reduce the cost and hassle of a full rip-and-replace migration.

Yes, that is one of the biggest reasons buyers look at this model. The datasheet says Motion Detection 2.0 is deep learning-based, enabled by default for all analog channels, and can classify humans and vehicles while reducing false alarms caused by objects like leaves and lights. It also supports quick search by object or event type, which helps save time when reviewing footage after an alert. For someone tired of nuisance notifications, that translates into fewer distractions and faster access to the events that actually matter.

Yes, the datasheet lists both AcuSense-style human and vehicle classification and deep learning-based perimeter protection. Perimeter protection supports human and vehicle analysis on up to 4 channels, and facial detection is also listed with face picture detection and face picture search. There is one important limitation in the datasheet: Motion Detection 2.0 and perimeter protection cannot be enabled at the same time, so enabling one makes the other unavailable. That matters during setup because it helps you choose the smart function that best fits your site’s security priorities.

This model includes 1 SATA interface and supports up to 10 TB capacity for each disk. The product page and datasheet also highlight H.265 Pro+ compression, which is designed to improve encoding efficiency and reduce data storage costs. That combination matters because it helps you keep more footage without needing a larger recorder chassis with multiple drive bays. For buyers balancing retention time and budget, this can make storage planning much simpler.

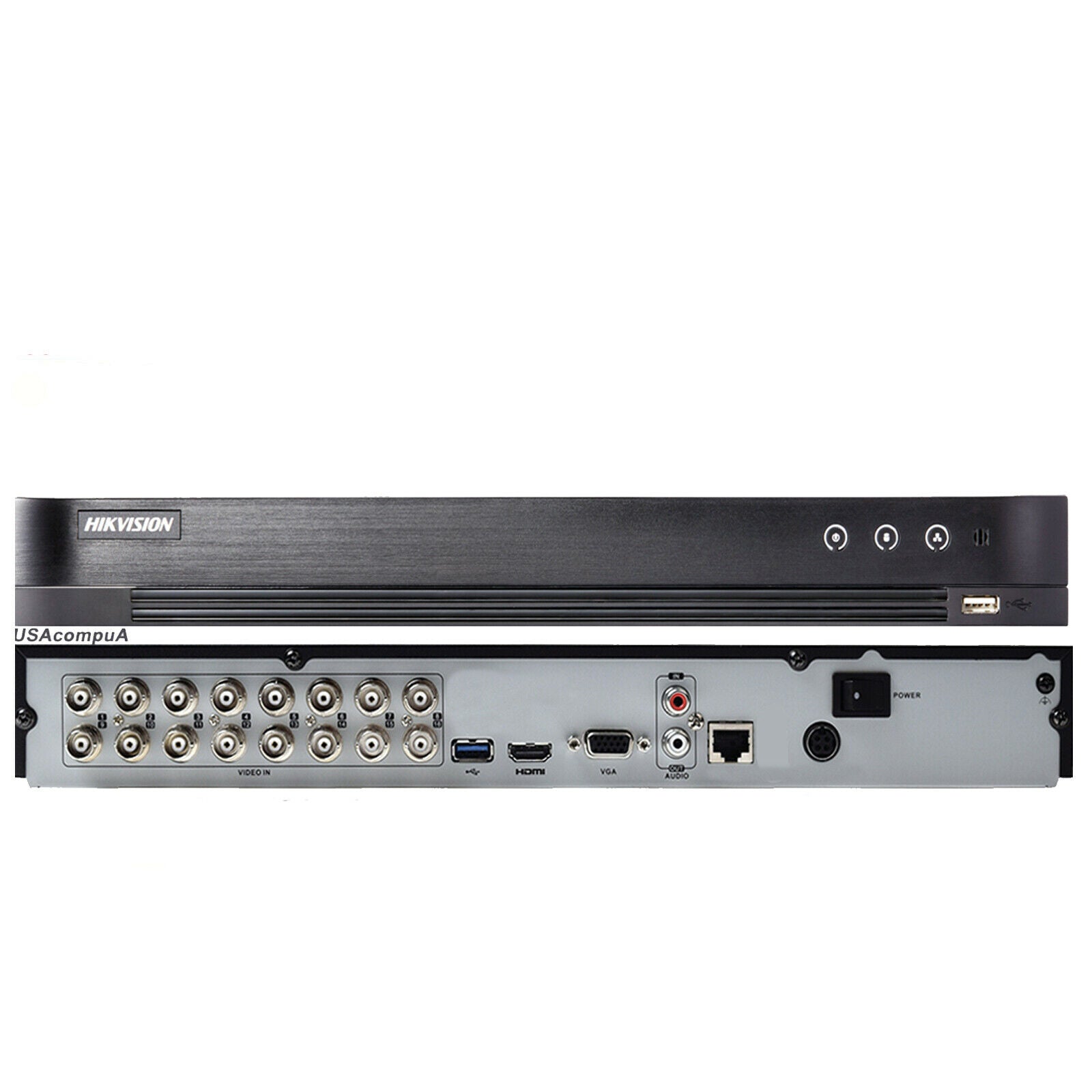

The HDMI output supports up to 4K at 3840 × 2160 at 30 Hz, along with 2K at 2560 × 1440 at 60 Hz and several lower resolutions. The VGA output supports up to 1920 × 1080 at 60 Hz, and there is also a CVBS output through BNC. This gives you flexibility if you are connecting a modern high-resolution display in one location and still need support for older monitor types in another. For installers and end users, that means fewer compatibility headaches at the display end of the system.

Yes, the datasheet lists Hik-Connect and DDNS for easy network management, which are both key features people usually look for when they want remote access. It also lists network protocols including TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF. The recorder has 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface and supports up to 128 remote connections. That matters because it gives you a more practical path to remote monitoring, integration, and multi-user access.

Yes, audio support is included. The datasheet lists 1 audio output through RCA, 1 audio input through RCA, and 16-channel audio via coaxial cable, plus 1-channel two-way audio using the first audio input. Audio compression is listed as G.711u with a 64 Kbps audio bitrate. That is useful if you need more than video evidence and want to capture or communicate audio in supported system designs.

The datasheet specifically calls out smart search for efficient playback, and Motion Detection 2.0 supports quick search by object or event type. It also supports synchronous playback on 16 channels, which can be valuable when you need to review activity across multiple cameras at the same time. For security teams or business owners, that means less time scrubbing footage manually and a better chance of finding the event you need quickly. This is especially helpful in multi-camera environments where timing across entrances, aisles, or perimeter points matters.

The recorder uses 12 VDC power and has a power consumption rating of ≤ 24 W. Its working temperature range is -10 °C to +55 °C, with working humidity from 10% to 90%. Dimensions are 315 × 242 × 45 mm, and the weight is listed as ≤ 2 kg (4.4 lb). Those details matter when you are planning shelf space, rack-area clearance, power load, and whether the installation environment fits the recorder’s operating limits.
