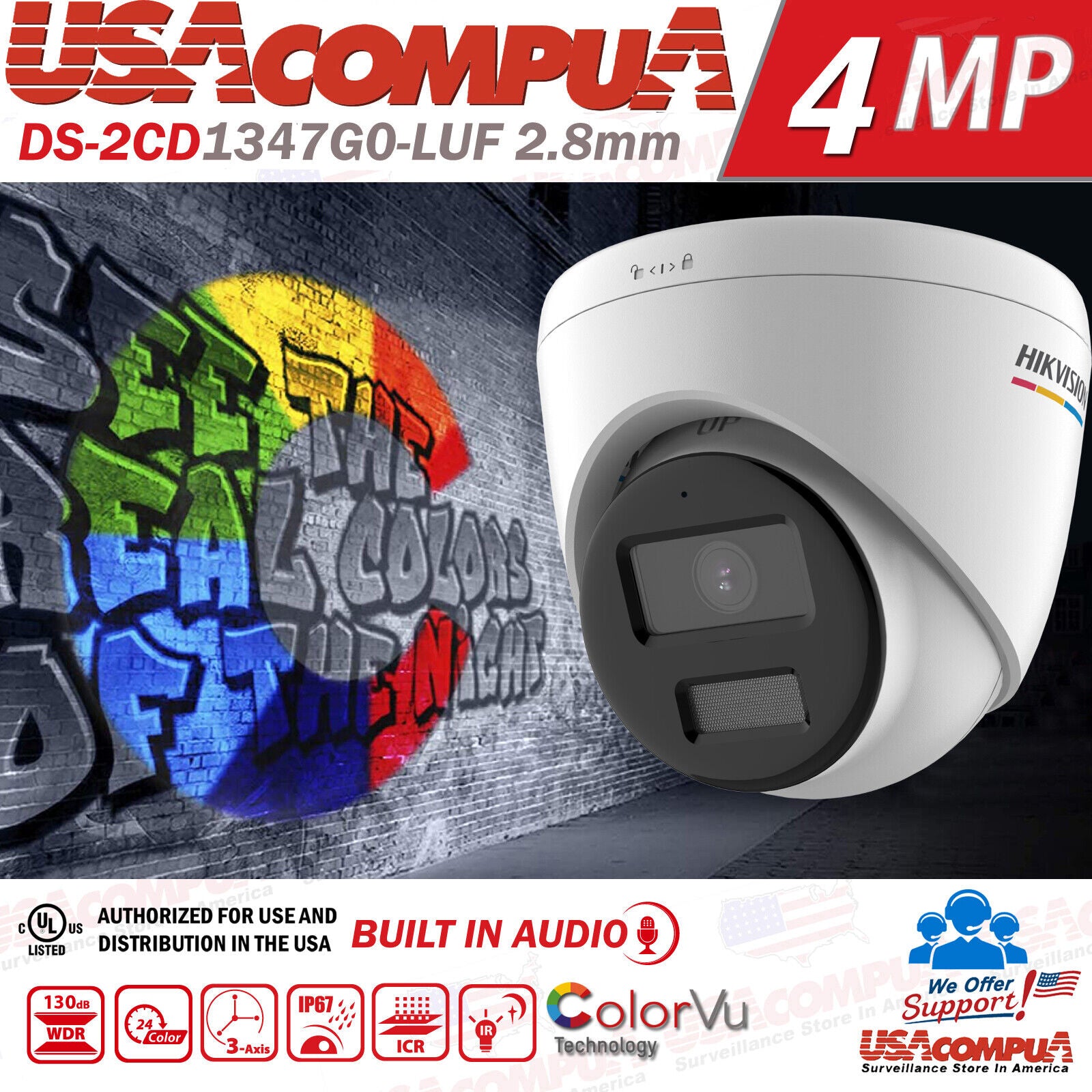

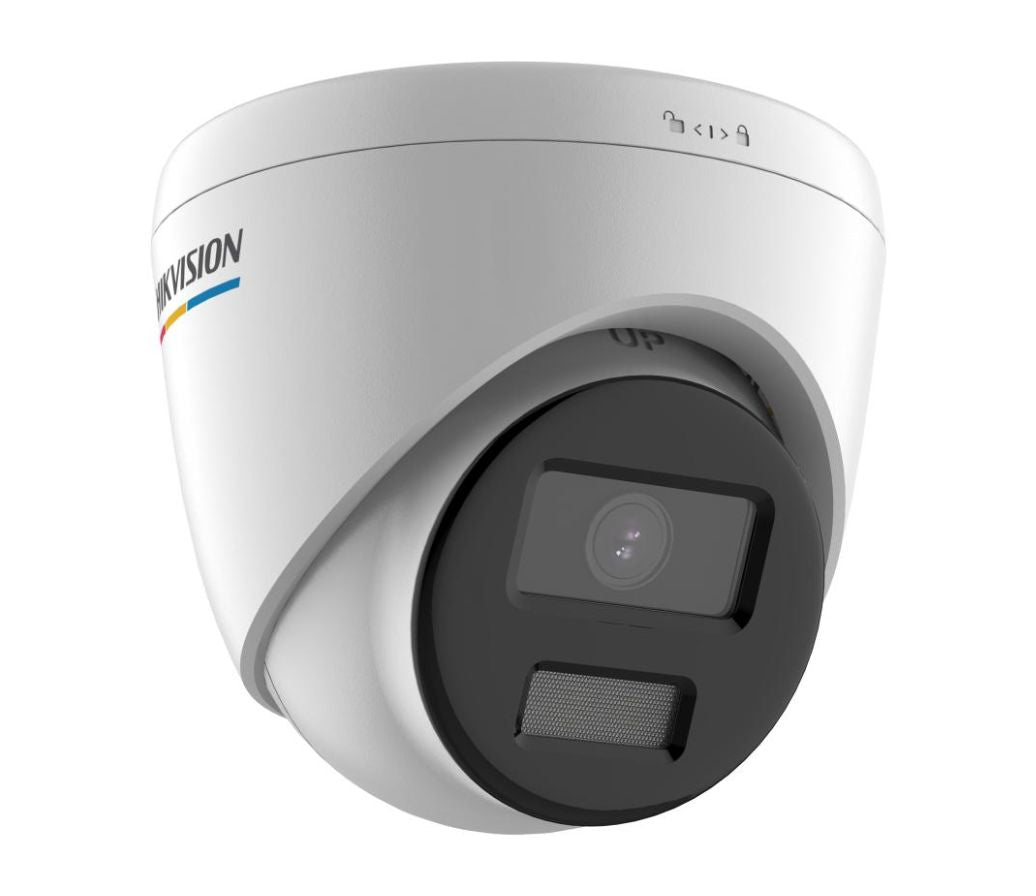

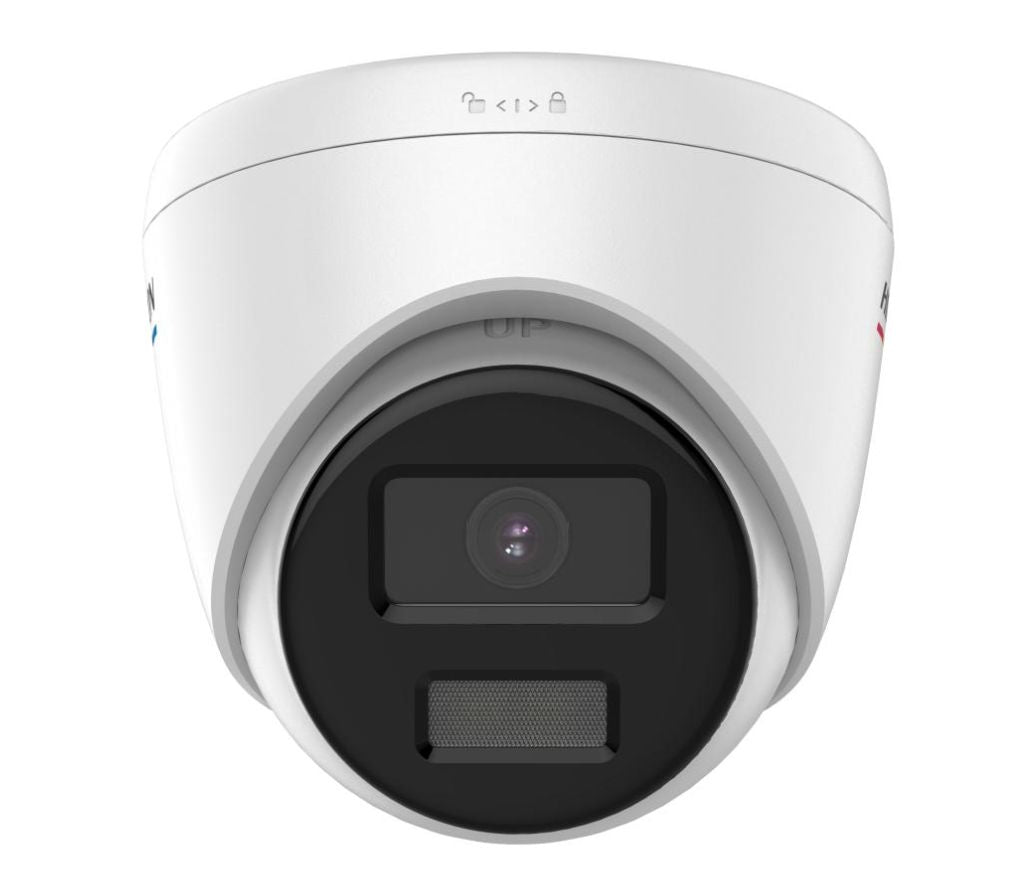

Each DS-2CD1347G0-LUF camera records at up to 2560 × 1440 resolution and uses ColorVu technology to provide full-color imaging around the clock. This helps preserve important visual details such as clothing colors, vehicle colors and surrounding conditions.

The F1.0 super-aperture lens collects more available light, while the camera can produce color images at illumination levels as low as 0.001 lux with AGC enabled. You receive clearer coverage in dim entrances, driveways, parking areas and other locations where standard cameras may struggle.

When there is no usable ambient light, the camera’s white supplemental light provides illumination at distances of up to 30 meters. This allows the camera to continue producing color footage rather than relying only on conventional black-and-white nighttime images.

The LUF camera includes an integrated microphone with environmental noise filtering. By recording compatible video and audio together, the system can provide greater context when reviewing activity around your property.

Bright entrances, windows and headlights can make important areas difficult to see. The camera’s 120 dB Wide Dynamic Range helps balance bright and dark portions of the scene, giving you a more useful image in high-contrast conditions.

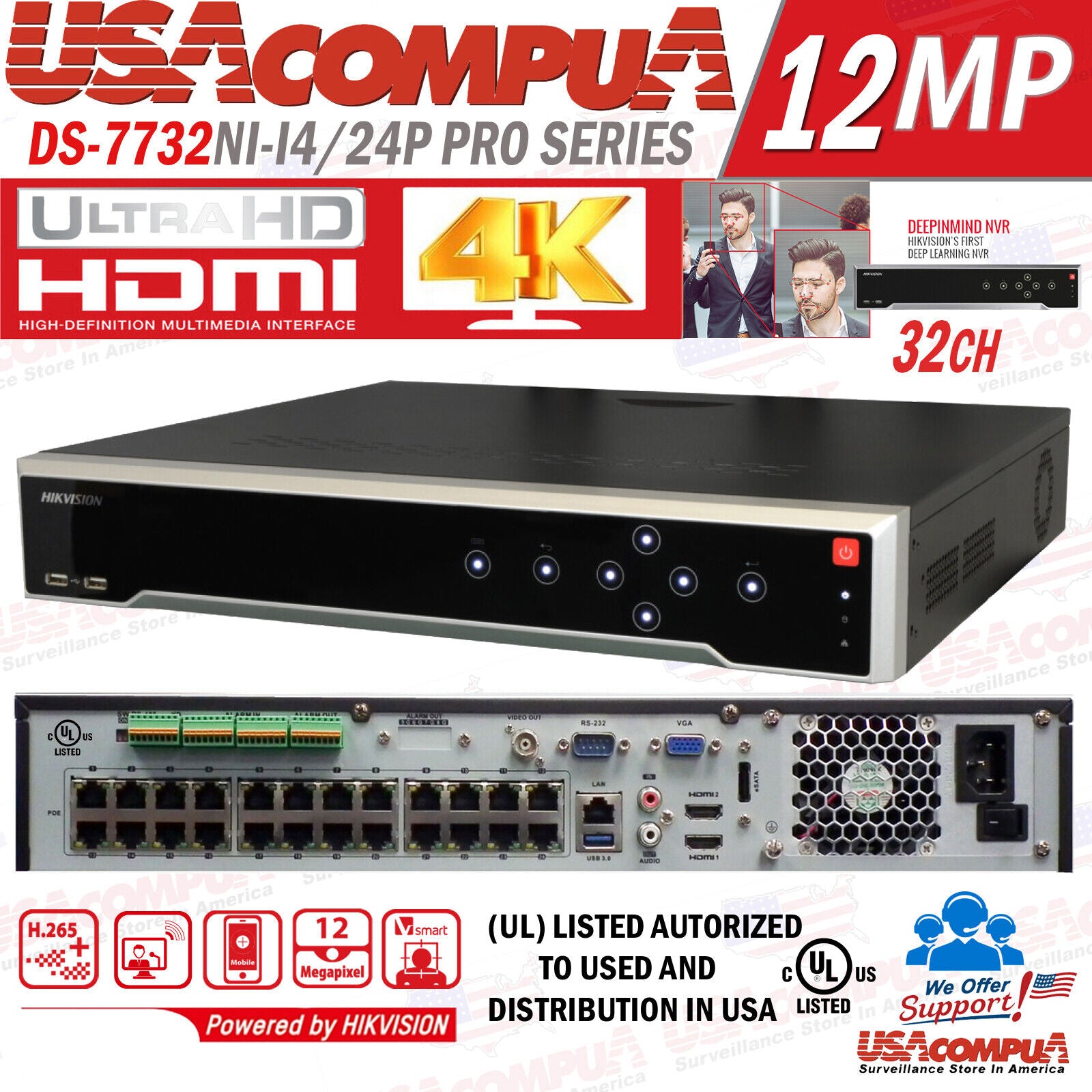

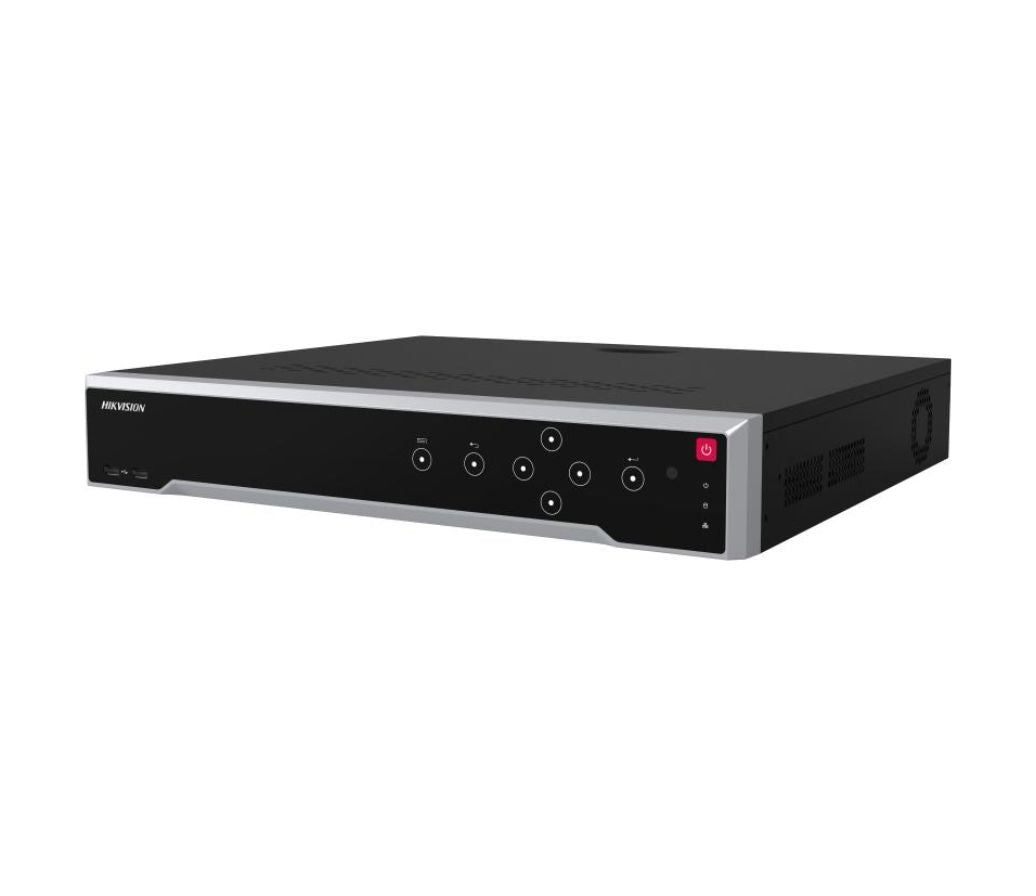

The DS-7732NI-I4/24P NVR supports up to 32 IP camera channels. This gives you room to begin with the coverage you need today and add compatible cameras later without immediately moving to a different recorder.

Twenty-four integrated PoE interfaces can carry network data and electrical power to compatible cameras through Ethernet cabling. This creates a cleaner, more centralized installation with less need for separate power connections at individual camera locations.

The recorder’s primary HDMI output supports resolutions up to 4K. This gives you a detailed monitoring workspace when viewing live cameras or reviewing recorded activity on a compatible display.

The NVR can decode up to two 12MP channels, four 8MP channels, eight 4MP channels or sixteen 1080p channels, depending on resolution and frame rate. It also supports synchronized playback of up to 16 channels, helping you reconstruct activity across multiple locations.

H.265+ compression can reduce required storage space by up to 75%. This helps you retain video more efficiently without sacrificing the camera coverage your property requires.

The recorder provides four SATA interfaces, each supporting a hard drive with a capacity of up to 10 TB. This gives you the flexibility to plan storage around your camera count, recording schedule and desired retention period.

Each LUF camera supports a microSD card with a capacity of up to 256 GB. When properly configured, local storage provides another recording option directly at the camera.

The camera’s IP67-rated enclosure resists water and dust, making it suitable for demanding indoor or outdoor locations. Its operating range of -30°C to 60°C also supports dependable use across varied environmental conditions.

Hik-Connect support gives you a way to access a properly configured system remotely. Instead of waiting until you return to the property, you can remain connected to your surveillance system from a supported device.

Two HDMI outputs, VGA and CVBS provide multiple display options. Independent and simultaneous output modes help accommodate different monitoring areas and viewing requirements.

The NVR supports compatible-camera functions such as motion detection, line crossing, intrusion detection, heat mapping, ANPR and people counting. Available capabilities depend on the connected camera, allowing you to tailor the system to more specific security and operational needs.
