Technical Specifications

Hikvision DS-7700NI-I4(B) Series NVR and DS-2CD2387G2-L(U) 8 MP ColorVu Camera

Build a high-resolution IP surveillance system with powerful recording, intelligent event detection, and vivid 24/7 color imaging. The DS-7700NI-I4(B) Series NVR supports up to 16 or 32 IP cameras, 4K display output, four SATA hard drives, and up to 16-channel synchronous playback. When paired with the DS-2CD2387G2-L(U), the system delivers detailed 8 MP video, human and vehicle classification, 130 dB WDR, and full-color nighttime monitoring.

Key Features

```

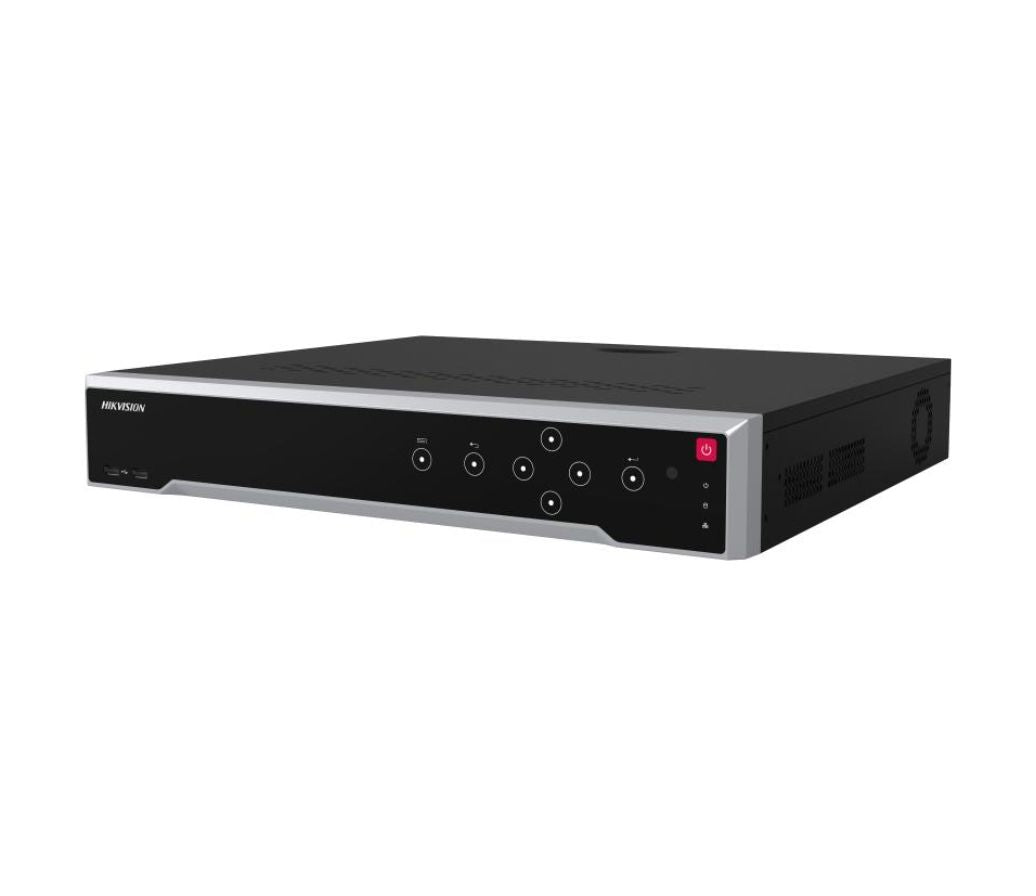

DS-7700NI-I4(B) Series NVR

  • Available with 16 or 32 IP camera channels.
  • Supports IP cameras with resolutions up to 32 MP.
  • Up to 160 Mbps incoming bandwidth on the 16-channel model and 256 Mbps on the 32-channel model.
  • H.265+, H.265, H.264+, H.264, and MPEG4 decoding.
  • H.265+ compression can reduce storage requirements by up to 75%.
  • Up to 4K HDMI video output at 60 Hz.
  • Independent HDMI and VGA display options.
  • Up to four SATA hard drives with up to 10 TB supported per drive.
  • Up to 16-channel synchronous playback.
  • Supports VCA events, ANPR, heat maps, people counting, and compatible camera analytics.
  • POS information overlay, POS-triggered recording, and alarm support.
  • Two Gigabit Ethernet interfaces.
  • Hik-Connect, DDNS, smooth streaming, and plug-in-free web access.
  • TLS stream encryption and double verification for playback and downloads.

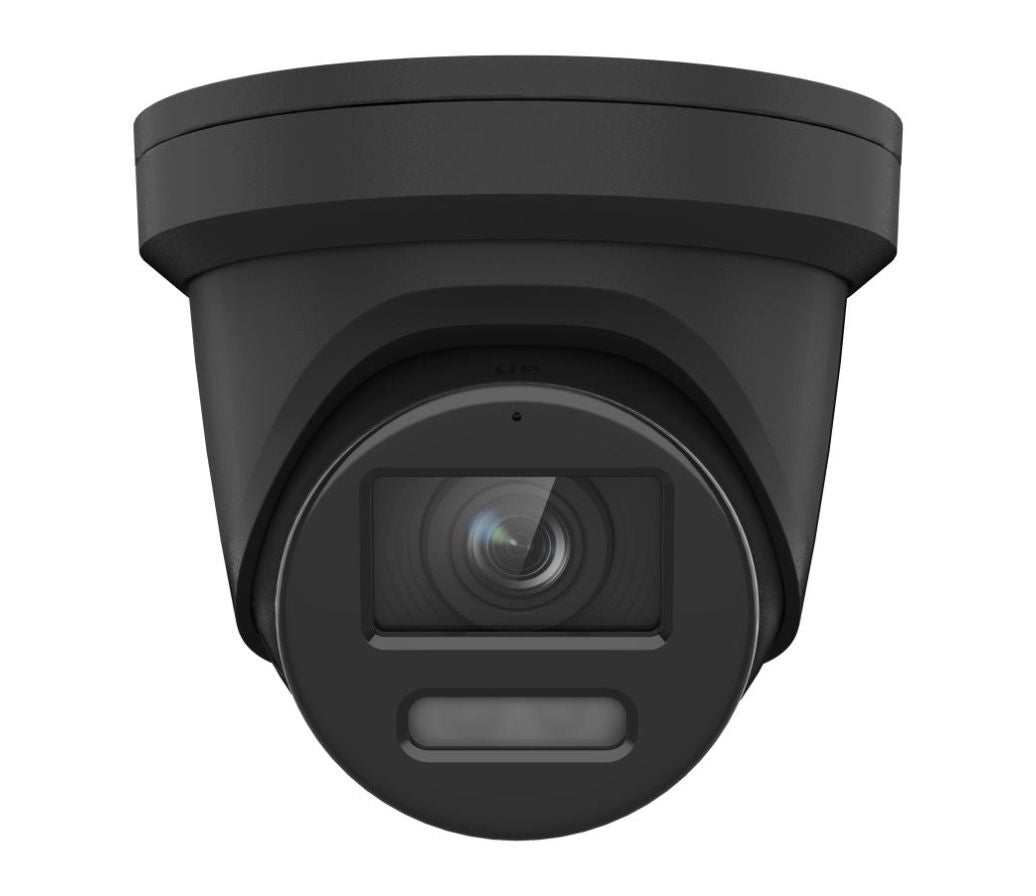

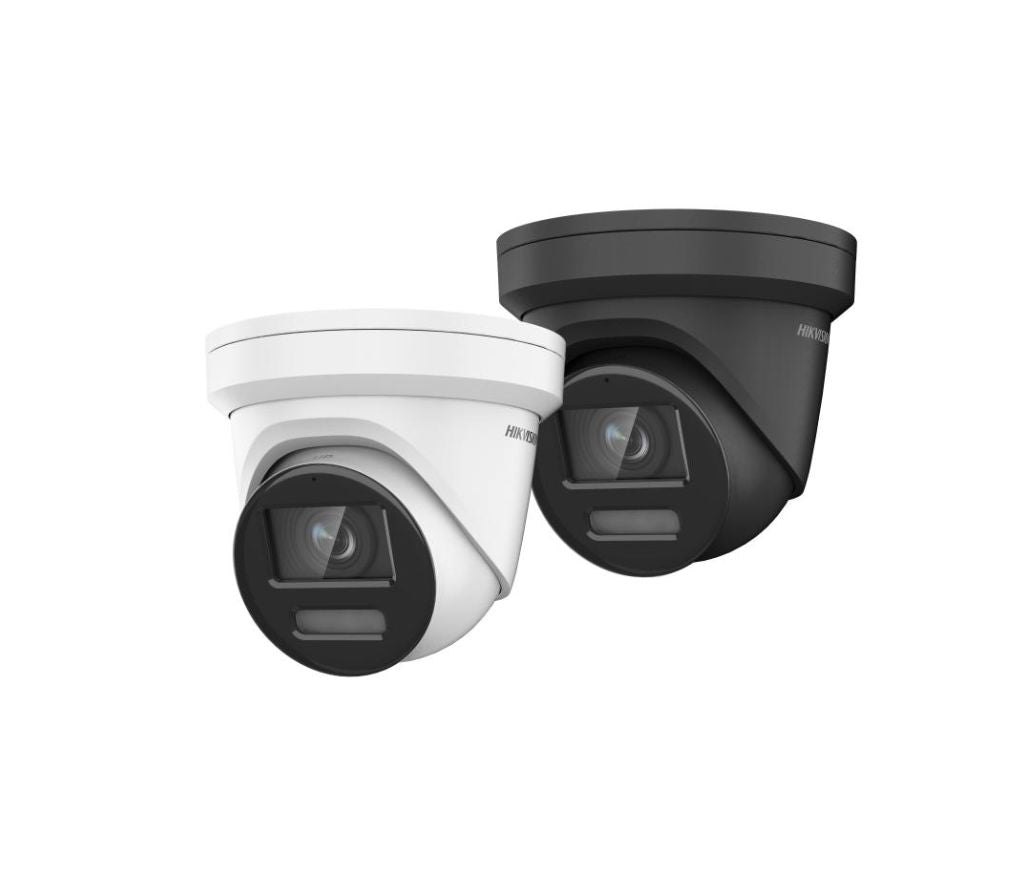

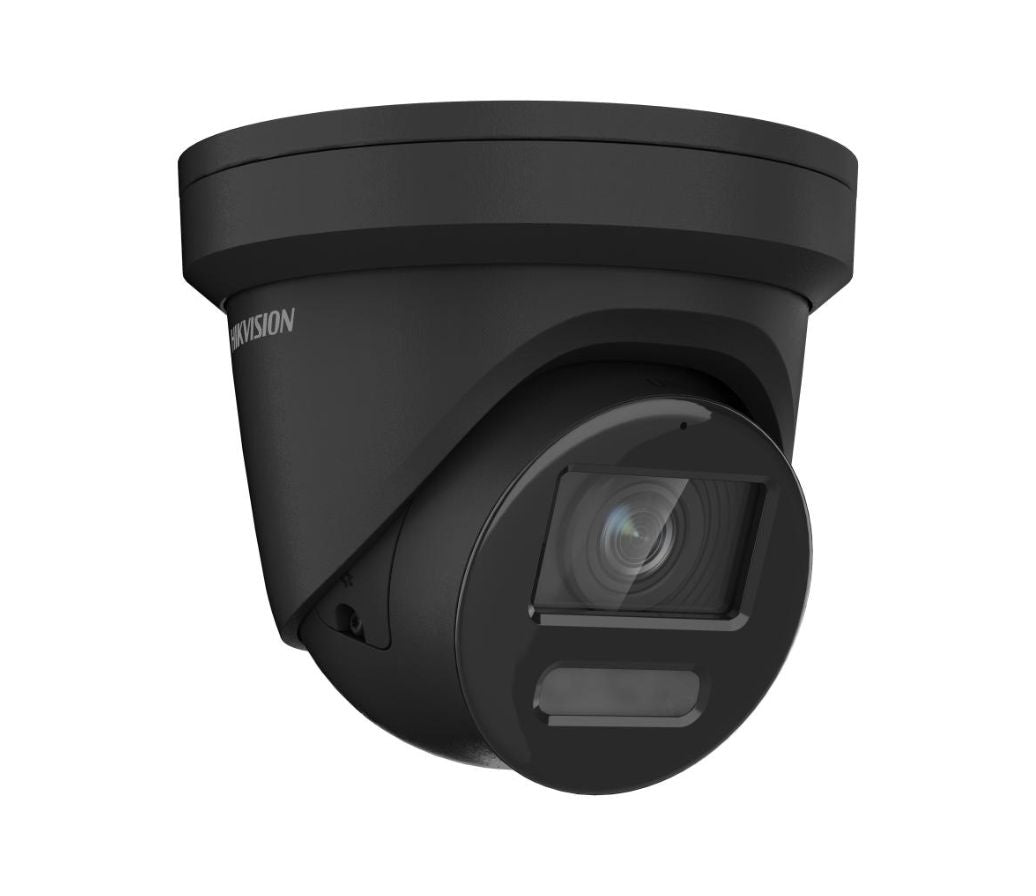

DS-2CD2387G2-L(U) 8 MP ColorVu Camera

  • High-quality 8 MP imaging at up to 3840 × 2160 resolution.
  • F1.0 super-aperture lens captures more available light.
  • 24/7 full-color video with white supplemental lighting up to 30 meters.
  • Human and vehicle target classification based on deep learning.
  • 130 dB WDR for clearer images in challenging backlight conditions.
  • Built-in microphone on the DS-2CD2387G2-LU model.
  • Face capture and intelligent perimeter events.
  • H.265+ compression for efficient bandwidth and storage use.
  • Built-in memory-card slot supporting cards up to 512 GB.
  • PoE or 12 VDC power options.
  • Metal housing with IP67 water and dust protection.
```
```

DS-7700NI-I4(B) Series NVR Specifications

Available Models

16-Channel Model
DS-7716NI-I4(B)
32-Channel Model
DS-7732NI-I4(B)

Video and Audio

IP Video Inputs
DS-7716NI-I4(B): 16 channels; DS-7732NI-I4(B): 32 channels
Maximum IP Camera Resolution
Up to 32 MP
Ultra HD Resolution Mode
Supports up to four 32 MP or 24 MP IP video inputs after Ultra HD Resolution Mode is enabled
Incoming Bandwidth
DS-7716NI-I4(B): 160 Mbps; DS-7732NI-I4(B): 256 Mbps
Outgoing Bandwidth
256 Mbps
HDMI 1 Output
4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, or 1024 × 768/60 Hz
HDMI 2 Output
1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, or 1024 × 768/60 Hz
VGA Output
1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, or 1024 × 768/60 Hz
Video Output Mode
HDMI 1/VGA simultaneous output; HDMI 2/VGA independent output
CVBS Output
1 channel, BNC, 1.0 Vp-p, 75 Ω; PAL: 704 × 576; NTSC: 704 × 480
Audio Output
1 channel, RCA, linear, 1 KΩ
Two-Way Audio Input
1 channel, RCA, 2.0 Vp-p, 1 KΩ, using the audio input

Decoding and Recording

Decoding Formats
H.265+, H.265, H.264+, H.264, and MPEG4
Recording Resolutions
32 MP, 24 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
Synchronous Playback
Up to 16 channels
Decoding Capability
1 channel at 32 MP/30 fps; 2 channels at 12 MP/20 fps; 4 channels at 8 MP/25 fps; 8 channels at 4 MP/30 fps; or 16 channels at 1080p/30 fps
Dual-Stream Recording
Supported
Stream Type
Video or video and audio
Audio Compression
G.711ulaw, G.711alaw, G.722, and G.726

Network

Remote Connections
128
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, and HTTPS
Network Interfaces
2 × RJ45 10/100/1000 Mbps self-adaptive Ethernet interfaces

Storage and Auxiliary Interfaces

Serial Ports
1 × RS-485 half-duplex and 1 × RS-232
SATA Interfaces
4
eSATA
1 optional eSATA interface
Maximum HDD Capacity
Up to 10 TB per disk
Alarm Inputs and Outputs
16 inputs/4 outputs; 16 inputs/8 outputs optional
Front USB Interfaces
2 × USB 2.0
Rear USB Interface
1 × USB 3.0

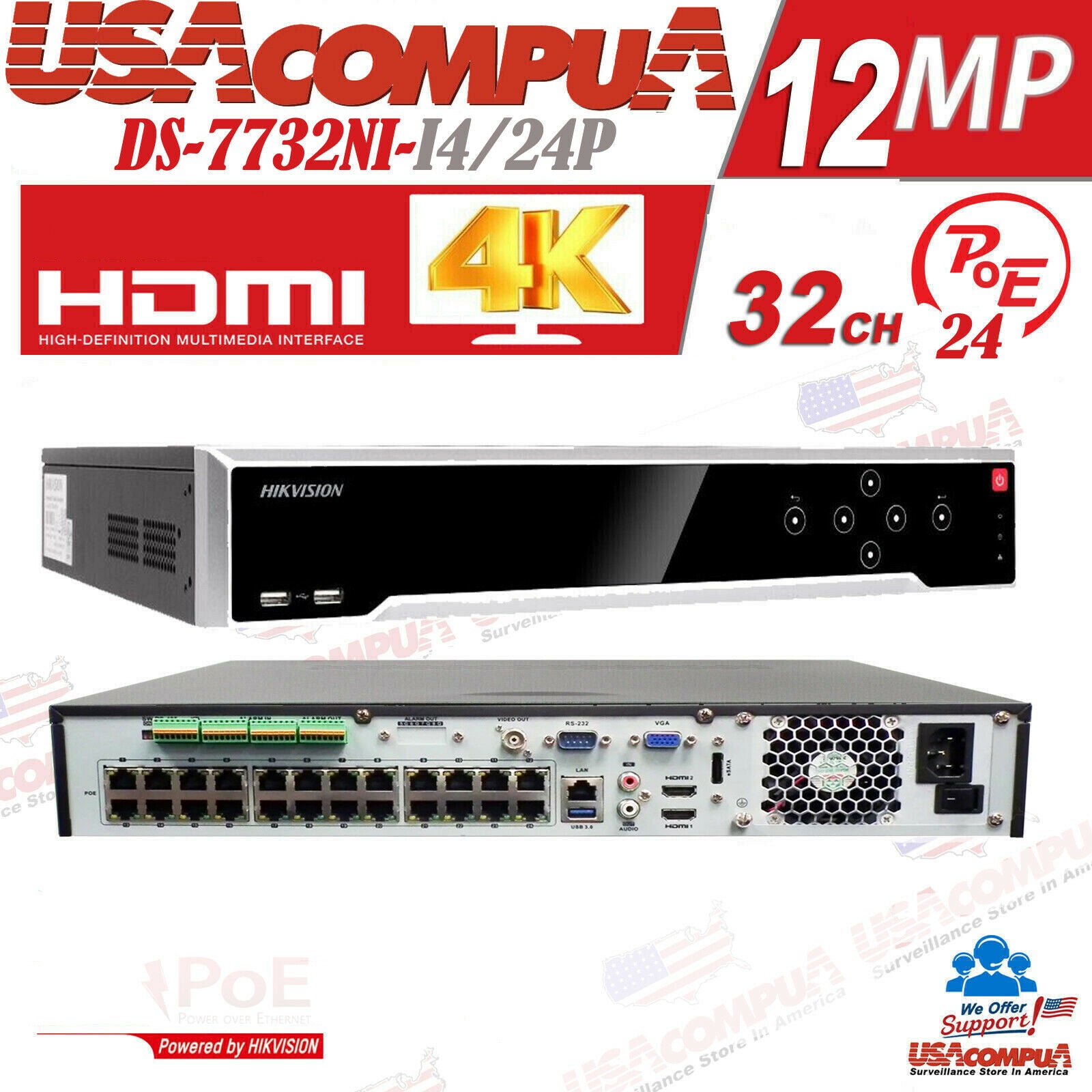

NVR Physical Interfaces

1
eSATA interface
2
LAN 1 and LAN 2 interfaces
3
Audio output
4
Audio input
5
HDMI 1 and HDMI 2 interfaces
6
USB 3.0 interface
7
Video output
8
VGA output, DB9 connector
9
RS-232 serial interface
10
RS-485 serial interface, controller port, alarm inputs, and alarm outputs
11
Ground connection
12
Power switch
13
100 to 240 VAC power-supply connection

NVR General Specifications

Power Supply
100 to 240 VAC, 50 to 60 Hz
Power Consumption
20 W or less without HDDs
Operating Temperature
-10°C to 55°C (14°F to 131°F)
Operating Humidity
10% to 90%
Chassis
19-inch rack-mounted, 1.5U
Dimensions
445 × 400 × 75 mm (17.5 × 15.7 × 3.0 inches)
Weight
5 kg (11 lb) or less without HDDs

NVR Certifications

FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, and EN 50130-4

DS-2CD2387G2-L(U) Camera Specifications

Available Camera Models

DS-2CD2387G2-L
Available with 2.8 mm or 4 mm fixed lens
DS-2CD2387G2-LU
Available with 2.8 mm or 4 mm fixed lens; includes built-in microphone

Camera

Image Sensor
1/1.2-inch progressive-scan CMOS
Maximum Resolution
3840 × 2160
Minimum Illumination
Color: 0.0005 lux at F1.0 with AGC on
Shutter Speed
1/3 second to 1/100,000 second
Day and Night
24/7 color imaging
Angle Adjustment
Pan: 0° to 360°; tilt: 0° to 75°; rotation: 0° to 360°

Lens

Lens Type
Fixed focal lens; 2.8 mm and 4 mm options
2.8 mm Field of View
Horizontal: 102°; vertical: 52°; diagonal: 124°
4 mm Field of View
Horizontal: 88°; vertical: 47°; diagonal: 104°
Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
2.8 mm Depth of Field
4 meters to infinity
4 mm Depth of Field
6.2 meters to infinity
2.8 mm DORI Distance
Detection: 96 m; observation: 38 m; recognition: 19 m; identification: 9 m
4 mm DORI Distance
Detection: 102 m; observation: 40 m; recognition: 20 m; identification: 10 m

Illuminator

Supplemental Light Type
White light
Supplemental Light Range
Up to 30 meters
Smart Supplemental Light
Supported

Video

Main Stream - 50 Hz
25 fps at 3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, or 1280 × 720
Main Stream - 60 Hz
24 fps at 3840 × 2160; 30 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, or 1280 × 720
Sub-Stream - 50 Hz
25 fps at 1280 × 720, 640 × 480, or 640 × 360
Sub-Stream - 60 Hz
30 fps at 1280 × 720, 640 × 480, or 640 × 360
Third Stream - 50 Hz
10 fps at 1920 × 1080, 1280 × 720, 640 × 480, or 640 × 360
Third Stream - 60 Hz
10 fps at 1920 × 1080, 1280 × 720, 640 × 480, or 640 × 360
Main-Stream Compression
H.265, H.264, H.264+, and H.265+
Sub-Stream Compression
H.265, H.264, and MJPEG
Third-Stream Compression
H.265 and H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Profiles
Baseline, Main, and High profiles
H.265 Profile
Main Profile
Bit-Rate Control
CBR or VBR
Scalable Video Coding
H.264 and H.265 encoding
Region of Interest
One fixed region for the main stream and sub-stream

Audio - DS-2CD2387G2-LU

Built-In Microphone
Yes
Environmental Noise Filtering
Yes
Audio Sampling Rates
8 kHz, 16 kHz, 32 kHz, 44.1 kHz, and 48 kHz
Audio Compression
G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, and AAC-LC
Audio Bit Rates
64 Kbps for G.711ulaw/G.711alaw; 16 Kbps for G.722.1; 16 Kbps for G.726; 32 to 192 Kbps for MP2L2; 8 to 320 Kbps for MP3; 16 to 64 Kbps for AAC-LC

Camera Network

Simultaneous Live View
Up to 6 channels
API Support
Open Network Video Interface Profile S, Profile G, and Profile T; ISAPI; SDK; ISUP
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, and WebSockets
Users
Up to 32 users with administrator, operator, and user permission levels
Security
Password protection, complicated-password support, HTTPS encryption, IP-address filtering, security audit log, HTTP/HTTPS basic and digest authentication, TLS 1.1/1.2, WSSE, and digest authentication for Open Network Video Interface
Network Storage
NAS using NFS or SMB/CIFS and automatic network replenishment
Compatible Clients
iVMS-4200, Hik-Connect, and Hik-Central
Plug-In Live View
Internet Explorer 10 and Internet Explorer 11
Plug-In-Free Live View
Chrome 57.0 or later, Firefox 52.0 or later, and Edge 89 or later
Local Service
Chrome 57.0 or later, Firefox 52.0 or later, and Edge 89 or later


Wide Dynamic Range
130 dB
Privacy Masks
Eight programmable polygon privacy masks with configurable mask color or mosaic
Day/Night Switching
Day, night, auto, or scheduled
Image Enhancement
BLC, HLC, and 3D DNR
Image-Parameter Switching
Supported
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance are adjustable through client software or a web browser

Camera Interfaces

Ethernet Interface
1 × RJ45 10/100 Mbps self-adaptive Ethernet port
On-Board Storage
Built-in microSD, SDHC, SDXC, or TF card slot supporting up to 512 GB
Built-In Microphone
Included on the DS-2CD2387G2-LU

Events and Deep Learning

Basic Events
Motion detection with human and vehicle target filtering, video-tampering alarm, network-disconnection exception, IP-address conflict, illegal login, HDD full, and HDD error
Smart Events
Line-crossing detection, intrusion detection, region-entrance detection, and region-exiting detection with human and vehicle target filtering; scene-change detection
Event Linkage
Upload to NAS, memory card, or FTP; notify surveillance center; trigger recording; trigger image capture; send email
Face Capture
Supported

Power and Construction

DS-2CD2387G2-L Power
12 VDC, 0.42 A, maximum 5 W; PoE IEEE 802.3af, 36 to 57 V, 0.17 to 0.11 A, maximum 6 W
DS-2CD2387G2-LU Power
12 VDC, 0.46 A, maximum 5.5 W; PoE IEEE 802.3af, 36 to 57 V, 0.18 to 0.11 A, maximum 6.5 W
Material
Metal cover and metal main body
Dimensions
Ø 138.3 × 120.1 mm (Ø 5.4 × 4.7 inches)
Package Dimensions
170 × 170 × 150 mm (6.7 × 6.7 × 5.9 inches)
Camera Weight
Approximately 870 g (1.9 lb)
Packaged Weight
Approximately 1160 g (2.6 lb)
Storage Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
Startup and Operating Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
Ingress Protection
IP67, IEC 60529-2013
Anti-Corrosion Classification
No specific anti-corrosion protection

Software and General Functions

Supported Languages
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), and Ukrainian
General Functions
Anti-flicker, heartbeat, mirror, password reset by email, and pixel counter
Software Reset
Supported

Camera Approvals

EMC
FCC 47 CFR Part 15 Subpart B; CE-EMC EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014; RCM AS/NZS CISPR 32:2015; IC ICES-003 Issue 7; KC KN32:2015 and KN35:2015
Safety
UL 62368-1; CB IEC 62368-1:2014+A11; CE-LVD EN 62368-1:2014/A11:2017
Environmental Compliance
CE-RoHS 2011/65/EU; WEEE 2012/19/EU; REACH Regulation (EC) No. 1907/2006

Accessories Found

Optional Camera Accessories

DS-1273ZJ-140
Wall mount
DS-1273ZJ-140B
Wall mount
DS-1276ZJ-SUS
Corner mount
DS-1280ZJ-PT6
Junction box
DS-1275ZJ-SUS
Vertical pole mount
DS-1271ZJ-140
Pendant mount

NVR Accessories

No separate NVR accessories are listed in the provided NVR datasheet. The recorder supports compatible SATA hard drives with capacities up to 10 TB per disk and an optional eSATA interface.

Ideal Applications and Common Uses

  • High-resolution surveillance systems requiring 16 or 32 IP camera channels.
  • Retail stores that need POS information displayed over live and recorded video.
  • Warehouses and commercial buildings requiring centralized multi-camera recording.
  • Offices, entrances, parking areas, and property perimeters requiring human and vehicle classification.
  • Locations that need full-color monitoring in low-light and nighttime conditions.
  • Projects requiring local camera storage, NVR recording, or automatic network replenishment.
  • Installations using compatible VCA, ANPR, heat-map, or people-counting cameras.
  • Outdoor locations requiring an IP67-rated camera where specialized anti-corrosion protection is not required.
  • Systems requiring local 4K monitoring and up to 16-channel synchronized playback.

Environmental note: The DS-2CD2387G2-L(U) has no specific anti-corrosion protection. The datasheet does not classify it for locations requiring professional or moderate anti-corrosion protection, such as coastlines, docks, chemical plants, or areas affected by acid rain.

```
Buyer Before & After Protection

Buyer Before & After Protection

All orders are protected, in case your item gets lost, delayed or arrives damaged. We'll make it right, zero out of pocket cost.

Get advanced protection, and even faster delivery in case of an emergency if you use Shop Pay or Paypal at checkout.

Trusted and Tested Products

Trusted and Tested Products

Every product we've added to our catalog has been thoroughly tested for reliability, durability, and real-world performance, so you’re not gambling with your safety.

In order for a product to be added it has to pass: Environmental Testing (Heat and Cold), Tamper Resistance, and for advanced systems 99% Alert Accuracy.

secure payment

Secure Payment

Shop with confidence knowing your payments are secure and your information
