Technical Specifications

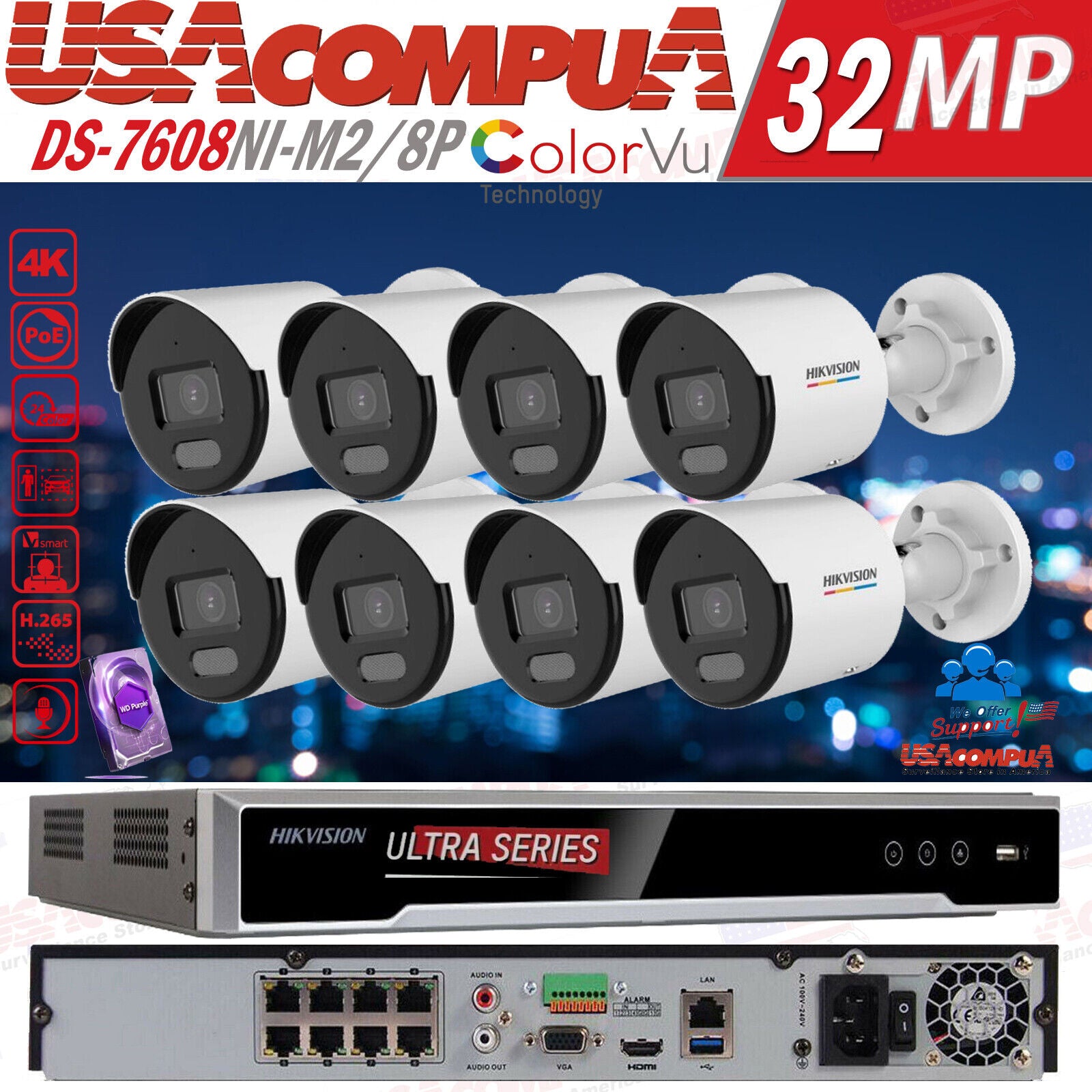

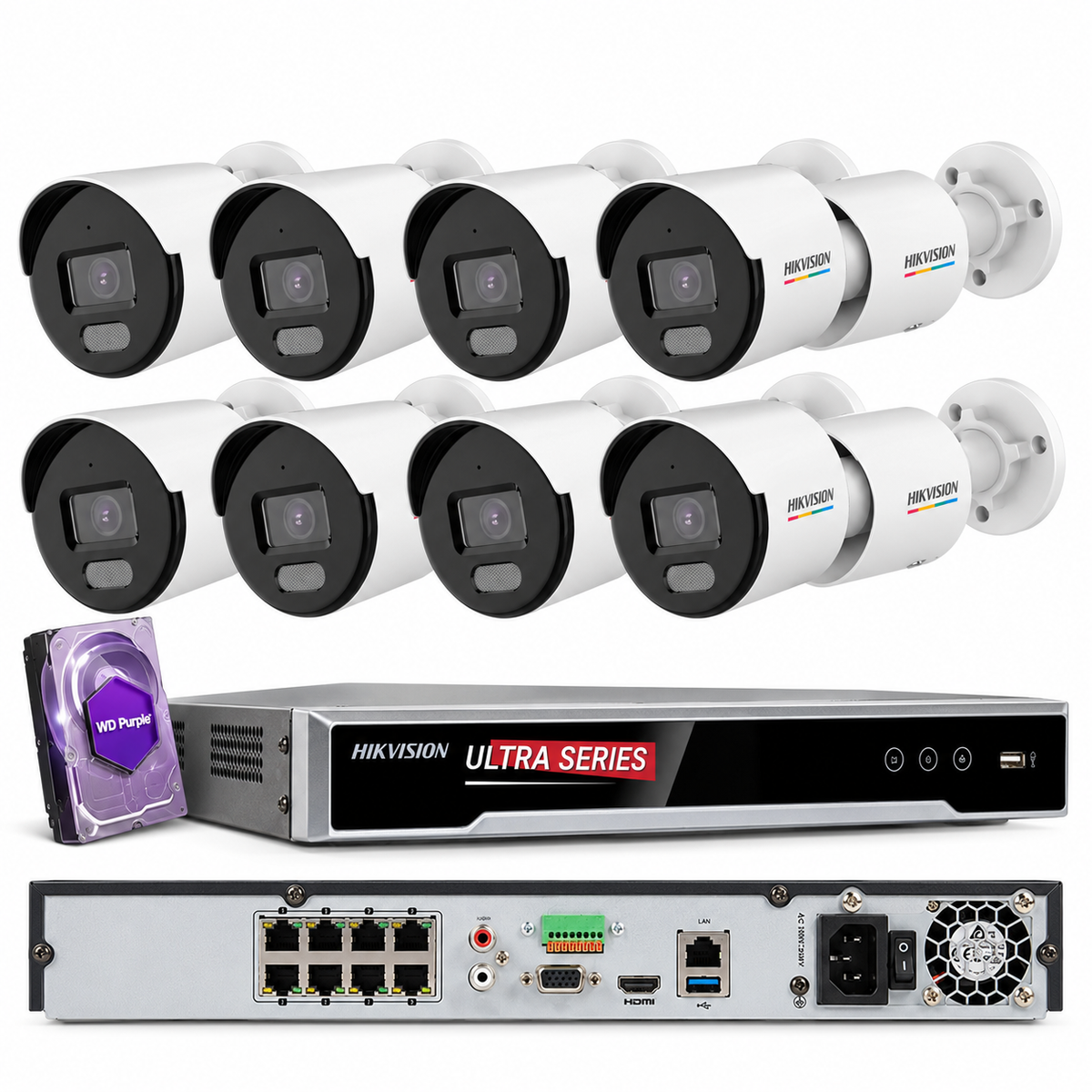

Hikvision 32MP 8-Channel PoE Security Camera System with 8K NVR and 4MP ColorVu Bullet Cameras

Monitor your property with eight 4MP Hikvision ColorVu bullet cameras delivering a combined 32MP of surveillance coverage. Each camera provides vivid full-color imaging around the clock, a built-in microphone for audio capture, and up to 30 meters of supplemental white light.

The included 8-channel PoE NVR simplifies installation by carrying power and data over the same network cable. With support for 8K HDMI output, two hard drives, smart video events, and remote access through Hik-Connect, the system provides dependable surveillance for homes and businesses.

Key Features

  • Eight 4MP cameras provide a combined 32MP of video coverage.
  • ColorVu technology delivers vivid, full-color images 24 hours a day.
  • F1.0 super-aperture lenses collect more light for brighter low-light video.
  • Built-in microphones capture video and audio from every camera.
  • 130 dB WDR improves visibility in scenes containing bright and dark areas.
  • IP67-rated camera housings resist water and dust.
  • Up to 30 meters of supplemental white-light illumination.
  • Line-crossing and intrusion-detection smart events.
  • Eight independent PoE ports simplify camera power and connectivity.
  • 8K HDMI output with independent HDMI and VGA display outputs.
  • H.265+ compression can reduce storage requirements by up to 75%.
  • Two SATA interfaces support hard drives with capacities up to 16TB each.
  • Eight-channel synchronous playback.
  • Remote viewing and system management through Hik-Connect.
```

System Configuration

Recorder Model

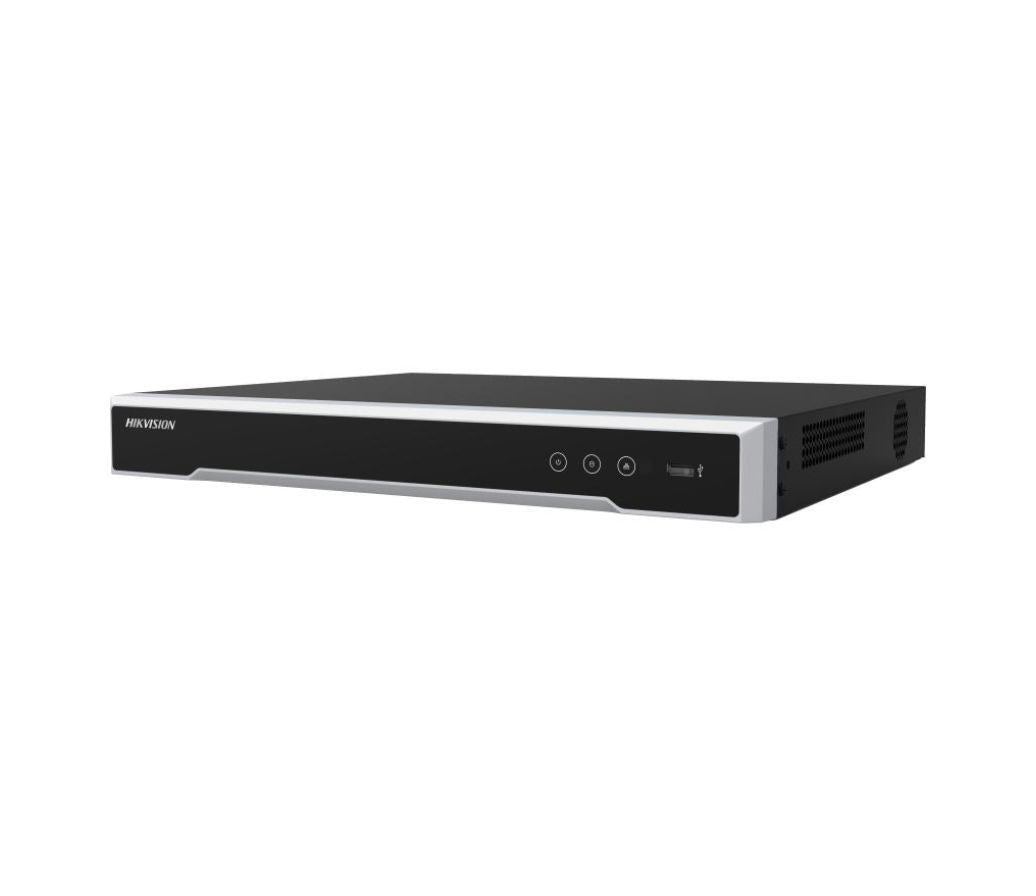

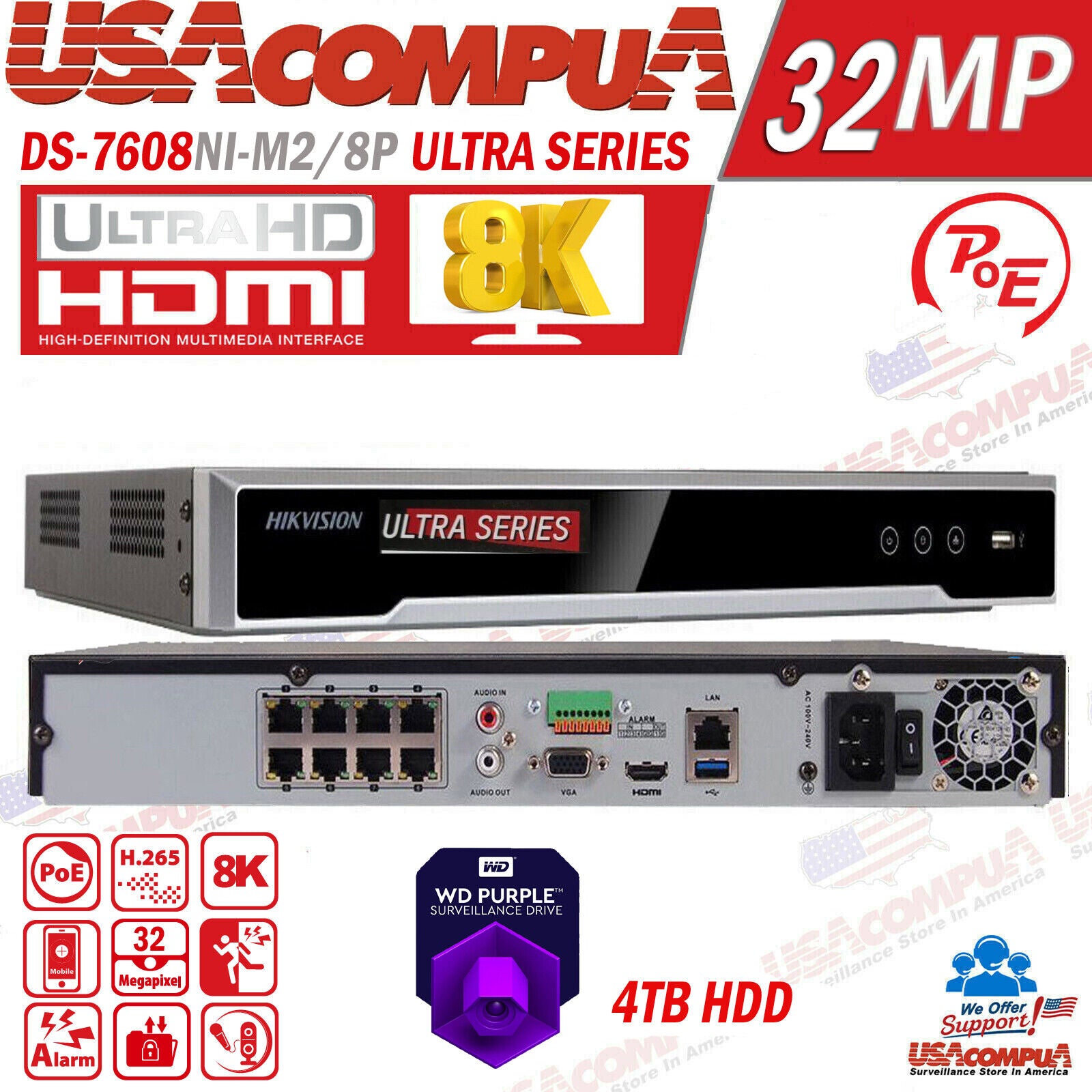

Hikvision DS-7608NI-M2/8P
Camera Model

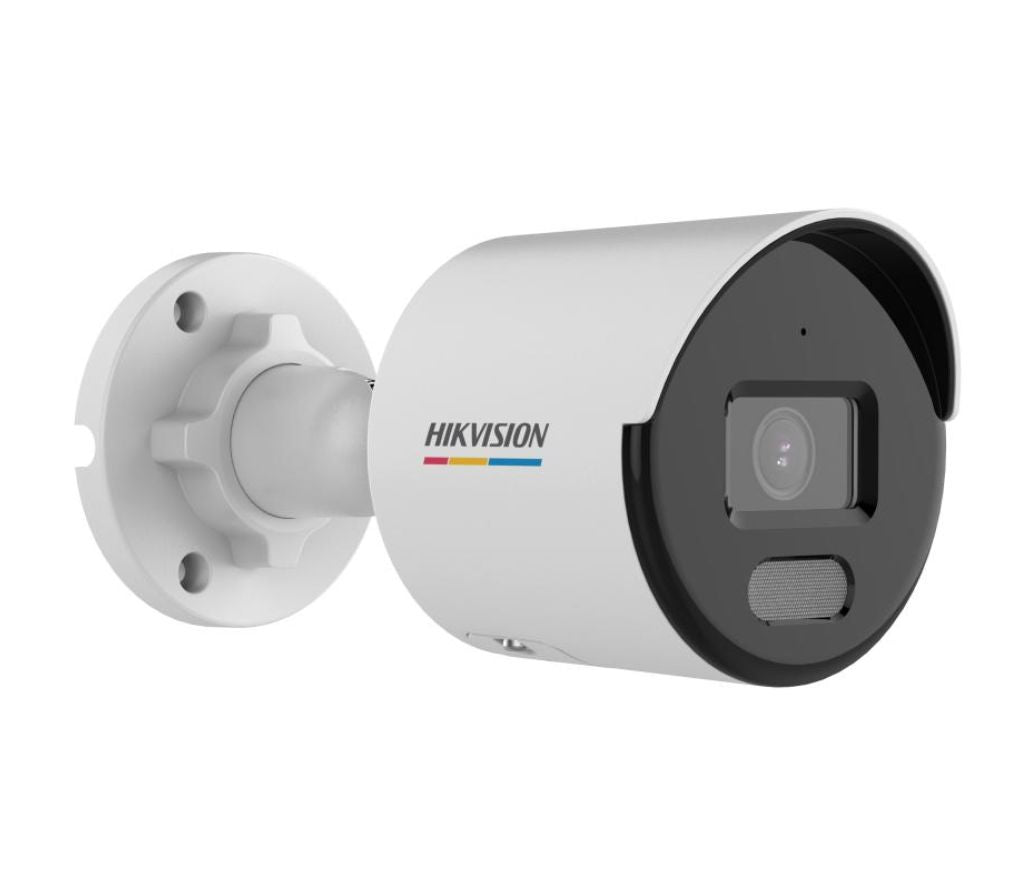

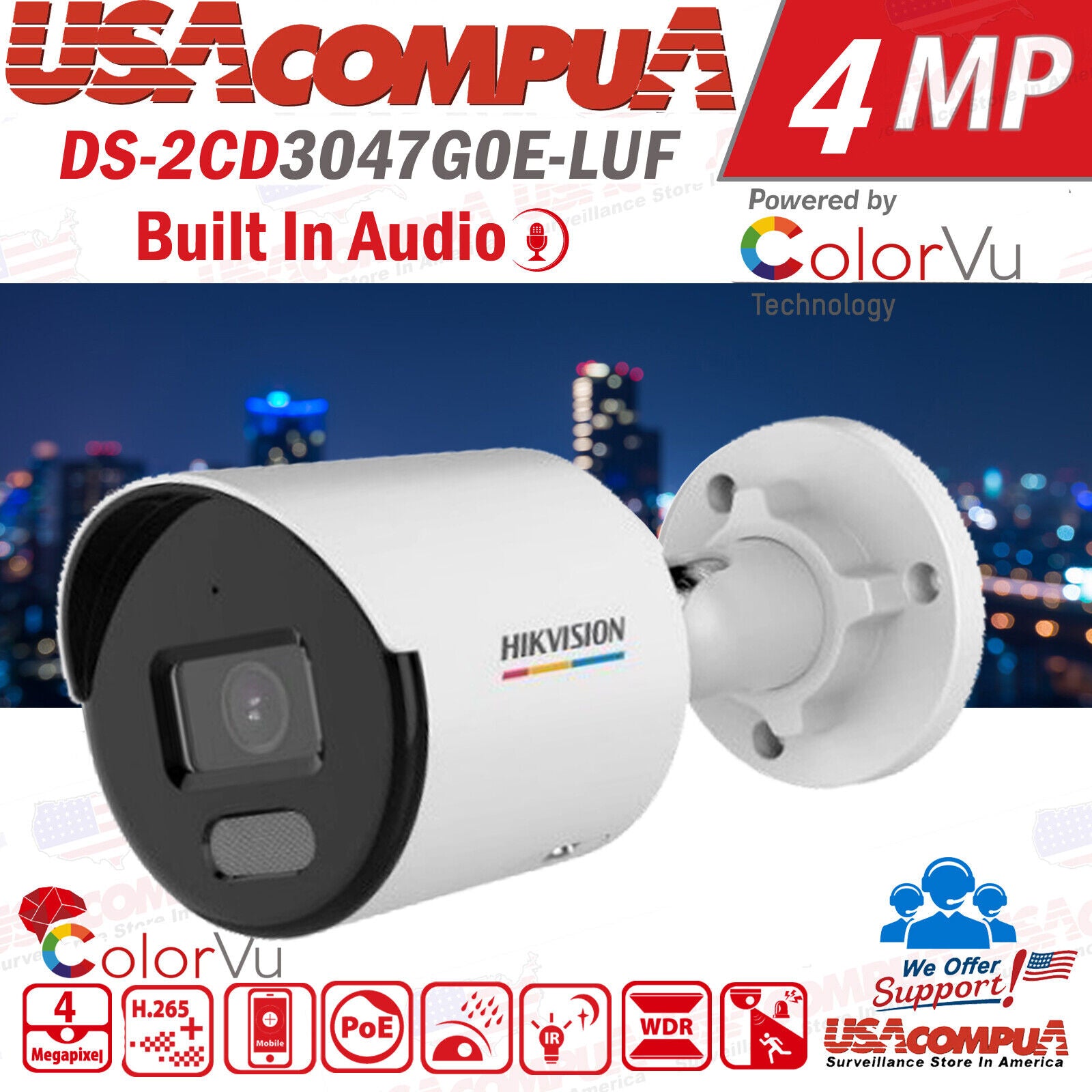

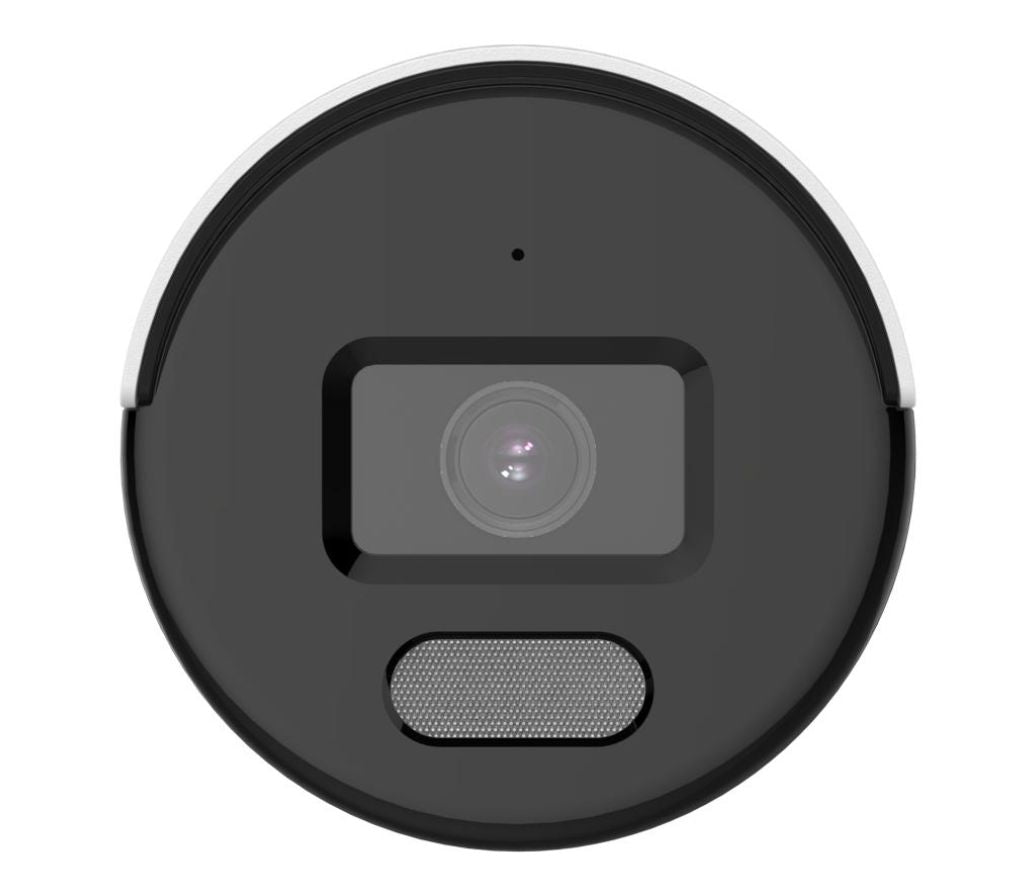

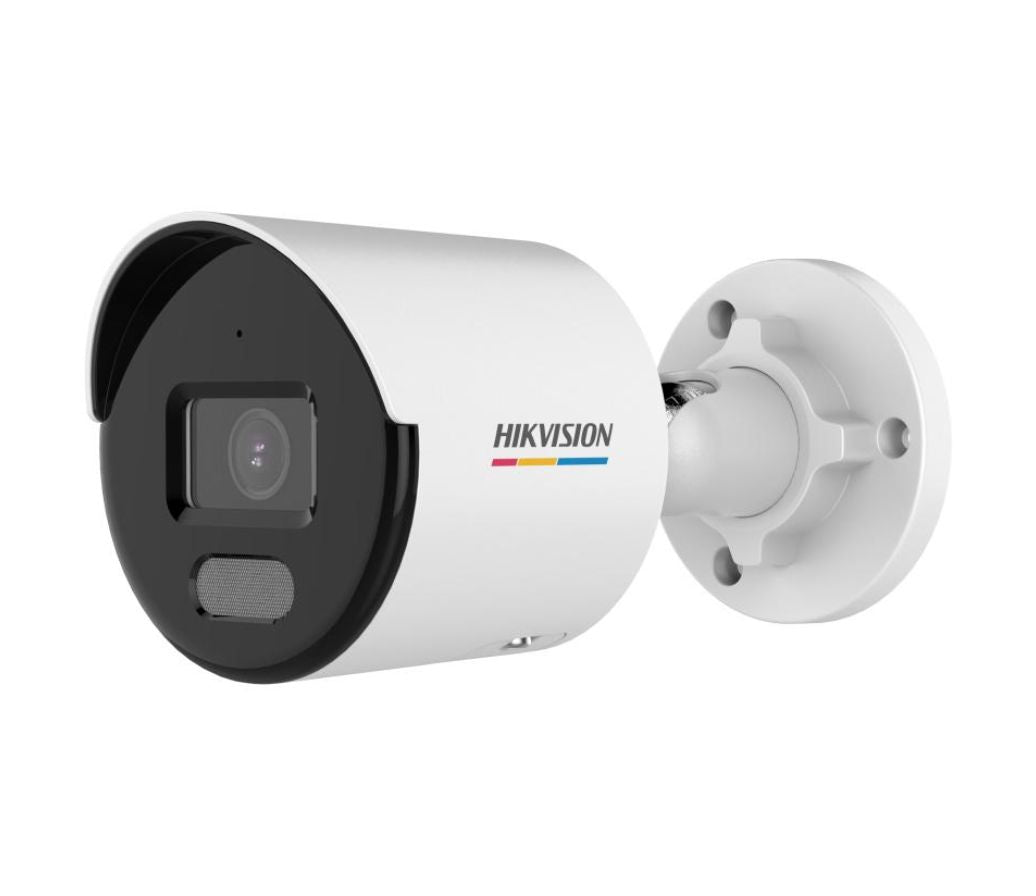

Hikvision DS-2CD3047G0E-LUF(C)
Camera Quantity
8
Resolution per Camera
4MP, 2560 × 1440
Combined Camera Resolution
32MP across eight 4MP cameras
Camera Style
Fixed bullet network camera
Audio Capture
Built-in microphone on each camera

Camera Imaging

Image Sensor
1/3-inch Progressive Scan CMOS
Maximum Resolution
2560 × 1440
Minimum Illumination
Color: 0.001 lux at F1.0 with AGC on; 0 lux with white light
Shutter Time
1/3 second to 1/100,000 second
Angle Adjustment
Pan: 0° to 360°; tilt: 0° to 90°; rotation: 0° to 360°
Day/Night Modes
Day, night, automatic, and scheduled
Wide Dynamic Range
130 dB
Image Enhancement
Backlight compensation and 3D digital noise reduction
Image Adjustments
Saturation, brightness, contrast, sharpness, AGC, and white balance

Camera Lens and Field of View

Available Focal Lengths
2.8mm or 4mm fixed lens
2.8mm Field of View
Horizontal: 96.5°; vertical: 50.8°; diagonal: 113.9°
4mm Field of View
Horizontal: 75.8°; vertical: 40.8°; diagonal: 89.1°
Lens Mount
M12
Focus
Fixed
Aperture
F1.0
2.8mm DORI Distance
Detect: 64.0m; observe: 25.4m; recognize: 12.8m; identify: 6.4m
4mm DORI Distance
Detect: 77.4m; observe: 30.7m; recognize: 15.5m; identify: 7.7m

Camera Supplemental Lighting

Supplemental Light Type
White light for full-color imaging
Supplemental Light Range
Up to 30m (approximately 98 ft)
Smart Supplemental Light
Supported

Camera Video

Main Stream at 50Hz
20 fps at 2560 × 1440; 25 fps at 1920 × 1080 or 1280 × 720
Main Stream at 60Hz
20 fps at 2560 × 1440; 30 fps at 1920 × 1080 or 1280 × 720
Sub-Stream at 50Hz
25 fps at 1280 × 720, 640 × 480, or 640 × 360
Sub-Stream at 60Hz
30 fps at 1280 × 720, 640 × 480, or 640 × 360
Third Stream at 50Hz
1 fps at 640 × 360
Third Stream at 60Hz
1 fps at 640 × 360
Main Stream Compression
H.265+, H.265, H.264+, and H.264
Sub-Stream Compression
H.265, H.264, and MJPEG
Third-Stream Compression
H.265 and H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Profiles
Baseline, Main, and High Profile
H.265 Profile
Main Profile
Region of Interest
One fixed region for the main stream

Camera Audio

Microphone
Built in
Audio Compression
G.711 μ-law, G.711 A-law, G.722.1, G.726, MP2L2, PCM, and AAC
Audio Bit Rate
64 Kbps for G.711; 16 Kbps for G.722.1 and G.726; 32 to 160 Kbps for MP2L2; 16 to 64 Kbps for AAC
Audio Sampling Rate
8 kHz or 16 kHz
Environmental Noise Filtering
Supported

Camera Network and Storage

Ethernet Interface
1 × RJ45 10/100 Mbps self-adaptive Ethernet port
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, and SSL/TLS
API
Open Network Video Interface and ISAPI
Simultaneous Live View
Up to 6 channels
Users
Up to 32 users with administrator, operator, and user access levels
Client Applications
iVMS-4200 and Hik-Connect
Web Browser Support
Plug-in live view: Internet Explorer 10+; plug-in-free live view and local service: Chrome 57.0+ and Firefox 52.0+
Onboard Storage
Built-in microSD card slot supporting cards up to 256GB
Reset Key
Yes

Camera Events and Functions

Basic Events
Motion detection, video-tampering alarm, and exception
Smart Events
Line-crossing detection and intrusion detection
Event Linkage
Upload to FTP or memory card, notify surveillance center, send email, trigger recording, and trigger image capture
General Functions
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, and IP-address filtering

Camera Power and Environmental

12V DC Power
12 VDC ±25%, 0.4 A, maximum 5 W; 5.5mm coaxial power plug
PoE Power
IEEE 802.3af, Class 3, 36V to 57V, 0.2A to 0.15A, maximum 6.5 W
Camera Dimensions
Ø 76.6 × 164.4mm (Ø 3 × 6.5 in.)
Package Dimensions
234 × 120 × 117mm (9.2 × 4.7 × 4.6 in.)
Camera Weight
Approximately 430g (0.95 lb.)
Packaged Weight
Approximately 648g (1.42 lb.)
Storage Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
Startup and Operating Conditions
-30°C to 60°C (-22°F to 140°F); humidity of 95% or less, non-condensing
Ingress Protection
IP67
Languages
English and Ukrainian

Camera Certifications

EMC
FCC SDoC, CE-EMC, RCM, and KC
Safety
UL, CB, CE-LVD, and BIS
Environmental Compliance
CE-RoHS, WEEE, and REACH

NVR Video and Audio

IP Video Inputs
8 channels; supports up to 32MP resolution
High-Resolution Camera Support
Up to eight 32MP, 24MP, or 16MP IP video inputs; all channels supported below 16MP
Incoming Bandwidth
128 Mbps
Outgoing Bandwidth
256 Mbps
HDMI Output Resolutions
8K 7680 × 4320 at 30Hz; 4K 3840 × 2160 at 60Hz or 30Hz; 2K 2560 × 1440 at 60Hz; 1920 × 1080 at 60Hz
VGA Output
1920 × 1080 at 60Hz
Video Output Mode
Independent HDMI and VGA output
CVBS Output
1-channel BNC, 1.0 Vp-p at 75Ω; PAL: 704 × 576; NTSC: 704 × 480
Audio Output
1-channel RCA, linear, 1 kΩ
Two-Way Audio
1-channel RCA, 2.0 Vp-p, 1 kΩ, using the audio input

NVR Recording and Decoding

Dual-Stream Recording
Supported
Video Decoding Formats
H.265+, H.265, H.264+, and H.264
Decoding Capability
2 channels at 32MP/30 fps; 3 channels at 24MP/30 fps; 4 channels at 16MP/30 fps; 6 channels at 12MP/30 fps; or 8 channels at 8MP/30 fps
Synchronous Playback
8 channels
Recording Resolutions
32MP, 24MP, 16MP, 12MP, 8MP, 7MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
Stream Types
Video or video and audio
Audio Compression
G.711 μ-law, G.711 A-law, G.722, G.726, AAC, and MP2L2

NVR Network and PoE

Remote Connections
128
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF 2.2, and OTAP
Network Interface
1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocols
ONVIF 2.5 and RTSP
PoE Interfaces
8 independent RJ45 10/100 Mbps self-adaptive Ethernet interfaces
PoE Power Budget
Up to 120 W
PoE Standard
IEEE 802.3af/at
Remote Management
Hik-Connect and DDNS
Web Access
Plug-in-free web access supported
Streaming
Smooth-streaming technology supported
IP Speaker Support
Up to 8 channels

NVR Storage and Interfaces

SATA Interfaces
2
Maximum Hard-Drive Capacity
Up to 16TB per disk
Alarm Inputs and Outputs
4 alarm inputs and 1 alarm output
Front USB
1 × USB 2.0
Rear USB
1 × USB 3.0
Physical Connections
PoE network ports, LAN, audio output, audio input, HDMI, VGA, CVBS, USB 3.0, alarm input/output, ground, AC power input, and power switch

NVR Smart Features

Video Content Analytics
Supports multiple VCA events
Compatible Camera Smart Functions
Motion detection, line crossing, intrusion detection, heat mapping, ANPR, and people counting when supported by the connected camera
POS Functions
POS information overlay on live view and playback, plus POS-triggered recording and alarms

NVR Security Features

EN 303645
Supported
Secure Boot
Supported
Secure Component Verification
Supported
Password Protection
Supported
IP and MAC Address Filtering
Supported
HTTPS Encryption
Supported
Live View and Playback Encryption
AES-128
IEEE 802.1X Network Access Control
EAP-TLS supported
Signed Firmware
Supported
Additional Security
Digest authentication, user-access logging, centralized certificate management, and brute-force delay protection
Secure Stream Transmission
Stream over TLS encryption supported
Playback and Download Verification
Double verification supported

NVR General Information

Power Supply
100 to 240 VAC, 50 to 60Hz
Power Consumption
Maximum 15 W without hard drives and with PoE off
Operating Temperature
-10°C to 55°C (14°F to 131°F)
Operating Humidity
10% to 90%
Dimensions
385 × 315 × 52mm (15.2 × 12.4 × 2.0 in.)
Weight
Maximum 3kg without hard drive, as specified by the manufacturer
FCC Certification
Part 15 Subpart B; ANSI C63.4-2014
CE Compliance
EN 55032, EN/IEC 61000-3-2, EN 61000-3-3, EN 50130-4, and EN 55035

Compatible Optional Accessories

DS-1275ZJ-SUS
Vertical pole mount for compatible cameras
DS-1276ZJ-SUS
Corner mount for compatible cameras
DS-1280ZJ-XS
Junction box for compatible cameras
```

Ideal Applications and Common Uses

  • Homes and residential properties: Monitor entrances, driveways, yards, side passages, garages, and other vulnerable areas.
  • Retail stores: Record sales floors, entrances, stockrooms, checkout areas, and parking spaces, with optional POS integration supported by the NVR.
  • Offices: Maintain visual and audio awareness around reception areas, corridors, entrances, and exterior access points.
  • Warehouses: Cover loading areas, aisles, inventory zones, and perimeter access with weather-resistant cameras.
  • Restaurants: Monitor customer entrances, dining areas, registers, kitchens, storage areas, and delivery points.
  • Small commercial properties: Protect several indoor and outdoor areas using one centrally managed eight-camera system.
  • Day-and-night monitoring: Capture full-color details in low-light areas where conventional cameras may switch to black-and-white video.
  • Remote property supervision: View cameras and manage the surveillance system remotely through Hik-Connect.
