The DS-7104NI-Q1/4P supports up to 4 IP network cameras. This makes it a strong fit for smaller surveillance systems such as homes, retail shops, offices, restaurants, or small commercial spaces. Because the recorder includes 4 built-in PoE ports, compatible cameras can receive both power and network connection through a single Ethernet cable. That helps simplify installation while reducing extra wiring and power adapters.

Yes, the DS-7104NI-Q1/4P includes 4 independent PoE network interfaces that support IEEE 802.3 af/at standards. This allows compatible cameras to be powered directly from the NVR through Ethernet cables. For many users, this helps make installation faster, cleaner, and easier to manage compared to running separate power supplies for each camera. The built-in PoE functionality is especially useful for small surveillance systems where simplicity matters.

The DS-7104NI-Q1/4P supports camera inputs up to 6 MP resolution and can record full-channel video up to 4 MP resolution. It also supports recording resolutions including 6 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF. This flexibility allows users to balance image quality and storage requirements depending on the surveillance environment. Higher resolutions can provide sharper detail for identifying people and activity more clearly.

Yes, the recorder supports Hik-Connect for remote network management and viewing. Hik-Connect allows users to monitor live cameras, review playback footage, and manage the system remotely using supported devices. This can be especially helpful for business owners or homeowners who want to check their property while away. The NVR also supports protocols such as TCP/IP, DHCP, DNS, DDNS, SMTP, NTP, and UPnP™ for network connectivity.

The DS-7104NI-Q1/4P includes 1 SATA interface and supports up to 6 TB capacity for a single hard drive. This gives users the ability to store surveillance recordings locally for extended periods depending on camera settings and recording schedules. The recorder also supports H.265+ compression technology, which can reduce storage usage by up to 75%. That helps maximize recording retention while lowering overall storage costs.

This NVR supports smart functions including line crossing detection and intrusion detection. These features help alert users when specific movement or activity occurs in monitored areas. The system also supports smart search and smart playback to help users review important footage more efficiently. Instead of manually searching long recordings, users can focus on relevant events faster.

Yes, the DS-7104NI-Q1/4P supports 4-channel synchronous playback. This allows users to review footage from multiple cameras simultaneously during investigations or incident reviews. The recorder also supports playback resolutions up to 2-ch@4 MP or 4-ch@1080p. This can help save time when reviewing events occurring across multiple areas.

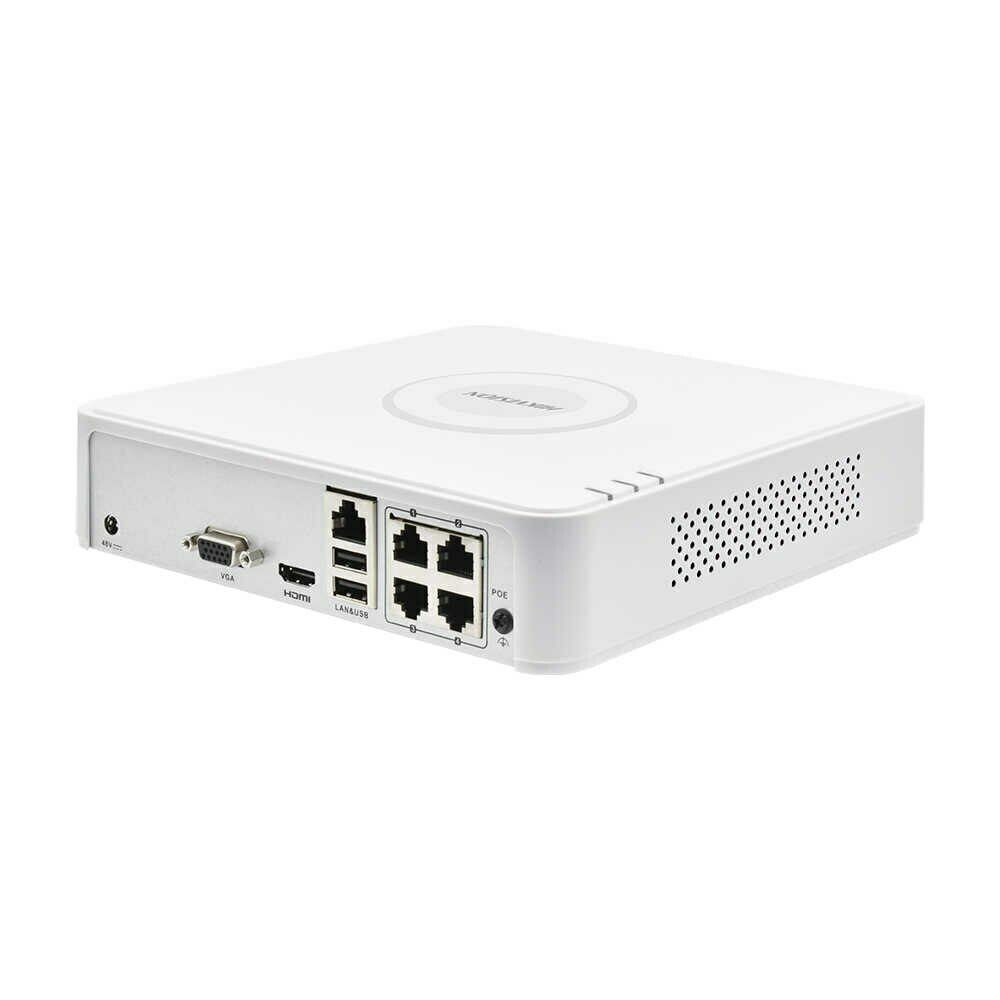

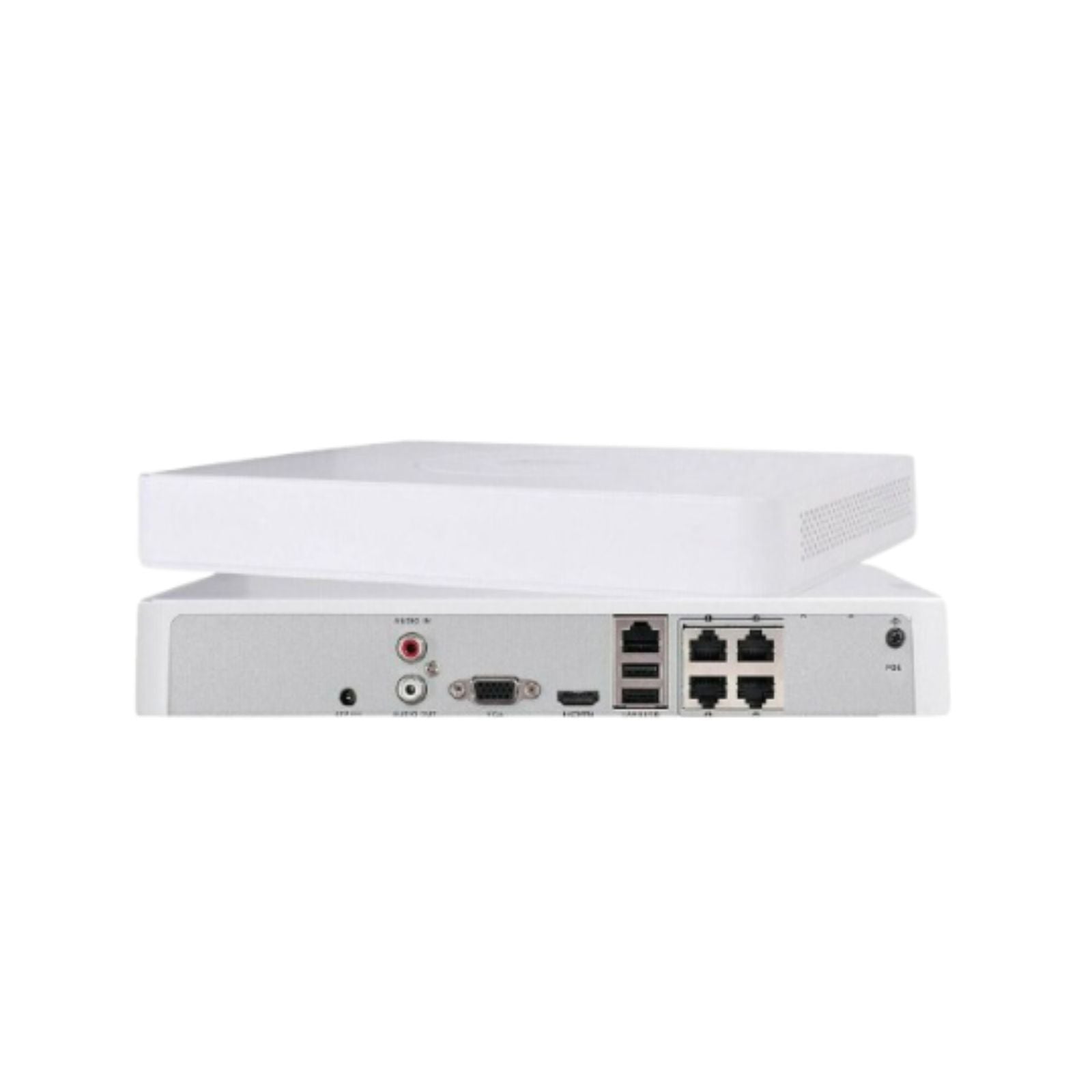

The recorder includes both HDMI and VGA outputs with simultaneous video output capability. Supported resolutions include 1920 × 1080p, 1600 × 1200, 1280 × 1024, and 1280 × 720 at 60Hz. This flexibility allows the NVR to work with both newer HDMI displays and older VGA monitors. It makes the system easier to integrate into different surveillance setups or existing workstations.

Yes, this NVR is designed for smaller surveillance deployments such as retail stores, offices, restaurants, homes, and small commercial properties. The built-in PoE ports simplify camera installation, while support for up to 4 cameras keeps the system manageable and cost-effective. Features like smart playback, remote viewing, and H.265+ compression also help improve everyday usability. Its compact size makes it practical for locations with limited installation space.

The DS-7104NI-Q1/4P measures 200 × 200 × 48 mm (7.9" × 8.1" × 1.9") and weighs less than 1 kg (2.2 lb). It uses a 48 VDC, 1 A power supply and has a power consumption of ≤ 10 W, while PoE power consumption is ≤ 36 W. Its compact design makes it easier to install in smaller offices, shelves, counters, or equipment cabinets. The lightweight construction also simplifies handling during installation.
