Technical Specifications

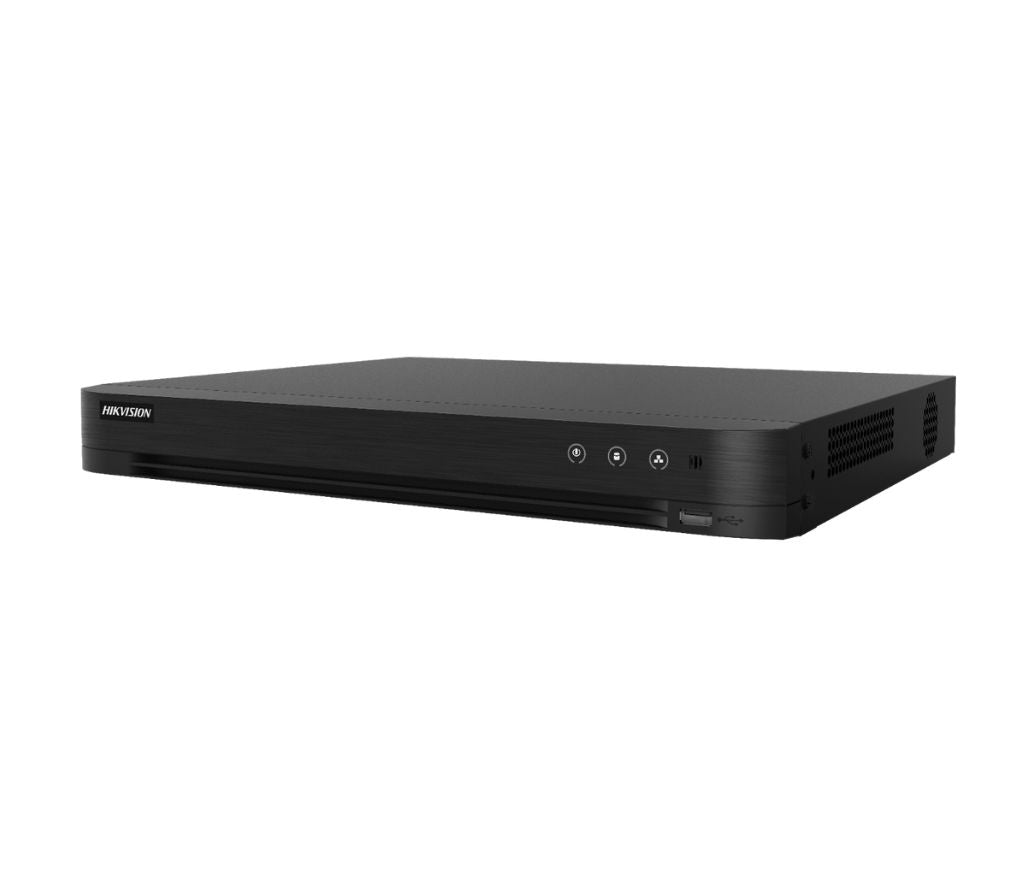

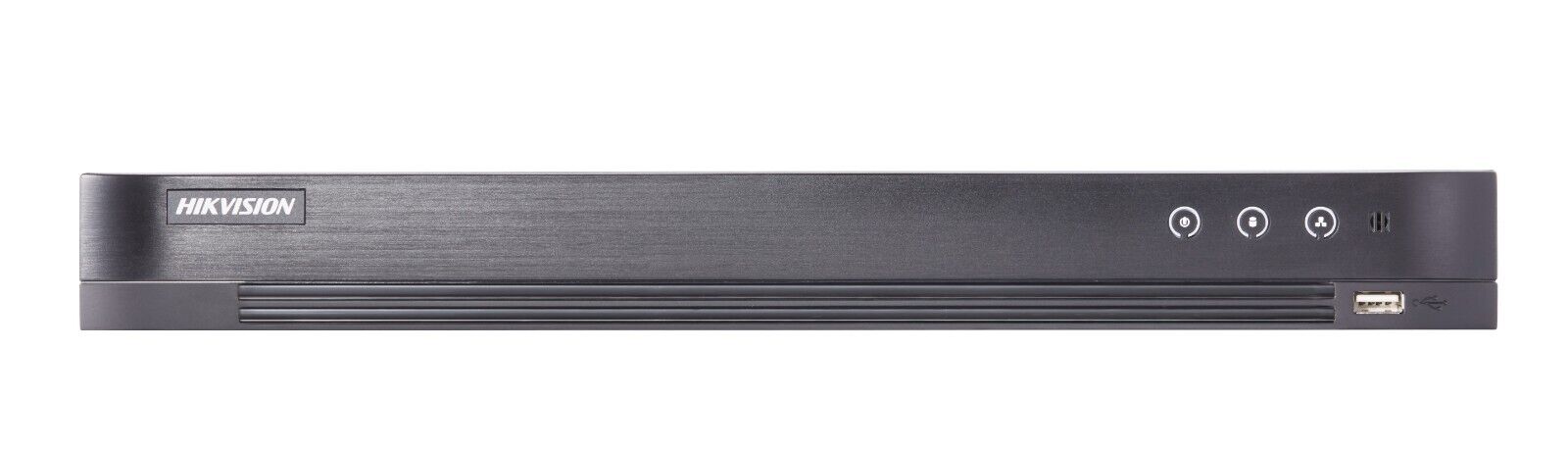

Hikvision DS-7224HQHI-K2 / DS-7232HQHI-K2 Turbo HD DVR

Designed for large surveillance systems, the Hikvision DS-7224HQHI-K2 and DS-7232HQHI-K2 support 24 or 32 analog camera channels while allowing additional IP cameras for future expansion. Multi-format video compatibility makes it easier to integrate HDTVI, AHD, HDCVI, CVBS, and compatible IP cameras into one system.

H.265 Pro+ compression helps reduce storage requirements, while two SATA interfaces support up to 10 TB per hard drive. Smart search, configurable analytics, 4K HDMI output, and Hik-Connect support provide practical tools for recording, reviewing, and remotely managing a high-channel-count security installation.

Key Features

  • Available with 24 or 32 analog video inputs.
  • Supports HDTVI, AHD, HDCVI, CVBS, and compatible IP video inputs.
  • Supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 compression.
  • Full-channel recording at resolutions up to 4 MP Lite.
  • Supports up to 32 IP cameras on the DS-7224HQHI-K2 in Enhanced IP Mode.
  • Supports up to 40 IP cameras on the DS-7232HQHI-K2 in Enhanced IP Mode.
  • Compatible with IP cameras offering resolutions up to 6 MP.
  • Supports HDTVI transmission distances up to 800 m at 1080p and 1200 m at 720p.
  • Two SATA interfaces with support for up to 10 TB per hard drive.
  • Smart Search helps locate relevant recorded video efficiently.
  • Supports line-crossing, intrusion, and sudden-scene-change analytics.
  • Supports synchronous playback of up to 16 channels.
  • HDMI output supports resolutions up to 4K at 30 Hz.
  • Supports Hik-Connect and DDNS for convenient remote network management.
  • Supports compatible third-party cloud storage.
  • Output bandwidth limit is configurable.
```

Available Models

24-Channel Model
DS-7224HQHI-K2
32-Channel Model
DS-7232HQHI-K2

Perimeter Protection

Line-Crossing Detection
2 channels
Intrusion Detection
2 channels
Enhanced VCA Mode
Up to 4 channels

Recording and Compression

Video Compression
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolution - 1080p Lite Disabled
4 MP Lite / 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF
Encoding Resolution - 1080p Lite Enabled
4 MP Lite / 3 MP / 1080p Lite / 720p Lite / VGA / WD1 / 4CIF / CIF
Main Stream - 4 MP Input
4 MP Lite at 15 fps; 1080p Lite, 720p, WD1, 4CIF, VGA, and CIF at 25 fps (PAL) or 30 fps (NTSC)
Main Stream - 3 MP Input
3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF at 15 fps
Main Stream - 1080p Input
1080p and 720p at 15 fps; VGA, WD1, 4CIF, and CIF at 25 fps (PAL) or 30 fps (NTSC)
Main Stream - 720p Input
720p / VGA / WD1 / 4CIF / CIF at 25 fps (PAL) or 30 fps (NTSC)
Main Stream - 1080p Lite Mode
4 MP Lite and 3 MP at 15 fps; 1080p Lite, 720p Lite, VGA, WD1, 4CIF, and CIF at 25 fps (PAL) or 30 fps (NTSC)
Sub-Stream
WD1 and 4CIF at 12 fps; CIF at 25 fps (PAL) or 30 fps (NTSC)
Video Bit Rate
32 Kbps to 6 Mbps
Dual Stream
Supported
Stream Type
Video or video and audio
Audio Compression
G.711u
Audio Bit Rate
64 Kbps

Video Inputs

DS-7224HQHI-K2 IP Video Input
2 channels; up to 26 total channels
DS-7232HQHI-K2 IP Video Input
2 channels; up to 34 total channels
DS-7224HQHI-K2 Enhanced IP Mode
8 IP channels; up to 32 total channels, with each IP channel supporting up to 4 Mbps
DS-7232HQHI-K2 Enhanced IP Mode
8 IP channels; up to 40 total channels, with each IP channel supporting up to 4 Mbps
Maximum IP Camera Resolution
Up to 6 MP
Supported IP Camera Compression
H.265+ / H.265 / H.264+ / H.264
DS-7224HQHI-K2 Analog Video Input
24-channel BNC, 1.0 Vp-p, 75 Ω, with coaxitron support
DS-7232HQHI-K2 Analog Video Input
32-channel BNC, 1.0 Vp-p, 75 Ω, with coaxitron support
HDTVI Input
4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, and 720p25
3 MP HDTVI Limitation
3 MP signal input is available only on channels 1, 2, 3, and 4
AHD Input
4 MP, 1080p25, 1080p30, 720p25, and 720p30
HDCVI Input
1080p25, 1080p30, 720p25, and 720p30
CVBS Input
PAL / NTSC

Video and Audio Outputs

CVBS Output
1-channel BNC, 1.0 Vp-p, 75 Ω; PAL: 704 × 576, NTSC: 704 × 480
VGA Output
1 channel; 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, or 1024 × 768/60 Hz
HDMI Output
1 channel; 3840 × 2160/30 Hz, 2560 × 1440/60 Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, or 1024 × 768/60 Hz
Audio Input
1-channel RCA, 2.0 Vp-p, 1 KΩ
Audio Output
1-channel RCA, linear, 1 KΩ
Two-Way Audio
1-channel RCA, 2.0 Vp-p, 1 KΩ, using the first audio input
Synchronous Playback
Up to 16 channels

Network

Total Bandwidth
128 Mbps
DS-7224HQHI-K2 Incoming Bandwidth in Enhanced IP Mode
Up to 128 Mbps
DS-7232HQHI-K2 Incoming Bandwidth in Enhanced IP Mode
Up to 160 Mbps
Remote Connections
128
Network Protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF
Network Interface
1 × RJ45 10M/100M/1000M self-adaptive Ethernet interface

Storage and Auxiliary Interfaces

SATA Interfaces
2
Maximum Storage Capacity
Up to 10 TB per hard drive
Serial Interface
RS-485, half-duplex
Front USB Interface
1 × USB 2.0
Rear USB Interface
1 × USB 3.0
Alarm Input/Output
Not available

General

Power Supply
12 VDC, 4.5 A
DS-7224HQHI-K2 Power Consumption
55 W or less without a hard drive
DS-7232HQHI-K2 Power Consumption
65 W or less without a hard drive
Working Temperature
-10°C to 55°C (14°F to 131°F)
Working Humidity
10% to 90%
Dimensions
380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inches)
Weight
2 kg (4.4 lb) or less without a hard drive

Physical Interfaces

1
Video inputs
2
Video output
3
RCA audio input
4
RCA audio output
5
USB interface
6
HDMI interface
7
VGA interface
8
LAN network interface
9
RS-485 serial interface
10
Power switch
11
12 VDC power input
12
Ground connection

Accessories Found

Listed Accessories
No specific accessories are listed in the supplied datasheet.
```

Ideal Applications and Common Uses

  • Large retail stores and supermarkets requiring many camera channels.
  • Warehouses, distribution centers, and industrial facilities.
  • Office buildings and multi-floor commercial properties.
  • Schools, campuses, and institutional facilities.
  • Hotels, apartment buildings, and multi-unit properties.
  • Upgrading an existing coaxial surveillance system while retaining installed cabling.
  • Hybrid systems combining analog HD cameras with compatible IP cameras.
  • Sites requiring centralized monitoring, smart video search, and remote access.

Important Configuration Notes

Enabling Enhanced VCA Mode increases the number of channels available for line-crossing and intrusion detection, but disables 2K/4K HDMI output and 4 MP signal input.

Enhanced IP Mode may conflict with perimeter-protection events or other functions. Consult the applicable user manual before enabling this mode.

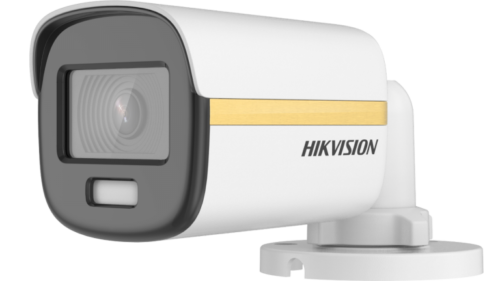

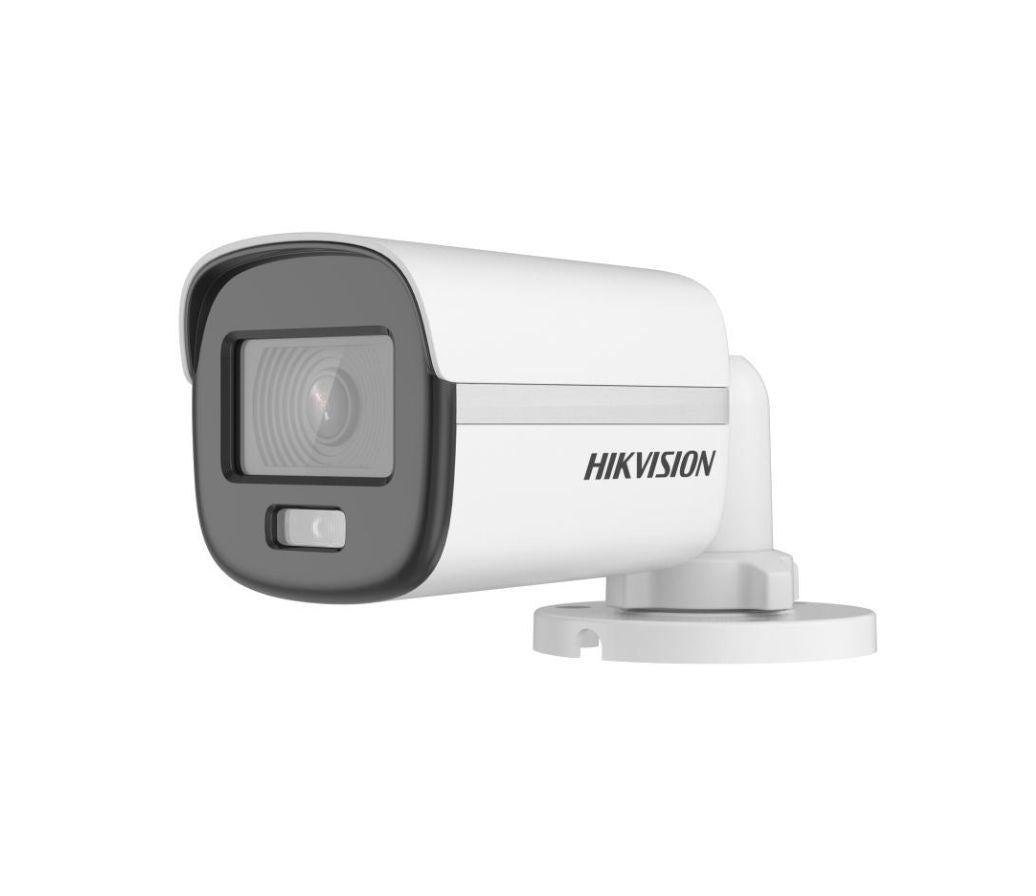

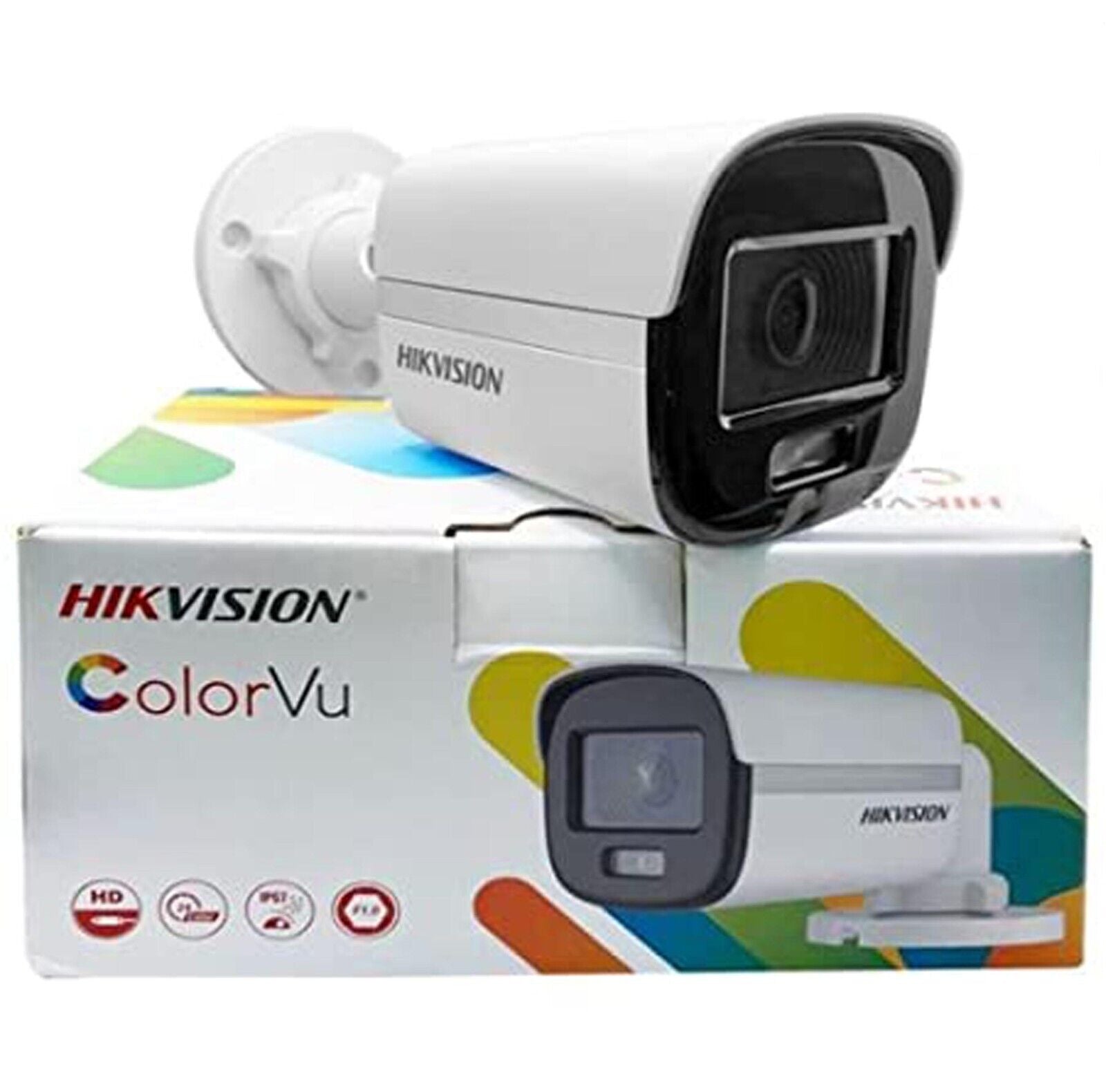

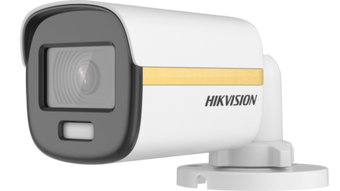

Hikvision DS-2CE10DF0T-PFS 2MP ColorVu Audio Fixed Mini Bullet Camera

The Hikvision DS-2CE10DF0T-PFS combines full-HD 1080p video, 24/7 color imaging, and a built-in microphone in a compact mini-bullet design. Its F1.0 aperture and integrated white light help preserve useful color details at night, making people, vehicles, clothing, and surrounding activity easier to identify.

Audio travels over the same coaxial connection as the video, helping simplify compatible installations. Four switchable video formats and IP67-rated protection make this camera a versatile option for indoor or outdoor surveillance upgrades.

Key Features

  • 2 MP CMOS image sensor with 1920 × 1080 maximum resolution.
  • 24/7 color imaging supported by an F1.0 aperture.
  • Built-in microphone with high-quality audio over coaxial cable.
  • Up to 20 m (approximately 66 ft) of white-light illumination.
  • Smart Supplement Light helps manage nighttime illumination.
  • 3D and 2D digital noise reduction help produce cleaner images.
  • Digital WDR, BLC, HLC, and Global image-enhancement options.
  • One switchable output supports TVI, AHD, CVI, and CVBS signals.
  • Available with a 2.8 mm or 3.6 mm fixed lens.
  • Wide 105° horizontal field of view with the 2.8 mm version.
  • Solid white-light alarm function.
  • IP67-rated protection against water and dust.
  • Wide operating-temperature range from -40°C to 60°C.
```

Camera

Image Sensor
2 MP CMOS
Maximum Resolution
1920 (H) × 1080 (V)
Minimum Illumination
0.001 lux at F1.0 with AGC on; 0 lux with white light
PAL Shutter Time
1/25 s to 1/50,000 s
NTSC Shutter Time
1/30 s to 1/50,000 s
Pan Adjustment
0° to 360°
Tilt Adjustment
0° to 90°
Rotation Adjustment
0° to 360°
Signal System
PAL / NTSC

Lens

Lens Type
2.8 mm or 3.6 mm fixed focal lens
2.8 mm Field of View
Horizontal: 105°; vertical: 55°; diagonal: 125°
3.6 mm Field of View
Horizontal: 84°; vertical: 45°; diagonal: 99°
Lens Mount
M12

Illuminator

Supplement Light Type
White light
Supplement Light Range
Up to 20 m (approximately 66 ft)
Smart Supplement Light
Yes


Image Parameter Modes
STD / High Saturation / Highlight
Image Settings
Brightness, sharpness, anti-banding, and AGC
TVI Frame Rate
1080p at 25 fps or 30 fps
CVI Frame Rate
1080p at 25 fps or 30 fps
AHD Frame Rate
1080p at 25 fps or 30 fps
CVBS Frame Rate
PAL / NTSC
Day/Night Mode
Color
Wide Dynamic Range
Digital WDR
Image Enhancement
DWDR, BLC, HLC, and Global
Noise Reduction
3D DNR / 2D DNR
White Balance
Automatic or manual

Interfaces and Audio

Video Output
Switchable TVI / AHD / CVI / CVBS
Audio
Built-in microphone with audio over coaxial cable
Alarm
Solid white-light alarm
Communication
HIKVISION-C

General

Material
Plastic
Power Supply
12 VDC ±25%
Maximum Power Consumption
2 W
Power-Supply Recommendation
The manufacturer recommends using one power adapter for each camera.
Dimensions
161.1 × 68.4 mm (6.34 × 2.69 inches)
Weight
Approximately 389 g (0.86 lb)
Operating Temperature
-40°C to 60°C (-40°F to 140°F)
Operating Humidity
90% or less, non-condensing
Language
English
Protection Rating
IP67

Available Models

Wide-Angle Version
DS-2CE10DF0T-PFS (2.8 mm)
Narrower-View Version
DS-2CE10DF0T-PFS (3.6 mm)

Accessories Found

Optional Junction Box
Hikvision DS-1280ZJ-XS
```

Ideal Applications and Common Uses

  • Residential entrances, driveways, garages, and side yards.
  • Retail stores, checkout areas, entrances, and exterior walkways.
  • Offices, warehouses, workshops, and small commercial properties.
  • Locations where full-color nighttime details are preferred over black-and-white infrared footage.
  • Areas where recorded audio can provide additional context.
  • Outdoor installations exposed to rain, dust, or changing temperatures.
  • Upgrades to compatible coaxial systems using TVI, AHD, CVI, or CVBS video.
  • The 2.8 mm model for wider coverage of entrances, rooms, and nearby areas.
  • The 3.6 mm model for a narrower view with greater concentration on a specific area.
