Hikvision Security System KIT 32 Ch Cameras TVI HD 1080p 12TB (4xHDD)
Hikvision Security System KIT 32 Ch Cameras TVI HD 1080p 12TB (4xHDD)
Out of stock
Description
Description
Hikvision Security System KIT 32 Ch Cameras TVI HD 1080p 12TB (4xHDD)
This listing includes:
- CAMERA QUANTITY (DS-2CE17H0T-IT3F): 8;12;16;20;24;28;32
- HARD DRIVE OPTION FOR RECORDER DS-7332HQHI-K4: NO HARD DRIVE;4TB;8TB;12TB;16TB;32TB;40TB
DS-2CE17H0T-IT3F view data sheet
5 MP Fixed Bullet Camera
- High quality imaging with 5 MP, 2560 � 1944 resolution
- 2.8 mm, , 6 mm, 8mm, 12mm fixed focal lens
- Up to 40 m IR distance for bright night imaging
- Water and dust resistant (IP67)

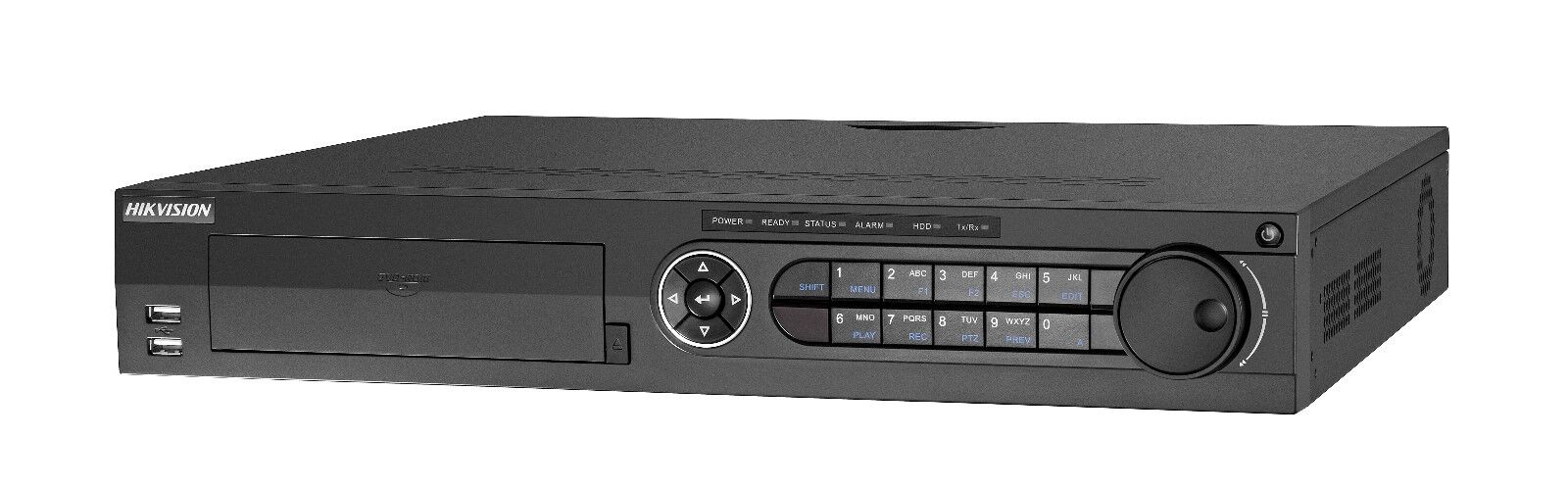

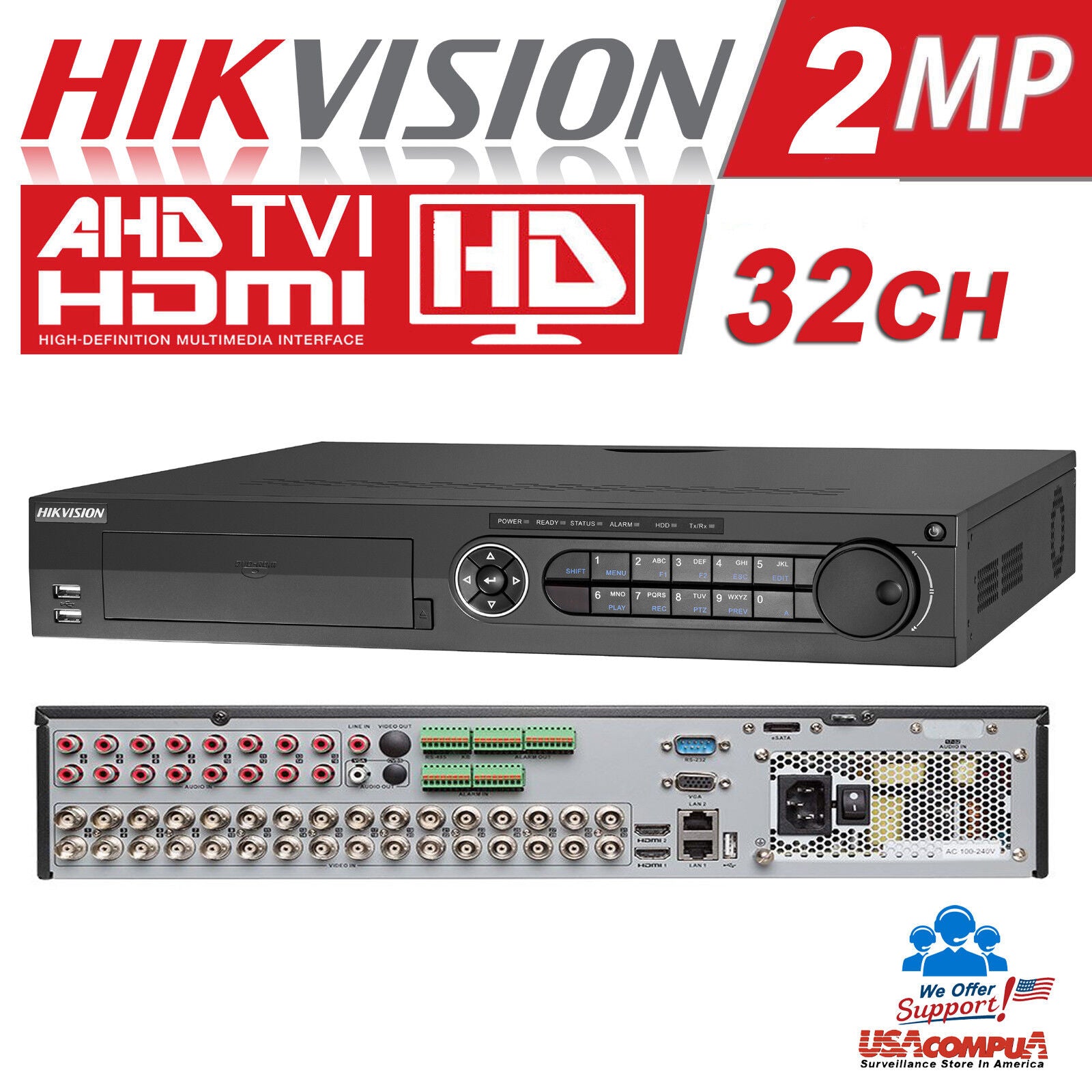

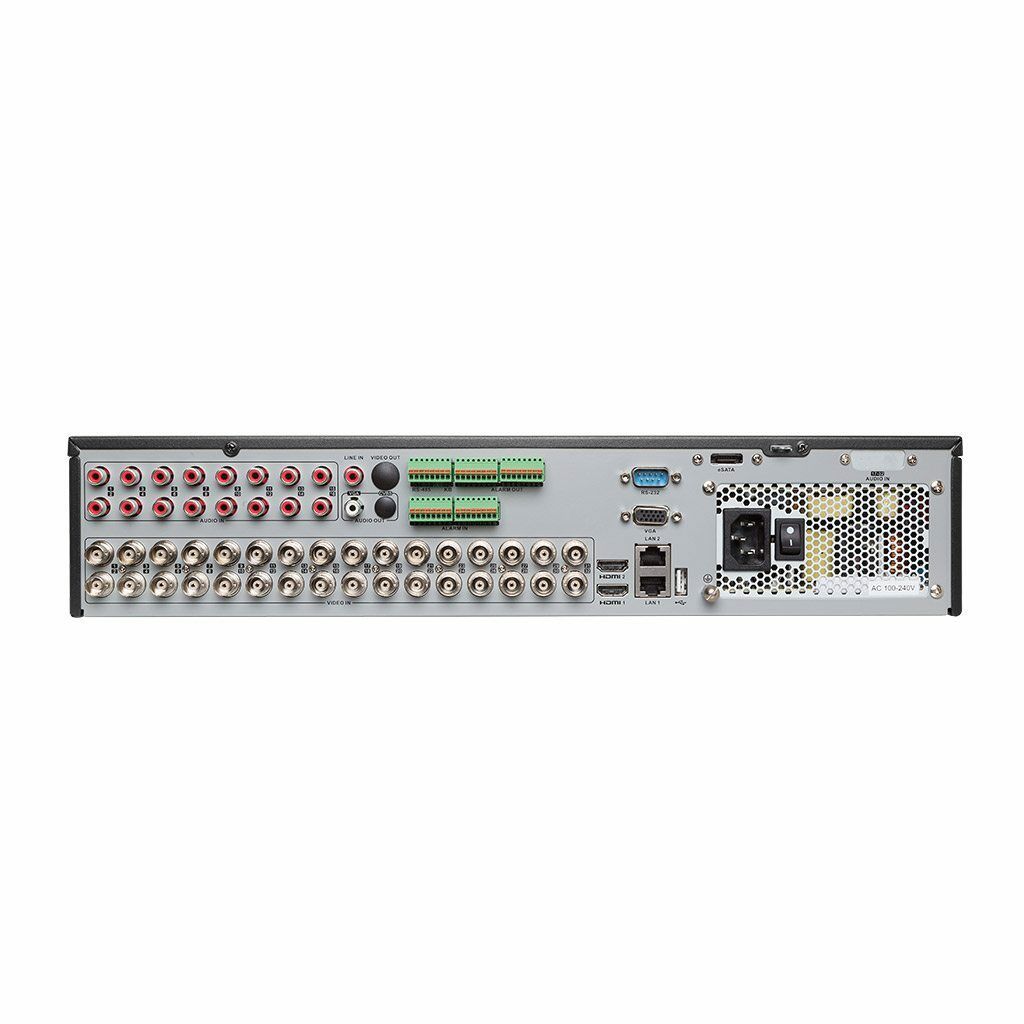

DS-7332HQHI-K4 view data sheet
32ch 1080p 1.5U H.265 DVR
- 32chs and 4 HDDs 1.5U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively ("Hybrid")
- Up to 48 network cameras can be connected
- Supports POS triggered recording and POS information overlay
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description

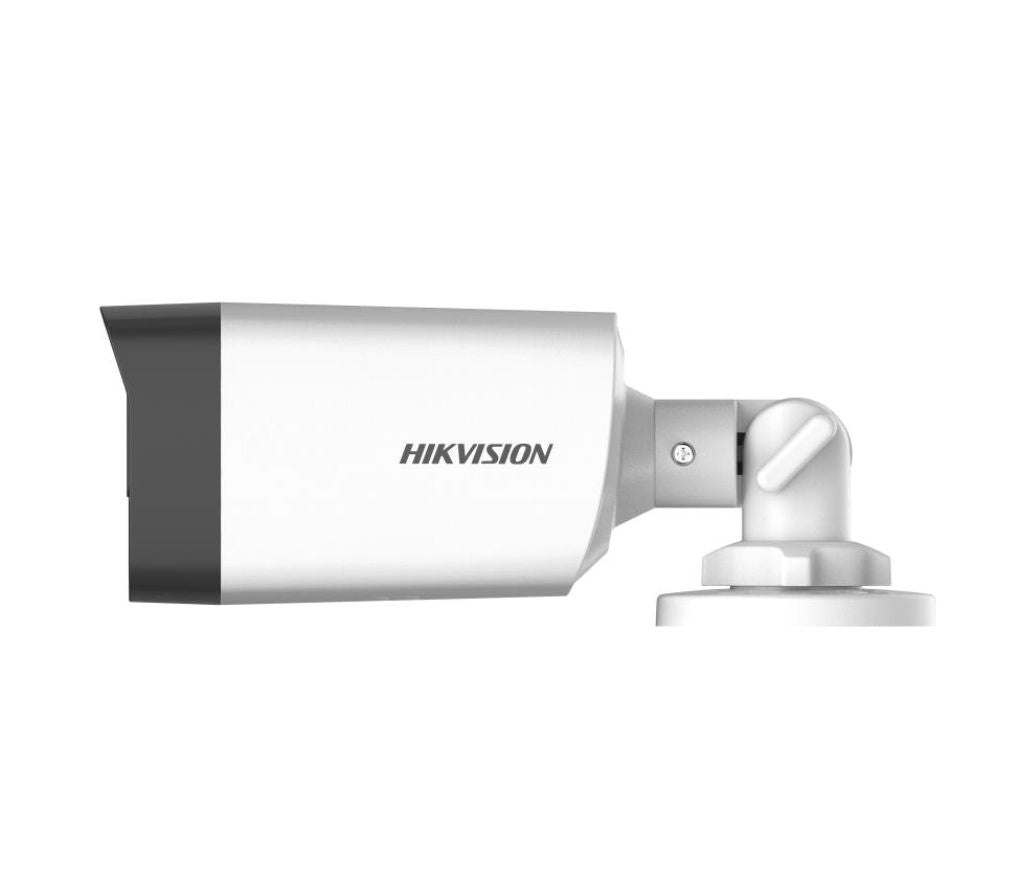

5 MP Fixed Bullet Camera
- High quality imaging with 5 MP, 2560 ? 1944 resolution
- 2.8 mm, , 6 mm, 8mm, 12mm fixed focal lens
- Up to 40 m IR distance for bright night imaging
- Water and dust resistant (IP67)
Specification
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) ? 1944 (V)
- Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 180?, Rotation 0 to 360?
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, , 6 mm, 8 mm, 12 mm fixed lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 85?, vertical FOV: 63?, diagonal FOV:110?
, horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV:105?
6 mm, horizontal FOV: 57?, vertical FOV: 43?, diagonal FOV:72?
8 mm, horizontal FOV: 41?, vertical FOV: 31?, diagonal FOV:52?
12 mm, horizontal FOV: 26?, vertical FOV: 19?, diagonal FOV:32?
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart IR
- Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementDWDR/BLC/HLC/Global
- Noise ReductionYes
- White BalanceAuto/Manual
- AGCSupport
- Interface
- Video OutputTVI/AHD/CVI/CVBS
- General
- Material
Front Cover: Metal
Main Body: Plastic
- Dimension78.9 mm ? 75.4 mm ? 216.6 mm (3.10" ? 2.97" ? 8.53")
- WeightApprox. 330 g (0.73 lb.)
- Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply12 VDC ? 25%
- Consumption
Max. 4.3 W
- IR RangeUp to 40 m
- Approval
- ProtectionIP67
Data sheet PDF
Product Description

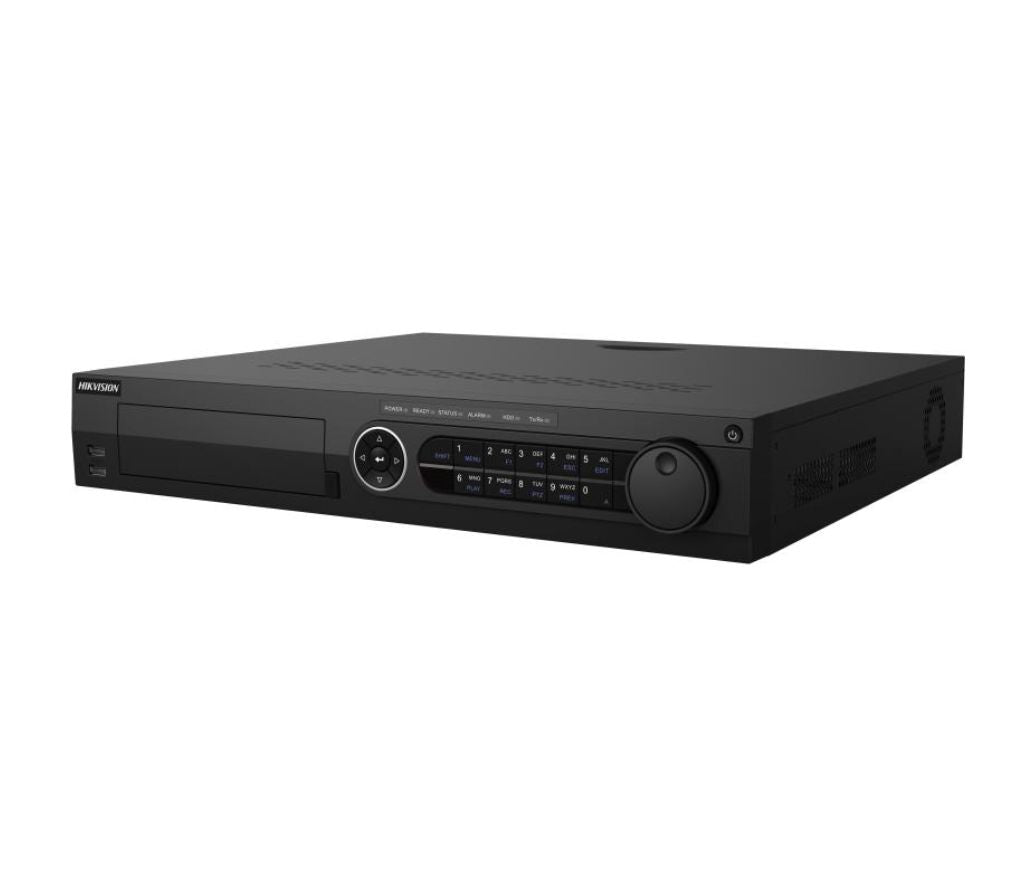

32ch 1080p 1.5U H.265 DVR
- 32chs and 4 HDDs 1.5U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively ("Hybrid")
- Up to 48 network cameras can be connected
- Supports POS triggered recording and POS information overlay
Specification
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 1080p Lite mode not enabled:
4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
- IP Video Input
16ch (up to 48ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
32ch
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
- HDTVI Input
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
*: The 3 MP signal input is only available for channel 1/2/3/4.
- AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
- HDMI 1 Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- HDMI 2 Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- Audio Input4ch, RCA (2.0 Vp-p, 1 K?)
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (independent)
- Synchronous Playback16ch
- Network
- Remote Connection128
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF, SNMP
- Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary Interface
- Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
- SATA4 SATA interfaces
- ESATASupport
- CapacityUp to 10 TB capacity for each disk
- Alarm In/Out16/4
- USB Interface
Front panel: 2 ? USB 2.0
Rear panel: 1 ? USB 3.0
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption? 45 W (without HDD)
- Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)440 ? 390 ? 70 mm (17.3 ? 15.4 ? 2.8 inch)
- Weight? 7 kg (15.4 lb., without HDD)
