Technical Specifications

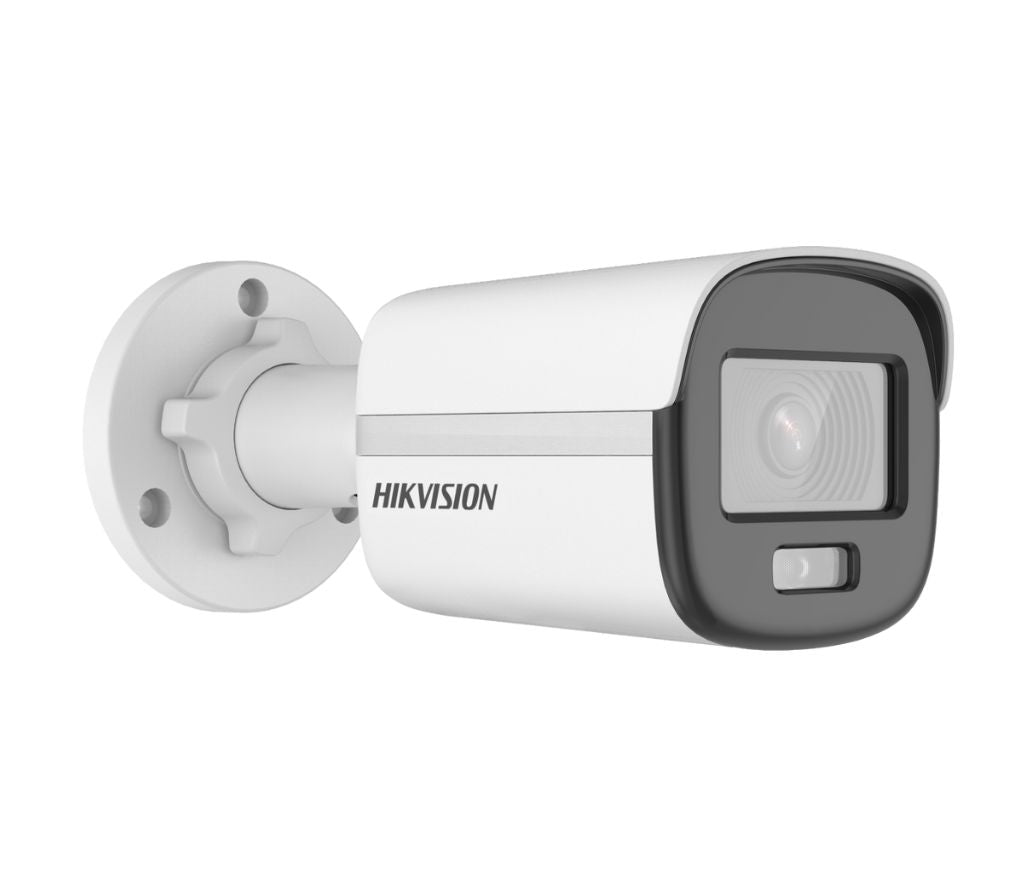

Hikvision DS-2CD1027G0-L 2MP ColorVu Camera with DS-7604NI-K1/4P 4-Channel PoE NVR

Build a dependable surveillance system around vivid, full-color video day and night. The DS-2CD1027G0-L camera combines 2MP imaging, an ultra-wide F1.0 aperture, warm supplemental lighting, and an IP67 metal housing for reliable indoor or outdoor monitoring.

The included DS-7604NI-K1/4P network video recorder supports up to four IP camera channels, provides four independent PoE ports, and delivers HDMI output at resolutions up to 4K. Efficient H.265+ compression helps reduce storage requirements while smart search and playback make recorded incidents easier to review.

Important: The NVR supports up to 4K HDMI display output and recording resolutions up to 8MP. The specified DS-2CD1027G0-L camera records at 2MP resolution.

Key Features

  • 2MP ColorVu Lite camera with up to 1920 × 1080 resolution
  • 24/7 full-color imaging with an F1.0 super-aperture
  • 0.001 lux minimum illumination with AGC enabled
  • Built-in warm white supplemental light with a range of up to 30 meters
  • Wide 2.8mm fixed lens with a 107° horizontal field of view
  • Weather-resistant IP67 metal camera housing
  • PoE support simplifies power and network connectivity
  • Four-channel NVR with four independent PoE network interfaces
  • HDMI output at resolutions up to 4K
  • Recording support for camera resolutions up to 8MP
  • H.265+, H.265, H.264+, and H.264 video compression
  • Up to 40 Mbps incoming and 80 Mbps outgoing bandwidth
  • One SATA interface supporting one HDD with a capacity of up to 8TB
  • Four-channel synchronous playback
  • One-channel Motion Detection 2.0 with human and vehicle analysis
  • Hik-Connect support for convenient network management

Camera Imaging

```

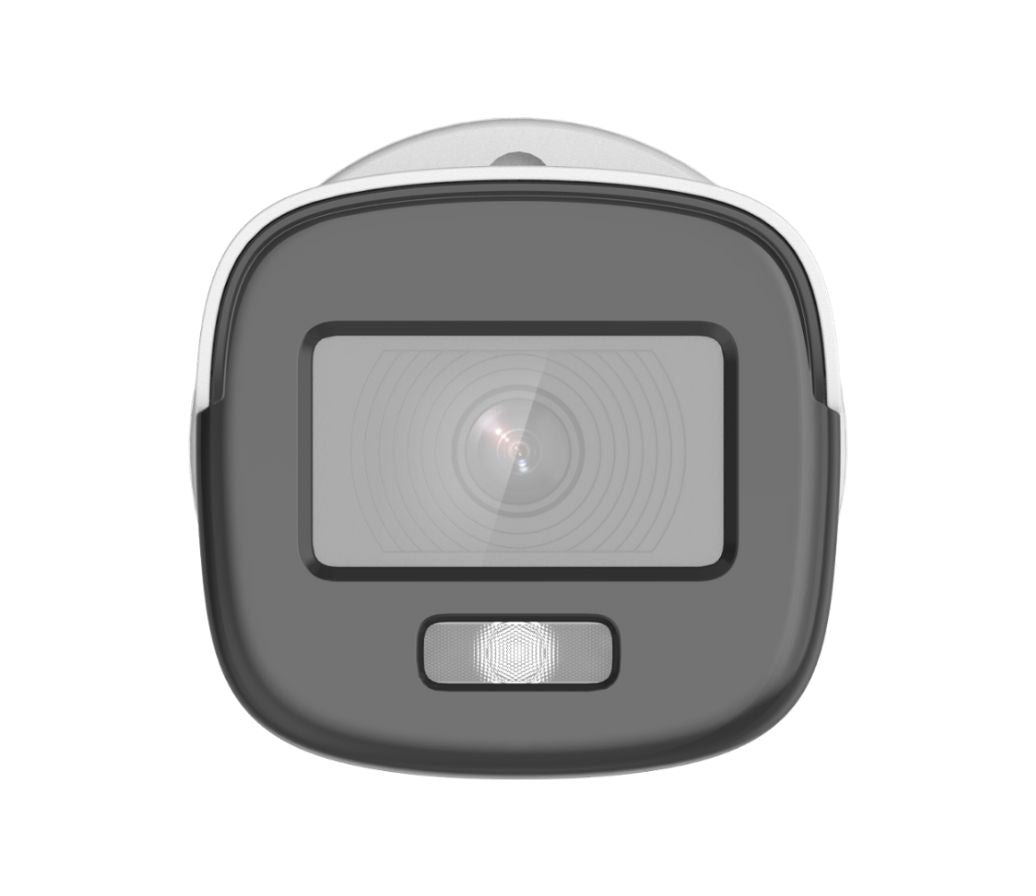

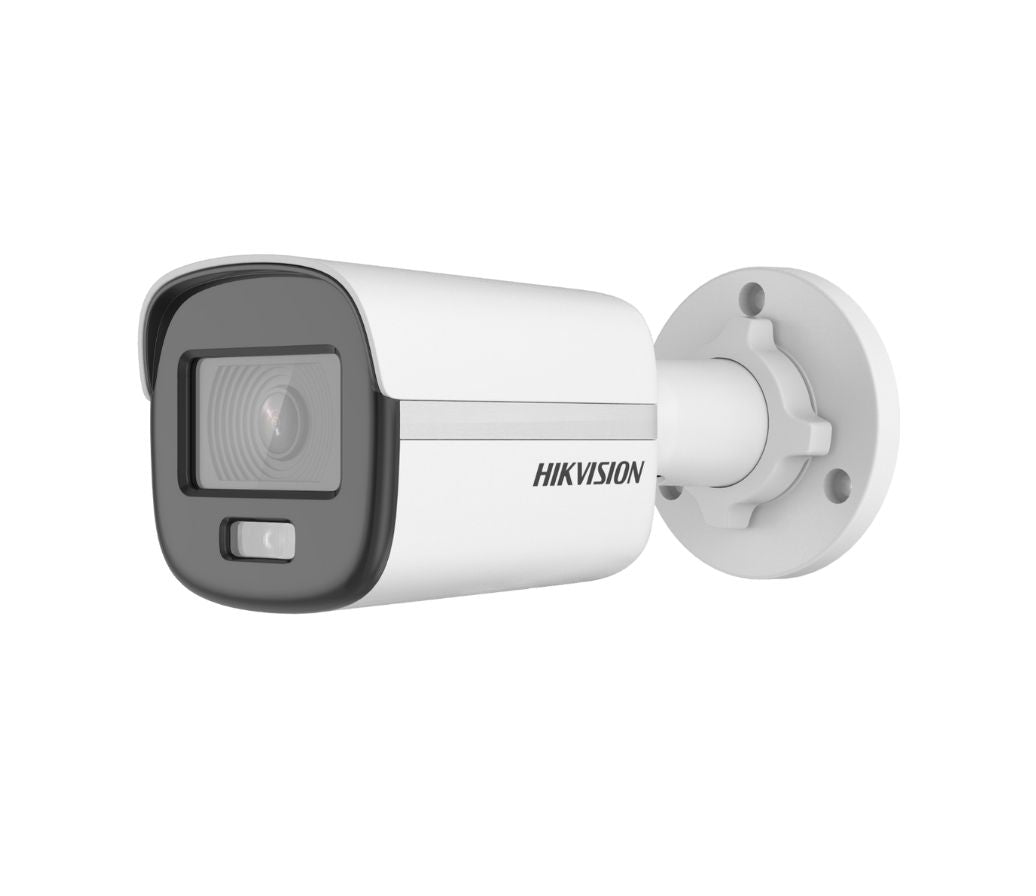

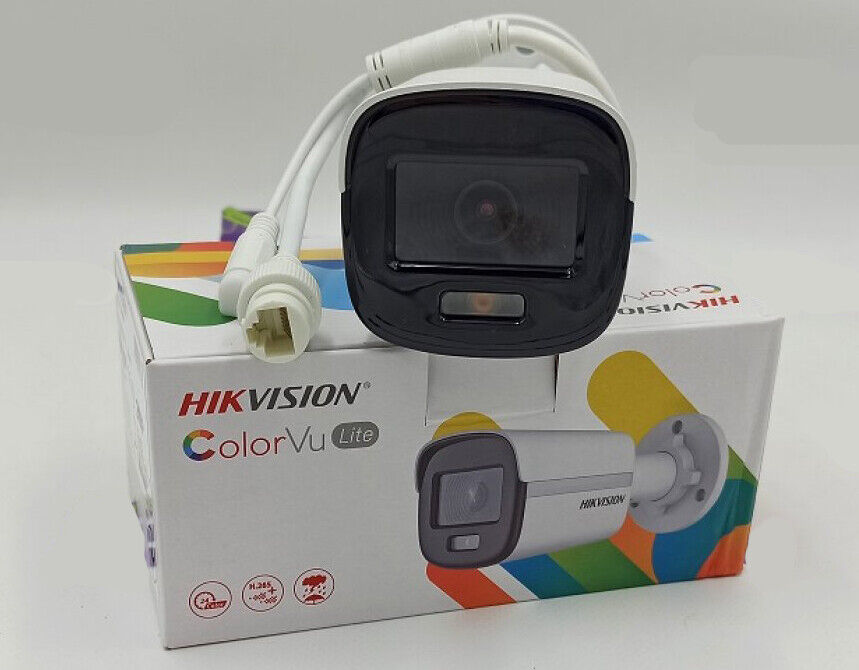

Camera Model
DS-2CD1027G0-L
Camera Type
2MP ColorVu Lite fixed bullet network camera
Image Sensor
1/2.8-inch progressive scan CMOS
Maximum Resolution
1920 × 1080
Minimum Illumination
Color: 0.001 lux at F1.0, AGC on
Shutter Speed
1/3 second to 1/100,000 second
Slow Shutter
Yes
Wide Dynamic Range
Digital WDR
Angle Adjustment
Pan: 0° to 360°; tilt: 0° to 90°; rotation: 0° to 360°
```

Camera Lens

```
Lens
2.8mm fixed lens
2.8mm Field of View
Horizontal: 107°; vertical: 56°; diagonal: 127°
Aperture
F1.0
Aperture Type
Fixed
Lens Mount
M12
Depth of Focus
1.7 meters to infinity for the 2.8mm lens
```

Camera Supplemental Lighting

```
Smart Supplement Light
Yes
Supplement Light Type
White light
White Light Range
Up to 30 meters
Night Imaging
24/7 colorful imaging with warm supplemental lighting in zero-light conditions
```

Camera Video

```
Main Stream - 50Hz
25 fps at 1920 × 1080, 1280 × 960, or 1280 × 720
Main Stream - 60Hz
30 fps at 1920 × 1080, 1280 × 960, or 1280 × 720
Sub-Stream - 50Hz
25 fps at 640 × 480, 640 × 360, or 320 × 240
Sub-Stream - 60Hz
30 fps at 640 × 480, 640 × 360, or 320 × 240
Main Stream Compression
H.265+, H.265, H.264+, and H.264
Sub-Stream Compression
H.265, H.264, and MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Profile
Baseline Profile, Main Profile, and High Profile
H.265 Profile
Main Profile
Region of Interest
One fixed region for the main stream
```

Camera Image Controls

```
Day/Night Modes
Day, night, auto, and schedule
Image Enhancement
BLC, HLC, and 3D DNR
Adjustable Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance
Additional Functions
Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset by email, and pixel counter
```

Camera Events and Linkage

```
Basic Events
Motion detection and illegal-login exception
Linkage Methods
Upload to FTP/NAS, notify surveillance center, send email, trigger recording, and trigger capture
External Device Requirement
An external device is required for applicable linkage functions
```

Camera Network and Security

```
Network Interface
1 × RJ45 10/100 Mbps self-adaptive Ethernet port
Simultaneous Live View
Up to 6 channels
API Support
ONVIF Profile S, ONVIF Profile G, ISAPI, and SDK
Protocols
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, and SSL/TLS
Users
Up to 32 users with administrator, operator, and user access levels
Security
Password protection, complicated-password support, HTTPS encryption, IP-address filtering, security audit log, HTTP/HTTPS basic and digest authentication, TLS 1.2, WSSE, and ONVIF digest authentication
Compatible Clients
iVMS-4200, Hik-Connect, and Hik-Central
Web Browser Support
Plug-in live view: Internet Explorer 8 through 11; local service: Chrome 57.0 or later and Firefox 52.0 or later
Web Client Language
English
Software Reset
Reset through web browser or client software
```

Camera Power and Construction

```
Power Supply
12 VDC ±25% or PoE IEEE 802.3af, Type 1 Class 3, with reverse-polarity protection
12 VDC Power Consumption
0.30 A, maximum 3.6 W
PoE Power Consumption
36 to 57 VDC, 0.20 A to 0.10 A, maximum 4.5 W
Power Interface
5.5mm coaxial power plug
Housing Material
Metal
Ingress Protection
IP67
Operating Conditions
-30°C to 60°C (-22°F to 140°F); humidity 95% or less, non-condensing
Storage Conditions
-30°C to 60°C (-22°F to 140°F); humidity 95% or less, non-condensing
Camera Dimensions
68.4 × 65.2 × 161.1 mm (2.7 × 2.6 × 6.3 inches)
Package Dimensions
172 × 104 × 80 mm (6.8 × 4.1 × 3.1 inches)
Camera Weight
Approximately 420 g (0.9 lb.)
Packaged Weight
Approximately 510 g (1.1 lb.)
```

Camera Approvals

```
EMC
FCC, CE-EMC, RCM, IC, and KC
Safety
UL, CB, CE-LVD, and BIS
Environmental Compliance
CE-RoHS, WEEE, and REACH
```

NVR Video and Audio

```

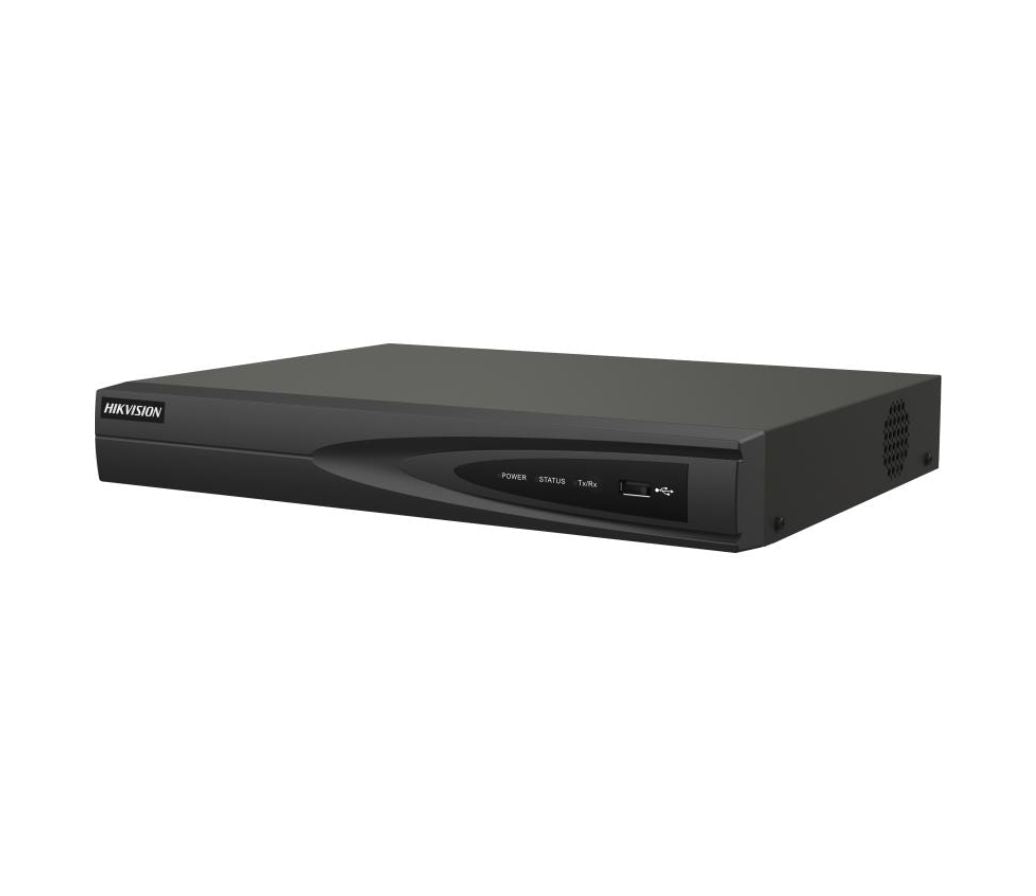

NVR Model
DS-7604NI-K1/4P (D)
IP Camera Inputs
4 channels
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
80 Mbps
HDMI Output
1 channel: 4096 × 2160 at 30Hz, 3840 × 2160 at 30Hz, 2560 × 1440 at 60Hz, 1920 × 1080 at 60Hz, 1600 × 1200 at 60Hz, 1280 × 1024 at 60Hz, or 1280 × 720 at 60Hz
VGA Output
1 channel: 1920 × 1080 at 60Hz, 1280 × 1024 at 60Hz, or 1280 × 720 at 60Hz
Video Output Mode
Simultaneous HDMI and VGA output
Audio Output
1 × RCA, linear, 1 kΩ
Two-Way Audio
1 × RCA, 2.0 Vp-p, 1 kΩ
```

NVR Recording and Decoding

```
Video Formats
H.265+, H.265, H.264+, and H.264
Recording Resolutions
8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
Decoding Capability
1 channel at 8MP/30 fps, 3 channels at 4MP/30 fps, or 6 channels at 1080p/30 fps
Decoding Limitation
The length or width of each camera-resolution track cannot exceed 4096 pixels
Synchronous Playback
4 channels
Stream Types
Video or video and audio
Audio Compression
G.711 ulaw, G.711 alaw, G.722, and G.726
Storage-Efficiency Feature
H.265+ compression can reduce storage space by up to 75%
Playback Tools
Smart search and smart playback
```

NVR Smart Functions

```
Motion Detection 2.0
1 channel
Human/Vehicle Analysis
1 channel
Video Content Analytics
Supports multiple VCA events
Compatible Camera Smart Functions
Configurable camera-dependent functions such as motion detection, line crossing detection, and intrusion detection
```

NVR Network and PoE

```
Network Interface
1 × RJ45 10/100 Mbps self-adaptive Ethernet interface
Remote Connections
32
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, and HTTPS
PoE Interfaces
4 × RJ45 10/100 Mbps self-adaptive Ethernet interfaces
PoE Standard
IEEE 802.3af/at
PoE Power Budget
Up to 50 W
Network Management
Hik-Connect support
```

NVR Storage and Interfaces

```
SATA Interface
1 SATA interface
Maximum HDD Capacity
Up to 8TB for the connected disk
USB Interfaces
2 × USB 2.0
Alarm Input/Output
Not included on the standard model; 4 alarm inputs and 1 alarm output are optional on models designated “/ALARM”
Physical Interfaces
PoE network ports, LAN, audio out, audio in, HDMI, VGA, USB, power input, power switch, and ground connection
```

NVR General Specifications

```
Power Supply
48 VDC, 1.35 A
Power Consumption
Up to 10 W without HDD and with PoE switched off
Operating Temperature
-10°C to 55°C (14°F to 131°F)
Operating Humidity
10% to 90%
Dimensions
320 × 240 × 48 mm (12.4 × 9.4 × 1.9 inches)
Weight
Up to 1.18 kg (2.6 lb.) without HDD
FCC Certification
Part 15 Subpart B; ANSI C63.4-2014
CE Certification
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, and EN 55035:2017
```

Compatible Accessory Found in the Datasheet

```
DS-1280ZJ-XS
Compatible junction box for the DS-2CD1027G0-L camera

The datasheet identifies this as a compatible accessory; it does not state that the junction box is included.

```

Ideal Applications and Common Uses

  • Residential entrances, driveways, yards, and exterior perimeters
  • Small offices and professional workspaces
  • Retail stores, counters, entrances, and stock areas
  • Warehouses and small commercial facilities
  • Parking areas where wide, full-color coverage is preferred
  • Indoor or outdoor locations requiring an IP67-rated camera
  • Four-camera PoE surveillance installations
  • Locations where full-color nighttime video is more useful than traditional monochrome infrared footage
  • Systems requiring local recording, multi-channel playback, and HDMI/VGA monitor output
  • Remote surveillance through supported Hikvision client applications
