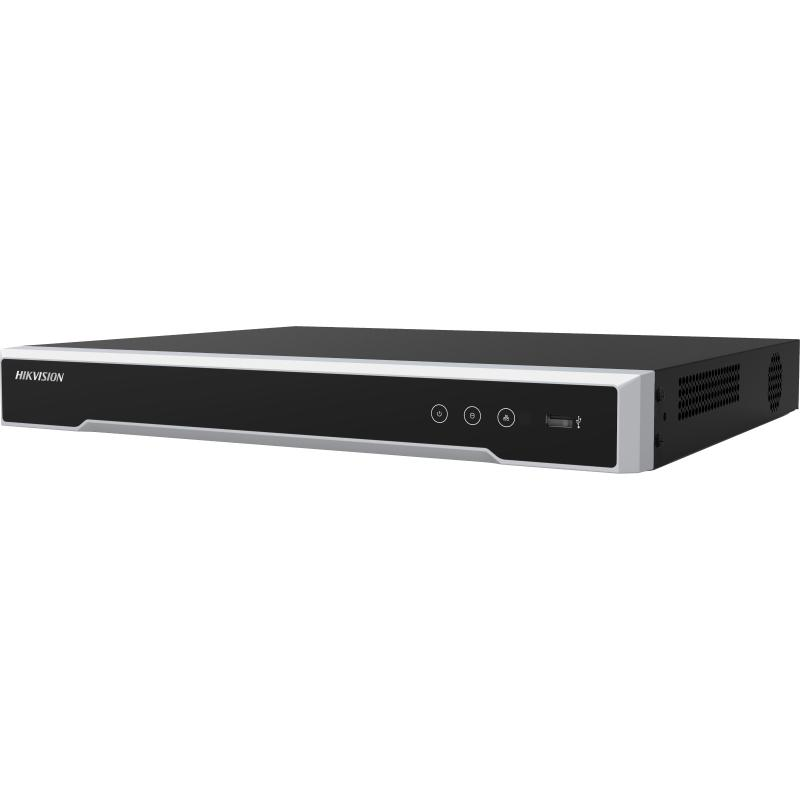

The DS-7616NI-Q2/16P supports up to 16 IP camera inputs. The datasheet also states that it includes 16 independent PoE network interfaces, which makes it easier to connect and power cameras directly from the recorder. That is useful for buyers who want a cleaner installation without adding an external PoE switch for every camera connection. It is designed for users who want to manage a full 16-camera system from one central NVR.

Yes, this model has built-in PoE. The datasheet lists 16 RJ-45 10/100 Mbps self-adaptive PoE interfaces, with a total PoE power budget of up to 150 W, and support for IEEE 802.3 af/at standards. That matters because it can simplify installation and reduce extra hardware costs in many 16-camera deployments. It gives buyers a more streamlined setup when they want power and data handled through the recorder itself.

The datasheet says the recorder supports up to 8 MP IP camera resolution. It also provides simultaneous HDMI and VGA outputs, with HDMI output up to 4K resolution, including 4096 × 2160 and 3840 × 2160 at 30 Hz. For buyers, that means you can connect a high-resolution local display and review footage with more clarity. It also helps when you want a recorder that can keep up with higher-detail camera systems instead of limiting what you see on screen.

This NVR includes 2 SATA interfaces for hard drive connection. The datasheet says it supports up to 8 TB capacity for each disk, which means the system can support up to 16 TB total internal storage when both bays are populated. That gives buyers room for longer retention times, depending on the number of cameras, bitrate, and recording settings being used. It is a practical fit for users who want solid recording capacity without stepping up to a much larger recorder platform.

Yes, the datasheet specifically lists smart search and smart playback. Those tools are included to improve playback efficiency, which can be especially helpful when you need to review long timelines after an incident. Instead of manually scrubbing through hours of footage, buyers get features intended to make investigations faster and less frustrating. That can save a lot of time when several cameras are involved.

The datasheet says this recorder supports multiple VCA events. It also supports configurable special camera smart functions such as VCA detection for motion, line crossing, and intrusion, along with heat map, ANPR, and people counting. That gives buyers more flexibility when building a system that needs more than simple recording. It is especially useful for users who want analytics-driven alerts and better insight into what is happening on site.

The datasheet lists decoding capability up to 1 channel at 8 MP at 30 fps or 5 channels at 1080p at 30 fps. It also supports 16-channel synchronous playback, which helps when reviewing multiple camera views at once. For buyers, that means the unit is built to handle everyday surveillance workloads with a good balance between image quality and playback usability. It also gives a clearer idea of what to expect when several high-resolution streams are being viewed or reviewed together.

Yes, the datasheet lists Hik-Connect and DDNS for easier network management. It also supports up to 64 remote connections and includes a 10/100/1000 Mbps self-adaptive Ethernet interface for the main network connection. That matters because buyers often want an NVR they can manage beyond the local monitor. These features make the recorder more flexible for users who need remote viewing or centralized access across multiple users.

The datasheet lists 1 audio output via RCA and 1 two-way audio input via RCA using the audio input. It also supports audio compression formats including G.711ulaw, G.711alaw, G.722, and G.726. That is helpful for buyers who want audio tied into their surveillance workflow instead of video only. It gives the recorder more flexibility for sites where two-way audio or recorded audio matters.

Yes, the dimension page shows a mounting ear as an optional accessory for rack-mounting. The datasheet does not list a large accessory bundle beyond that note, so it is best not to assume extra items that are not specifically named. For buyers planning a rack installation, that callout is important because it shows the rack-mounting ear is optional rather than confirmed as a standard included part. The physical interface page also shows the layout of the PoE ports, LAN, audio, HDMI, VGA, USB, GND, power supply, and power switch.
