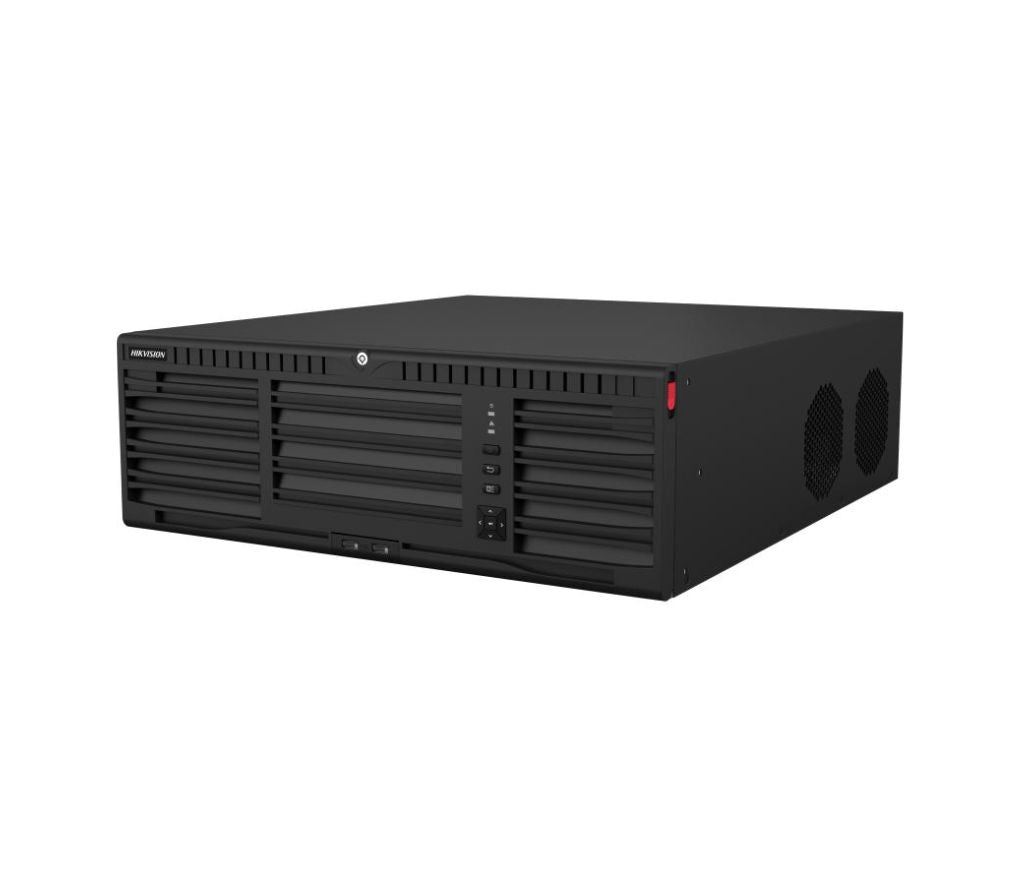

Hikvision DS-96128NI-M16 128-Channel 3U 4K NVR with 16 SATA RAID Storage
Hikvision DS-96128NI-M16 128-Channel 3U 4K NVR with 16 SATA RAID Storage
Human and Vehicle Detection
Hurry up, only 1 item left in stock.
products.product.pickup_availabilities
Description
Description
Hikvision DS-96128NI-M16 128-Channel 3U 4K NVR
If you're responsible for a large surveillance system, you already know the real concern usually is not just recording video. It is whether the recorder can keep up as camera counts grow, storage demands increase, and operators need fast, clear access without bottlenecks. The Hikvision DS-96128NI-M16 is built for exactly that kind of environment, giving you 128-channel capacity, 400 Mbps incoming and outgoing bandwidth, and 8K or dual 4K output options in one enterprise-ready platform.
This is the kind of NVR buyers choose when they need scale, stronger storage protection, and smoother monitoring across large properties, multi-building sites, retail groups, campuses, or industrial facilities. With 16 SATA bays, RAID support, and support for specialized cameras like people counting, ANPR, and fisheye, it is designed to do more than simply store footage.
In practical terms, it helps you build a surveillance system that feels more secure, more organized, and far less likely to outgrow your recorder too soon.
Why Buyers Choose This Model
- 128 IP Camera Inputs — gives you the room to manage a large surveillance deployment from one recorder, which can simplify system design and reduce the hassle of splitting cameras across multiple units.
- 400 Mbps Incoming and 400 Mbps Outgoing Bandwidth — helps the NVR handle heavier camera traffic more confidently, so you are less likely to hit performance limits as the system grows.
- 8K or Dual 4K Video Output — gives operators clearer detail on live view and playback, which matters when accurate visual review can affect response time and decision-making.
- 2 HDMI and 2 VGA Outputs with Different Sources — makes multi-monitor viewing more flexible, which is especially helpful in control rooms or larger monitoring environments.
- High Decoding Capability — supports demanding video workloads, helping you view and review higher-resolution streams without the recorder becoming the weak point.
- 16 SATA Interfaces plus 1 eSATA Interface — gives you serious storage expansion potential, which is important when retention requirements are long and camera counts are high.
- Up to 16 TB Capacity per HDD — helps you build larger storage pools that support longer recording retention without relying on a patchwork of smaller drives.
- RAID 0, 1, 5, 6, 10 and N+M Hot Spare Support — gives you stronger storage protection, helping reduce the risk and stress that come with potential data loss in larger systems.
- H.265+ Compression — reduces storage usage by up to 75%, which means your storage investment can work harder and recording retention can stretch further.
- Dual-Stream Recording — saves bandwidth, helping the system stay more efficient in busy network environments.
- Stream over TLS Encryption — adds more secure stream transmission, which matters when video security is just as important as physical security.
- Double Verification for Playback and Downloading — adds an extra layer of control when sensitive footage needs stronger access protection.
- Support for People Counting, ANPR, and Fisheye Cameras — gives you more flexibility to build smarter systems that do more than just record video.
- VCA, Heat Map, and Smart Event Support — helps turn footage into more useful operational information for security, retail, and traffic-related environments.
- POS Overlay and POS-Triggered Recording — is valuable for retail and transaction-focused businesses that want tighter visibility between video and sales activity.
- 16-Channel Synchronous Playback — helps operators review multiple camera angles at once, making investigations faster and more efficient.
- Plug-in-Free Web Access, Hik-Connect, and DDNS Support — makes remote access and network management more convenient in daily use.
- Up to 8 IP Speakers Supported — gives you added flexibility for audio-integrated surveillance environments.
What This Helps You Avoid
A lot of larger surveillance systems start creating problems long before the buyer realizes the recorder is the reason. Limited channel counts force awkward workarounds. Weak storage design increases the risk of data loss. And once bandwidth, playback, or display limitations show up, operators end up wasting time fighting the system instead of using it.
The DS-96128NI-M16 helps move you away from that kind of reactive setup. With enterprise-level channel capacity, stronger decoding, large storage support, RAID protection, and flexible monitor outputs, it is built to give you more control before those pain points become expensive. That means fewer compromises now and less pressure to replace the recorder later because the system outgrew it.
So instead of wondering whether your recorder can still keep up six months from now, you get a platform designed to support larger surveillance demands with more confidence from day one.
Key Product Highlights
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Hikvision DS-96128NI-M16 128-Channel 3U 4K NVR
The Hikvision DS-96128NI-M16 is a high-capacity 128-channel 3U 4K NVR built for buyers who need serious recording scale, stronger storage protection, and smoother monitoring across large surveillance deployments. With support for up to 128 IP camera inputs, 400 Mbps incoming and 400 Mbps outgoing bandwidth, and 8K or dual 4K video output, it is designed for demanding environments where performance and reliability matter every day.
This matters when you are managing a large site, multiple zones, or a growing enterprise system and need one recorder that can handle more cameras, higher resolutions, and more flexible display options without becoming a bottleneck. Its support for RAID 0, 1, 5, 6, 10 and N+M hot spare, plus 16 SATA interfaces, helps reduce data loss risk and gives you a stronger storage foundation.
You also get practical enterprise features like special camera support, POS overlay, VCA event support, TLS stream encryption, and double verification for playback and downloading, making this NVR a strong fit for users who want scale, security, and operational confidence in one platform.
Ideal Applications / Common Uses
- Large commercial, industrial, education, healthcare, campus, and multi-building surveillance deployments needing up to 128 camera channels.
- Enterprise security systems that require higher decoding capacity, multi-monitor output, and centralized recording for many IP cameras.
- Installations where RAID protection and large HDD capacity are important to reduce storage risk and support longer retention.
- Projects using special cameras such as people counting cameras, ANPR cameras, and fisheye cameras.
- Retail and transaction-based environments that benefit from POS overlay, POS-triggered recording, and alarm integration.
- Sites that need live view stability in weaker network conditions through advanced streaming technology.
Key Features
- Up to 128-ch IP camera inputs — gives you the scale to manage larger systems from one recorder, helping reduce fragmentation across multiple smaller units.
- Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth — supports heavier camera traffic and smoother system performance in larger deployments.
- Up to 2-ch@32 MP / 2-ch@24 MP / 4-ch@12 MP / 8-ch@8 MP / 16-ch@4 MP / 32-ch@1080p decoding capacity — helps the system keep up with high-resolution viewing and playback demands.
- 2 HDMI (different source) and 2 VGA (different source) interfaces — gives you more flexible multi-display monitoring and output options.
- 8K or dual 4K video outputs — supports higher-detail display capability for control rooms and advanced monitoring environments.
- Supports RAID 0, 1, 5, 6, 10 and N+M hot spare — adds stronger storage reliability and helps reduce data loss risks.
- 16 SATA interfaces plus 1 eSATA interface — gives you substantial storage expansion potential for large-scale recording needs.
- Up to 16 TB capacity per HDD — helps support larger retention goals without relying on smaller, lower-capacity drives.
- H.265+ compression effectively reduces storage space by up to 75% — helps improve storage efficiency and extend recording time.
- Dual-stream recording saves bandwidth — helps reduce network load while supporting smoother operation.
- Adopt stream over TLS encryption technology — provides more secure stream transmission service.
- Support double verification for playback and downloading — adds another layer of control for sensitive video access.
- Support multiple VCA events — helps users work with more advanced event-based monitoring scenarios.
- Supports people counting, ANPR, fisheye, heat map, and configurable smart functions — expands the NVR’s usefulness across specialized surveillance applications.
- POS information overlay on live view and playback — useful in retail and transaction monitoring environments.
- 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces — provides network connectivity suited to enterprise-level recorder traffic.
- Hik-Connect & DDNS support — helps simplify network management and remote accessibility.
- Support web access without plug-in — makes access more convenient in modern browser environments.
- Up to 8-ch IP speakers can be connected — adds audio system integration possibilities.
Specs
Overview
Function
Video and Audio
Decoding
Network
RAID
Auxiliary Interface
General
Certification
Physical Interface
Available Model
Accessories Found
- No package contents or included accessories were listed in the provided datasheet.
Downloads
Frequently Asked Questions
The datasheet lists 128-ch IP video input, so this NVR is built for large surveillance deployments that need a high camera count from one recorder. It also states up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth, which matters because channel count alone is not enough if the recorder cannot handle the traffic. For buyers managing multiple buildings, departments, or zones, this gives much more room to scale than a smaller NVR. The datasheet presents it as a 128-ch 3U 4K NVR, which makes its intended use very clear.
According to the datasheet, the recording resolution includes 32 MP, along with 24 MP, 12 MP, 8 MP, 7 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF. That matters because buyers looking at a recorder in this class usually want confidence that it can support higher-resolution cameras now and still remain flexible later. The front page also highlights decoding support up to 2-ch@32 MP. In practical terms, that gives this recorder headroom for demanding high-resolution applications.
Yes. The datasheet lists RAID0, RAID1, RAID5, RAID6, and RAID10 under RAID type, and the feature page also states support for RAID 0, 1, 5, 6, 10 and N+M hot spare. This is important for buyers who are worried about data loss, system uptime, or long-term storage reliability in larger surveillance systems. The first page specifically says this storage approach effectively avoids data loss risks. For enterprise or mission-critical installations, that is one of the strongest value points in the datasheet.
The datasheet states that the recorder has 16 SATA interfaces supporting hot-plug and 1 eSATA interface. It also says the system supports up to 16 TB capacity for each disk, which gives buyers a strong storage foundation for larger retention needs. That matters because high channel counts and high-resolution cameras can consume storage quickly. The storage section also notes 16 SATA interfaces for HDD connection, reinforcing that this model is intended for larger-capacity deployments.
This NVR provides 2 HDMI outputs, 2 VGA outputs, and 1 CVBS output according to the specification table. The feature summary also says it supports 8K or dual 4K video outputs, which is useful for control rooms or monitoring stations that need clearer display options. The datasheet further explains that HDMI 1 and VGA 1 work as the main output, while HDMI 2 and VGA 2 work as the auxiliary output. That gives buyers more flexibility when they want multiple screens showing different sources.
Yes. The datasheet lists HDMI 1 Output: 8K (7680 × 4320)/30Hz, along with multiple 4K and lower-resolution output options. It also says HDMI video output at up to 8K or dual 4K resolution, which is one of the standout selling points of this model. There is one important note in the specification table: when HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. That matters for buyers planning multi-monitor layouts and wanting to understand how output settings affect the second display.
The datasheet specifies 16-ch synchronous playback, which is useful for investigators or operators reviewing multiple camera views at the same time. It also lists decoding capability as 2-ch@32 MP, 2-ch@24 MP, 4-ch@16 MP, 8-ch@8 MP, 16-ch@4 MP, and 32-ch@2 MP, all at 30 fps. That matters because buyers of a 128-channel NVR often care just as much about playback usability as they do about recording scale. The front page highlights this decoding performance as a key capability of the model.
Yes. The first page says it supports special cameras including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera. The function page adds that it supports multiple VCA (Video Content Analytics) events and configurable smart functions such as motion, line crossing, intrusion, heat map, ANPR, and people counting. This matters for buyers who want the NVR to do more than basic recording. It gives the recorder more value in retail, traffic, perimeter, and analytics-focused installations.
The datasheet lists 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces, which helps support enterprise-scale traffic demands. It also supports a broad set of protocols including TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF (Version 2.2), and OTAP. For camera access, it lists ONVIF (Version 2.5) and RTSP. The function page also says it supports Hik-Connect & DDNS for easy network management and web access without plug-in, which is helpful for remote access and easier administration.
Yes. The specification table lists 1-ch audio input, 2-ch audio output, and 1-ch two-way audio using RCA connections. It also provides 16 alarm inputs and 9 alarm outputs, plus 1 RS-485 and 1 RS-232 serial interface for broader system integration. The datasheet further lists Ctrl 12V and DC 12V power outputs, including a note that the controllable 12V power is linked to alarm output 9. On page 1, Hikvision also states that up to 8-ch IP speakers can be connected, which expands audio integration possibilities even further.
