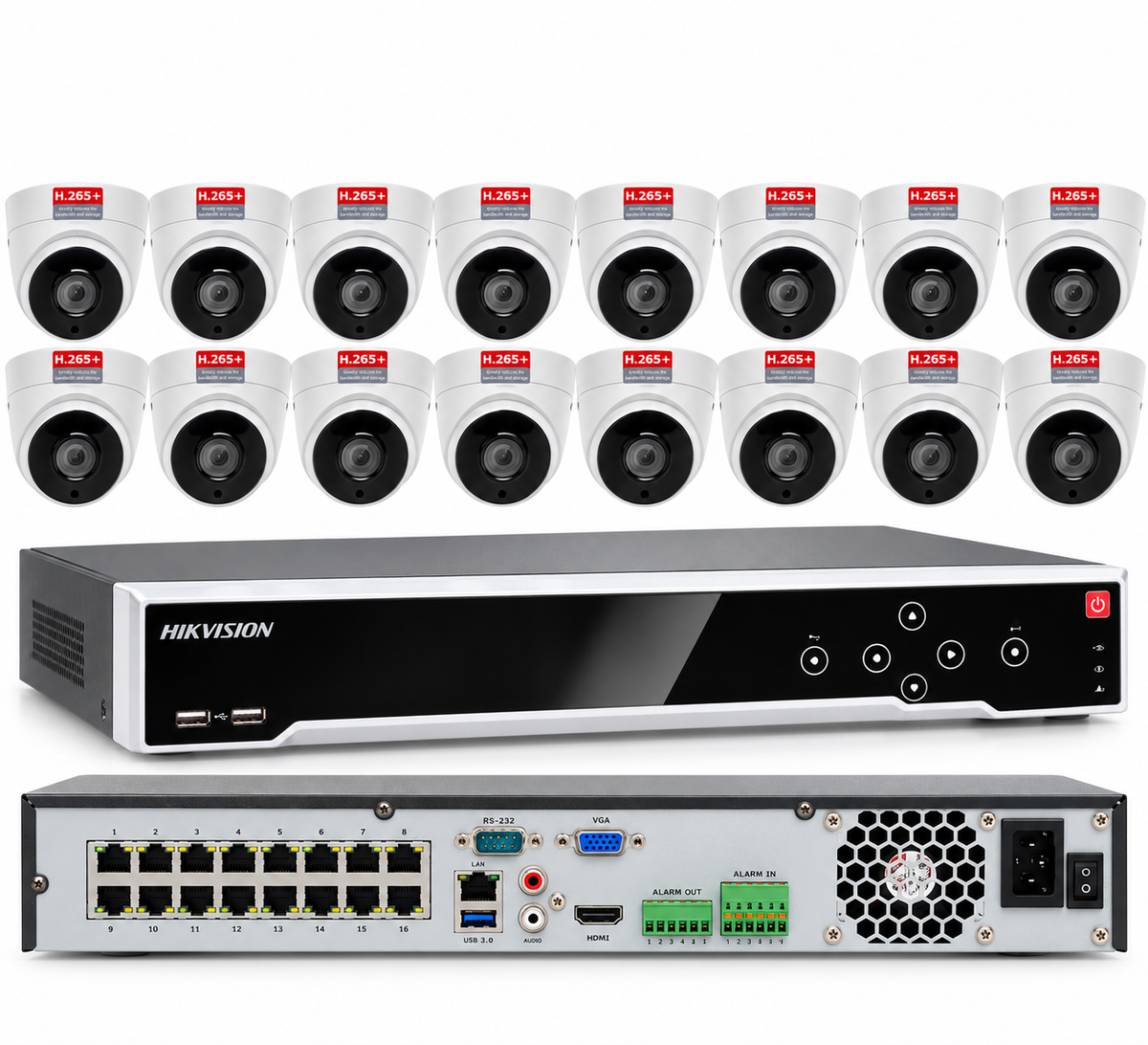

Hikvision NVR KIT 16CH DS-7716NI-K4/16P DS-2CD1343G0-I 4MP MEGAPIXEL
Hikvision NVR KIT 16CH DS-7716NI-K4/16P DS-2CD1343G0-I 4MP MEGAPIXEL
Hurry up, only 2 items left in stock.
products.product.pickup_availabilities
Description
Description
Hikvision NVR KIT 16CH DS-7716NI-K4/16P DS-2CD1343G0-I 4MP MEGAPIXEL
This listing includes:
- CAMERA QUANTITY (DS-2CD1343G0-I): 4;6;8;10;12;14;16
- HARD DRIVE OPTION FOR RECORDER DS-7716NI-K4/16P: NO HARD DRIVE;4TB;8TB;12TB;16TB;32TB;40TB
DS-2CD1343G0-I view data sheet

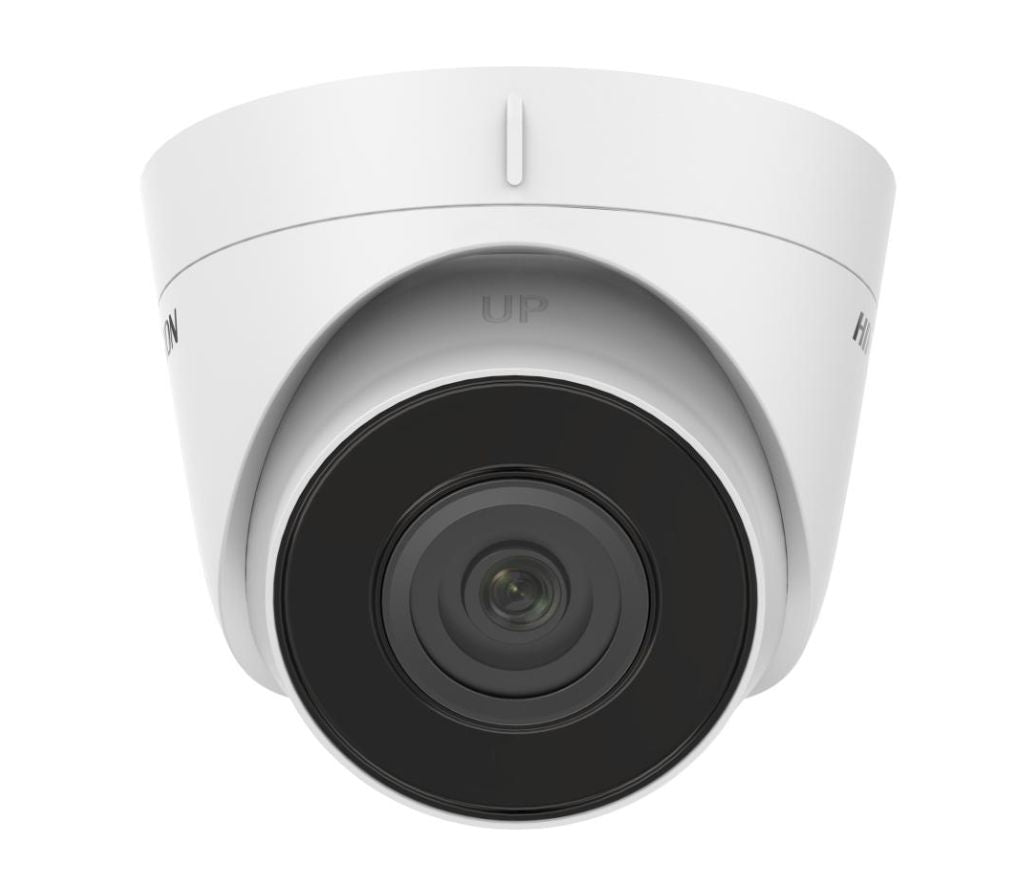

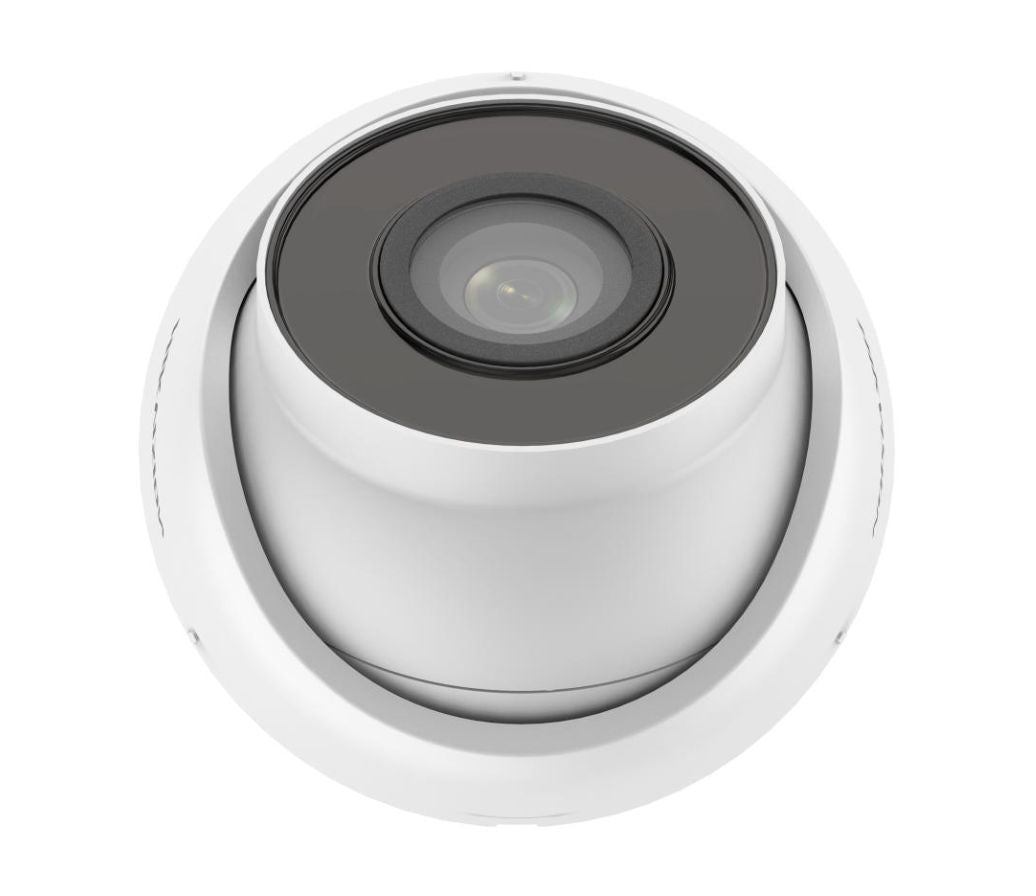

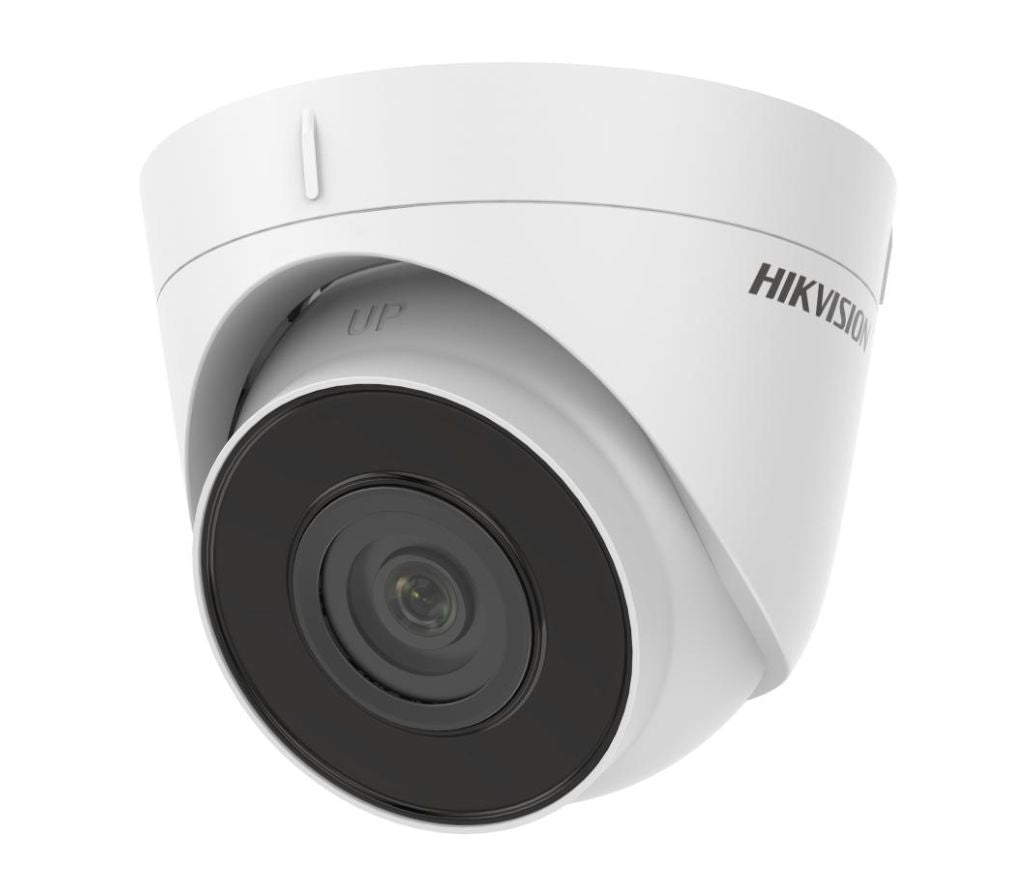

4 MP Fixed Turret Network Camera
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
- -UF: Built-in microphone for real-time audio security
- -UF: Support up to 256 GB SD card storage
DS-7716NI-K4/16P view data sheet

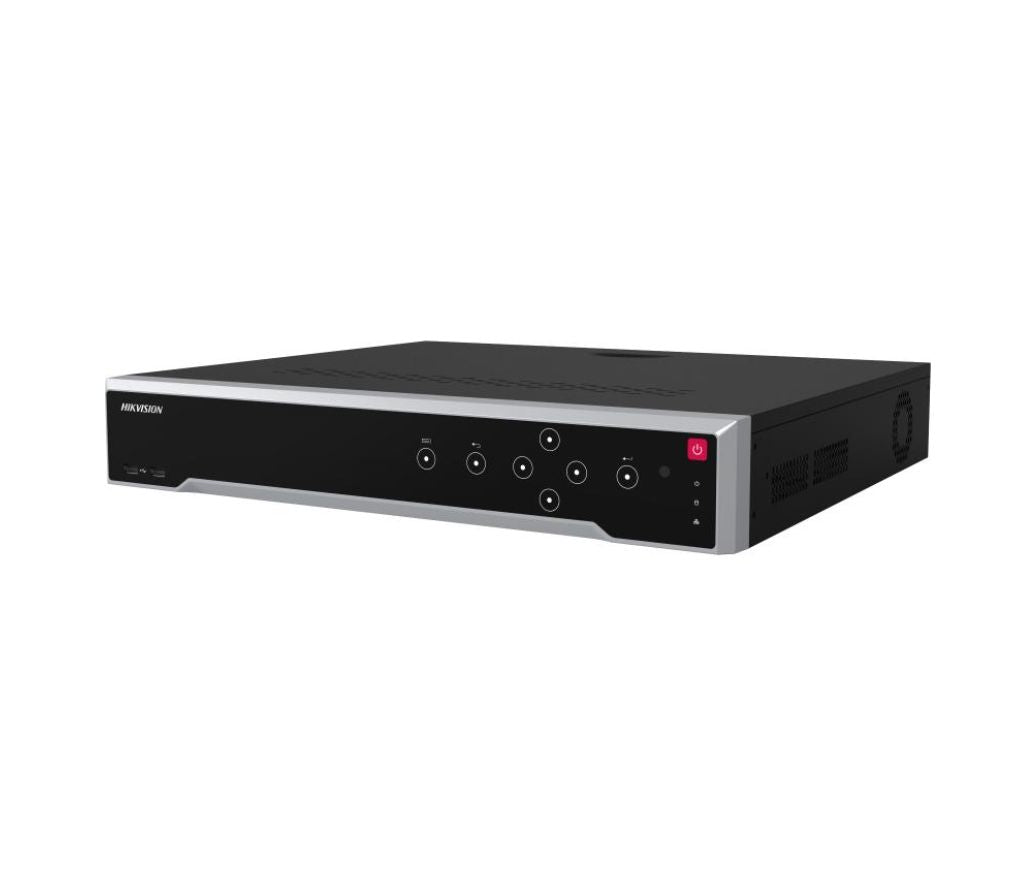

16ch 1.5U 16 PoE 4K NVR
- Up to 16ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@8 MP/4ch@4 MP/8ch@1080p decoding capacity
- Plug & play with 16 power-over-Ethernet (PoE) interfaces
- Up to 160 Mbps incoming bandwidth
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
4 MP Fixed Turret Network Camera
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
- -UF: Built-in microphone for real-time audio security
- -UF: Support up to 256 GB SD card storage
Specification
- Camera
- Image Sensor1/3" progressive scan CMOS
- Max. Resolution2560 ? 1440
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
- Lens
- Lens TypeFixed focal length, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 98.0?, vertical FOV 53.1?, diagonal FOV 114.7?
4 mm, horizontal FOV 78.7?, vertical FOV 43.1?, diagonal FOV 92.3?
- Lens MountM12
- Iris TypeFixed
- ApertureF2.0
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz:
20 fps (2560 ? 1440)
25 fps (1920 ? 1080, 1280 ? 720)
60 Hz:
20 fps (2560 ? 1440)
30 fps (1920 ? 1080, 1280 ? 720)
- Sub-Stream
50 Hz: 25 fps (640 ? 480, 640 ? 360)
60 Hz: 30 fps (640 ? 480, 640 ? 360)
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region Of Interest (ROI)1 fixed region for main stream
- Audio
- Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate-UF: 8 kHz/16 kHz
- Environment Noise Filtering-UF: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchAuto, Schedule, Day, Night
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
- Built-In Microphone-UF: Yes
- Reset Key-UF: Yes
- Event
- Basic EventMotion detection, video tampering, exception
- Linkage
Upload to FTP, notify surveillance center, send email
-UF also supports: upload to memory card, trigger recording, trigger capture
- General
- Power
12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Dimension?110 mm ? 85.3 mm (? 4.3" ? 3.4")
- Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
- WeightApprox. 320 g (0.7 lb.)
- With Package WeightApprox. 556 g (1.2 lb.)
- Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Approval
- EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
Data sheet PDF
Product Description
16ch 1.5U 16 PoE 4K NVR
- Up to 16ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@8 MP/4ch@4 MP/8ch@1080p decoding capacity
- Plug & play with 16 power-over-Ethernet (PoE) interfaces
- Up to 160 Mbps incoming bandwidth
Specification
- Video And Audio
- IP Video Input16ch
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth160 Mbps
- HDMI Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- Video Output ModeHDMI/VGA independent output
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
- Decoding
- Decoding FormatH.265/ H.265+/H.264/H.264+
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback16ch
- Decoding Capability2-ch@8 MP (30 fps)/4ch@4 MP (30 fps)/8ch@1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
- Network
- Remote Connection64ch
- Network ProtocolTCP/IP, DHCP, IPv4, Hik-Connect , DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power? 200 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- Serial Interface2 RS-485 (half-duplex), 1 RS-232
- SATA4 SATA interfaces
- CapacityUp to 10 TB capacity for each HDD
- Alarm In/Out16/ 4 (16/9 is optional)
- USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
- Ctrl 12VN/A (optional to support)
- DC 12VN/A (optional to support)
- General
- Power Supply100 to 240 VAC, 50 to 60Hz
- Consumption? 20 W (without HDD and PoE off)
- Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)445 ? 400 ? 71 mm ( 17.5"? 15.7" ? 2.8")
- Weight? 5 kg (without HDD, 11 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained CertificationCE, KC, WEEE, REACH, ROHS, CB, LOA
