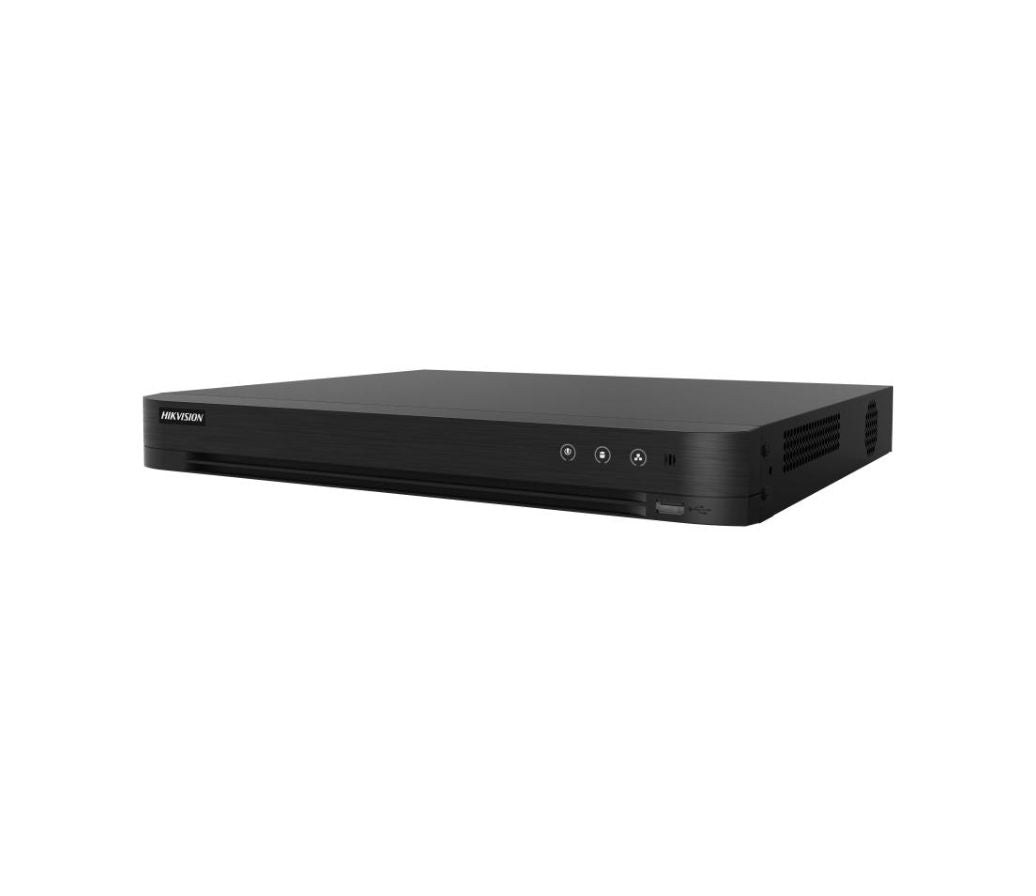

Hikvision iDS-7216HQHI-M2/S 16-Channel AcuSense Hybrid Security DVR Recorder

The iDS-7216HQHI-M2/S supports 16 analog video channels through BNC inputs. The datasheet also says it supports 2 IP channels by default, up to 18 IP channels total, and up to 24 IP channels when Enhanced IP mode is enabled. IP camera support goes up to 6 MP resolution, while Enhanced IP mode notes each added channel is up to 4 Mbps. That gives buyers flexibility if they want to keep analog cameras in place while still expanding with IP cameras over time

Yes, that is one of the biggest reasons buyers choose this model. The datasheet states that deep learning-based Motion Detection 2.0 is enabled by default for all analog channels, and it can classify human and vehicle targets. It also says this greatly reduces false alarms caused by objects like leaves and lights, and supports quick search by object or event type. In everyday use, that means less wasted time reviewing nuisance alerts and more focus on events that are actually relevant.

Yes. The datasheet lists deep learning-based perimeter protection as a core smart function, and it specifically mentions line crossing and intrusion detection. In the specification section, it says perimeter protection with human and vehicle analysis is supported on up to 4 channels. That is useful for buyers who want more targeted alerts around boundaries or restricted areas instead of relying only on general motion events. It gives the recorder a more focused way to watch for activity that actually matters.

No, and this is an important setup limitation to know before buying. The datasheet note says Motion Detection 2.0 and perimeter protection cannot be enabled at the same time, and enabling one makes the other unavailable. It also warns that Enhanced IP mode may conflict with smart events or other functions, with more details in the user manual. Knowing that ahead of time helps buyers plan the system around the feature that matters most for the site

This model is designed for hybrid compatibility. The datasheet lists HDTVI, AHD, CVI, CVBS, and IP video inputs, which makes it useful for mixed-camera systems and phased upgrades. On the analog side, it supports 16 BNC inputs and coaxitron connection. For buyers, that means you do not have to replace every camera at once just to change the recorder.

The datasheet says this DVR supports full-channel recording at up to 1080p resolution. It also lists encoding resolutions including 3K lite, 5 MP lite, 4 MP lite, 1080p, 720p, VGA, WD1, 4CIF, and CIF, with slightly different options depending on whether 1080p Lite mode is enabled. Frame rate varies by source and mode, with support reaching up to 30 fps in several configurations. That gives buyers a practical mix of resolution flexibility and storage-conscious recording options.

Yes. The datasheet specifically lists audio via coaxial cable as a key feature. In the interface section, it also states there is 1 RCA audio input, 1 RCA audio output, and 1-channel two-way audio using the first audio input. That is helpful because supported audio-over-coax setups can simplify installation and reduce extra wiring compared with separate audio cabling. For the right system, it keeps the setup cleaner and easier to manage.

The iDS-7216HQHI-M2/S has 2 SATA interfaces for internal storage. The datasheet says it supports up to 10 TB capacity for each disk. It also highlights H.265 Pro+, H.265 Pro, and H.265 compression, which are intended to improve encoding efficiency and reduce storage costs. For buyers, that means a compact DVR can still provide strong retention potential without jumping immediately to a much larger recorder platform.

Yes, the datasheet includes smart search for efficient playback. It also says quick search by object or event type is supported under Motion Detection 2.0, and the recorder supports 16-channel synchronous playback. That combination is useful because it helps buyers review several camera views together and get to the relevant footage faster. When time matters, that can make investigations much less frustrating

Yes. The datasheet lists Hik-Connect and DDNS for easy network management, and it supports up to 128 remote connections. It also includes an RJ45 10M/100M/1000M self-adaptive Ethernet interface and supports network protocols such as TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF. For buyers, that means the recorder is built to be more convenient for remote viewing and ongoing system access instead of requiring everything to happen only at the local monitor.
