IPC3614SR3-ADF28KM-G
IPC3614SR3-ADF28KM-G
Out of stock
Description
Description

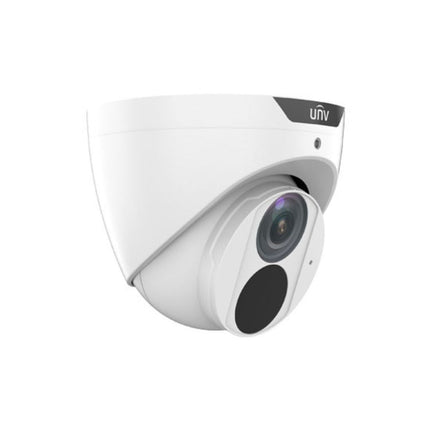

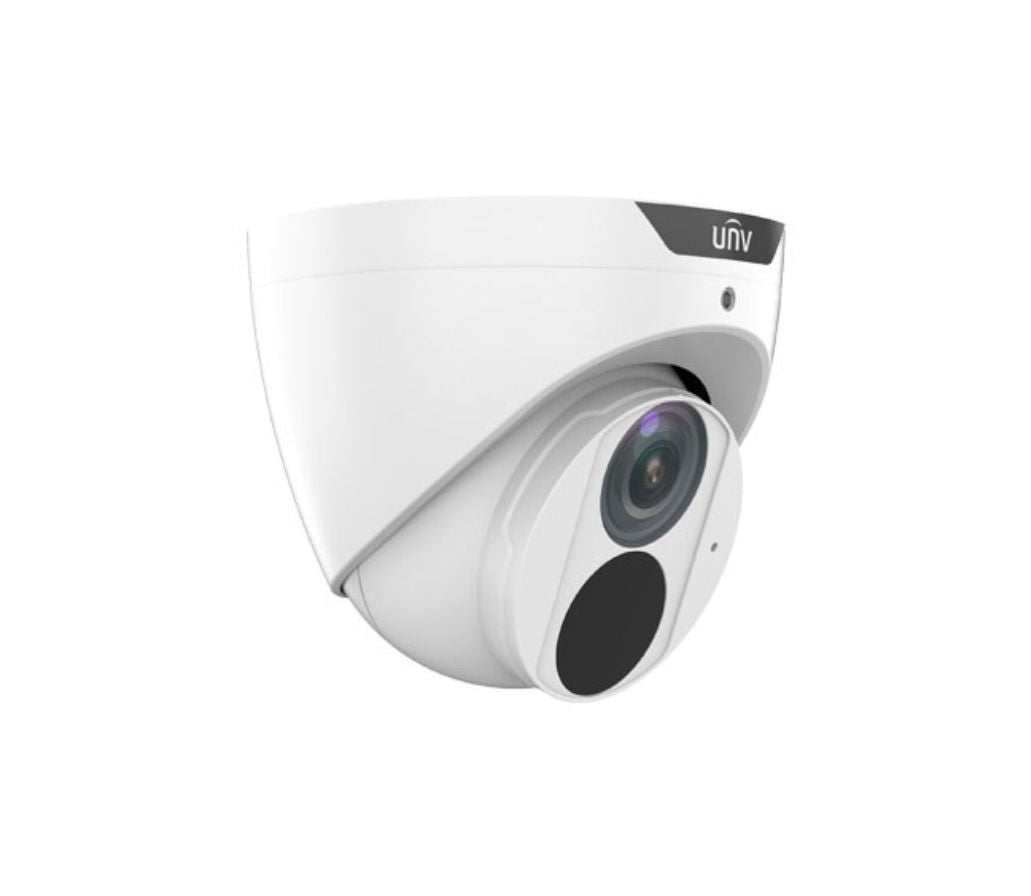

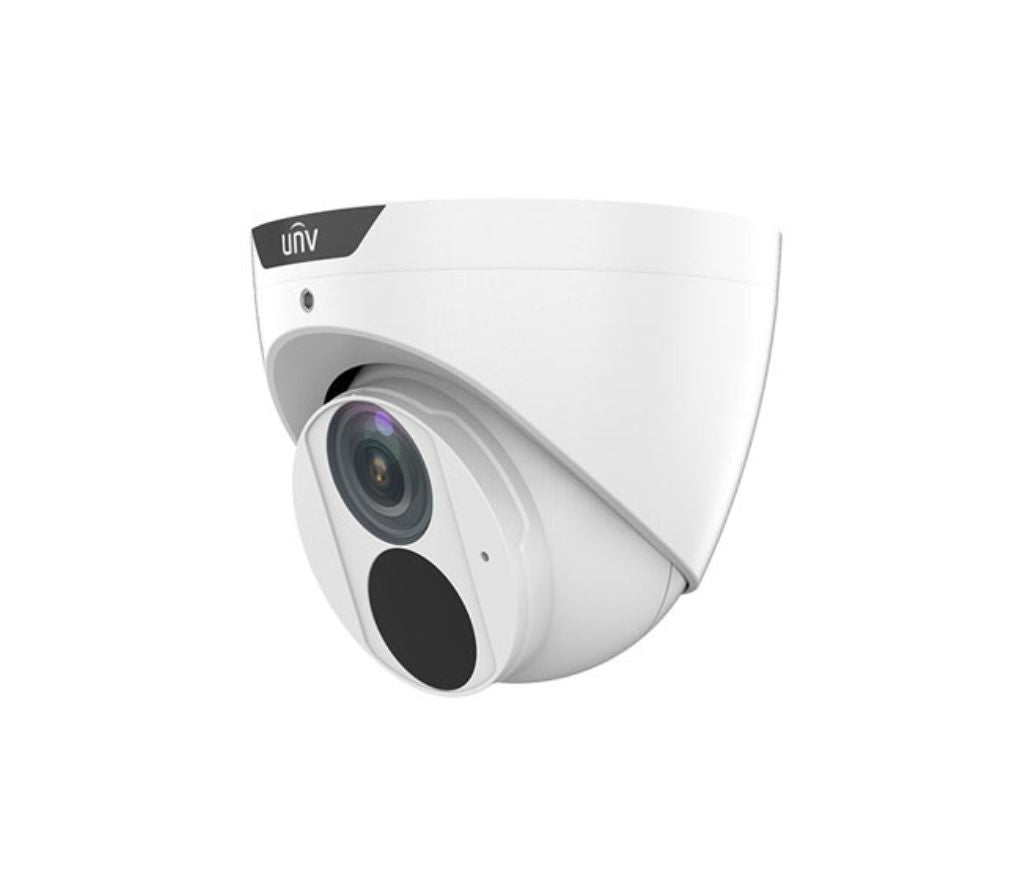

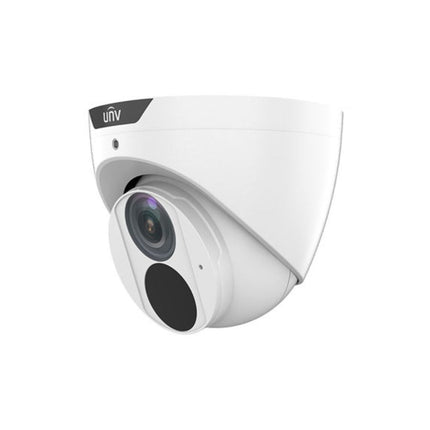

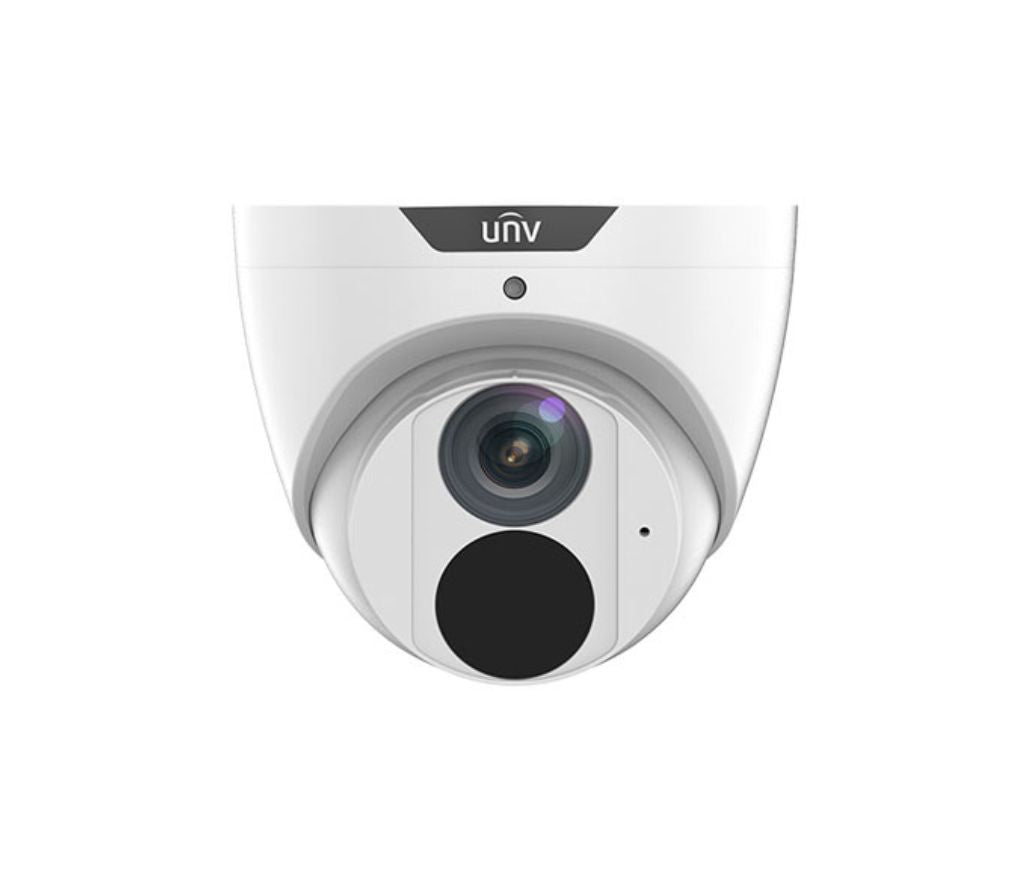

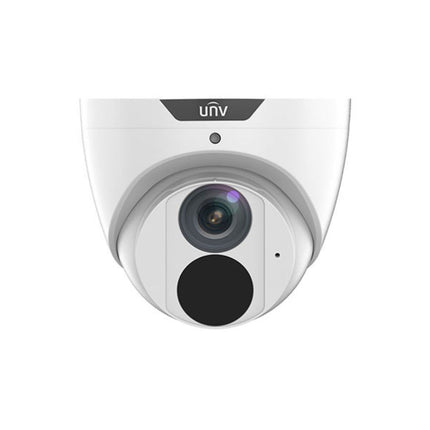

4MP HD IR Fixed Eyeball Network Camera (Only for USA)
? High quality image with 4MP, 1/3"CMOS sensor
? 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
? Ultra 265, H.265, H.264, MJPEG
? Lighthunter technology ensures high image quality in low illumination environment
? 120dB true WDR technology enables clear image in strong light scene
? Support 9:16 Corridor Mode
? Built-in Mic
? Smart IR, up to 30m (98ft) IR distance
? Supports 256 G Micro SD card
? IP67 protection
? Support PoE power supply
? 3-Axis
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
4MP HD IR Fixed Eyeball Network Camera (Only for USA)
? High quality image with 4MP, 1/3"CMOS sensor
? 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
? Ultra 265, H.265, H.264, MJPEG
? Lighthunter technology ensures high image quality in low illumination environment
? 120dB true WDR technology enables clear image in strong light scene
? Support 9:16 Corridor Mode
? Built-in Mic
? Smart IR, up to 30m (98ft) IR distance
? Supports 256 G Micro SD card
? IP67 protection
? Support PoE power supply
? 3-Axis
Specifications
IPC3614SR3-ADF28KM-G IPC3614SR3-ADF40KM-G
Camera
Sensor 1/3", 4.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6 4.0mm@F1.6
DORI Distance
Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3
4.0 90.0 36.0 18.0 9.0
Angle Of View (H) 101.1? 83.7?
Angle Of View (V) 55.3? 44.9?
Angle Of View (O) 111.1? 89.2?
Adjustment angle Pan: 0? ~ 360? Tilt: 0? ~ 80? Rotate: 0? ~ 360?
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
Support LightHunter: Colour: 0.003Lux ( F1.6, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >56dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P
(1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;
CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
9:16 Corridor Mode Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180?/90?Clockwise/90?Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
3
DATASHEET
Smart
Behavior Detection
Cross line, intrusion(based on human body detection)
motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,
802.1x, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client
EZStation
EZView
EZLive
Web Browser
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR,NAS(NFS)
Interface
Network 10/100M Base-TX Ethernet
Built-in Mic Supported
Certifications
Certifications
UL: UL60950-1
FCC: FCC Part 15
General
Power
DC 12V?25%, PoE (IEEE 802.3af)
Power consumption: Max 6.0W
Dimensions (? x H) ?110.5 x 94.1mm (?4.4? x 3.7?)
Net Weight 0.43kg (0.95lb)
Material Metal
Working Environment -30?C ~ 60?C (-22?F ~ 140?F), Humidity: ?95% RH (non-condensing)
Strorage Environment -30?C ~ 60?C (-22?F ~ 140?F), Humidity: ?95% RH (non-condensing)
Surge Protection 2KV
Ingress Protection IP67
Reset Button N/A
