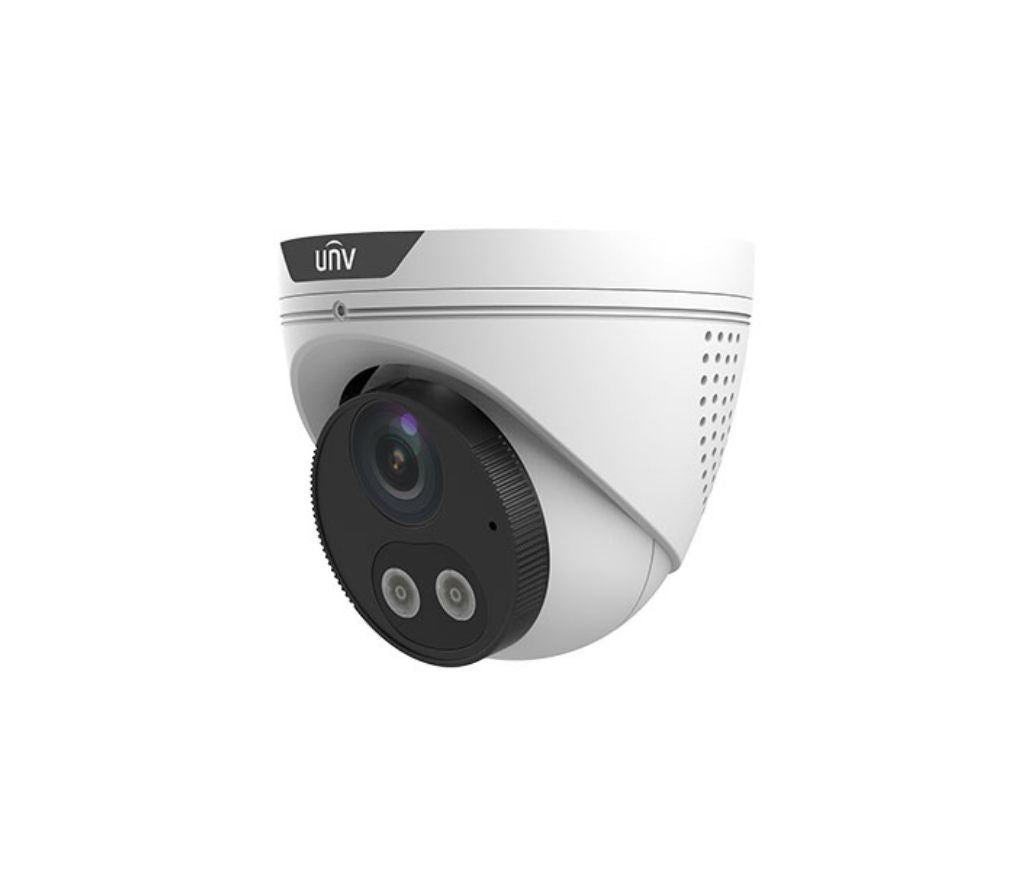

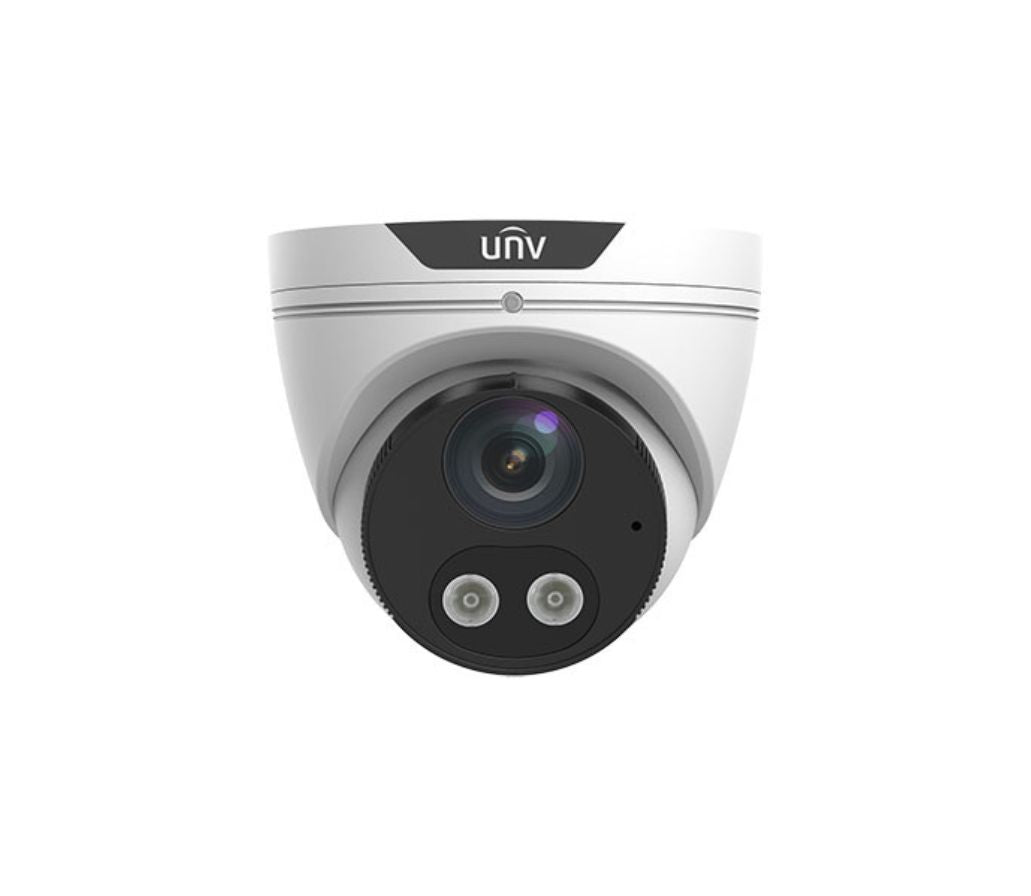

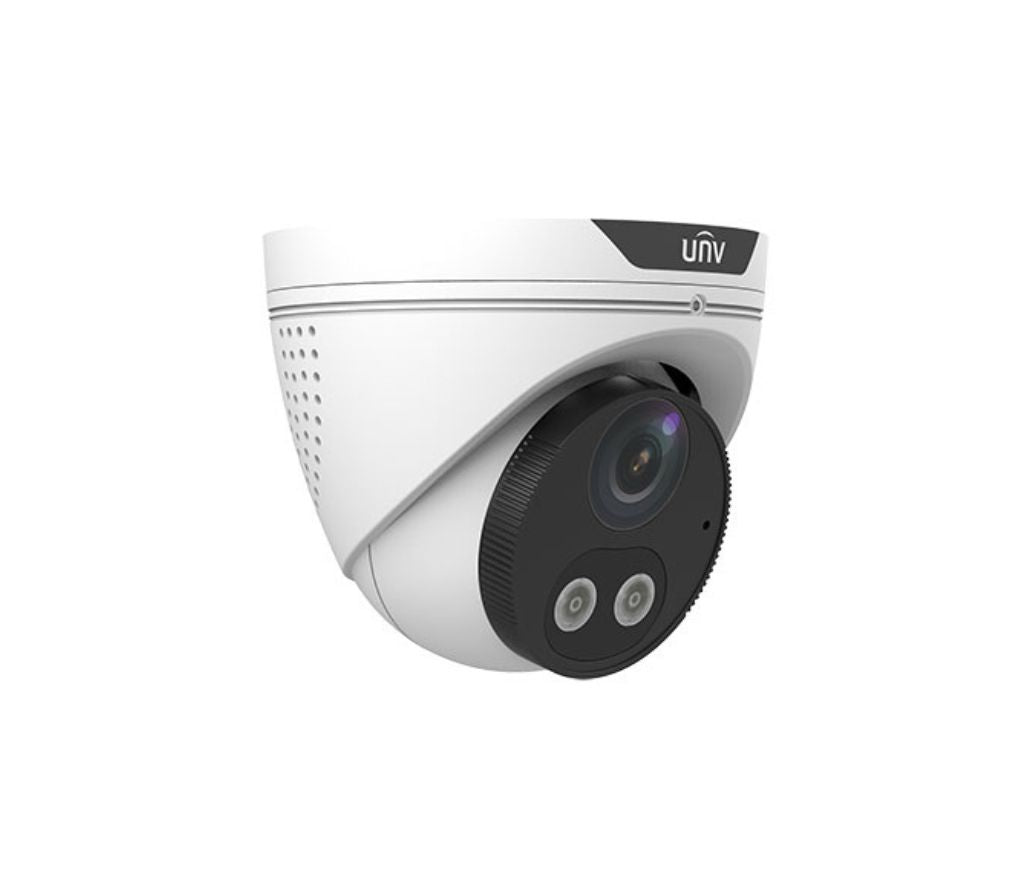

IPC3614SR3-ADF28KMC-DL

The Uniview IPC3614SR3-ADF28KMC-DL is a professional security product. Highlights include max Resolution: 4 MP, focal Length: 2.8 mm and video Compression: Ultra 265, H.265, H.264, MJPEG. Its IP67 rating supports installation where dust and water protection is required.

Ideal applications

  • Residential and commercial security installations
  • Professional installer projects

Key Features

  • Max Resolution: 4 MP
  • Focal Length: 2.8 mm
  • Video Compression: Ultra 265, H.265, H.264, MJPEG
  • Protection: IP67 (IEC 60529)
  • Power: DC 12 V±25%, PoE (IEEE 802.3af) Power consumption: Max. 5.0 W
  • Power Interface: Ø5.5 mm coaxial power plug

Specifications

Model
IPC3614SR3-ADF28KMC-DL

Camera

Max Resolution
4 MP
Sensor
1/3.0" CMOS
Min. Illumination
Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light
Day/Night
IR-cut filter with auto switch (ICR)
Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment Angle
Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N
>52 dB
WDR
120 dB

Lens

Focal Length
2.8 mm
Iris Type
Fixed
Iris
F1.6
Field of View (H)
112.9°
Field of View (V)
59.1°
Field of View (D)
121.2°; DORI
DORI Distance (Lens)
2.8 mm
DORI Distance (Detect)
63.0 m (206.7 ft.)
DORI Distance (Observe)
25.2 m (82.7 ft.)
DORI Distance (Recognize)
12.6 m (41.3 ft.)
DORI Distance (Identify)
6.3 m (20.7 ft.)

Illuminator

Illumination Distance (IR)
30 m (98.4 ft.)
Illumination Distance (Warm Light)
30 m (98.4 ft.)
Wavelength
850 nm
Light On/Off Control
Auto/Manual

Video

Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 4 MP (2688 × 1520), max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps;; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
Video Bit Rate
128 Kbps to 16 Mbps
U-code
Support
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
ROI
Up to 8 areas
Video Stream
Dual streams


White Balance
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction
2D/3D DNR
Smart IR
Support
Flip
Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping
N/A
HLC
Support
BLC
Support
Defog
Digital defog

Events

Basic Detection
Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General Function
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Two-way Audio
Support
Suppression
Support
Sampling Rate
8 kHz

Storage

Edge Storage
MicroSD, up to 512 GB
Network Storage
ANR, NAS (NFS)

Network

Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP,; UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host
Up to 32 users. 3 user levels: administrator, common user and operator
Security
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client
UNV-Link, UNV-Link Pro, EZStation
Web Browser
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view:; Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O
N/A
Alarm I/O
N/A
Serial Port
N/A
Built-in Mic
Support
Built-in Speaker
Support
WIFI
N/A
Network
1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output
N/A

Certification

EMC
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety
CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection
IP67 (IEC 60529)

General

Power
DC 12 V±25%, PoE (IEEE 802.3af); Power consumption: Max. 5.0 W
Power Interface
Ø5.5 mm coaxial power plug
Dimensions
Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)
Weight
0.30 kg (0.66 lb.)
Material
Metal
Working Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection
4 KV
Reset Button
N/A
Web Client Language
13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch,; Czech, Portuguese, Spanish, Spanish (Europe), Italian
