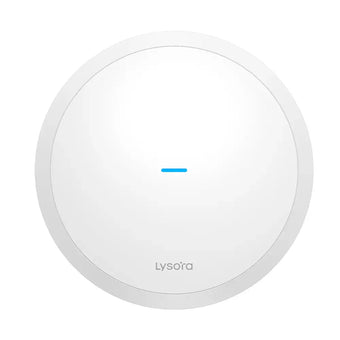

Lysora L6Lite Wi-Fi 6 AX1800 Dual-Band Ceiling Access Point
Lysora L6Lite Wi-Fi 6 AX1800 Dual-Band Ceiling Access Point
Hurry up, only 10 items left in stock.
products.product.pickup_availabilities
Description
Description
The Lysora L6Lite is a Wi-Fi 6 AX1800 dual-band ceiling-mount access point for indoor business and commercial wireless deployments. It combines up to 573 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz with a low-profile ceiling or wall installation, helping create cleaner coverage where shelf- or desk-mounted equipment is impractical. PoE support, cloud, app, and web management help simplify deployment and ongoing administration. It is well suited to sites that need structured Wi-Fi features such as mesh, roaming, VLANs, captive portal, and client isolation.
Why Buyers Choose This Model
- Wi-Fi 6 AX1800 dual-band performance — 573 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz provide capacity for modern wireless devices while retaining support for IEEE 802.11 a/b/g/n/ac clients.
- Designed for multi-client environments — Four spatial streams, 2 x 2 MU-MIMO on both bands, OFDMA, and up to 160 MHz channel bandwidth on 5 GHz help the AP serve multiple connected devices more effectively.
- Flexible, tidy mounting — Ceiling and wall mounting options, with mounts included, help position coverage where it is needed without leaving networking equipment on desks or counters.
- PoE or 12 V DC power options — PoE can reduce dependence on a nearby power outlet and support cleaner placement. A 12 V, 1.5 A DC adapter is supported but not included.
- Managed wireless controls — Band steering, wireless meshing, VLAN support, Wi-Fi speed limiting, client isolation, schedules, and captive portal provide tools for organizing access and managing bandwidth.
- Roaming and scalable management — 802.11v/k/r plus Layer 2 and Layer 3 roaming support smoother client movement in multi-AP environments, while Lysora App, web interface, Lysora Cloud, SNMP, and self-organizing networking support administration at scale.
What This Helps You Avoid
- Dead zones caused by limited placement options — Ceiling or wall mounting and PoE support make it easier to locate the AP for more useful indoor coverage.
- Unnecessary congestion from mixed client traffic — Dual-band operation, band steering, MU-MIMO, OFDMA, and 5 GHz channels up to 160 MHz help manage modern multi-device use.
- Disconnected user experiences between access points — Mesh capability and supported 802.11v/k/r, Layer 2, and Layer 3 roaming help support coordinated multi-AP deployments.
- Uncontrolled guest or user access — Captive portal, VLANs, client isolation, bandwidth limiting, and Wi-Fi schedules provide practical policy controls.
- Repeated onsite management tasks — Local and remote management through the Lysora App, web interface, and Lysora Cloud helps make adjustments and monitoring more accessible.
Ideal Applications
- Offices and indoor commercial spaces
- Retail stores and customer-facing locations
- Hospitality environments
- Education environments
- Indoor sites needing ceiling-mounted or wall-mounted Wi-Fi coverage
- Multi-AP deployments requiring mesh, roaming, and centralized management
What's in the Box
- Mounts
A DC power adapter is not included.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Recommended Alternatives
Lysora L7 Wi-Fi 7 BE5040 Dual-Band Ceiling Mount Access Point with 2.5GbE
Only 10 left
Choose your option
Lysora Ceiling Mounted AP , AX3000 Dual Band Wi-Fi -L6
Only 1 left
Choose your option
Lysora L7Lite Wi-Fi 7 BE3600 Dual-Band Ceiling Mount Access Point with 2.5GbE PoE
Out of stock
Choose your option
RG-RAP72Pro Wi-Fi 7 Dual-Band Ceiling Access Point
Out of stock
Choose your option
Technical Specifications
L6Lite Wi-Fi 6 AX1800 Dual-Band Ceiling Mount Access Point
The L6Lite is a Wi-Fi 6 AX1800 dual-band access point with ceiling or wall mounting, PoE support, 4 spatial streams, and throughput rates of 573 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz. It supports Router Mode and AP Mode, wireless meshing, roaming, VLAN, captive portal, and management through Lysora App, the Web Interface, and Lysora Cloud.
Key features
- Unified Configuration or Monitoring through Lysora Cloud YES
Full PDF specifications
Overview
≤ 0.6 kg (1.32 lbs) (with packaging materials)
Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.
256 (5 GHz)
256 (2.4 GHz and 5 GHz enabled)
16 (2.4 GHz)
94 (5 GHz)
110 (2.4 GHz and 5 GHz enabled)
● Support for IEEE 802.11ax and 80 MHz:
16 (2.4 GHz)
84 (5 GHz)
100 (2.4 GHz and 5 GHz enabled)
● Support for IEEE 802.11ac:
16 (2.4 GHz)
64 (5 GHz)
80 (2.4 GHz and 5 GHz enabled)
Hardware
5 GHz: IEEE 802.11 a/n/ac/ax
5 GHz: 2 x 2 MU-MIMO
5 GHz: 20/40/80/160 MHz
5 GHz: 1201 Mbps
5 GHz: 4.58 dBi
5 GHz: 24 dBm
DC (12 V, 1.5A), DC Power Adapter Is Not Included
DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps
MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM
OFDMA
11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps)
11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15)
11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9)
11ac: 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9)
11ac: 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9)
11ax: 20 MHz: –85 dBm (MCS0), –58 dBm (MCS11)
11ax: 40 MHz: –82 dBm (MCS0), –54 dBm (MCS11)
11ax: 80 MHz: –79 dBm (MCS0), –52 dBm (MCS11)
Environment
Storage Temperature: –40°C to +70°C (–40°F to +158°F)
Operating Humidity: 5% RH to 95% RH (non-condensing)
Storage Humidity: 5% RH to 95% RH (non-condensing)
Weather Resistance
Lightning Protection/Surge Protection: ±2 kV
Software
Working Mode
WLAN
Roaming
Security
Routing
PPPoE Dial-up
AP Mesh
Standalone Portal
Management and Maintenance
Platform Management
Features
Compliance and Standard
FCC 47 CFR Part 15 Subpart E
IC RSS-247 Issue 3
ICES-003 Issue 7
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8 : 5925 - 7125 MHz
Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz
Accessories
- Mounts Included
- DC Power Adapter Is Not Included
Downloads
Frequently Asked Questions
Yes. The L6Lite supports IEEE 802.11 a/b/g/n/ac/ax and is specified as a Wi-Fi 6 AX1800 dual-band ceiling-mount access point.
The specified throughput rate is up to 573 Mbps on 2.4 GHz and up to 1201 Mbps on 5 GHz. Actual wireless performance depends on client capabilities and deployment conditions.
The listed coverage area is up to 125 m² (1,345.49 sq. ft.). This rating is measured in an ideal environment without obstruction; actual coverage depends on client performance and environmental interference.
Yes. PoE is a supported power method. The access point also supports 12 V, 1.5 A DC power, but a DC power adapter is not included.
Yes. The datasheet specifies ceiling mounting and wall mounting, with mounts included. The access point measures 175 mm in diameter by 39 mm high, excluding the mounting bracket.
The maximum listed client count is 64 on 2.4 GHz, 256 on 5 GHz, and 256 when both bands are enabled. For IEEE 802.11ax with 160 MHz operation, the recommended associated client count is up to 110 with both bands enabled.
Yes. The L6Lite supports wireless meshing and 802.11v, 802.11k, 802.11r, Layer 2 roaming, and Layer 3 roaming. It supports up to 300 APs on a self-organizing network.
The L6Lite supports local or remote management through the Lysora App, local management through a web interface, and remote management through Lysora Cloud. SNMP is also supported.
Supported controls include up to eight SSIDs per radio, 802.1Q VLAN, client device isolation, Wi-Fi schedules, captive portal, bandwidth limiting, WPA/WPA2/WPA3-SAE, OWE, and 802.1X.
Its specified operating temperature is 0°C to 40°C (32°F to 104°F), and it has an IP41 rating. The product is positioned for indoor applications such as offices, retail, hospitality, education, and other indoor commercial spaces.
