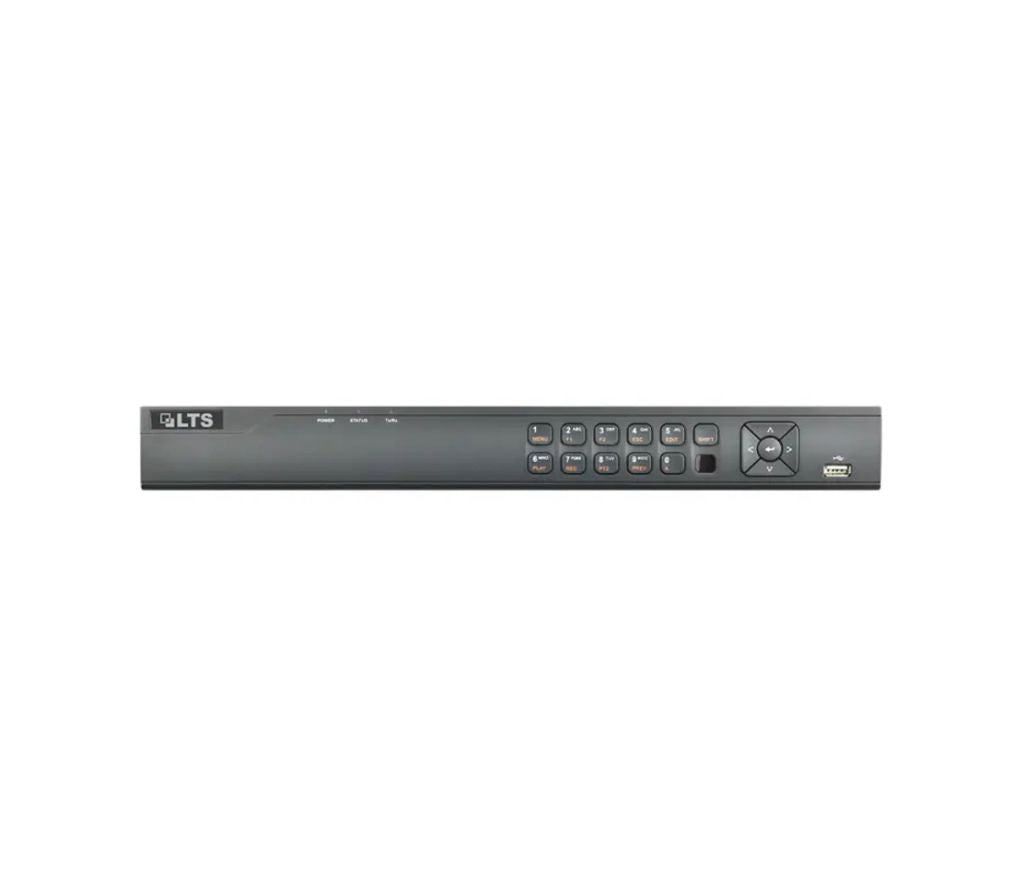

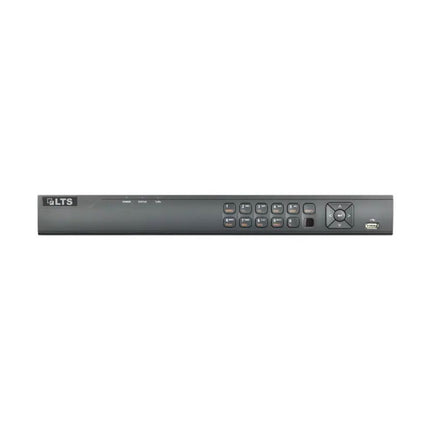

LTS LTD8516M-STN 16-Channel Turbo Smart DVR
What happens when your security system records plenty of video, but finding the moments that actually matter still takes too much time? The LTS LTD8516M-STN combines 16-channel analog surveillance with deep learning-based human and vehicle detection, smart search, and support for cameras up to 8MP.
Instead of forcing you to choose between an existing analog system and newer IP technology, this hybrid recorder supports HDTVI, AHD, HDCVI, CVBS, and IP video sources. That gives you a practical way to build a more intelligent surveillance system while keeping flexibility for future expansion.
With H.265 Pro+ compression, dual-HDD storage, 4K HDMI output, audio over coax, and LTS-Connect network support, the LTD8516M-STN is built to make managing a larger camera system simpler, faster, and more useful when something actually happens.
Why Buyers Choose the LTD8516M-STN
Deep Learning Motion Detection 2.0 — Focus on People and Vehicles
Traditional motion alerts can be triggered by movement you may not care about. Motion Detection 2.0 can classify humans and vehicles on the analog channels, helping reduce false alarms caused by objects such as leaves and lights so important activity is easier to identify.
Quick Search by Object or Event — Find Important Video Faster
When you need footage, the real question is often how quickly you can find the right moment. The LTD8516M-STN supports quick search by object or event type, helping you spend less time searching through recordings and more time reviewing the activity that matters.
Perimeter Protection — Watch Critical Areas More Intelligently
For locations where crossing a boundary or entering a protected area matters, the recorder supports deep learning-based line crossing and intrusion detection. Human and vehicle analysis is available on up to 4 channels for perimeter protection, giving you another way to focus surveillance on meaningful events.
16 Analog Channels — Cover More of the Property
With 16 BNC analog video inputs, the recorder can support larger surveillance layouts without requiring multiple DVRs. That makes it well suited for properties where entrances, parking areas, exterior zones, hallways, and other important locations all need coverage.
Hybrid Camera Support — Keep Your Options Open
The LTD8516M-STN supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs. If your surveillance system contains different camera technologies, this flexibility can make expansion or upgrading easier without limiting you to a single supported video format.
Expandable IP Camera Support — Grow Beyond the Original System
The recorder supports IP cameras up to 8MP and provides expandable IP channel capacity. In Enhanced IP Mode, the specification lists support for up to 32 IP channels, giving you additional flexibility as surveillance requirements grow.
Up to 8MP Recording — Preserve More Visual Detail
A surveillance system is only as useful as the footage it preserves. With recording support up to 8MP resolution, the LTD8516M-STN can work with higher-resolution video sources when greater image detail is required.
H.265 Pro+ Compression — Make Storage Work More Efficiently
Higher-resolution video can require significant storage. LTS states that H.265 Pro+ improves encoding efficiency and reduces data storage costs, helping you use available hard-drive capacity more efficiently.
2 SATA Bays with Up to 10TB Per Drive — More Room for Recorded Video
The recorder includes two SATA interfaces and supports up to 10TB per HDD. That gives you substantial storage flexibility when designing a system that needs to retain recorded footage for longer periods.
Audio Over Coax — Add Sound Without Separate Audio Cabling
The LTD8516M-STN supports audio over coaxial cable on up to 16 channels. With compatible equipment, video and audio can travel through the coaxial connection, giving you more context around recorded events without requiring a separate audio connection for each supported channel.
16-Channel Synchronous Playback — Review Multiple Cameras Together
When an incident moves from one camera to another, reviewing a single channel can leave part of the story missing. The recorder supports synchronized playback of up to 16 channels, allowing activity from multiple cameras to be reviewed together.
4K HDMI Output — View Your System on a High-Resolution Display
The HDMI output supports up to 4K resolution at 30Hz, while HDMI and VGA can operate simultaneously. This gives you flexible monitor options for live viewing, playback, and local system management.
Gigabit Ethernet & LTS-Connect — Easier Network Access
The recorder includes a 10/100/1000 Mbps Ethernet interface and supports LTS-Connect, DDNS, and other network protocols. It can also connect to Wi-Fi through a compatible USB Wi-Fi dongle when appropriate for the installation.
What This Helps You Avoid
Imagine having cameras throughout your property, only to discover that your recorder treats a person approaching the building the same way it treats leaves moving in front of a camera. You receive more events to review, and when something important happens, you may still have to search through large amounts of footage to find it.
The LTD8516M-STN is designed to make that process more manageable. Human and vehicle classification helps filter motion events, while quick search and smart playback tools help you locate relevant footage more efficiently.
It also helps avoid unnecessarily limiting your future camera choices. Because the recorder works with HDTVI, AHD, HDCVI, CVBS, and IP video, you have greater flexibility to combine supported technologies and introduce IP cameras as your surveillance requirements change.
And instead of investing in higher-resolution cameras only to be constrained by an underpowered recorder, the LTD8516M-STN supports recording up to 8MP, H.265 Pro+ compression, two SATA drives, and up to 10TB per HDD.
The result is a surveillance recorder built around a simple question: when something important happens, would you rather have more footage to search through—or a system designed to help you get to the footage that matters faster?
Important Compatibility Notes
- Motion Detection 2.0 and perimeter protection cannot be enabled at the same time. Enabling one makes the other unavailable.
- Enhanced IP Mode may conflict with smart events such as Motion Detection 2.0 and perimeter protection or with other recorder functions.
- The recorder provides 2 SATA interfaces and supports up to 10TB capacity per HDD.
- Wi-Fi connectivity requires a compatible USB Wi-Fi dongle.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
LTS LTD8516M-STN Turbo Smart DVR
The LTS LTD8516M-STN is a hybrid Turbo Smart DVR designed for surveillance systems that need to combine traditional analog cameras with modern IP cameras without replacing the entire infrastructure. It supports 16 analog video inputs while providing expandable IP camera capability, recording resolutions up to 8MP, deep learning-based human and vehicle classification, and advanced perimeter protection.
With H.265 Pro+ compression, two internal SATA interfaces, up to 10TB of storage per HDD, 4K HDMI output, coaxial audio support, and LTS-Connect remote connectivity, the LTD8516M-STN provides a flexible platform for larger residential and commercial security systems.
Key Features
- 16-channel analog video input.
- Deep learning-based Motion Detection 2.0 on all analog channels.
- Human and vehicle classification designed to reduce false alarms caused by objects such as leaves and lights.
- Deep learning-based perimeter protection with line crossing and intrusion detection.
- Up to 4 channels of human/vehicle analysis for perimeter protection.
- Supports HDTVI, AHD, HDCVI, CVBS and IP video inputs.
- Supports recording at up to 8MP resolution.
- Expandable IP camera support with up to 32 IP channels in Enhanced IP Mode.
- Supports IP cameras with resolutions up to 8MP.
- 128 Mbps total bandwidth.
- H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 video compression.
- H.265 Pro+ improves encoding efficiency and helps reduce storage requirements.
- Audio support through coaxial cable.
- 16-channel synchronous playback.
- Smart search for more efficient recorded-video playback.
- Two SATA interfaces.
- Up to 10TB storage capacity per HDD.
- 4K HDMI video output.
- HDMI and VGA simultaneous video output.
- Gigabit Ethernet network interface.
- LTS-Connect and DDNS network connectivity.
- Compatible with major USB Wi-Fi dongles.
- Supports third-party cloud storage.
Model
Motion Detection 2.0
Perimeter Protection
Recording
5MP @ 12 fps
3K @ 12 fps
4MP @ 15 fps
3MP @ 18 fps
1080p / 720p / WD1 / 4CIF / VGA / CIF @ 25 fps (P) / 30 fps (N)
IP Video
Analog Video Input
HDTVI Input
5MP @ 20 fps
3K @ 20 fps
4MP @ 30 fps
4MP @ 25 fps
3MP @ 18 fps
1080p @ 30 fps
1080p @ 25 fps
720p @ 60 fps
720p @ 50 fps
720p @ 30 fps
720p @ 25 fps
AHD Input
4MP @ 25 fps
4MP @ 30 fps
1080p @ 25 fps
1080p @ 30 fps
720p @ 25 fps
720p @ 30 fps
HDCVI Input
4MP @ 25 fps
4MP @ 30 fps
1080p @ 25 fps
1080p @ 30 fps
720p @ 25 fps
720p @ 30 fps
CVBS Video
NTSC: 704 × 480
Video Outputs
1920 × 1080 / 60Hz
1280 × 1024 / 60Hz
1280 × 720 / 60Hz
1024 × 768 / 60Hz
4K (3840 × 2160) / 30Hz
2K (2560 × 1440) / 60Hz
1920 × 1080 / 60Hz
1280 × 1024 / 60Hz
1280 × 720 / 60Hz
1024 × 768 / 60Hz
Audio & Playback
Network
Storage & Auxiliary Interfaces
General
Physical Interfaces
Important Compatibility Notes
Accessories Mentioned
The datasheet does not provide a specific list of included accessories. The following compatible accessory type is specifically mentioned:
- USB Wi-Fi Dongle: The DVR can connect to a Wi-Fi network through a compatible Wi-Fi dongle connected to its USB interface.
Hard drives are supported but no HDD is identified as an included accessory. The recorder provides two SATA interfaces and supports up to 10TB per HDD.
Ideal Applications & Common Uses
- Existing analog CCTV upgrades: Ideal when upgrading an existing coaxial camera system while retaining compatible cabling and analog cameras.
- Hybrid analog and IP surveillance systems: Useful for installations that need to combine HDTVI, AHD, HDCVI, CVBS and IP cameras on a single recorder.
- Large residential properties: Suitable for homes requiring multiple camera locations, human/vehicle filtering and remote viewing.
- Retail stores and offices: The 16 analog channels, smart search and human/vehicle classification make the recorder suitable for monitoring entrances, parking areas and interior spaces.
- Warehouses and commercial properties: Perimeter protection can be used for line-crossing and intrusion detection around controlled areas.
- Parking lots and exterior monitoring: Human and vehicle classification can help operators identify relevant movement while reducing alerts caused by non-target objects.
- Expandable surveillance installations: IP camera support allows an existing analog installation to be expanded with higher-resolution network cameras as requirements change.
- Central monitoring environments: 16-channel synchronous playback, smart search, Gigabit Ethernet and up to 128 remote connections support larger monitoring applications.
Downloads
Frequently Asked Questions
The LTD8516M-STN has 16 analog video inputs. The datasheet lists IP video input as 8 channels with support up to 24 channels, and with Enhanced IP Mode enabled it lists 16 IP channels with support up to 32 channels. IP cameras can have resolutions up to 8MP.
Yes. The DVR supports recording at up to 8MP resolution and supports IP cameras up to 8MP. For HDTVI cameras, the recorder supports 8MP input at up to 15 fps, while 8MP main-stream encoding is listed at 8 fps.
Yes. Deep learning-based Motion Detection 2.0 is enabled by default for all analog channels and can classify humans and vehicles. This is designed to reduce false alarms caused by objects such as leaves and lights, and the recorder also supports quick search by object or event type.
Yes. The DVR supports deep learning-based perimeter protection, including line crossing and intrusion detection, with human and vehicle analysis on up to 4 channels. Motion Detection 2.0 and perimeter protection cannot be enabled at the same time; enabling one makes the other unavailable.
The recorder has 2 SATA interfaces and supports up to 10TB of storage capacity per hard drive.
The LTD8516M-STN is a hybrid DVR that supports HDTVI, AHD, HDCVI, CVBS and IP video inputs. This allows it to work with multiple surveillance camera signal formats on one recorder.
Yes. The DVR supports audio over coaxial cable on 16 channels. It also has a 1-channel RCA audio input, with up to 16 channels listed as optional, plus a 1-channel RCA audio output and 1-channel two-way audio using the audio input.
Yes. The recorder supports LTS-Connect and DDNS for network management and lists support for up to 128 remote connections. It includes a 10/100/1000 Mbps RJ45 Ethernet interface and can also connect to a Wi-Fi network using a compatible USB Wi-Fi dongle.
Yes. It includes both HDMI and VGA outputs and supports simultaneous HDMI/VGA output. The HDMI output supports resolutions up to 4K (3840 × 2160) at 30Hz, while the VGA output supports resolutions up to 1920 × 1080 at 60Hz.
The LTD8516M-STN supports H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 video compression. The datasheet states that H.265 Pro+ improves encoding efficiency and reduces data storage costs.
