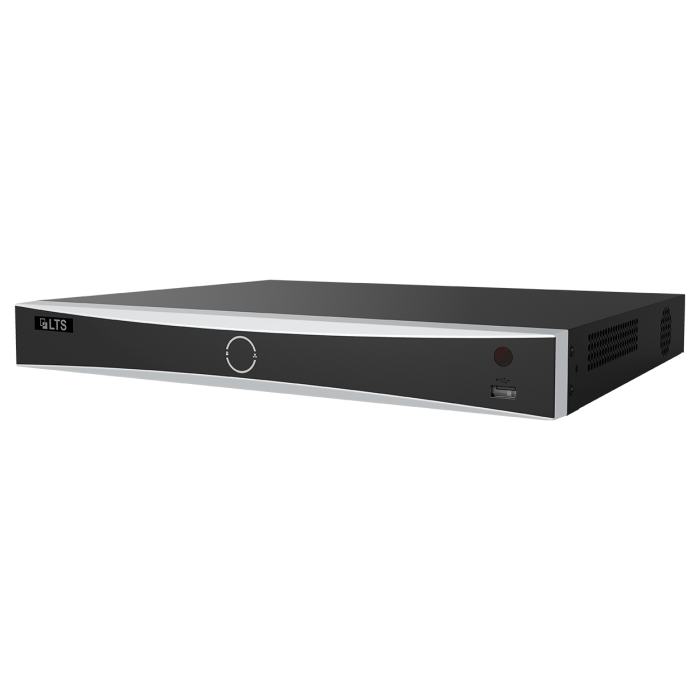

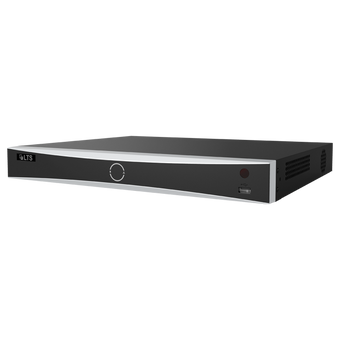

LTN8708D-P8N Lts 8ch IP PoE Recorder w/ HDD <h1 Platinum 8-Channel NVR</h1 Pla

The LTS LTN8708D-P8N is a Platinum MD 2. 0 / VCA NVR Key Features. Highlights include ⚫ H.265+ / H.265 / H.264+ / H.264 video formats, ⚫ Up to 2 ch @ 12 MP or 3 ch @ 8 MP or 6 ch @ 4 MP or and 12 ch @ 1080p decoding capacity.

Ideal applications

  • Centralized recording and playback for multi-camera security systems
  • Homes, small businesses and retail sites
  • Plug & play installations with PoE cameras

Key Features

  • ⚫ Up to 8 channels of IP camera inputs, plug & play with 8 power- over-Ethernet (PoE) interfaces
  • ⚫ H.265+ / H.265 / H.264+ / H.264 video formats
  • ⚫ Up to 2 ch @ 12 MP or 3 ch @ 8 MP or 6 ch @ 4 MP or
  • 12 ch @ 1080p decoding capacity
  • ⚫ Up to 80 Mbps incoming bandwidth
  • ⚫ Provides MD 2.0 / VCA functionality from the NVR Smart Functions
  • ⚫ All channels support MD 2.0
  • ⚫ 1 channel of facial recognition for video stream

Facial Recognition

Facial Recognition Capabilities
Face image comparison, human face capture, face image search
Face Image Library
Up to 16 face image libraries, with up to 20,000 face images in total (each picture ≤ 4 MB; total capacity ≤ 1 GB)
Facial Recognition and Analytics Performance by NVR
MAX 1 channel for human face capture; * Performed without a compatible face capture camera
Face Picture Comparison by camera (Captured from Camera)
MAX 4 channels for face image comparison alarm

Motion Detection 2.0

Human/Vehicle Analysis
8 channels

Video and Audio

IP Video Input
8 channels
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
160 Mbps
HDMI Output
1 channel: 4K: 3840 × 2160 @ 30 Hz; 2K: 2560 × 1440 @ 60 Hz, 1920 × 1080 @ 60 Hz,; 1600 × 1200 @ 60 Hz, 1280 × 1024 @ 60 Hz, 1280 × 720 @ 60 Hz, 1024 × 768 @ 60 Hz
VGA Output
1 channel: 1920 × 1080 @ 60 Hz, 1280 × 1024 @ 60 Hz, 1280 × 720 @ 60 Hz
Video Output Mode
HDMI / VGA independent output
CVBS Output
N/A
Audio Output
1 channel, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Two-Way Audio
1 channel, RCA (Linear, 1 KΩ)

Decoding

Decoding Format
H.265 / H.265+ / H.264+ / H.264
Recording Resolution
3, 4, 5, 6, 8, 12 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback
8 channel
Decoding Capability
NVR MD 2.0 / VCA ON: 1 ch: 12 MP @ 30 fps; 2 ch: 8 MP @ 30 fps;; 4 ch: 4 MP @ 30 fps; 8 ch: 1080p @ 30 fps; NVR MD 2.0 / VCA OFF: 2 ch: 12 MP @ 30 fps; 3 ch: 8 MP @ 30 fps;; 6 ch: 4 MP @ 30 fps; 12 ch: 1080p @ 30 fps
Stream Type
Video, Video & Audio
Audio Compression
G.711 ulaw / G.711 alaw / G.722 / G.726 / AAC

Network

Remote Connections
128
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™,; HTTP, HTTPS
Network Interface
1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface; PoE
Interface
8 x RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 80 W
Standard
IEEE 802.3 af/at

Auxiliary Interface

SATA
2 x SATA interfaces
Capacity
Up to 10 TB storage capacity for each HDD
USB Interface
Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0
Alarm In/Out
4/1

General

Power Supply
48 VDC, 2.5 A
Consumption
≤ 15 W (without HDD and PoE off)
Operating Temperature
14° to 131° F (-10° to 55° C)
Operating Humidity
10% to 90%
Dimension (W × D × H)
15.2 x 12.4 x 2.0 in. (385 x 315 × 52 mm)
Weight (without HDD)
≤ 6.6 lbs (3 kg)

Certifications

FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
No.
Description; No.; Description
1
Network interfaces with PoE function; 6; VGA interface
2
LAN network interface; 7; USB interface
3
Audio In and Audio Out; 8; Power supply
4
Alarm In and Out; 9; Power switch
5
HDMI interface; 10; GND
