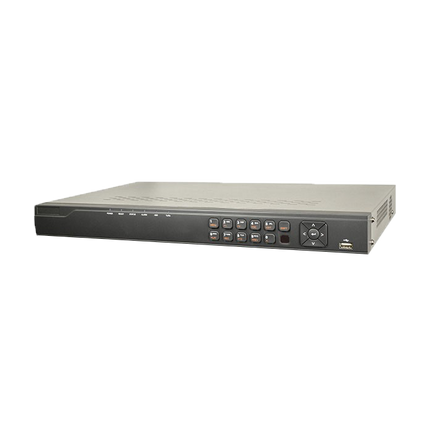

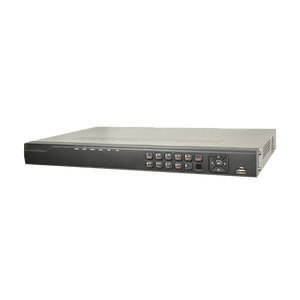

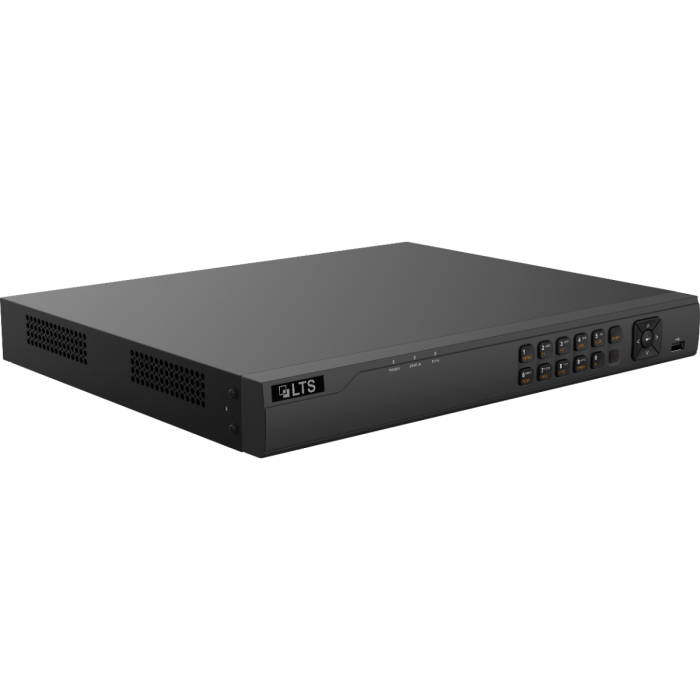

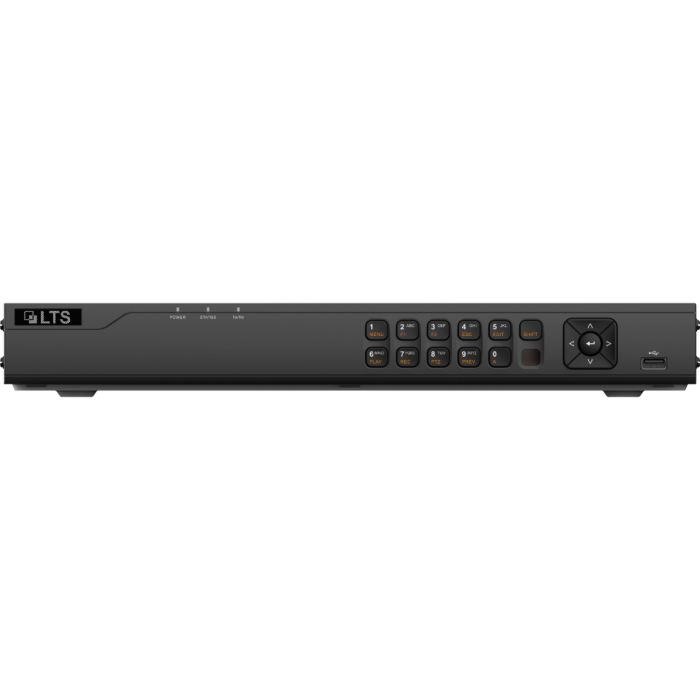

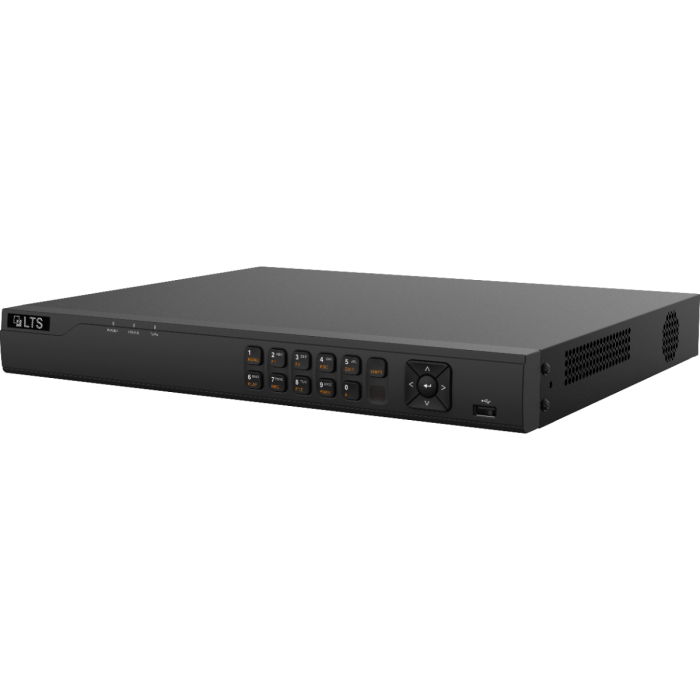

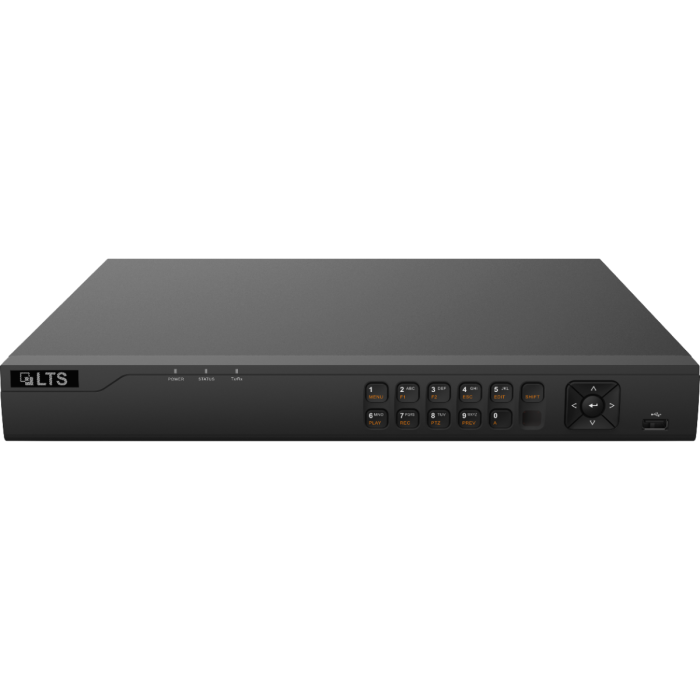

LTS LTN8708QN-P8 8-Channel PoE NVR
Intro
The LTS LTN8708QN-P8 is an 8-channel PoE NVR built for users who want a cleaner installation, solid 4K display output, and dependable recording without adding extra networking complexity. With 8 independent PoE ports, support for up to 8 MP cameras, and dual SATA storage, it gives you a practical all-in-one recording platform for small to mid-size surveillance systems.
That matters if you are setting up a home, office, retail store, warehouse, or light commercial site and want to power cameras directly from the recorder while keeping playback and storage management simple. Smart playback, Motion Detection 2.0, VCA event support, and LTS Connect remote management also make it easier to monitor, review, and manage the system day to day.
For buyers who want straightforward PoE deployment and room for high-resolution recording, this model gives you the kind of balance that makes installation and ownership easier from the start.
Ideal Applications / Common Uses
- Small business and retail surveillance systems using up to 8 IP cameras
- Home and residential properties needing direct PoE camera connection
- Office, warehouse, and light commercial installations that benefit from 4K local display output
- Users who want dual-drive local storage for longer retention
- Sites that need smart playback, human/vehicle analysis, and VCA-related event support
- Installations where simpler cabling and easier remote management are important
Key Features
- Up to 8-ch IP camera inputs — gives you coverage for a full small-to-mid-size surveillance setup from one recorder.
- H.265+/H.265/H.264+/H.264 video formats — provides compression flexibility for storage and compatibility.
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity — supports high-resolution live view and playback performance.
- Up to 80 Mbps incoming bandwidth — helps the unit handle multiple camera streams efficiently.
- H.265+ compression effectively reduces the storage space by up to 75% — helps you keep footage longer without filling drives as quickly.
- Provide simultaneous HDMI and VGA outputs — makes local display setup more flexible.
- HDMI video output at up to 4K resolution — gives you sharper local viewing for monitoring and playback.
- 2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD) — gives you more local storage room for longer retention.
- Smart search/smart playback to improve the playback efficiency — helps you review events faster.
- 4-ch Motion Detection 2.0 — adds human/vehicle analysis to make motion-based events more useful.
- Support multiple VCA (Video Content Analytics) events — expands event-based monitoring options.
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.) — gives users more targeted event awareness.
- 8 independent PoE network interfaces — powers and connects cameras directly from the NVR.
- 1 self-adaptive 10/100 Mbps Ethernet interface — provides network connectivity for system access and management.
- LTS Connect for easy network management — simplifies remote setup and access.
Motion Detection 2.0
Video and Audio
Decoding
Network
PoE
Auxiliary Interface
General
Certification
Notes
Physical Interface
Accessories / Included Items Found in PDF
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
LTS LTN8708QN-P8 8-Channel 4K H.265+ PoE NVR
The LTS LTN8708QN-P8 is an 8-channel IP NVR built for small to mid-sized systems that want 4K-quality recording without complicated setup. With built-in PoE, it powers and connects up to eight IP cameras over a single cable each, keeping installs clean and predictable. H.265+ compression dramatically cuts storage needs, and smart search/playback features make it easier to quickly pull the footage that actually matters. HDMI 4K output lets you monitor on a crisp display right at the recorder, while Motion Detection 2.0 with human/vehicle analysis helps reduce time wasted on false alarms.
Key Features
- Up to 8-channel IP camera inputs — expand from a couple of cameras today to a full eight-camera system as your site grows.
- H.265+ compression — reduces storage space by up to 75%, so you keep more days of footage on the same hard drives.
- 4K HDMI output — connect directly to a 4K monitor for sharp live view and playback, no extra decoder required.
- Built-in 8-port PoE — power and data over a single cable per camera, cutting down on extra power supplies and saving install time.
- Smart search & Motion Detection 2.0 (human/vehicle) — quickly jump to important events and filter out a lot of “nothing happening” video.
- Dual SATA bays (up to 8 TB each) — room for large storage so you can keep longer retention without constantly offloading video.
Key Features (from Datasheet)
```Motion Detection 2.0
```Video and Audio
```Decoding
```Network
```PoE
```Auxiliary Interface
```General
```Certification
```Physical Interface
```Ideal Applications & Common Uses
- Small businesses & retail stores — manage up to eight IP cameras for entrances, registers, and critical aisles from a single, simple recorder.
- Offices & professional suites — pair with smart motion detection and human/vehicle analysis to quickly review only the events that matter, like after-hours access. a& multi-unit homes — use PoE to simplify wiring runs to cameras around the property and maintain clear 4K viewing at a local TV or monitor.
- Warehouses & light industrial — 80 Mbps bandwidth and multi-resolution support let you mix higher-resolution cameras at key points with 1080p at secondary areas.
- Any site needing longer retention — dual SATA bays (up to 8 TB per drive) and H.265+ compression are well-suited when you need weeks of searchable video instead of just days.
Downloads
Frequently Asked QuestionsHow many cameras does the LTS LTN8708QN-P8 support?
The LTN8708QN-P8 supports up to 8 IP camera inputs. The datasheet also lists 8 independent PoE network interfaces, which means the recorder is designed for direct connection to up to eight compatible PoE cameras. That makes it a practical fit for users who want a cleaner installation without needing a separate PoE switch for those channels. It is built as an 8-channel NVR, so its core design is centered around small to mid-size surveillance systems.
Yes. The datasheet specifies 8 RJ-45 10/100 Mbps self-adaptive PoE interfaces. It also lists PoE power up to 80 W and support for IEEE 802.3 af/at standards. That matters because it allows compatible cameras to receive both power and data through one cable, which can simplify wiring and reduce installation clutter. For many buyers, built-in PoE is one of the main reasons to choose this model over a non-PoE recorder.
The recorder supports recording resolutions up to 8 MP. The datasheet lists supported recording resolutions as 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF. It also states decoding capability of up to 1 channel at 8 MP, 3 channels at 4 MP, or 6 channels at 1080p, all at 30 fps. That gives buyers flexibility if they are mixing different camera resolutions in one system.
Yes. The HDMI output supports up to 4K resolution at both 4096 × 2160/30 Hz and 3840 × 2160/30 Hz. The unit also includes a VGA output, and the datasheet says the recorder provides simultaneous HDMI and VGA outputs. This is useful if you want a higher-resolution local display for live viewing or playback while still supporting common monitor connections. For buyers who want sharper local viewing, 4K HDMI output is one of the stronger features of this model.
The datasheet lists 2 SATA interfaces for hard drive connection. Each drive can be up to 8 TB, which gives the unit a substantial amount of local storage potential for an 8-channel NVR. The recorder also supports H.265+ compression, which the spec sheet says can reduce storage space by up to 75%. That combination is especially useful for buyers who want longer video retention without filling drives as quickly.
Yes. The datasheet states that the LTN8708QN-P8 supports LTS Connect for easy network management. It also lists network protocols including TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, and HTTPS. In addition, the unit supports up to 32 remote connections. For users who want to monitor and manage the recorder beyond the local site, those network features are an important part of the system.
The recorder supports 8-channel synchronous playback. The datasheet also highlights smart search and smart playback to improve playback efficiency. That matters because it helps users review footage from multiple cameras more quickly instead of checking one stream at a time. For incident review, that can make the system much more practical in everyday use.
Yes. The datasheet lists 4-channel Motion Detection 2.0 with human/vehicle analysis. It also says the recorder supports multiple VCA events and configurable special camera smart functions such as motion, line crossing, and intrusion detection. That is helpful for users who want more than basic continuous recording and prefer more targeted event awareness. These features can reduce wasted time by making the system more focused on meaningful activity.
The datasheet lists 1-channel RCA audio output and 1-channel RCA two-way audio. The physical interface page also shows AUDIO OUT and AUDIO IN connections on the rear panel. That means the unit supports basic audio-related connectivity in supported setups, including two-way audio functionality. For buyers who want audio capability alongside video, this can be an important requirement to confirm.
The recorder uses a 48 VDC, 2.5 A power supply. Its listed power consumption is ≤ 15 W without HDD and with PoE off, and the chassis is a 1U design. The dimensions are 385 × 315 × 52 mm, and the listed weight is ≤ 2.6 kg without HDD. The operating temperature range is -10 °C to 55 °C with working humidity from 10% to 90%, which helps buyers confirm whether the unit fits their installation environment.
