Connect up to 64 IP cameras to a single NVR, giving larger businesses and facilities a centralized recording platform without immediately needing multiple independent recorders.

Up to 400 Mbps of incoming and 400 Mbps of outgoing bandwidth gives the recorder the network capacity needed for large multi-camera deployments and high-resolution video streams.

HDMI 1 can output video at up to 7680 × 4320 at 30 Hz, allowing compatible 8K displays to present exceptionally high-resolution surveillance video for detailed live monitoring and playback.

The recorder provides two HDMI and two VGA interfaces. Main and auxiliary output groups make it easier to create multi-display monitoring environments instead of forcing every operator or viewing area onto a single screen.

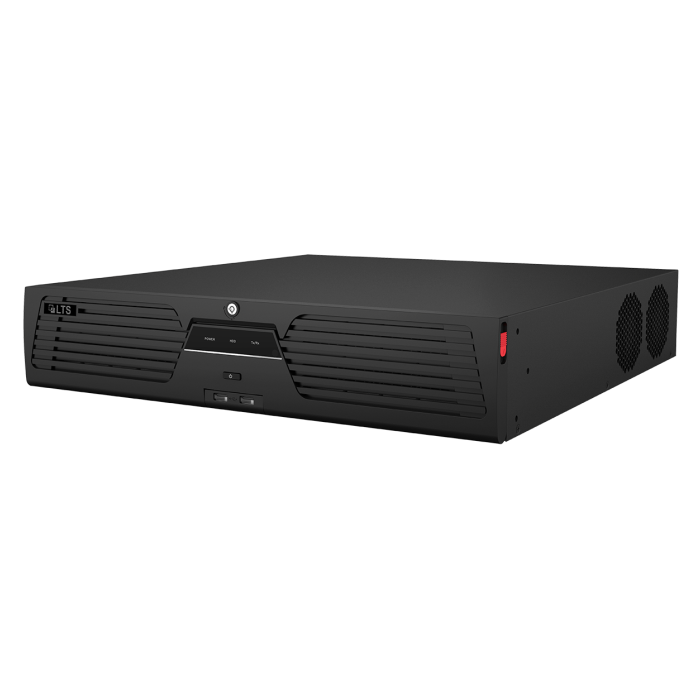

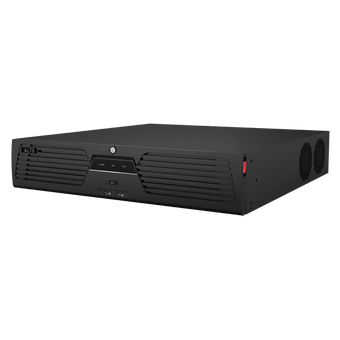

The LTN8964-RN can decode up to 2 channels at 32 MP, 8 channels at 8 MP, 16 channels at 4 MP, or 32 channels at 1080p at 30 fps, giving you flexible viewing performance based on the resolution of the cameras in your system.

Eight internal SATA interfaces support hard drives with capacities of up to 16 TB per disk. That gives you substantially more storage flexibility when longer recording retention or a large number of cameras is required.

Support for RAID 0, 1, 5, 6, and 10 lets qualified system designers configure storage according to performance and redundancy requirements. N+M hot spare support provides additional options for building a more reliable recording architecture and reducing data-loss risk.

H.265+ compression can reduce storage requirements by up to 75% according to the manufacturer, helping compatible systems make more efficient use of installed hard-drive capacity.

Dual-stream recording helps reduce bandwidth requirements by allowing different streams to be used for different purposes, giving the system more flexibility when balancing video quality with network usage.

The recorder supports specialized cameras including license plate recognition, people-counting, and fisheye cameras, allowing the surveillance system to address more specialized monitoring needs without limiting you to standard video recording.

Compatible special-camera functions include Video Content Analytics such as motion detection, line crossing, intrusion detection, LPR, and people counting. Instead of relying entirely on someone continuously watching live video, compatible analytics can help the system identify defined events.

POS information can be overlaid on live and recorded video, with support for POS-triggered recording and alarms. For compatible retail environments, this gives operators a more direct way to associate transaction activity with the video surrounding it.

Review up to 16 recorded channels simultaneously, making it easier to follow an event across multiple cameras rather than reviewing every camera individually.

Two self-adaptive 10/100/1000 Mbps Ethernet interfaces provide the connectivity expected from a recorder designed for larger IP surveillance networks.

Advanced smooth streaming technology is designed to maintain smoother live viewing under poor network conditions, helping remote monitoring remain more practical when network performance is less than ideal.

TLS encryption is supported for stream transmission, providing an additional security measure for video as it travels across the network.

Double verification is supported for playback and downloading, giving organizations another way to control access to important recorded footage.

Support for LTS Connect, DDNS, and web access without a plug-in provides multiple options for accessing and managing the recorder across a network.
