OCB-T3808-H8MP Hikvision 8ch CCTV Recorder w/ HDD HYBRID DVR
OCB-T3808-H8MP Hikvision 8ch CCTV Recorder w/ HDD HYBRID DVR
Out of stock
Description
Description

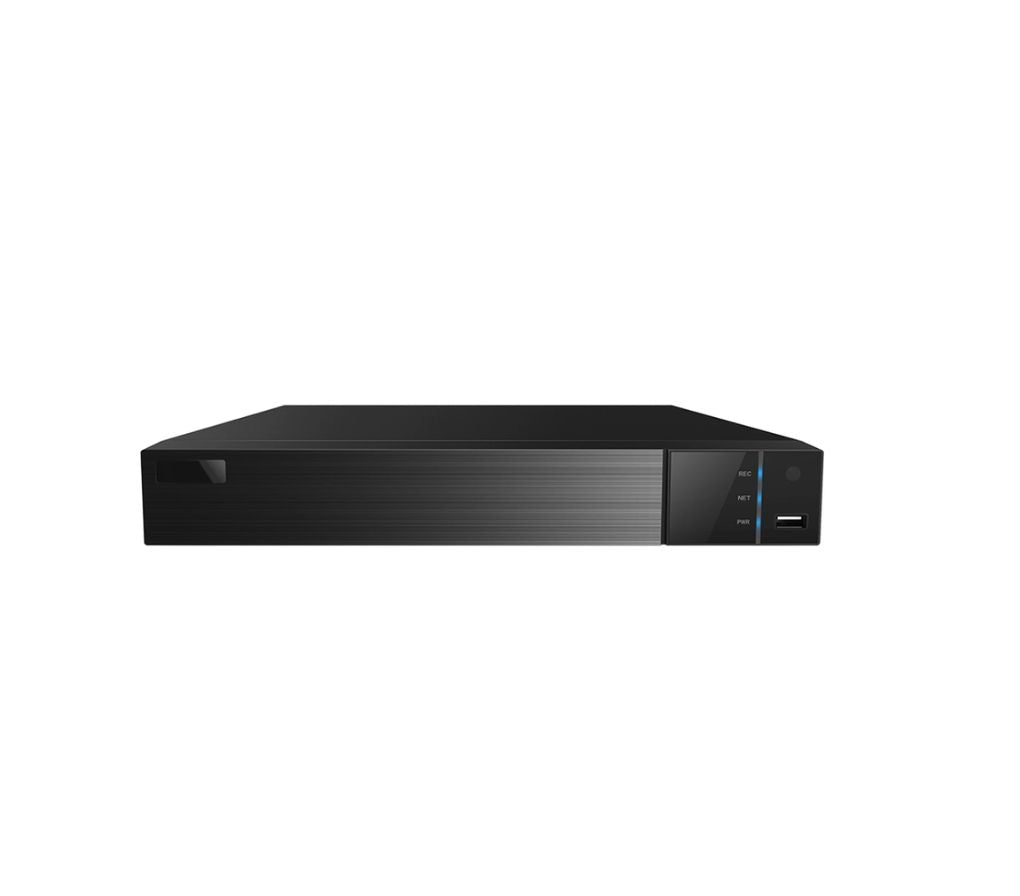

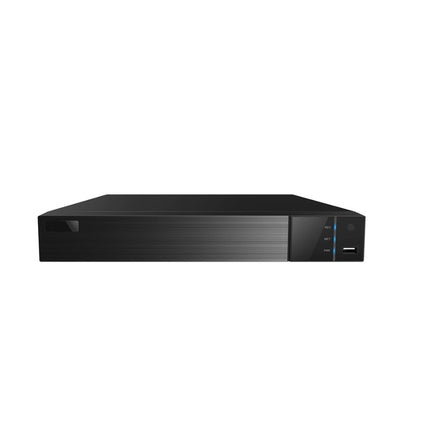

TVT TD-2708NE-HP 8-Channel Hybrid DVR
What happens when you want to improve an existing surveillance system without replacing every camera you already own? The TVT TD-2708NE-HP gives you a flexible path forward by combining 8 analog BNC inputs with 8 IP camera channels in one hybrid recorder.
With support for TVI, AHD and CVI cameras, resolutions up to 8MP, H.265 compression and 4K HDMI output, it is built to handle both existing equipment and higher-resolution upgrades. Remote viewing, smart search, simultaneous 8-channel playback and flexible storage options help make everyday surveillance easier to manage.
Instead of forcing you into an all-or-nothing system replacement, the TD-2708NE-HP gives you room to keep what works, upgrade where it matters and manage everything from one recorder.
Why Buyers Choose the TD-2708NE-HP
Hybrid Analog + IP Support — Upgrade Without Starting Over
The recorder provides 8 BNC analog inputs plus 8 IP video channels. That gives you the flexibility to continue using compatible analog cameras while adding IP cameras where higher resolution or a different camera type makes more sense.
Up to 16 Total Video Inputs — More Room to Build Your System
With analog and IP channels available together, the TD-2708NE-HP supports up to 16 total video inputs. This gives growing homes and businesses more flexibility than being limited to only the eight physical BNC connections.
TVI, AHD & CVI Compatibility — More Flexibility With Existing Cameras
Already have an analog HD surveillance system installed? Support for TVI, AHD and CVI gives you more options when integrating compatible existing cameras instead of being restricted to a single analog video format.
High-Resolution Camera Support — Preserve the Detail That Matters
The DVR supports analog resolutions ranging from WD1 through 4K and IP cameras up to 8MP. Higher-resolution camera support gives you the ability to build a system around the level of image detail your property requires.
H.265 Compression — Use Storage More Efficiently
Higher-resolution video can create large amounts of recording data. H.265 compression is designed to deliver high-quality video at a lower bit rate, helping make more efficient use of available storage and network resources.
4K HDMI Output — See Your Cameras on a High-Resolution Display
The HDMI output supports resolution up to 3840 × 2160. Connect the recorder to a compatible 4K display and you can monitor your surveillance system through a high-resolution local viewing interface.
8-Channel Simultaneous Playback — Review More Cameras at Once
When something happens, checking one camera at a time can make an investigation slower. Simultaneous playback of up to eight channels lets you review multiple camera angles together and better understand how an event unfolded.
Multiple Search Options — Spend Less Time Looking for Footage
Search recordings by time slice, time, event or tag instead of manually working through hours of footage. Smart search also uses different highlight colors for different recording events, helping make relevant periods easier to identify.
Manual, Timed, Motion & Smart-Event Recording — Record the Way Your Property Needs
Different areas do not always need the same recording strategy. Multiple recording modes let you configure the system around your surveillance requirements rather than relying on one fixed recording method.
Dual HDD Support — More Storage Flexibility
The recorder includes two SATA interfaces with support for up to 10TB per HDD, plus an eSATA connection. That gives you greater flexibility when configuring storage for higher-resolution cameras or longer recording requirements.
Remote & Mobile Surveillance — Check Your System Away From the Recorder
You should not have to stand in front of the DVR every time you want to check your cameras. The TD-2708NE-HP supports remote functions through Web Client or CMS and mobile surveillance from compatible iOS and Android devices.
Remote Playback & Configuration — More Control From Wherever You Manage the System
Remote access supports preview, playback, backup, PTZ control and configuration. This gives authorized users more ways to manage the surveillance system without performing every task directly from the DVR.
Dual-Stream Technology — Balance Local Quality With Remote Viewing
The recorder uses dual-stream technology to support high-definition local storage while providing a separate stream for network transmission and mobile surveillance. The result is greater flexibility between local recording quality and remote access.
USB & Network Backup — Get Important Footage Off the Recorder
When footage needs to be saved or shared, the DVR supports backup through USB devices as well as network backup. That makes it easier to preserve important recordings outside the recorder itself.
PTZ Support — Control More Advanced Camera Installations
For compatible PTZ installations, the system supports up to 255 presets and 8 auto cruises. An RS-485 interface can also be used to connect a PTZ camera or compatible keyboard.
Gigabit Ethernet — Built for Network-Connected Surveillance
A 1000Mbps RJ45 network interface supports the recorder's IP camera, remote-access and network functions, giving you a capable network connection for a hybrid surveillance environment.
What This Helps You Avoid
Maybe the cameras already installed around your property still work well, but the recorder is becoming the limitation. Replacing the entire surveillance system just to gain newer recording, storage or remote-access capabilities can turn what should be an upgrade into a much larger project.
The TD-2708NE-HP addresses that problem by giving compatible analog TVI, AHD and CVI cameras a place alongside IP cameras. You can keep useful equipment in service while introducing newer cameras where they provide the greatest benefit.
It also helps reduce the frustration of searching through recordings manually. Multiple search methods, smart event highlighting and simultaneous 8-channel playback give you better tools for getting from “something happened” to the footage you actually need.
And when you are away from the recorder, remote and mobile surveillance means the system does not have to become a security solution you can only manage while standing in front of it.
The result is a more flexible approach to surveillance: preserve the cameras that still make sense, expand with IP where needed, increase storage as your recording requirements grow and manage the system from one hybrid platform.
Who Is This DVR Best For?
- Homes upgrading an existing analog surveillance system
- Businesses that want to combine compatible analog and IP cameras
- Properties that need up to 16 total video inputs
- Users who want mobile and remote surveillance capabilities
- Installations requiring high-resolution camera support up to 8MP
- Systems that benefit from multiple HDD storage options
- Commercial, enterprise, financial, transportation and government surveillance applications
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
TVT TD-2708NE-HP 8-Channel Hybrid DVR
The TVT TD-2708NE-HP is a hybrid surveillance recorder designed for systems that need to combine high-resolution analog and IP cameras in one platform. It provides 8 BNC analog video inputs plus 8 IP channels for up to 16 total video inputs, while supporting H.265 compression, HDMI 4K output, simultaneous 8-channel playback, network access and mobile surveillance. With support for TVI, AHD and CVI cameras, dual HDD storage and multiple recording and search options, it provides a flexible foundation for upgrading or expanding an existing security system.
Key Features
- 8-channel hybrid DVR with 8 BNC analog inputs and support for 8 IP video channels.
- Up to 16 total video inputs when analog and IP channels are used together.
- Supports TVI, AHD and CVI analog video formats.
- Supports analog camera resolutions including 4K, 5MP, 4MP, 3MP, 1080P, 720P and WD1.
- IP camera support up to 8MP.
- H.264 / H.265 video compression for efficient recording and storage.
- HDMI 4K output with resolution up to 3840 × 2160.
- 8-channel simultaneous playback.
- Manual, timed, motion and smart-event recording modes.
- Time-slice, time, event, tag and smart recording search.
- Pentaplex operation: preview, recording, playback, backup and remote access.
- Dual-stream technology for high-definition local storage and remote surveillance.
- Remote operation through Web Client or CMS, including preview, playback, backup, PTZ and configuration.
- Mobile surveillance support for iOS and Android.
- NAT functionality and QR-code scanning for mobile setup.
- PTZ preset and auto-cruise support with up to 255 presets and 8 cruises.
- Dual SATA HDD interfaces with support for up to 10TB per HDD.
- Additional eSATA storage interface.
- Gigabit Ethernet network interface.
- USB 3.0 and USB 2.0 connections.
System
Video
Audio
Recording
Playback & Search
Alarm
Network
Mobile Surveillance
Storage
Backup
Ports & Control
Power & Physical
Compliance & Certifications
Accessories Found
- Remote Controller — Optional
The manufacturer datasheet does not specify any other accessories as included with the TD-2708NE-HP.
Ideal Applications & Common Uses
- Home security systems
- Financial facilities
- Commercial properties
- Enterprise surveillance
- Transportation environments
- Government facilities
- Existing analog CCTV systems being expanded with IP cameras
- Hybrid installations using TVI, AHD or CVI cameras together with IP cameras
Downloads
Frequently Asked Questions
The TD-2708NE-HP provides 8 BNC analog video inputs and 8 IP video channels, supporting up to 16 total video inputs when analog and IP channels are used together.
The DVR supports TVI, AHD and CVI analog video formats. Supported analog resolutions include 4K, 5MP, 4MP, 3MP, 1080P, 720P and WD1.
Yes. The recorder supports 8 IP video channels with resolutions up to 8MP. The datasheet specifies up to 8MP at 20fps, while resolutions lower than 8MP can operate at up to 25fps or 30fps depending on PAL or NTSC.
The DVR has two SATA interfaces and supports up to 10TB per hard drive, allowing up to 20TB across the two internal HDD bays. It also provides one eSATA interface for external storage.
Yes. The TD-2708NE-HP supports both H.264 and H.265 video compression. The manufacturer specifically highlights H.265 high-profile compression for maintaining high-quality video at a lower bit rate.
Yes. Its HDMI output supports resolutions up to 3840 × 2160 for 4K display. It also includes VGA output up to 1920 × 1080 and a BNC CVBS output that can be used as the main or spot output.
Yes. The DVR supports mobile surveillance on iOS and Android devices and provides NAT functionality with QR-code scanning for mobile setup. Remote operation through a Web Client or CMS supports preview, playback, backup, PTZ control and configuration.
The TD-2708NE-HP supports simultaneous playback of up to 8 channels. Playback functions include play, pause, fast forward, fast backward and digital zoom.
The DVR supports manual, timed, motion and smart-event recording. Recordings can be searched by time slice, time, event or tag, and its smart-search function uses highlighted colors to identify different recording events within selected periods.
Yes. The DVR supports PTZ presets and automatic cruise functions with up to 255 presets and 8 cruises. It also includes an RS-485 half-duplex interface that can connect to a PTZ camera or keyboard.
