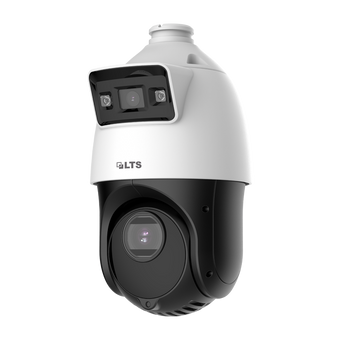

PTZIP4C44W-X25IR Lts w/ audio IP PoE Camera <h1 Platinum 4 MP Speed Dome
PTZIP4C44W-X25IR Lts w/ audio IP PoE Camera <h1 Platinum 4 MP Speed Dome
24/7 Color
Active Deterrence
Pan Tilt Zoom (PTZ)
Two Way Audio
Out of stock
Description
Description

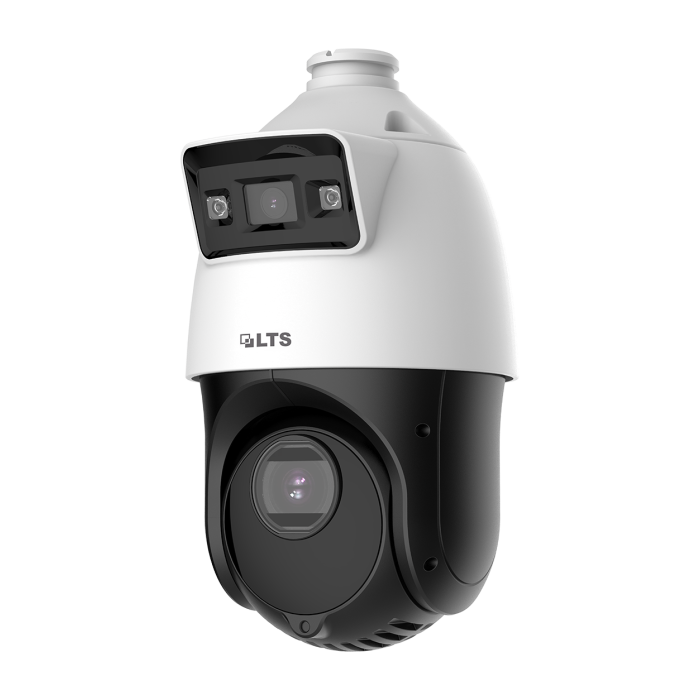

PTZIP4C44W-X25IR 4MP Dual-Channel 25× IR Network Speed Dome
What happens when a traditional PTZ camera zooms toward one event and leaves the rest of the property outside its view? The PTZIP4C44W-X25IR addresses that concern by combining a fixed 4MP overview channel with a separate 4MP PTZ channel, allowing you to maintain broad scene awareness while examining activity more closely.
Its 25× optical zoom, 360° pan coverage, automatic tracking, and long-range night vision make it easier to follow developing events across large outdoor areas. Instead of relying on a distant, unclear image, operators can move from a wide overview to focused visual details when those details matter most.
For parking lots, industrial yards, campuses, venues, and other expansive properties, this camera delivers a stronger balance of coverage, detail, and active monitoring.
Why Buyers Choose This Model
Would your current camera system let you see the entire area while also investigating activity at a distance? Buyers choose this model because its dual-channel design reduces the compromise between maintaining an overview and obtaining a close-up image.
```Fixed Overview Channel — Maintain Awareness of the Larger Scene
The dedicated 2.8 mm fixed channel provides a wide 96.1° horizontal view. This gives operators a persistent overview instead of depending entirely on whichever direction the PTZ lens is facing.
25× Optical Zoom — Examine Distant Activity More Clearly
The PTZ channel’s 4.8–120 mm lens delivers 25× optical zoom, helping you inspect distant entrances, vehicles, boundaries, or developing events without sacrificing image quality through digital enlargement alone.
Dual 4MP Imaging — Capture Useful Detail Across Both Views
Both the fixed and PTZ channels record at up to 2560 × 1440 resolution and 30 frames per second. The result is a detailed overview combined with a detailed controllable view rather than treating one channel as a secondary low-resolution image.
Automatic Tracking — Follow Activity Across the Property
Manual and automatic tracking help the PTZ channel follow activity after it is detected. This can reduce the need for an operator to control every camera movement manually during an unfolding event.
360° PTZ Coverage — Monitor More of an Expansive Area
A 360° pan range, -15° to 90° tilt range, and movement speeds up to 80° per second let the camera reposition quickly. You also receive 300 presets, eight patrols, and four pattern scans for structured monitoring of important locations.
Long-Range Night Vision — Continue Monitoring After Dark
The PTZ channel provides infrared illumination up to 328 ft (100 m), while the fixed channel supplies white-light illumination up to 98 ft (30 m). This extends useful monitoring beyond areas covered by ordinary property lighting.
Excellent Low-Light Sensitivity — Preserve Visibility in Difficult Conditions
The fixed channel operates in illumination as low as 0.0005 lux, while the PTZ channel reaches 0.005 lux in color and 0.001 lux in black and white. This helps produce a more usable image when available light is limited.
120 dB WDR and Image Enhancement — Reveal Detail in Challenging Scenes
Bright entrances, headlights, shadows, glare, haze, and camera movement can make ordinary surveillance footage difficult to interpret. The camera combines 120 dB WDR with HLC, BLC, 3D DNR, digital defog, and electronic image stabilization to improve visibility under challenging conditions.
Smart Perimeter Events — Focus Attention on Important Activity
Line crossing, intrusion, region entrance, and region exiting detection allow the system to watch defined boundaries and areas. Rather than asking personnel to observe every part of the screen continuously, the camera can respond when configured rules are triggered.
PTZ Face Capture — Collect Additional Visual Evidence
The PTZ channel supports face capture, providing an additional way to collect relevant visual details when a face is visible within the monitored scene.
Flexible Recording — Add Protection Beyond the Recorder
A built-in microSD card slot supports up to 256GB of local storage. The camera also supports NAS storage and ANR, giving compatible systems additional recording options when network conditions are interrupted.
H.265+ Compression — Use Storage and Bandwidth More Efficiently
Support for H.265+, H.265, H.264+, H.264, and MJPEG lets installers select the appropriate compression format for the system. Efficient compression can help manage bandwidth and recording-storage requirements without abandoning 4MP video.
PoE+ Support — Simplify Power and Network Installation
The camera can operate through PoE+ or 12V DC. In a compatible PoE+ installation, power and network data can travel through the Ethernet connection, reducing the need for a separate power run at the camera location.
Audio and Alarm Connections — Build a More Responsive System
One audio input, one audio output, one alarm input, and one alarm output allow the camera to participate in a broader security design. Configurable alarm actions include recording, email notification, alarm output activation, and uploads to supported storage destinations.
ONVIF Support — Provide More Integration Flexibility
Support for ONVIF Profiles S, G, and T, along with ISAPI, SDK, and ISUP, gives integrators multiple options for connecting the camera to compatible recording and video-management platforms.
IP66 Outdoor Protection — Built for Demanding Locations
The IP66-rated housing operates from -22°F to 149°F and includes heated-glass demisting, 6,000V lightning protection, surge protection, and voltage-transient protection. This helps the camera remain dependable across demanding outdoor installations.
What This Helps You Avoid
Imagine reviewing an important incident only to discover that the PTZ camera was facing the wrong direction—or that the subject was visible but too far away to provide useful detail. A conventional single-view camera can force you to choose between watching the entire scene and zooming in on one area.
The PTZIP4C44W-X25IR helps close that gap. Its fixed channel preserves the wide overview while the PTZ channel moves, tracks, and zooms toward activity that requires closer attention.
Long-range IR, white-light illumination, 120 dB WDR, image stabilization, and digital defog further reduce the risk of ending up with footage compromised by darkness, glare, movement, or haze. Local storage and ANR also provide additional recording resilience when used in a compatible system.
The result is a surveillance solution designed to give you more than general awareness. It helps you maintain context, investigate details, and respond with greater confidence when activity occurs across a large property.
Ideal Applications
- Large parking lots and vehicle entry areas
- Industrial yards and distribution centers
- Warehouses and commercial properties
- Campuses and multi-building facilities
- Roadways, railways, and transportation areas
- Airports and public infrastructure
- Parks, plazas, venues, and recreational spaces
- Waterfronts, rivers, and large outdoor perimeters
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Recommended Alternatives
PTZIP514NW-X25IR Lts w/ audio IP PoE Camera
Out of stock
Choose your option
LTB212
Technical Specifications
PTZIP4C44W-X25IR 4MP 25× IR Network Speed Dome
Monitor wide areas without losing the close-up details needed to understand what happened. The PTZIP4C44W-X25IR combines a fixed 4MP overview channel with a 4MP PTZ channel, giving operators continuous scene awareness plus the flexibility of 25× optical zoom, 360° pan coverage, and automatic tracking.
Long-range infrared illumination reaches up to 328 ft (100 m), while the fixed channel provides white-light illumination up to 98 ft (30 m). With face capture, smart perimeter events, local microSD storage, PoE+ support, and an IP66-rated enclosure, this camera is built for demanding outdoor surveillance across large properties.
Key Features
- Dual-channel design with a fixed overview channel and controllable PTZ channel
- Up to 4MP resolution on both fixed and PTZ channels
- 25× optical zoom and 16× digital zoom on the PTZ channel
- 360° pan range and -15° to 90° tilt range with auto flip
- PTZ infrared illumination up to 328 ft (100 m)
- Fixed-channel white-light illumination up to 98 ft (30 m)
- Excellent low-light performance, including 0.0005 lux on the fixed channel
- 120 dB WDR for scenes containing bright and dark areas
- Manual tracking and automatic tracking
- PTZ-channel face capture
- Line crossing, intrusion, region entrance, and region exiting detection
- 300 presets, eight patrols, and four pattern scans
- H.265+, H.265, H.264+, H.264, and MJPEG compression
- Built-in microSD card slot supporting cards up to 256GB
- Audio input/output and alarm input/output connections
- 12V DC or PoE+ power options
- IP66 weather protection and 6,000V lightning protection
Camera
```Lens
```Supplemental Lighting
```PTZ Functions
```Video
```Audio
```Smart Features
```Network
```Image Enhancement
```Interfaces and Storage
```General
```Environmental Protection
```DORI Distance at Telephoto
```Compatible Accessories Found in the Datasheet
```Accessories may be sold separately. Confirm mounting compatibility and availability before ordering.
```Ideal Applications and Common Uses
- Large parking lots and vehicle entry areas
- Road, highway, and traffic monitoring
- Railways and transportation infrastructure
- Airports and other large transit facilities
- Industrial yards, warehouses, and distribution centers
- Public squares, parks, and recreational spaces
- Stadiums, venues, and large gathering areas
- Rivers, waterfronts, and perimeter surveillance
- Campuses and multi-building properties
- Applications requiring a persistent overview plus detailed PTZ tracking
- Long-range outdoor surveillance in low-light or nighttime conditions
Downloads
Frequently Asked Questions
Both the fixed overview channel and the PTZ channel support resolutions up to 4MP (2560 × 1440) at 30 frames per second.
The fixed channel uses a 2.8 mm lens to provide a wide overview with a 96.1° horizontal field of view. The PTZ channel uses a 4.8–120 mm motorized lens, allowing the operator to pan, tilt, and zoom in for closer details while retaining the fixed overview.
The PTZ channel provides 25× optical zoom and 16× digital zoom. Its horizontal field of view changes from 55° at the wide setting to 2.4° at the telephoto setting.
The PTZ channel provides infrared illumination up to 328 ft (100 m). The fixed overview channel uses white light with a range of up to 98 ft (30 m).
Yes. The camera supports both automatic tracking and manual tracking. It also provides line crossing, intrusion, region entrance, and region exiting detection to help identify activity within configured areas.
The camera has a 360° pan range and a tilt range of -15° to 90° with auto flip. Pan and tilt speeds are configurable from 0.1° to 80° per second, with an 80°-per-second preset speed.
Yes. It has an IP66-rated enclosure and operates in temperatures from -22°F to 149°F (-30°C to 65°C) at less than 90% relative humidity. It also includes 6,000V lightning protection, surge protection, voltage-transient protection, and heated-glass demisting.
Yes. The PTZIP4C44W-X25IR supports PoE+ or 12V DC power. Its maximum power consumption is 24 W, including the heater and supplemental lighting.
The camera has a built-in card slot supporting microSD, microSDHC, and microSDXC cards up to 256GB. It also supports NAS storage through NFS or SMB/CIFS, along with ANR functionality.
The camera supports ONVIF Profiles S, G, and T, as well as ISAPI, SDK, and ISUP integration. Compatibility with a specific recorder or management platform should still be confirmed before installation.
