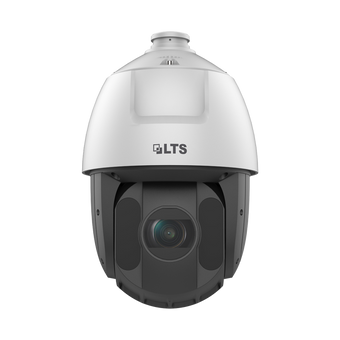

PTZIP514NW-X25IR Lts w/ audio IP PoE Camera <h1 Platinum 4 MP IR Speed Dome
PTZIP514NW-X25IR Lts w/ audio IP PoE Camera <h1 Platinum 4 MP IR Speed Dome
24/7 Color
Active Deterrence
Pan Tilt Zoom (PTZ)
Smart Tracking
Two Way Audio
Out of stock
Description
Description

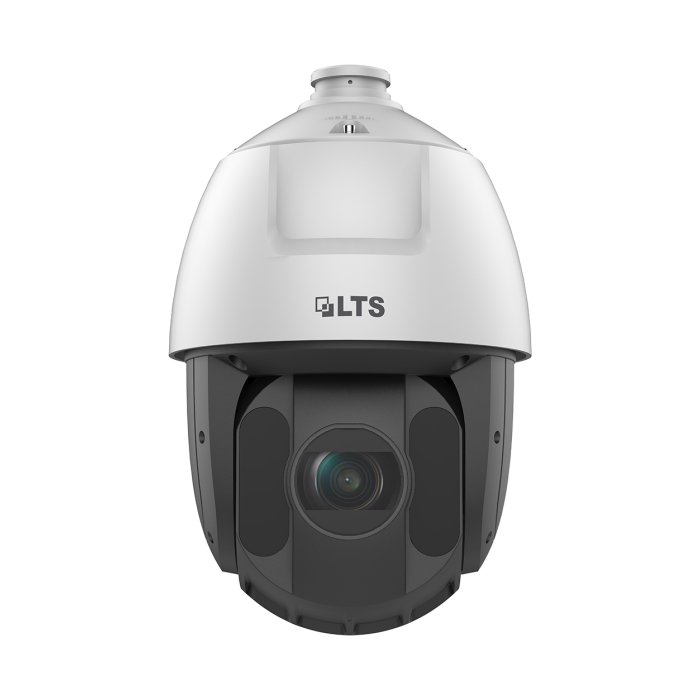

LT Security LTPTZIP514NW-X25IR 4MP 25× Network IR Speed Dome Camera
What happens when a standard fixed camera shows activity but cannot get close enough to reveal the important details? The LTPTZIP514NW-X25IR combines sharp 4MP imaging, 25× optical zoom, responsive PTZ control, and infrared night vision reaching up to 492 feet.
Instead of accepting one fixed viewing angle, operators can investigate activity across large properties and zoom in when a closer view is needed. Its smart-event detection, face capture, flexible recording options, and outdoor-ready construction make it a strong choice for demanding surveillance environments.
Why Buyers Choose This Model
```25× Optical Zoom — See Distant Activity More Clearly
Would being able to inspect activity from across a large property help you make faster, better-informed decisions? The 4.8 mm to 120 mm lens provides 25× optical zoom, allowing you to move from a broad overview to a detailed telephoto view without relying only on digital enlargement.
4MP Resolution — Capture More Useful Visual Detail
The camera records at up to 2560 × 1440 resolution, providing more image detail than standard 1080p cameras. This helps operators examine people, objects, and activity with greater clarity when reviewing an event.
492-Foot Infrared Range — Monitor Expansive Areas at Night
What good is long-range zoom if the camera cannot see far enough after dark? Its integrated infrared illumination reaches up to 492 feet, helping maintain surveillance across large outdoor spaces when visible light is limited.
Ultra-Low Light Performance — Retain Visibility in Difficult Lighting
Ultra-Low Light technology enables color imaging down to 0.005 lux and black-and-white imaging down to 0.001 lux. Combined with an F1.6 aperture, this gives you a more capable image when lighting conditions begin to work against ordinary cameras.
Responsive PTZ Movement — Investigate More Than One Fixed View
The camera offers continuous 360° panning and a -15° to 90° tilt range with auto flip. Configurable pan and tilt speeds let operators move quickly toward activity or make controlled adjustments when precise positioning matters.
300 Presets and Automated Patrols — Watch Important Areas Consistently
Instead of manually returning the camera to the same locations throughout the day, you can configure up to 300 presets, 8 patrols, and 4 pattern scans. Each patrol supports up to 32 presets, helping the camera revisit priority areas in a repeatable sequence.
Smart Event Detection — Focus Attention on Relevant Activity
Line crossing, intrusion, region entrance, region exiting, unattended baggage, object removal, and audio-exception detection help identify defined events. This gives security personnel a more organized way to respond than continuously watching every second of live video.
Face Capture — Add More Useful Information to Surveillance
Built-in face-capture functionality can help produce more relevant visual evidence when a person enters the camera’s monitored area. This provides an additional layer of information beyond a general wide-area view.
120 dB WDR — Balance Bright and Dark Areas
Entrances, parking areas, and outdoor scenes can contain harsh backlighting and deep shadows at the same time. The camera’s 120 dB Wide Dynamic Range helps preserve visibility across these contrasting areas, while HLC, BLC, and 3D DNR further improve challenging images.
Digital Defog and Demist — Improve Visibility in Difficult Conditions
Fog, haze, and condensation can reduce the value of long-distance surveillance. Digital defog and demist capabilities help the camera maintain a more usable view when environmental conditions interfere with image clarity.
Local and Network Storage — Create a More Resilient Recording Plan
The built-in card slot supports microSD, microSDHC, and microSDXC storage up to 256 GB. NAS storage and Automatic Network Replenishment support provide additional flexibility for protecting recordings and recovering data after a temporary network interruption.
H.265+ Compression — Use Storage and Bandwidth More Efficiently
Support for H.265+, H.265, H.264+, and H.264 gives you flexibility when balancing image quality, bandwidth, and recording capacity. More efficient compression can help reduce the resources required to store and transmit surveillance video.
Alarm and Audio Connectivity — Build a More Complete Response System
Two alarm inputs, one alarm output, one line-level audio input, and one line-level audio output allow the camera to work with additional security devices. Event linkage can trigger recording, notifications, alarm outputs, email, uploads, and programmed PTZ actions.
PoE+ or 24 VAC Power — Choose the Installation Method That Fits
The camera can be powered through IEEE 802.3at PoE+ or a 24 VAC supply. This provides flexibility when integrating it into a new network or an existing professional surveillance infrastructure.
IP66 Metal Construction — Built for Demanding Outdoor Locations
The weather-resistant metal housing operates from -22°F to 149°F and includes 6000 V lightning protection, surge protection, and voltage-transient protection. That means the camera is designed for outdoor installations where heat, cold, moisture, and electrical disturbances are genuine concerns.
What This Helps You Avoid
Have you ever reviewed surveillance footage only to discover that the camera was pointed in the wrong direction, the subject was too far away, or the nighttime image did not reach the area that mattered?
That is the problem with depending on a limited fixed view for a large property. Important activity can happen outside the frame, and digital enlargement cannot recreate detail the camera never captured.
The LTPTZIP514NW-X25IR gives you the ability to patrol priority locations, reposition the camera, and use true optical zoom to investigate distant activity. Its extended infrared range and low-light performance help preserve visibility after dark, while smart events can direct attention toward defined activity.
The result is a surveillance system that helps you move from simply recording a large area to actively monitoring it with greater control, detail, and confidence.
Ideal Applications
- Large commercial properties
- Road and transportation monitoring
- Railways and transit areas
- Airports and expansive parking areas
- Public squares and parks
- Venues and event facilities
- Scenic areas and outdoor attractions
- Long-range perimeter surveillance
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Recommended Alternatives
PTZIP4C44W-X25IR Lts w/ audio IP PoE Camera
Out of stock
Choose your option
LTB762, PTZKB836, LTB742, LTB211, LTB741, PTZKB837, LTB751
Technical Specifications
LT Security PTZIP514NW-X25IR 4MP 25× Network IR Speed Dome Camera
The PTZIP514NW-X25IR combines detailed 4MP imaging with powerful 25× optical zoom, allowing operators to inspect distant activity across expansive areas. Ultra-Low Light technology, image-enhancement features, and IR illumination reaching up to 492 feet help maintain visibility in difficult lighting conditions. With responsive PTZ movement, 300 presets, smart-event detection, face capture, and flexible recording options, it is designed for active surveillance of large outdoor environments.
Key Features
- 4MP resolution up to 2560 × 1440
- 1/2.8-inch progressive-scan CMOS sensor
- 25× optical zoom and 16× digital zoom for detailed long-range viewing
- 4.8 mm to 120 mm motorized zoom lens
- Ultra-Low Light performance down to 0.005 lux in color
- IR night vision reaching up to 492 feet (150 meters)
- 360° pan range and -15° to 90° tilt range with auto flip
- 300 presets, 8 patrols, and 4 pattern scans
- 120 dB WDR, HLC, BLC, 3D DNR, digital defog, regional exposure, and regional focus
- Smart-event detection including line crossing, intrusion, region entrance, and region exiting
- Face-capture functionality
- H.265+, H.265, H.264+, and H.264 video compression
- Built-in microSD/SDHC/SDXC card slot supporting up to 256 GB
- 24 VAC or PoE+ (IEEE 802.3at) power options
- IP66-rated metal housing with 6000 V lightning protection
DORI Performance
```Camera
```Lens
```Illuminator
```PTZ
```Video
```Audio
```Network
```Image
```Interfaces and Storage
```Events and Analytics
```General
```Approvals and Protection
```Accessories
```Included Accessory
Optional Accessories
Ideal Applications and Common Uses
- Monitoring rivers and other expansive outdoor areas
- Road and highway surveillance
- Railway monitoring
- Airport surveillance
- Public-square monitoring
- Park surveillance
- Scenic-area monitoring
- Venue surveillance
- Applications requiring long-range PTZ control and close-up viewing
- Outdoor locations requiring extended infrared night visibility
Downloads
Frequently Asked Questions
The camera delivers up to 4MP resolution at 2560 × 1440. Its main stream supports this resolution at up to 25 fps in 50 Hz mode or 30 fps in 60 Hz mode.
The LTPTZIP514NW-X25IR provides 25× optical zoom and 16× digital zoom. Its 4.8 mm to 120 mm lens offers a horizontal field of view ranging from 55° at wide angle to 2.4° at telephoto.
The built-in infrared illuminator provides an IR range of up to 492 feet (150 meters). The camera can produce an image at 0 lux when its infrared illumination is active.
Yes. The camera has a metal housing with an IP66 ingress-protection rating and operates in temperatures from -22°F to 149°F (-30°C to 65°C), with humidity of 90% or less when non-condensing.
Yes. It supports PoE+ under the IEEE 802.3at standard. It can also be powered using 24 VAC and consumes a maximum of 24 W, including up to 9 W for infrared illumination and 1.6 W for the heater.
Yes. It supports 300 presets, 8 patrols with up to 32 presets per patrol, and 4 pattern scans. Park actions and scheduled tasks can activate presets, patrols, patterns, auto scans, tilt scans, random scans, frame scans, and panorama scans.
The camera supports line-crossing detection, intrusion detection, region-entrance detection, region-exiting detection, unattended-baggage detection, object-removal detection, and audio-exception detection. Face capture is also supported.
Yes. It includes a built-in memory-card slot supporting microSD, microSDHC, and microSDXC cards with capacities up to 256 GB. It also supports NAS storage through NFS or SMB/CIFS and Automatic Network Replenishment.
Yes. It provides one line-level audio input and one line-level audio output. Supported audio compression formats include G.711, G.722.1, G.726, MP2L2, and PCM, with environmental noise filtering also supported.
The LTB762 wall mount is included. The datasheet also identifies PTZKB836, LTB742, LTB211, LTB741, PTZKB837, and LTB751 as optional accessories.
