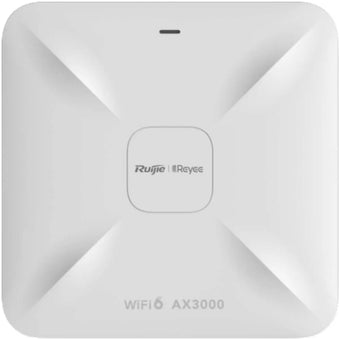

Ruijie Reyee RG-RAP2260 AX3000 Wi-Fi 6 Ceiling Access Point with 2.5G Uplink and Mesh Support

Yes. The RG-RAP2260 is a Wi-Fi 6 ceiling access point that supports Wi-Fi 6 on both 2.4 GHz and 5 GHz bands. The datasheet lists a maximum wireless data rate of 2974 Mbps, with up to 2401 Mbps on 5 GHz and 573 Mbps on 2.4 GHz. In practical terms, that gives you more headroom for busy offices, classrooms, and retail spaces where multiple users are online at the same time. It is also described as a dual-radio design with 4 spatial streams and MU-MIMO support on both bands.

The official materials position this model for environments with 500+ client connections, which is one of the main reasons buyers look at it for higher-density deployments. In the datasheet, the maximum number of associated wireless clients is listed as 64 on 2.4 GHz, 512 on 5 GHz, and 512 when 2.4 GHz and 5 GHz are enabled together. The recommended number is lower and depends on radio mode and channel width, reaching up to 110 clients when using IEEE 802.11ax with 160 MHz. That matters because it helps set realistic expectations between maximum capability and smoother day-to-day performance.

Yes. One of the product highlights is a 2.5 Gbps uplink, and the hardware specifications list one 10/100/1000/2500BASE-T port. The datasheet also lists one separate 10/100/1000BASE-T port. For buyers, that matters because faster uplink capacity helps the wired side keep up with the access point’s higher Wi-Fi 6 throughput. It is especially useful when many users are active at once or when you want to avoid a traditional Gigabit bottleneck.

The RG-RAP2260 supports both DC power and PoE/PoE+. Specifically, the datasheet lists IEEE 802.3af and IEEE 802.3at input standards, and it also shows a local DC power connector rated at 12 V, 2 A. There is one important detail: under 802.3af PoE, radio transmission and reception is limited to 2T2R at both 2.4 GHz and 5 GHz, and the 5 GHz wireless rate drops to 60% of the original rate. The package contents section also says the power adapter is not included, so buyers planning a local power installation should account for that.

Yes. The datasheet lists the mounting options as Ceiling/Wall, so you are not limited to only one installation style. That gives you more flexibility when you need to work around room layout, cable paths, or coverage planning. The package contents also include a mounting bracket, screws, plastic expansion anchors, and an alignment sticker, which helps simplify installation. For buyers, that means less guesswork about whether extra mounting hardware is needed just to get started.

Yes. The product highlights mention Reyee Mesh Technology, and the software specifications confirm both Mesh management and AP Mesh support. The same section also lists 802.11k/v roaming, fast transition (802.11r), Layer 2 roaming, Layer 3 roaming, and AI roaming. That matters because these features are designed to make coverage expansion easier and client movement between APs smoother. For multi-AP deployments, those are the kinds of details buyers usually care about before choosing an access point platform.

The datasheet lists multiple security and authentication options, including PSK authentication, 802.1X authentication, and several encryption modes such as WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, OWE, WPA3-SAE, and WPA2-PSK/WPA3-SAE. It also supports static allowlists, static blocklists, and MAC-based blocklist/allowlist entries. In addition, the product highlights mention standalone captive portal support for Wi-Fi authentication. For buyers, this matters because it gives more flexibility for guest access, internal user policies, and stronger wireless security standards.

The RG-RAP2260 supports several management methods. The datasheet lists Ruijie Reyee App management, eWeb management, Ruijie Cloud management, SNMP, and network-wide configuration and management. It also notes configuration synchronization among the app, eWeb, and Ruijie Cloud, plus the ability to display device information on Ruijie Cloud. That gives buyers more than one way to deploy and maintain the unit depending on whether they prefer local web access, cloud visibility, or app-based management.

According to the package contents section, the box includes 1 access point, 1 mounting bracket, 2 cross pan head screws, 2 plastic expansion anchors, 1 user manual, 1 warranty card, and 1 alignment sticker. The accessories line specifically says the power adapter is not included. That is useful to know before ordering, especially if your install will not use PoE. It helps prevent delays by letting you plan power and mounting needs up front.

Yes. The product is described as a ceiling access point for indoor use, and the environmental section gives its operating conditions. It supports an operating temperature of 0°C to 40°C, storage temperature of –40°C to +70°C, and 5% to 95% RH non-condensing for both operating and storage humidity. The datasheet also lists an IP41 rating and Ethernet surge protection of ±2 kV for common mode. For buyers, that helps confirm it is intended for indoor deployments rather than exposed outdoor installations.
