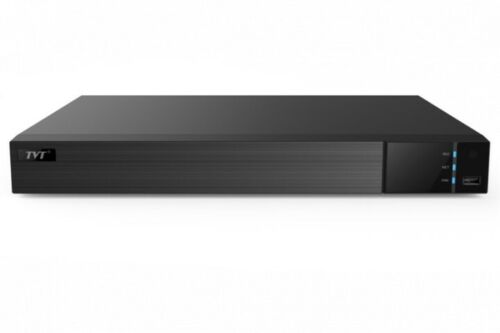

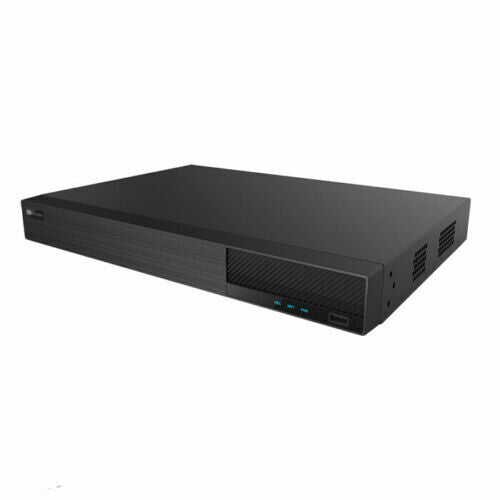

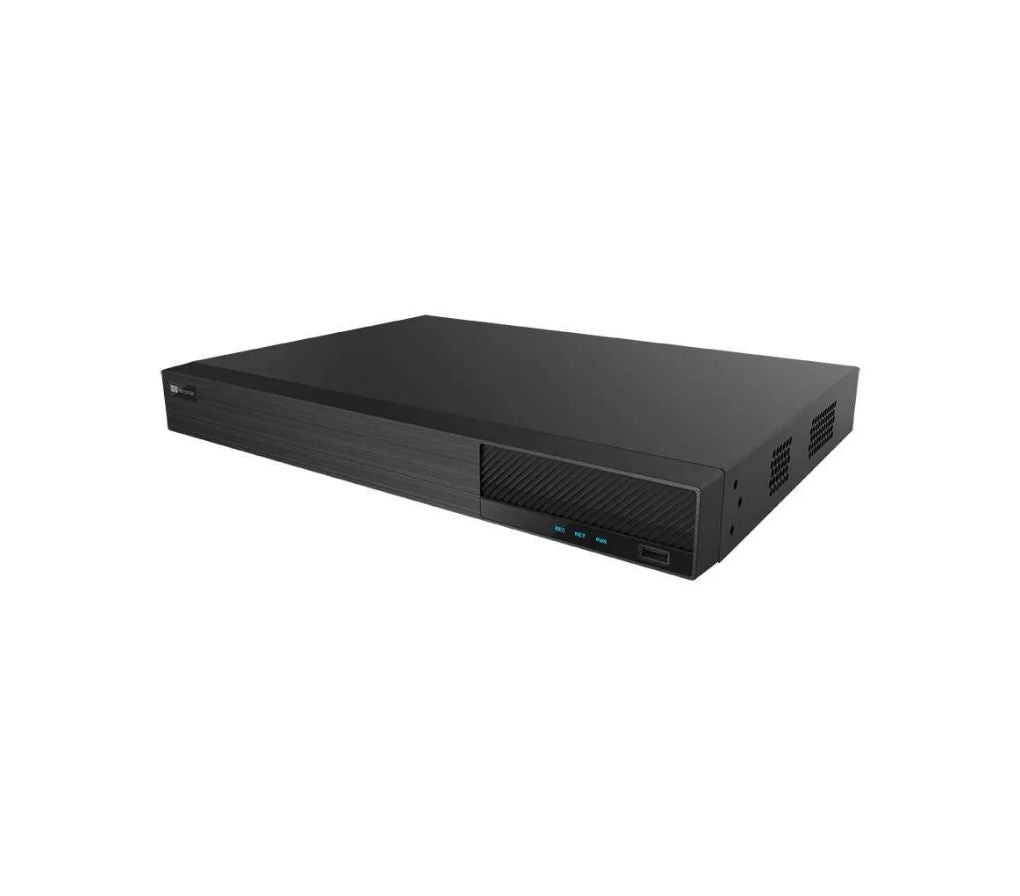

The ED8216H5-FN is a hybrid DVR, which means it is designed to work with both analog and IP cameras at the same time. The datasheet says it supports 16 analog channels through BNC inputs and 8 IP channels by default, with IP input expandable up to 16 channels. It also supports TVI, AHD, and CVI formats, with listed resolutions including 8MP, 5MP, 4MP, 3MP, 1080P, 720P, and WD1. That makes it a strong fit for buyers who want to keep existing coax cameras in place while adding newer IP cameras as the system grows.

According to the specification table, the recorder has 16 analog video inputs and 8 IP inputs by default, while the IP side can go up to 16 channels. The datasheet also lists the total input as 24CH. For a buyer, that matters because it gives more room to expand without replacing the recorder right away. It is especially useful when you are managing a mixed analog-and-IP environment and want one recorder to handle both sides of the system.

Yes, this model is built for high-resolution surveillance. The datasheet lists HDMI output up to 3840 × 2160, which gives you 4K display capability on a compatible monitor. It also shows analog channel support for 4K-related modes and IP channel support up to 8MP at 25fps or 30fps. In real use, that helps when you need clearer detail on playback or live view, especially in larger spaces where image clarity can make a big difference.

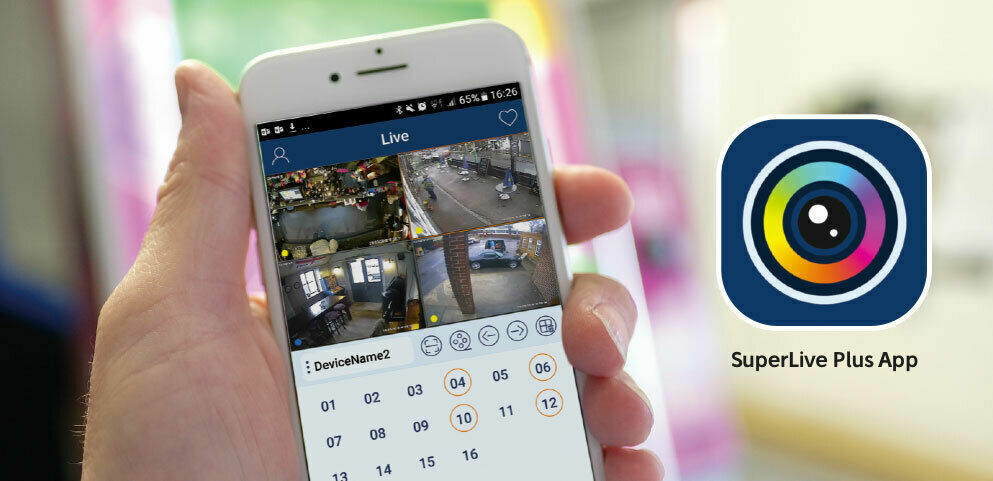

Yes. The datasheet states that remote control is available through Web Client or CMS for preview, playback, backup, PTZ, and configuration. It also says the recorder supports mobile surveillance on smart phones using iOS and Android, and it includes an RJ45 1000Mbps network port with protocols such as TCP/IP, DHCP, DDNS, UPnP, HTTP, HTTPS, NTP, and SMTP. That means you are not limited to on-site access, which is a major advantage if you need to check the property while away or manage multiple locations more efficiently.

The storage section in the datasheet lists SATA × 2, with support for up to 10TB per HDD, plus E-SATA × 1. That gives this recorder much more storage flexibility than entry-level units, which is important if you are recording many channels or using higher resolutions. The datasheet also highlights H.265 high profile compression, which helps reduce bit rate while maintaining video quality. For buyers, that combination means longer retention times and more efficient use of hard drive space.

The ED8216H5-FN supports simultaneous 16-channel playback. The datasheet also lists playback tools such as play, pause, fast forward, fast backward, and digital zoom, along with search options including time slice, time, event, tag, and smart search. This matters because it makes investigations much faster when you need to compare multiple camera views during the same event. Instead of checking one camera at a time, you can review a larger picture all at once.

Yes, PTZ support is one of the stronger selling points on this model. The datasheet says it supports PTZ preset and auto cruise, with up to 255 presets and 8 cruises. It also includes RS485 support for connection to PTZ or keyboard devices, and remote PTZ control is available through the Web Client or CMS. That gives users better coverage and more control in larger spaces where fixed cameras alone may not be enough.

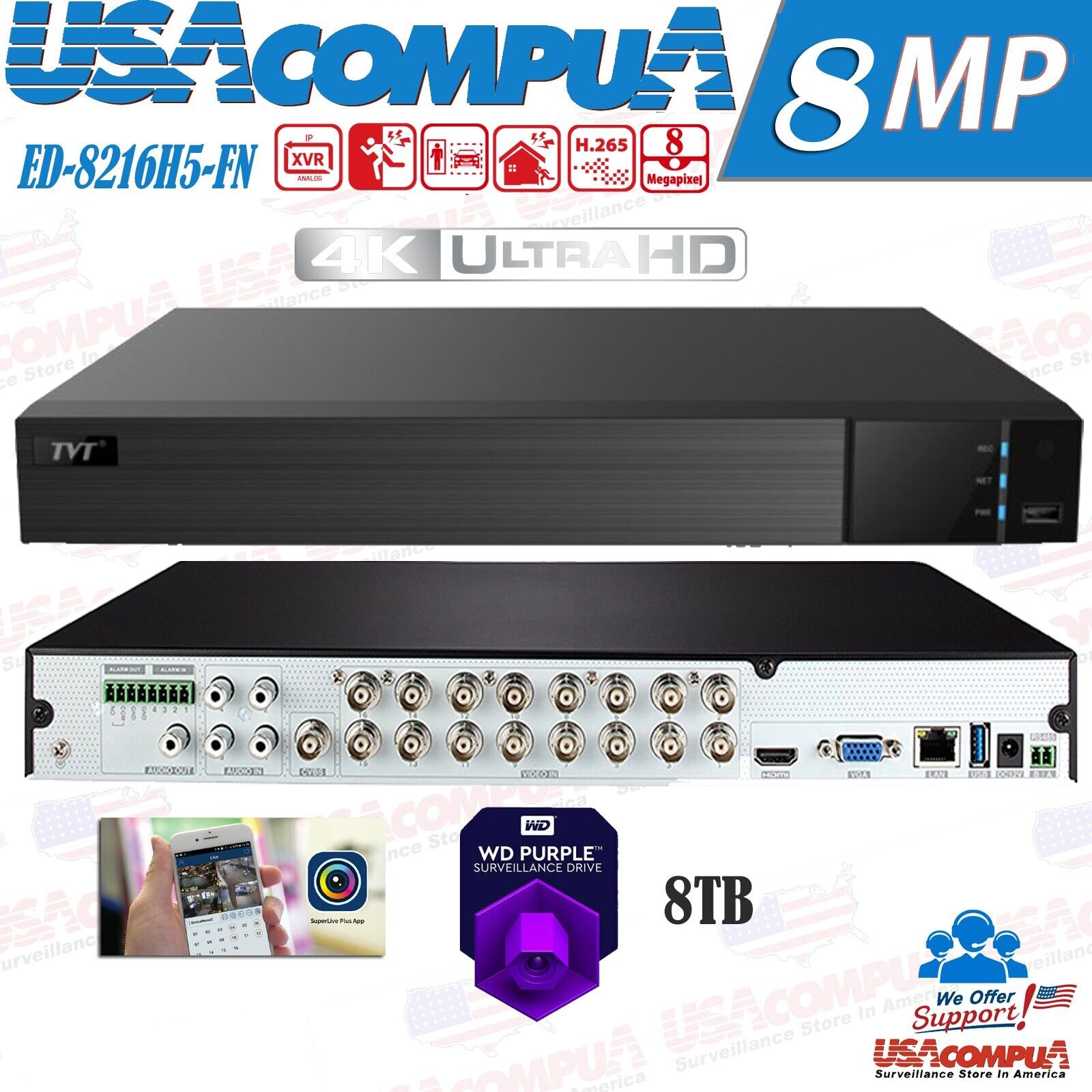

The recorder includes HDMI, VGA, and BNC video outputs. HDMI supports 3840 × 2160, 1920 × 1080, and 1280 × 1024, while VGA supports 1920 × 1080 and 1280 × 1024. The BNC output is listed as CVBS and can be used as the main or spot output. This gives buyers flexibility when connecting modern displays or integrating with older monitoring equipment already in place.

The datasheet says backup can be done both locally and over the network. Local backup options include U disk and USB mobile HDD, and the unit provides USB 3.0 × 1 and USB 2.0 × 1 ports. Network backup is also listed as supported, and the features page mentions flexible backup via USB and network. That gives you multiple ways to save and move footage when you need to archive video, share evidence, or protect important recordings.

Yes, the datasheet positions it for more than basic home use. It specifically says the product can meet security requirements for home, financial, commerce, enterprise, transportation, and government applications. It also includes features that matter in larger systems, such as mixed analog/IP support, 16-channel playback, alarm input and output, remote access, and support for up to 10 users. For buyers, that means it is built to serve more demanding installations where flexibility, scale, and easier management are important.
