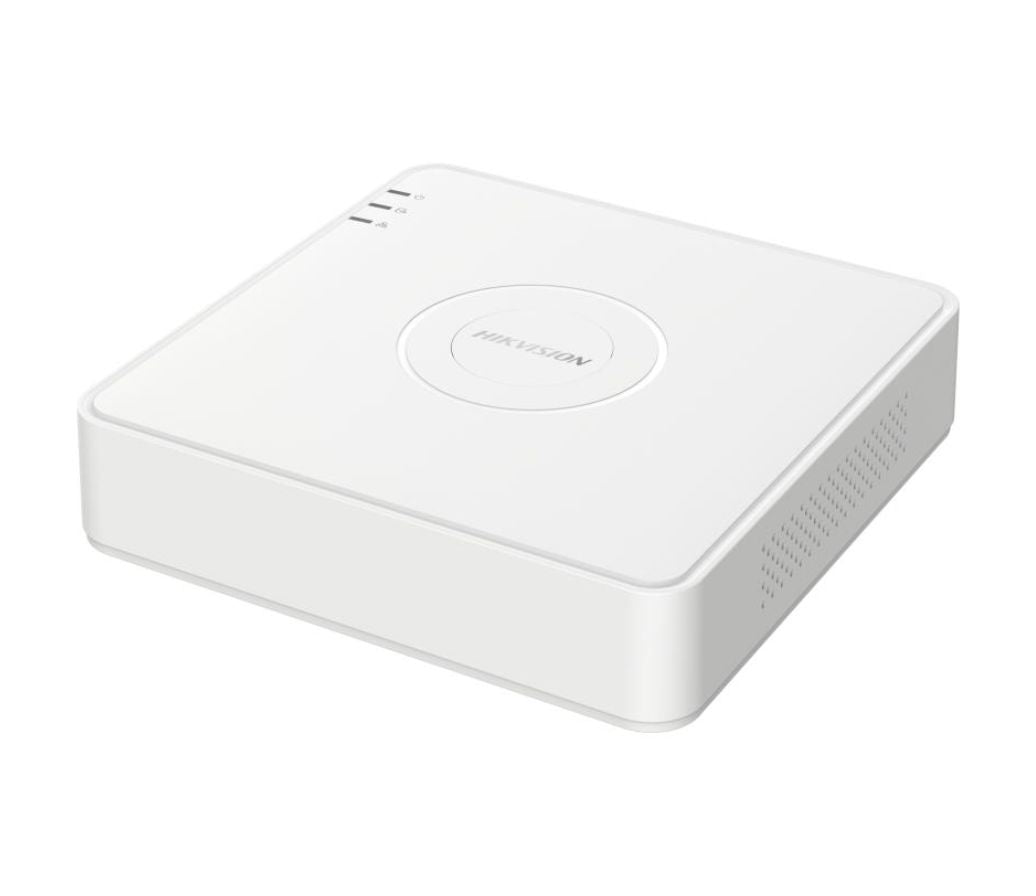

DS-7108HGHI-K1 Hikvision 8ch CCTV Recorder w/ HDD 1080p Lite Mini 1U H.265
DS-7108HGHI-K1 Hikvision 8ch CCTV Recorder w/ HDD 1080p Lite Mini 1U H.265
Out of stock
Description
Description
Hikvision DS-7100HGHI-K1 Turbo HD DVR
What if you could upgrade the heart of your surveillance system without automatically replacing every compatible camera and coax cable already in place? The Hikvision DS-7100HGHI-K1 Series gives you the flexibility to work with HDTVI, AHD, HDCVI, CVBS, and IP cameras from one compact recorder.
With H.265 Pro+ compression, audio over coax, smart playback search, and Hik-Connect support, it is designed to make everyday surveillance easier to manage while helping you get more value from your storage and existing infrastructure.
Choose between the 4-channel DS-7104HGHI-K1 and 8-channel DS-7108HGHI-K1 depending on the size of your system, with additional IP camera capacity available when your surveillance needs expand.
Why Buyers Choose This Model
A surveillance recorder should do more than simply save video. It should give you flexibility, make important footage easier to find, and help you build a system that can adapt as your security needs change.
Support for HDTVI, AHD, HDCVI, CVBS, and IP video inputs gives you more freedom when working with different camera technologies. That can be especially valuable when you already have compatible coax infrastructure and want a recorder that gives you multiple options instead of locking you into only one video format.
Hikvision's H.265 Pro+ compression is designed to improve encoding efficiency and reduce data storage costs. That means your recording system can use available hard-drive capacity more efficiently instead of consuming storage unnecessarily.
The DS-7104HGHI-K1 provides 4 analog video inputs, while the DS-7108HGHI-K1 provides 8. Whether you are protecting a smaller property or need additional camera coverage, you can select the recorder that better matches the size of your installation.
Want the flexibility to incorporate IP cameras as your needs change? The DS-7104HGHI-K1 supports 1 IP camera input expandable up to 5 IP channels, while the DS-7108HGHI-K1 supports 2 IP inputs expandable up to 10 IP channels.
The 4-channel model supports IP video up to 1080p, while the 8-channel model supports IP cameras up to 5 MP.
Compatible cameras can transmit audio through the coaxial cable, helping simplify installations where audio is required. The DS-7104HGHI-K1 supports 4 channels of audio via coax, while the DS-7108HGHI-K1 supports 8 channels.
The recorder supports full-channel recording at up to 1080p resolution. When an incident occurs, having properly recorded video gives you more useful visual information to review instead of leaving you wondering what actually happened.
Finding an important moment should not mean manually searching through hours of recordings. Smart search is designed to make playback more efficient, helping you get to the footage you need faster.
Hik-Connect and DDNS support provide convenient network-management options, giving you a recorder designed for connected surveillance rather than limiting you to viewing footage only from the local unit.
The recorder includes one SATA interface and supports a hard drive with up to 4 TB capacity. This provides centralized local storage for your surveillance recordings without requiring a separate recording device for each camera.
HDMI and VGA simultaneous output gives you convenient options for connecting a compatible monitor or display. HDMI output supports resolutions up to 1920 × 1080 at 60 Hz.
The series supports a maximum transmission distance of up to 1200 meters for a 720p HDTVI signal, giving installers additional flexibility when cameras need to be positioned farther from the recorder.
The recorder supports two-way audio by reusing the first audio input, providing an additional communication option for installations where two-way audio functionality is required.
Choose the Right Model for Your System
4 analog camera inputs, 1 IP camera input expandable up to 5 IP channels, up to 1080p IP resolution, 4-channel synchronous playback, and up to 32 remote connections.
8 analog camera inputs, 2 IP camera inputs expandable up to 10 IP channels, up to 5 MP IP resolution, 8-channel synchronous playback, and up to 64 remote connections.
What This Helps You Avoid
Maybe your current cameras still work, but the recorder no longer gives you the flexibility you need. Replacing an entire surveillance system when compatible cameras and cabling may still be usable can create unnecessary work and expense.
The DS-7100HGHI-K1 Series gives you a more flexible path. Its support for multiple analog HD formats and IP cameras allows you to bring different compatible camera technologies together while keeping recordings centralized in one DVR.
- Avoid being limited to one camera format: HDTVI, AHD, HDCVI, CVBS, and IP input support gives you greater flexibility.
- Avoid wasting storage unnecessarily: H.265 Pro+ improves encoding efficiency and helps reduce data storage costs.
- Avoid searching endlessly through recordings: Smart search helps make playback more efficient.
- Avoid a system with no room to adapt: Additional IP camera capacity gives both models another path for expansion.
- Avoid unnecessary audio cabling where supported: Audio can be transmitted through compatible coaxial camera connections.
- Avoid being tied to a single local display connection: HDMI and VGA simultaneous output provide flexible monitor connectivity.
The result is a surveillance recorder built around practical flexibility: connect the cameras your system supports, record them efficiently, find important footage faster, and maintain options for future expansion. Instead of wondering whether your recorder will limit the rest of your system, you have a platform designed to bring multiple surveillance technologies together.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Recommended Alternatives
Hikvision DS-7208HGHI-M1 8-Channel Smart H.265 Hybrid Security DVR Recorder
Only 9 left
Choose your option
DS-7108HUHI-K1 HIKVISION 4K 8CH 8 MEGAPIXEL CHANNEL DVR AHD-TVI OPTIONAL HDD
Out of stock
Choose your option
DS-7108HQHI-K1 8CH Turbo HD DVR H.265 Pro+ Hybrid Recorder Remote
Out of stock
Choose your option
Hikvision iDS-7216HQHI-M2/S 16-Channel AcuSense Hybrid Security DVR Recorder
In stock
Choose your option
Technical Specifications
DS-7108HGHI-K1 Hikvision 8ch CCTV Recorder w/ HDD 1080p Lite Mini 1U H.265
The Hikvision DS-7108HGHI-K1 is a professional security product. Highlights include HDTVI/AHD/CVI/CVBS/IP video input, audio via coaxial cable and up to 5/10-ch IP camera inputs (up to 1080p/5 MP).
Ideal applications
- Centralized recording and playback for multi-camera security systems
- Homes, small businesses and retail sites
- Plug & play installations with PoE cameras
Key Features
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 5/10-ch IP camera inputs (up to 1080p/5 MP)
- Max. 1200 m for 720p HDTVI signal
- H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
- Full channel recording at up to 1080p resolution
- 1 SATA interface (up to 4 TB capacity per HDD)
- Smart search for efficient playback
Recording
Video and Audio
Network
Auxiliary interface
General
Downloads
Frequently Asked Questions
The DS-7104HGHI-K1 provides 4 analog video inputs, while the DS-7108HGHI-K1 provides 8 analog video inputs. The DS-7104HGHI-K1 also supports 1 IP camera input expandable up to 5 IP channels, while the DS-7108HGHI-K1 supports 2 IP camera inputs expandable up to 10 IP channels.
The DVR supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs. Its analog connections use BNC interfaces, allowing the recorder to work with several common analog and HD-over-coax camera formats.
Yes. The DS-7104HGHI-K1 supports 1 IP camera input expandable up to 5 channels with resolution up to 1080p. The DS-7108HGHI-K1 supports 2 IP camera inputs expandable up to 10 channels with resolution up to 5 MP. Supported IP camera compression formats include H.265+, H.265, H.264+, and H.264.
With 1080p Lite mode disabled, supported encoding resolutions include 720p, WD1, 4CIF, VGA, and CIF. With 1080p Lite mode enabled, the recorder supports 1080p Lite, HD 720p Lite, WD1, 4CIF, VGA, and CIF. The datasheet also specifies full-channel recording at up to 1080p resolution.
The DS-7100HGHI-K1 supports H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression. Hikvision states that H.265 Pro+ improves encoding efficiency and reduces data storage costs.
The DVR has 1 SATA interface and supports up to 4 TB of storage capacity for the installed hard disk.
The DVR supports Hik-Connect and DDNS for network management. Its supported network protocols include TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, and HTTPS. The DS-7104HGHI-K1 supports up to 32 remote connections, while the DS-7108HGHI-K1 supports up to 64.
Yes. Audio transmission through the coaxial cable is supported. The DS-7104HGHI-K1 supports 4-channel audio via coaxial cable, while the DS-7108HGHI-K1 supports 8-channel audio via coaxial cable. The recorder also has a 1-channel RCA audio input and a 1-channel RCA audio output.
Yes. The datasheet specifies two-way audio support by reusing the first audio input.
The DVR provides HDMI and VGA video outputs with simultaneous output support. Supported output resolutions include 1920 × 1080 at 60 Hz, 1280 × 1024 at 60 Hz, 1280 × 720 at 60 Hz, and 1024 × 768 at 60 Hz.
