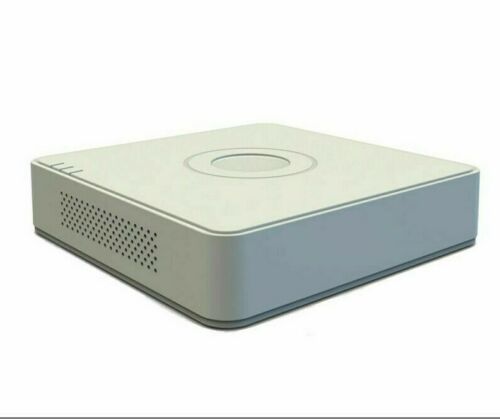

DS-7108HUHI-K1 HIKVISION 4K 8CH 8 MEGAPIXEL CHANNEL DVR AHD-TVI OPTIONAL HDD
DS-7108HUHI-K1 HIKVISION 4K 8CH 8 MEGAPIXEL CHANNEL DVR AHD-TVI OPTIONAL HDD
Out of stock
Description
Description

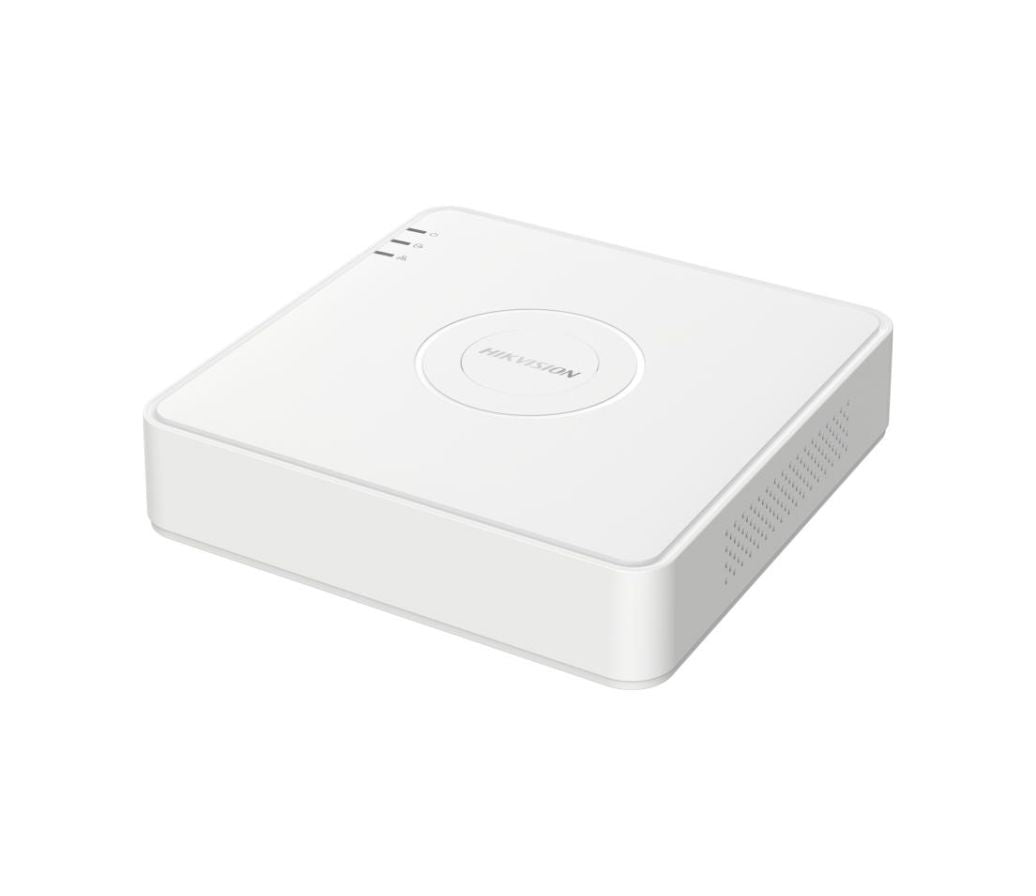

Hikvision DS-7100HUHI-K1 Series Turbo HD DVR
What if you could upgrade your surveillance system without immediately replacing every camera or installed coaxial cable?
The Hikvision DS-7104HUHI-K1 and DS-7108HUHI-K1 give you a flexible recording platform that supports HDTVI, AHD, HDCVI, CVBS and compatible IP cameras.
With recording at up to 8 MP, efficient H.265 Pro+ compression and convenient Hik-Connect support, you can capture important details, manage storage more effectively and monitor your property remotely.
Choose the four-channel model for smaller installations or the eight-channel version when you need additional camera capacity and 4K HDMI output.
Why Buyers Choose This DVR Series
```Five Video Technologies — Greater Upgrade Flexibility
Support for HDTVI, AHD, HDCVI, CVBS and IP video lets you build a hybrid system around different compatible camera technologies. This can make upgrading an older coaxial installation easier while leaving room to introduce IP cameras where they make sense.
Up to 8 MP Recording — More Useful Image Detail
Would a low-detail recording give you enough information when an incident matters? Recording at resolutions up to 8 MP helps preserve clearer visual evidence so you can review activity with greater confidence.
H.265 Pro+ Compression — More Efficient Storage
H.265 Pro+ improves encoding efficiency and helps reduce video-storage costs. You get a more storage-conscious recording system without giving up the supported high-resolution options.
Expandable IP Camera Support — Room for Your System to Evolve
The DS-7104HUHI-K1 supports up to eight IP camera inputs in Enhanced IP mode, while the DS-7108HUHI-K1 supports up to 16. This provides additional flexibility when your property or surveillance requirements grow.
Audio over Coax — Add Sound Without Separate Audio Cabling
The four-channel model supports four audio-over-coax channels, and the eight-channel model supports eight. With compatible equipment, video and audio can travel over the coaxial connection, helping simplify installation.
Long-Distance HDTVI Transmission — Cover Larger Properties
HDTVI signals can travel up to 800 meters at 1080p and up to 1,200 meters at 720p. This makes the series suitable for installations where cameras must be positioned far from the recorder.
Hik-Connect and DDNS — Easier Remote Access
Hik-Connect and DDNS support make it easier to manage network access to the recorder. Instead of wondering what is happening while you are away, you can maintain a more convenient connection to your surveillance system.
Smart Search — Find Relevant Footage Faster
When something happens, do you want to spend unnecessary time searching through recordings? Smart-search support helps make playback review more efficient so you can focus on the footage that matters.
Up to 6 TB of Storage — Centralized Video Retention
One SATA interface supports a hard drive with capacity up to 6 TB. This gives you centralized local storage for recorded video without requiring multiple internal disks.
HDMI and VGA Outputs — Flexible Local Monitoring
Both models support HDMI and VGA monitor connections. The DS-7108HUHI-K1 also provides HDMI output at up to 4K resolution, giving you a higher-resolution local display option.
Multi-Channel Synchronous Playback — Review Events from More Angles
The DS-7104HUHI-K1 supports four-channel synchronous playback, while the DS-7108HUHI-K1 supports eight channels. Reviewing cameras together can help you understand how an event moved across different areas of the property.
Broad Network Support — Easier System Integration
Support for protocols including Hik-Connect, ONVIF, HTTPS, NFS and iSCSI gives installers more options when connecting, managing and integrating the recorder within a compatible network environment.
Which Model Fits Your Property?
- DS-7104HUHI-K1: Choose this model when you need four analog inputs, up to eight IP inputs in Enhanced IP mode, four-channel synchronous playback and HDMI output up to 1080p.
- DS-7108HUHI-K1: Choose this model when you need eight analog inputs, up to 16 IP inputs in Enhanced IP mode, eight-channel synchronous playback and HDMI output up to 4K.
Enhanced IP mode may conflict with smart events such as perimeter protection or with other functions, so the applicable user manual should be reviewed when planning the system.
What This Helps You Avoid
An aging surveillance system can leave you choosing between unclear recordings and the expense of replacing equipment that may still be usable. Mixing camera technologies can also become complicated when the recorder does not provide enough compatibility or room for expansion.
The DS-7100HUHI-K1 Series addresses that problem with hybrid video-input support, recording at up to 8 MP and expandable IP-camera capacity. Instead of building around one signal format, you gain a recorder designed to accommodate several compatible analog and network-camera technologies.
H.265 Pro+ helps prevent storage from being used less efficiently, while smart search reduces the frustration of reviewing footage manually. Audio over coax can simplify compatible installations, and Hik-Connect support helps you stay connected when you are away.
The result is a more adaptable surveillance foundation: clearer recorded detail, easier footage review and a practical path for upgrading your system as your security needs change.
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Available Models
Recording
Note: 8 MP at 8 fps is available only on channel 1 of the DS-7104HUHI-K1.
Note: 8 MP Lite is available only on the DS-7104HUHI-K1.
Video and Audio
Enhanced IP mode may conflict with smart events, including perimeter-protection functions, or with other features. Consult the applicable user manual for details.
Network
Storage and Auxiliary Interfaces
General
Physical Interfaces
The rear panel of the DS-7104HUHI-K1 provides four video-input interfaces.
Downloads
Frequently Asked Questions
The DS-7104HUHI-K1 has four analog video inputs, while the DS-7108HUHI-K1 has eight. The 8-channel model also provides higher network bandwidth, more remote connections, eight-channel synchronous playback and HDMI output at up to 4K resolution.
The DVR supports HDTVI, AHD, HDCVI, CVBS and IP video inputs. Its IP channels support compatible H.265+, H.265, H.264+ and H.264 cameras at resolutions up to 8 MP.
The DS-7104HUHI-K1 provides two IP channels, expandable to six, or four channels expandable to eight when Enhanced IP mode is enabled. The DS-7108HUHI-K1 provides four IP channels, expandable to 12, or eight channels expandable to 16 in Enhanced IP mode. Each Enhanced IP mode channel supports up to 4 Mbps.
The series supports recording at up to 8 MP resolution. With 8 MP Lite mode disabled, the available encoding resolutions include 8 MP, 5 MP, 3K, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA and CIF.
With 8 MP Lite mode disabled, the main stream supports 8 MP at 8 fps, 5 MP at 12 fps, 3K at 12 fps, 4 MP at 15 fps and 3 MP at 18 fps. It supports 1080p, 720p, WD1, 4CIF, VGA and CIF at 25 fps for PAL or 30 fps for NTSC. The datasheet notes that 8 MP at 8 fps is available only on channel 1 of the DS-7104HUHI-K1.

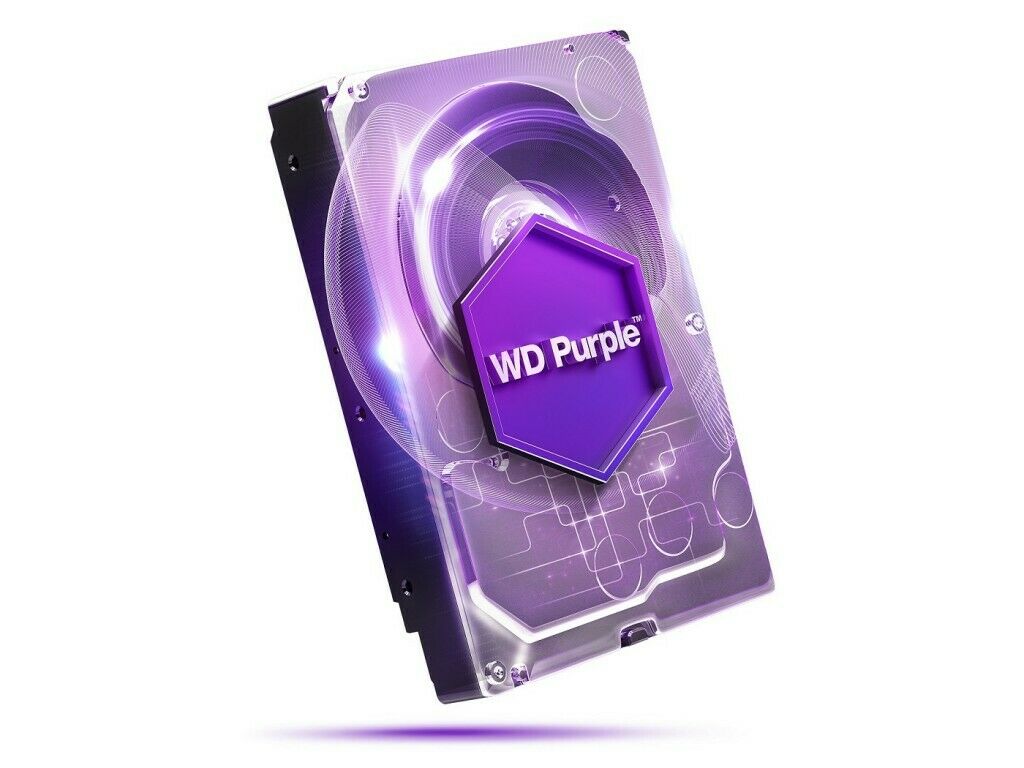

Both models have one SATA interface and support one hard drive with capacity up to 6 TB.
Yes. The DS-7104HUHI-K1 supports four audio-over-coax channels, while the DS-7108HUHI-K1 supports eight. Both models also provide one RCA audio input, one RCA audio output and one-channel two-way audio using the first audio input.
Yes. The DVR supports Hik-Connect and DDNS for network access and management. The DS-7104HUHI-K1 supports up to 32 remote connections, while the DS-7108HUHI-K1 supports up to 64.
The DS-7108HUHI-K1 provides HDMI output at up to 4K resolution at 30 Hz. The DS-7104HUHI-K1 provides HDMI output at up to 1920 × 1080 at 60 Hz. Both models also include one VGA output supporting up to 1920 × 1080 at 60 Hz.
According to the datasheet, H.265 Pro+ improves encoding efficiency and reduces video-storage costs. The DVR also supports H.265 Pro, H.265, H.264+ and H.264 video compression.
