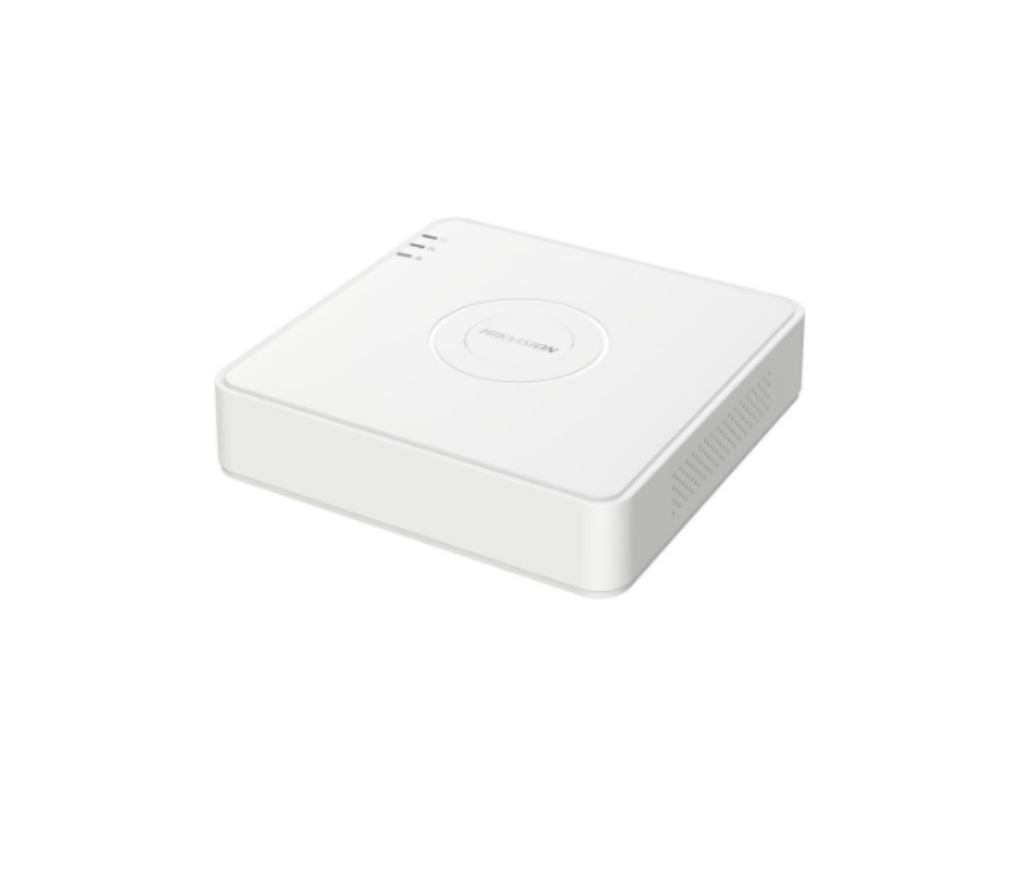

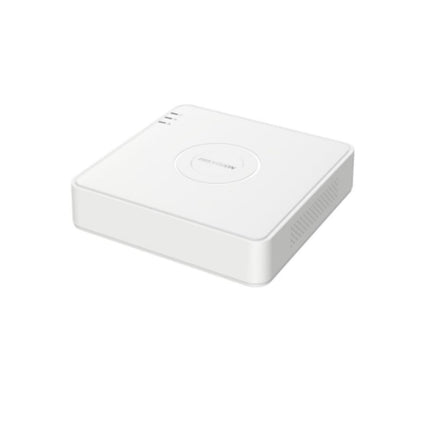

DS-7108HGHI-M1 Hikvision 8ch CCTV Recorder w/ HDD 8-ch 720p Mini 1U H.265 DVR
DS-7108HGHI-M1 Hikvision 8ch CCTV Recorder w/ HDD 8-ch 720p Mini 1U H.265 DVR
One Way Audio
Out of stock
Description
Description
DS-7108HGHI-M1 Hikvision 8ch CCTV Recorder w/ HDD 8-ch 720p Mini 1U H.265 DVR >
This listing includes:
-  (1) HARD DRIVE OPTION: NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB
- (1) DIGITAL VIDEO RECORDER: DS-7108HGHI-M1
DS-7108HGHI-M1  view data sheet
8-ch 720p Mini 1U H.265 DVR
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 10-ch IP camera input (up to 5 MP)
- Encoding ability up to 1080p lite @ 15 fps
- Max. 1200 m for 720p HDTVI signal
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
8-ch 720p Mini 1U H.265 DVR
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 10-ch IP camera input (up to 5 MP)
- Encoding ability up to 1080p lite @ 15 fps
- Max. 1200 m for 720p HDTVI signal
Specification
Motion Detection 2.0
Recording
Video And Audio
Network
Auxiliary Interface
General
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
For 1080p and 720p stream access CIF/QVGA@15 fps
For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 4 Mbps
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
- IP Video Input
2-ch (up to 10-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
- HDTVI Input1080p25, 1080p30, 720p25, 720p30
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputSupport
- HDMI Output
1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
- VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Input
1-ch RCA (2.0 Vp-p, 1 K?)
8-ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way AudioReuse the first audio input
- Synchronous Playback8-ch
- Network
- Total Bandwidth72 Mbps
- Remote Connection64
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP?, HTTPS
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 4 TB capacity for each disk
- USB InterfaceRear panel: 2 ? USB 2.0
- Alarm In/OutN/A
- General
- Power Supply12 VDC, 1.5 A
- Consumption? 17 W (without HDD)
- Working Temperature-10 ?C to 55 ?C (14 ?F to +31 ?F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)200 ? 200 ? 45 mm (7.9 ? 7.9 ? 1.8 inch)
- Weight? 1 kg (without HDD, 2.2 lb.)
